EDS-G205A-4PoE

Quick Installation Guide

Moxa EtherDevice Switch

Edition 4.0, February 2017

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The EDS-G205A-4PoE series industrial Ethernet switches are rugged

entry-level industrial 5-port Gigabit PoE switches for environments that

fall under the pollution degree 2 category. The industrial Ethernet

switches support IEEE 802.3, IEEE 802.3u, and IEEE 802.3x with

10/100/1000M, full/half-duplex, MDI/MDIX auto-sensing, and IEEE

802.3af/IEEE 802.3at PoE standards.

The EDS-G205A-4PoE series provides 12/24/48 VDC redundant power

inputs that can be connected simultaneously to a live DC power source.

The switches are available with a standard operating temperature range

from 0 to 60°C, or with a wide operating temperature range from -40 to

75°C, and their IP30 metal housing makes them rugged enough for any

harsh industrial environment.

To provide greater versatility for use with applications from different

industries, the EDS-G205A-4PoE switches also allow users to enable or

disable broadcast storm protection, 802.3az, Jumbo frame, and PoE high

power with DIP switches on the outer panel. The EDS-G205A-4PoE

switches can be easily installed on a DIN-Rail or in distribution boxes. The

DIN-Rail mounting capability and IP30 metal housing with LED indicators

make the plug-and-play EDS-G205A-4PoE switches reliable and easy to

use.

NOTE

Throughout this Hardware Installation Guide, we use EDS as an

abbreviation for Moxa EtherDevice Switch:

EDS = Moxa EtherDevice Switch

Package Checklist

Your EDS is shipped with the following items. If any of these items is

missing or damaged, please contact your customer service

representative for assistance.

•Moxa EtherDevice™ Switch

•Quick Installation Guide (printed)

•Warranty card

Features

High-watt Power-over-Ethernet

•Up to 30 watts output per PoE port (IEEE 802.3at)

•Supports PoE high power output up to 36 W

•Short circuit and over-current protection

•Auto detection for IEEE 802.3af and IEEE 802.3at

High Performance Network Switching Technology

•10/100BaseT(X), 1000BaseT and 100/1000BaseX (SFP)

•10/100/1000M, Full/Half-Duplex, MDI/MDIX auto-sensing

•IEEE 802.3/802.3u/802.3x

•Store and Forward switching process type, 8k MAC address entries

•10k jumbo frames

Rugged Design

•Redundant dual 12/24/48 VDC power inputs

•Operating temperature range from 0 to 60°C, or extended operating

temperature of -40 to 75°C for (T) models.

- 3 -

•IP30 metal housing

•DIN-rail or panel mounting ability

EDS-G205A-4PoE Panel Layouts

1. Terminal blocks for P1/P2

power inputs

2. Power input P1 LED

3. Power input P2 LED

4. PoE status LED

5. 10/100/1000BaseT(X) PoE

ports (ports 2, 3, 4, 5)

6. TP port speed LED

7. 10/100/1000BaseT(X) port

(port 1)

8. 100/1000BaseX SFP slot

9. Model name

10.

Grounding screw

11.

P1 power input terminal

block

12.

P2 power input terminal

block

13.

DIP switches

14.

Screw holes for panel

mounting kit

15.

DIN-rail mounting kit

- 4 -

Mounting Dimensions

Unit = mm (inch)

- 5 -

DIN-Rail Mounting

The aluminum DIN-rail attachment plate should already be fixed to the

back panel of the EDS when you take it out of the box. If you need to

reattach the DIN-rail attachment plate, make sure the stiff metal spring is

situated towards the top, as shown in the figures below.

STEP 1: Insert the top of the

DIN

-rail into the slot just below

the stiff m

etal spring.

STEP 2: The DIN-Rail attachment

unit will snap into place as shown

below.

To remove the EDS from the DIN-rail, simply reverse Steps 1 and 2

above.

Wall Mounting (optional)

For some applications, you will find it convenient to mount the

EDS-G205A-4PoE on a wall, as shown in the following figures.

STEP 1:

Remove the aluminum

DIN

-rail attachment plate

from

the EDS-G205A-

4PoE’s

rear panel, and then attach

the wall mount plates as

shown

in the diagram at

the

right.

STEP 2:

Mounting

the EDS-G205A-

4PoE on the wall requires 4

screws. Use the

switch, with wall mount plates

attached, as a guide to mark the correct locations of

the 4 screws. The heads of the screws should be less

than 6.0 mm in diameter, and the shafts should be less

than 3.5

mm in diameter, as shown in the figure at

the

right.

NOTE

Before tightening the screws into the wall, make sure the screw

head and shank size are suitable by inserting the screw into one

of the keyhole

-shaped apertures of the wall mounting plates.

not screw the screws in completely—leave about 2 mm to

allow room for sliding the wall mount panel between the wall and

the screws

- 6 -

STEP 3:

Once the screws are fixed on the

wall, insert the four screw heads

through the large parts of the

keyhole

shaped apertures, and then

slide

the EDS downwards, as

indicated. Tighten the four screws

for

added stability.

Wiring Requirements

WARNING

Safety First

Turn the power off before disconnecting modules or wires. The

correct

power supply voltage is listed on the product label. Check

the voltage of your power source to make sure that you are using

the correct voltage. Do NOT use a voltage greater than what is

specified on the product label

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

You should also pay attention to the following points:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label wiring to all devices in the system

when necessary.

•Please use copper conductor only.

- 7 -

Grounding the EtherDevice Switch

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

Wiring the Redundant Power Inputs

The two 2-contact terminal block connectors on the EDS’s top panel are

used for the EDS’s two DC power inputs. Top and front views of the

terminal block connectors are shown here.

STEP 1:

Insert the negative/positive DC wires into the V

-/V+

terminals.

STEP 2:

To keep the DC wires from pulling loose, use a small

flat

-blade screwdriver to tighten the wire-

clamp screws on

the front of the terminal block connector.

STEP 3:

Insert the plastic terminal block connector prongs into the

terminal block receptor, which is located on

the

EDS’s top

panel.

ATTENTION

Before connecting the EtherDevice Switch to the DC power

inputs,

make sure the DC power source voltage is stable and

the

DC power source is supplied by UL Listed Isolated Power Supply.

Communication Connections

The EDS-G205A-4PoE switches have 4 10/100/1000Base-T(X) PoE

Ethernet ports for connecting PoE devices, and 1 10/100/1000BaseT port

or 1 100/1000BaseX SFP slot for uplink connection. For fiber connections,

a field installed optical transceiver must be UL Recognized, in the Class I

category, and contain the following CDRH Certification Marking:

‘Complies with 21CFR 1040.10 and 1040.11’.

10/100/1000BaseT(X) Ethernet Port Connection

10/100/1000BaseT(X) ports located on the EDS’s front panel are used to

connect to Ethernet-enabled devices. Below we show pinouts for both

MDI (NIC-type) ports and MDI-X (HUB/switch-type) ports, and also show

cable wiring diagrams for straight-through and cross-over Ethernet

cables.

- 8 -

10/100BaseT(x) RJ45 Pinouts

MDI Port Pinouts

MDI-X Port Pinouts

8-pin RJ45

Signal

Tx+

Tx-

Rx+

Rx-

Signal

Rx+

Rx-

Tx+

Tx-

1000BaseT RJ45 Pinouts

MDI

MDI-X

BI_DA+

BI_DB+

BI_DA-

BI_DB-

BI_DB+

BI_DA+

BI_DC+

BI_DD+

BI_DC-

BI_DD-

BI_DB-

BI_DA-

BI_DD+

BI_DC+

BI_DD-

BI_DC-

PoE Ethernet Port Connection

PoE ports located on the EDS switch’s front panel are used to connect to

PoE-enabled devices. The pinout follows the Alternative A, MDI mode of

802.3af/802.3at standards. Details are shown below.

PoE Port Pinouts

8-pin RJ45

Power

V+

V-

NOTE

According to IEEE 802.3af/at standards, the PD shall be

implemented to be insensitive to the polarity of the power supply

and shall be able to operate per MDI mode and MDI

-X mode.

However, some PDs only support MDI mode or MDI

X mode only.

The following figure

s show how to select the correct cable to

connect between the PD and EDS-G205A-4PoE.

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

- 9 -

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

NOTE

If the PD only supports PoE MDI mode (V+, V+, V-, V- for pins 1,

2, 3, 6), choose a cross

-over Ethernet cable to connect the PD

and the EDS switch. If the PD only supports PoE MDI

-X mode (V-

-, V+, V+ for pins 1, 2, 3, 6), choose a straight-through

Ethernet cable between the PD and the EDS switch.

Redundant Power Inputs

Both power inputs can be connected simultaneously to live DC power

sources. If one power source fails, the other live source acts as a backup,

and automatically supplies all of the EDS’s power needs.

DIP Switch Settings

The default setting for each DIP Switch is OFF. The following table

explains the effect of setting the DIP Switches to the ON positions.

EDS-G205A-4PoE

(Copper Model)

EDS-G205A-4PoE-1GSFP

(SFP Model)

DIP Switch

Setting

Description

BSP

Enable broadcast storm protection

OFF

Disable broadcast storm protection

Jumbo Frame

Enable jumbo frame function

OFF

Disable jumbo frame function

802.3az

Enable the energy-efficient Ethernet function

OFF

Disable the energy-efficient Ethernet function

PoE High

Power ON

Supports PoE high power output up to 36 W. PoE

high power is activated when an 802.3af or

802.3at connection is detected.

OFF

Supports standard PoE power output up to 30 W

100/1G SFP

(For SFP

model only)

Supports 100M SFP module

OFF Supports 1000M SFP module

–––

(For copper

model only)

– Serves no function (reserved for future use)

- 10 -

ATTENTION

To actively update

DIP switch settings, power off and then power

on the EDS.

LED Indicators

The front panel of the EDS switches contain several LED indicators. The

function of each LED is described in the following table.

LED

Color

State

Description

P1 AMBER On

Power is being supplied to power input

P1.

Off Power is

not

being supplied to power

input P1.

P2 AMBER On

Power is being supplied to power input

P2.

Off

Power is not being supplied to power

input P2.

10/100/

1000

AMBER

On TP port’s 10/100 Mbps or SFP port’s

100 Mbps link is active.

Blinking

Data is being transmitted at 10/100

Mbps.

Off

TP port’s 10/100 Mbps or SFP port’s

100 Mbps link is inactive.

GREEN

TP/SFP port’s 1000 Mbps link is active.

Blinking

Data is being transmitted at 1000

Mbps.

Off TP/SFP port’s 1000 Mbps link is

inactive.

PoE+

AMBER

The PoE device is connected by the

IEEE 802.3af standard

Blinking

(1 time/s)

The PoE power has been shut off

because the power budget is too low.

Off No PoE power output or no PoE

connected PoE devices

Green On

The PoE device is connected by IEEE

802.3at standard or PoE High Power

Off

No PoE power output or no PoE

connected PoE devices

Red Blinking

PoE failure:

– 1 time/s: PoE standard detection

failure

– 2 times/s: PoE current overload

Off

No PoE failure

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect the EDS’s

10/100/1000BaseT(X) ports to any kind of Ethernet device, without

needing to pay attention to the type of Ethernet cable being used for the

connection. This means that you can use either a straight-through cable

or cross-over cable to connect the EDS to Ethernet devices.

This manual suits for next models

Table of contents

Other Moxa Technologies Switch manuals

Moxa Technologies

Moxa Technologies EtherDevice EDS-205A series Assembly instructions

Moxa Technologies

Moxa Technologies EDS-208 series User manual

Moxa Technologies

Moxa Technologies TN-5305-T User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-728 Series Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP User manual

Moxa Technologies

Moxa Technologies UPORT 1200 series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-208A series Manual

Moxa Technologies

Moxa Technologies EDS-600 Series Manual

Moxa Technologies

Moxa Technologies PT-G7728 User manual

Moxa Technologies

Moxa Technologies EDS-726 Series Manual

Moxa Technologies

Moxa Technologies PowerTrans PT-7728-PTP Manual

Moxa Technologies

Moxa Technologies ToughNet TN-5524-8PoE Manual

Moxa Technologies

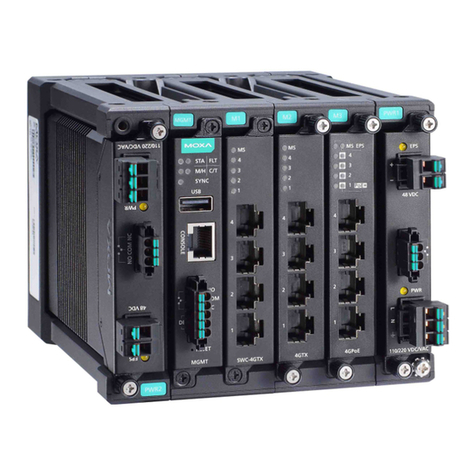

Moxa Technologies MDS-G4000 Series User manual

Moxa Technologies

Moxa Technologies ToughNet TN-5508 Series Manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-405A/408A Series Manual

Moxa Technologies

Moxa Technologies PT-7710 Series Manual

Moxa Technologies

Moxa Technologies PT-7528 Manual

Moxa Technologies

Moxa Technologies PT-7728 Series User manual

Moxa Technologies

Moxa Technologies S9450I Series User manual

Moxa Technologies

Moxa Technologies EDS-P308 Series Manual

Moxa Technologies

Moxa Technologies EDS-405A User manual

Moxa Technologies

Moxa Technologies EDS-G308 Series User manual

Moxa Technologies

Moxa Technologies EtherDevice EDS-4008 Series User manual

Moxa Technologies

Moxa Technologies ICS-G7748A Series User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
