Moxa Technologies MIINEPORT E1 User manual

P/N: 1802000012021

*1802000012021*

SDK for MiiNePort E1/E2

Quick Installation Guide

Version 1.0, December 2019

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The software development kit (SDK) for the MiiNePort E1 and MiiNePort

E2 is a powerful and versatile software suite for the development of

proprietary firmware on the MiiNePort E1 and MiiNePort E2. To expedite

time to market, the SDK for the MiiNePort E1 and MiiNePort E2 provides

comprehensive tools for development, testing, and mass production.

The software development kit includes:

•MiiNePort-IDE: An integrated platform for the development of

serial-to-Ethernet firmware.

•PComm Lite: Asoftware application for testing serial and TCP/IP

communications or transmissions.

•Search Utility: A search-and-update firmware utility for the mass

production of modules and serial devices through simultaneous

multiple unit configurations.

Available Starter Kit

•SDK for MiiNePort E1 and MiiNePort E2:SDK for the MiiNePort

E 1 and MiiNePort E2

Package Checklist

Each SDK package for the MiiNePort E1 and MiiNePort E2 contains the

following items:

•1 module for the MiiNePort E1 or MiiNePort E2.

•1 evaluation board for the MiiNePort E1 or MiiNePort E2

•1 universal power adapter

•2 power cords

•1 null modem serial cable

•1 crossover Ethernet cable

•1 USB cable

•Quick installation guide (print)

•Warranty card

NOTE

Please notify your sales representative if any of the above

items are missing or damaged.

Hardware Installation Procedure

Follow these steps to prepare the module and evaluation board for

testing and application development.

ATTENTION

For detailed information about the pin assignments, wiring, and

board layouts, refer to Chapter 1 and 2 of the MiiNePort E

-SDK

Series User’s Manual.

STEP 1:

Connect the 12 to 48 VDC power line with the evaluation

board’s power jack.

STEP 2:

Switch on the power switch.

STEP 3:

Use an RJ45 Ethernet cable to connect the evaluation board

to an Ethernet network.

- 3 -

STEP 4:

Use the USB cable to connect the evaluation board to the PC.

Software Utility Installation Procedure

Use the following procedure to install the SDK for the MiiNePort E1 or

MiiNePort E2 (MiiNePort-IDE):

Software Installation

For software installation, download the relevant utilities from Moxa's

website: https://www.moxa.com/en/support

1. Start the MiiNePort-IDE setup program to begin the installation.

When the Welcome window opens, click Next.

2. Click Install to install program files in the default directory.

3. The Installing window reports the progress of the installation.

4. Click Finish to complete the installation.

Evaluation Board Layout

E1-SDK Version

Pin Assignment

Serial Signal Pins

Function

GND

VCC

Reset

Data Out

Data In

Ready/RTSa

Reset to Defaultb

CTSc

a. Pin 6 can be configured as Ready/RTS (Request to Send),

Ready/DO, or RS-485 Tx Enabled (the default it Ready/RTS).

b. Pin 7 can be configured as Reset to Default, DIO, DTR, or RS-485

Tx Enabled (the default is Reset to Default).

c. Pin 8 can be configured as CTS (Clear to Send), DI, or DSR (the

default is CTS).

- 4 -

E2-SDK Version

Number

Description

MiiNePort E2 Module Location

Ethernet RJ45 Connector

Serial Interface Jumper

Power Switch

Power Jack

Power & Ready LED

DB9 Male Connector

Serial Port Status LED

Digital IO Terminal Block

Digital Output LED

Digital Input/Output Mode

Digital Input Switch

Circuit Pad

USB Type B Connector (Debug)

- 5 -

Module Pin Assignment

Bottom of the MiiNePort E2 Module

JP1

Signal Name

Function

Ethernet Tx+

Ethernet Transmit Data+

Ethernet Tx-

Ethernet Transmit Data-

Ethernet Rx+

Ethernet Receive Data+

Ethernet Rx-

Ethernet Receive Data-

JP2

Signal Name

Function

100M LED

Ethernet 100M LED

10M LED

Ethernet 10M LED

LRXD

Receive Serial Data

LTXD

Transmit Serial Data

LDCD

Data Carrier Detect

RS485_EN

RS-485 Enable

LRTS

Request To Send

LDTR

Data Terminal Ready

LDSR

Data Set Ready

LCTS

Clear To Send

JP3

Signal Name

Function

DIO0

Programmable Input/Output

DIO1

Programmable Input/Output

DIO2

Programmable Input/Output

DIO3

Programmable Input/Output

Reserved

N/A

Reserved

N/A

SW Reset

Reset To Factory Default

GND

Circuit Ground

Ready LED

System is Ready

VCC

Power Supply

Evaluation Board Ethernet Port

RJ45

Signal

Tx+

Tx-

Rx+

Rx-

- 6 -

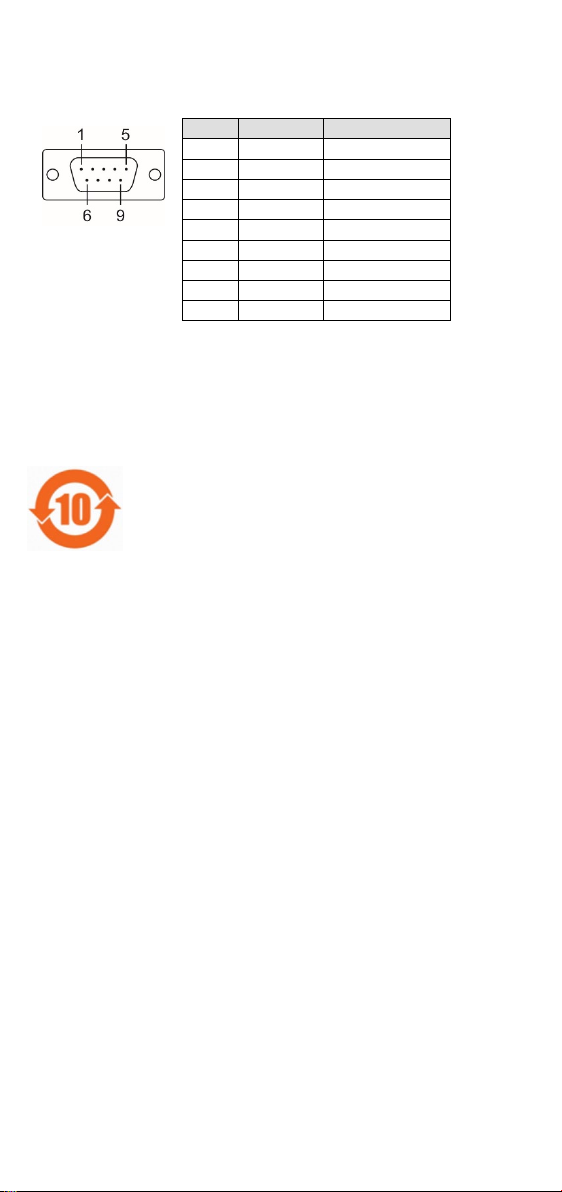

Evaluation Board Serial Port

DB9 Male

RS-232

RS-485-2W

DCD

–

RxD

–

TxD

D+

DTR

D-

GND

DSR

–

RTS

–

CTS

–

Reference Material

A detailed user’s guides can be downloaded from Moxa’s product page

under the MiiNePort Series’ product page.

Certification

This product complies with Chinese RoHS (Restriction of

Hazardous Substances) regulations for

Electronic

Information Products.
