Motorola MT120-SB21 User manual

120w 2.1 Soundbar

MT120-SB21

Soundbar RCA cable

Plug the system to the electroicity socket with the

right voltage.

Power cable wall mount kit(screw)

wall mountable wall mountable

How to put the soundbar on the wall .

897mm

hook

/ VOL -

3. / VOL - 4. / VOL +

/ VOL +

Side panel operation

/SOURCE

1. /SOURCE 2.

Play / Pause the songs.

Press it to decrease volume In USB*/BT mode, press it to move

backward

Press it to increase volume InUSB*/BTmode,pressittomoveforward

Press “ ” for continuous 3 seconds to

force disconnect the Bluetooth

Power on/Power o.

2. BASS : Press it and + or - to increase or decrease Bass.

3. TREBLE : Press it and + or - to increase or decrease treble.

4. : Short press to increase volume, long press to increase volume continuously .

5. - : Short press to decrease volume, long press to decrease volume continuously.

6. : In BT/USB* mode, short press to be previous song, long press to move backward.

7. : In BT/USB* mode, short press to be next song, long press to move forward.

8. : In BT/USB* mode, short press to play/pause, in HDMI ARC/OPT/AUX mode,

short press to be mute, in BT mode, long press to be disconnected.

9. MUTE : Short press to be mute.

10. BT : Bluetooth mode.

11. RESET : Short press to reset : (bass 0, treble : 0, volume : 10) .

12. EQ : Short press to change the following mode.

1 )POP(popular)

2 )ROC(rock)

3 )JAZ(jazz)

4 )CLA(classic)

5 )DIR(news)

6 )NOR(normal).

13. MOVIE : Short press to be movie mode.

14. SOURCE : Short press to change mode, BT, OP, HD(HDMI ARC), AU(AUX),

DU(DVD), USB*.

9. MUTE

10. BT

11. RESET

12. EQ

13. MOVIE

14. SOURCE

2. BASS

3. TREBLE

4. +

5. -

5.1

BASS TREBLE

MUTE BT RESET

EQ MOVIE

SOURCE

Remote controls

(1)

(2)

(4)

(6)

(5)

(10)

(11)

(13)

(12)

(14)

(9)

(3)

(8)

(7)

* Available, If connected

Motorola 120w SB

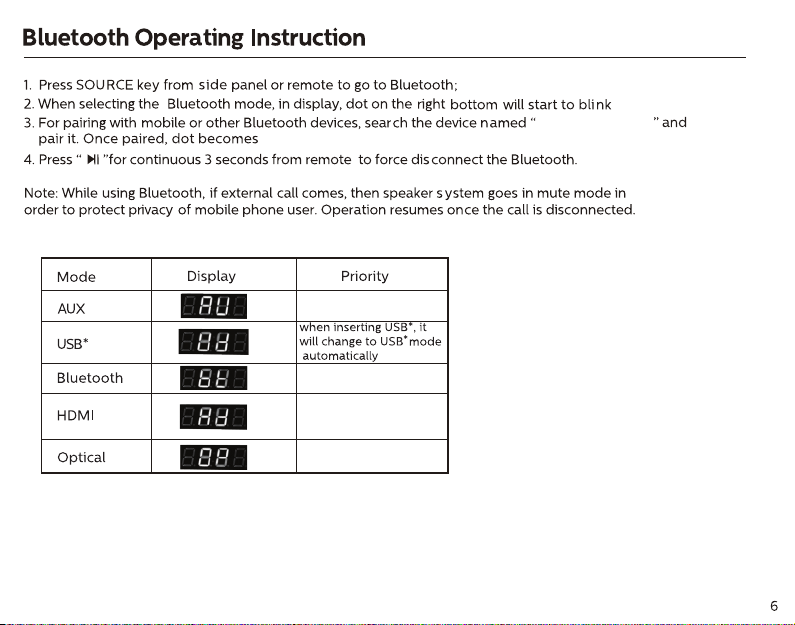

fast.

blinking slowly;

Place the soundbar on the wall or on top of TV

for better listenning.

and whether

HDMI (ARC) feature is available on the TV.
