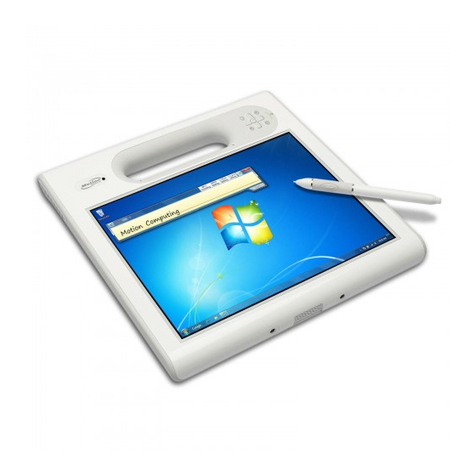

Motion Computing CFT-003 User manual

Motion Computing and Motion are registered trademarks of

Motion Computing, Inc. in the United States and other countries.

All other trademarks are properties of their respective owners.

PN 024-02-0252 A00

C5v/F5v* Quick Reference Guide

*See the label on the back of your tablet for the tablet's model number.

Pen

You can use the pen instead of a keyboard and mouse to enter

text, make selections, and open les.

Use this document to get familiar with your Motion Computing

Tablet PC.

Tip:

Use the Function button to activate the secondary functions of

the other buttons. For example, Function+A rotates the display.

Getting started

1. Press the power button.

2. Using the pen and the on-screen keyboard, tap your password.

The following table shows the similarities between a pen and

a mouse.

Mouse action Pen action

Point and click Point and tap

Double-click Double-tap

Click and drag Tap and drag

Right-click Tap and hold

Right-click Press the pen Function button

and then tap

Pen tips

• Hold the pen like a regular pen.

• Calibrate the digitizer for better pointer alignment. Open

Motion Dashboard to the Pen & Tablet panel, then click

Calibrate Digitizer.

• You can rest your hand on the screen while you are using

the pen.

• Store the pen in the pen holder when not in use.

Buttons and battery gauge

A button

Directional

pad

Function

Motion Dashboard

B button

Battery gauge

Pen Function button

Tip

The rst time you start the

tablet, Windows Setup appears.

Windows Setup helps you create

your user account and set up

the operating system. Follow the

instructions in the setup program.

Note:

You might have to press the

Windows Security button

(Ctrl+Alt+Del) before you can log on. Note:

The pen eraser deletes digital ink, but not text.

Eraser

Using Tablet PC Input Panel

You can use Tablet PC Input Panel instead of a keyboard to enter

text on your tablet.

To open Input Panel, do the following:

• Tap at the place you want to enter text, such as a text box. Then,

tap the oating Tablet PC Input Panel icon.

• Tap the Input Panel tab on the left edge of the screen.

You can use the writing pad, the character pad, or the on-screen

keyboard to enter text. For more information about using the Input

Panel, see the Input Panel Help.

To view the Input Panel Help, tap Tools on the Input Panel, then

Help Topics.

Battery tips

• Use the Power panel on Motion Dashboard to monitor your

battery charge and power settings.

• Use the Display panel on Motion Dashboard to automatically

dim the display after ve minutes of inactivity. For more

information, see the Motion Dashboard Help.

• Adjust the display brightness to the dimmest comfortable

setting.

• Use power plans to manage power usage.

• When the battery charge gets low, connect the tablet to AC

power to charge the battery. You can also place the tablet in a

Docking Station connected to AC power.

Model CFT-003

To start Motion

Dashboard, press the

Dashboard button

Using Motion® Dashboard

You can use Motion Dashboard to adjust many mobile

PC settings from one place. For example, you can

adjust display settings, enable or disable wireless, or

check the remaining battery power.

When opening Motion Dashboard, you will see

the Dashboard settings organized by category.

To select a category, tap the icon for the

category.

For more information about Motion Dashboard,

tap the Motion Dashboard Help button.

Using the documentation camera (optional)

Your Tablet PC may include a 3.0 megapixel digital camera. The

camera lens is located on the back of the unit, near the handle.

1. Hold the camera steady and point the lens at the object you

want to photograph. Rest the unit on a solid surface if possible.

2. Press the Camera button once to activate the viewnder.

3. Press the Camera button again to take the picture.

4. Specify a le name for the image.

Using the bar code scanner (optional)

Your Tablet PC may include a bar code scanner that you can use

to retrieve information from bar codes.

1. Open the application that you want to receive the bar code

data and place the insertion point in the appropriate eld.

2. Hold the unit by the handle with the scanner lens in front of

you. Rest the unit on a solid surface if possible.

3. Aim the scanner lens at the bar code.

4. Press and release the Bar code scanner button on the top of

the unit. Ensure that the scan beam covers the entire bar code.

The system beeps when the bar code is successfully scanned.

Where to go next

Start > All Programs > Accessories >Tablet PC > Personalize

Handwriting Recognition

Using the web camera (optional)

You can use the built-in web camera to interact with people

online. For more information, see the User's Guide at www.

motioncomputing.com/docs.

Web camera

Motion documentation

For detailed information about the features of your tablet, go to

www.motioncomputing.com/docs. Some documents are available

only on the Motion Web site and require an Internet connection.

When connected to the Internet, you can save a copy of the

document to your tablet hard drive.
