Motic AE2000 Ergo User manual

We are constantly endeavouring to improve our instruments and to adapt them to the requirements of

modern research techniques and testing methods. This involves modification to the mechanical

structure and optical design of our instruments.

Therefore, all descriptions and illustrations in this instruction manual, including all specifications are

subject to change without notice.

Content

I. Nomenclature 4

1. Application 4

2. Nomenclature 4

3. Technical data 7

II. Setting-up the Instrument 8

1. Working Environment 8

2. Input voltage and power 8

III. Assembling the Microscope Input Voltage 10

1. Installing the bulb 10

1.1 Halogen bulb 12

1.2 LED module 12

2. Filter Holder 13

3. Mounting the Condenser 13

4. Installing the Objectives 14

5. Mechanical Stage 14

6. Mounting the Eyepieces 15

IV. Microscopic Procedure 16

1. Interpupillary Distance Adjustment 16

2. Diopter Adjustment 16

3. Coarse and fine focusing 17

4. Coarse focus torque adjustment 17

5. Change the illumination between Halogen and LED 18

6. Brightfield Microscopy 19

7. Phase-Contrast Microscopy 19

8. Filter selection 21

9. Auto power off function 21

V. Photomicrographic Procedure (Model AE2000 trinocular) 23

1. Brightfield photomicrography 23

VI. Troubleshooting Table 24

1. Optical and Operating Problems 24

2. Electrical 25

VII. Care and Maintenance 25

1. Lenses and Filters 25

2. Cleaning of Painted or Plastic Components 25

3. When Not in Use 26

4. Warning lable 26

I. Nomenclature

1. Application

AE2000 incorporates the Color Corrected Infinity Optical System (CCIS) that offers superior image

quality for the transmitted and reflected illumination in the application of Living organism and tissue

observation, Petri dish observation, Live cell in culture observation.

2. Nomenclature

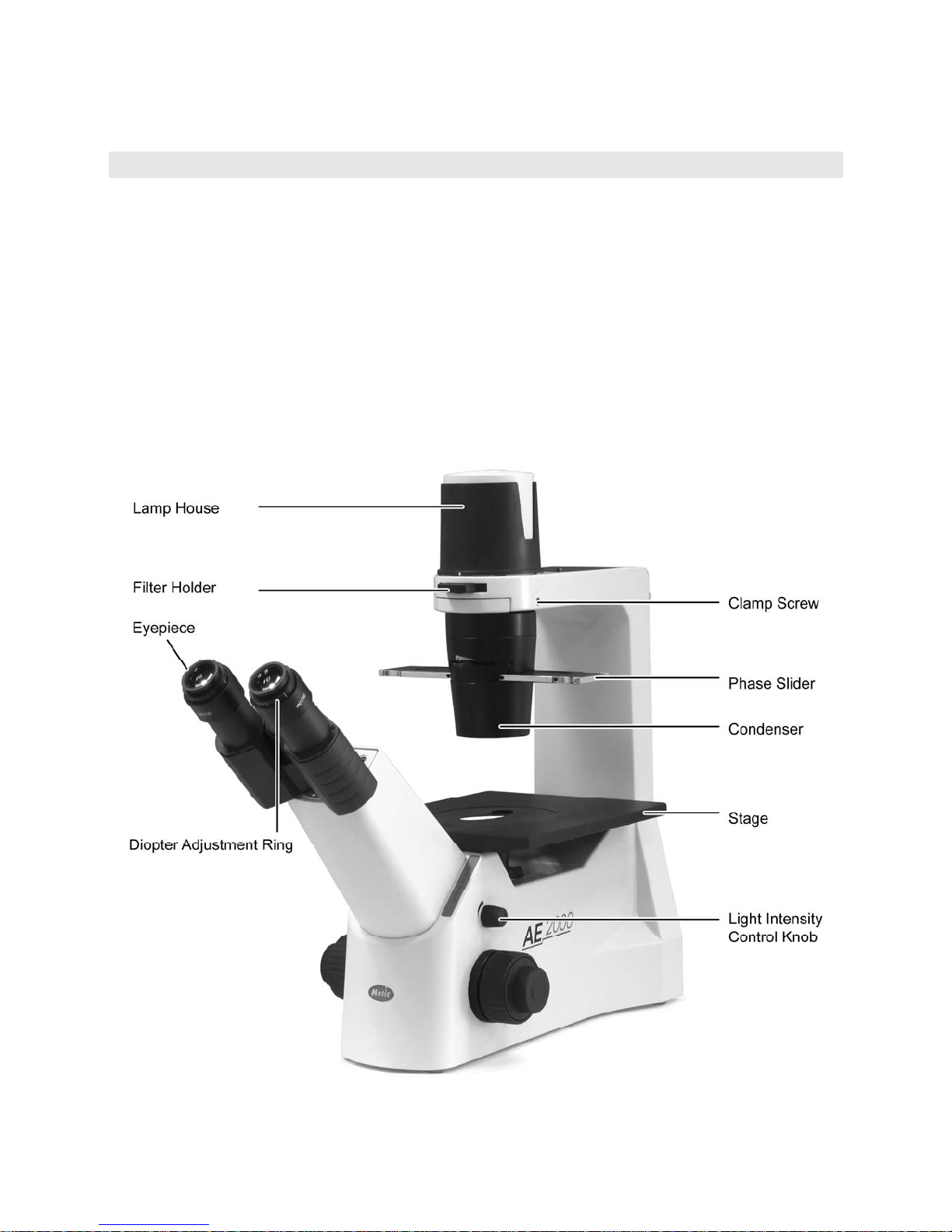

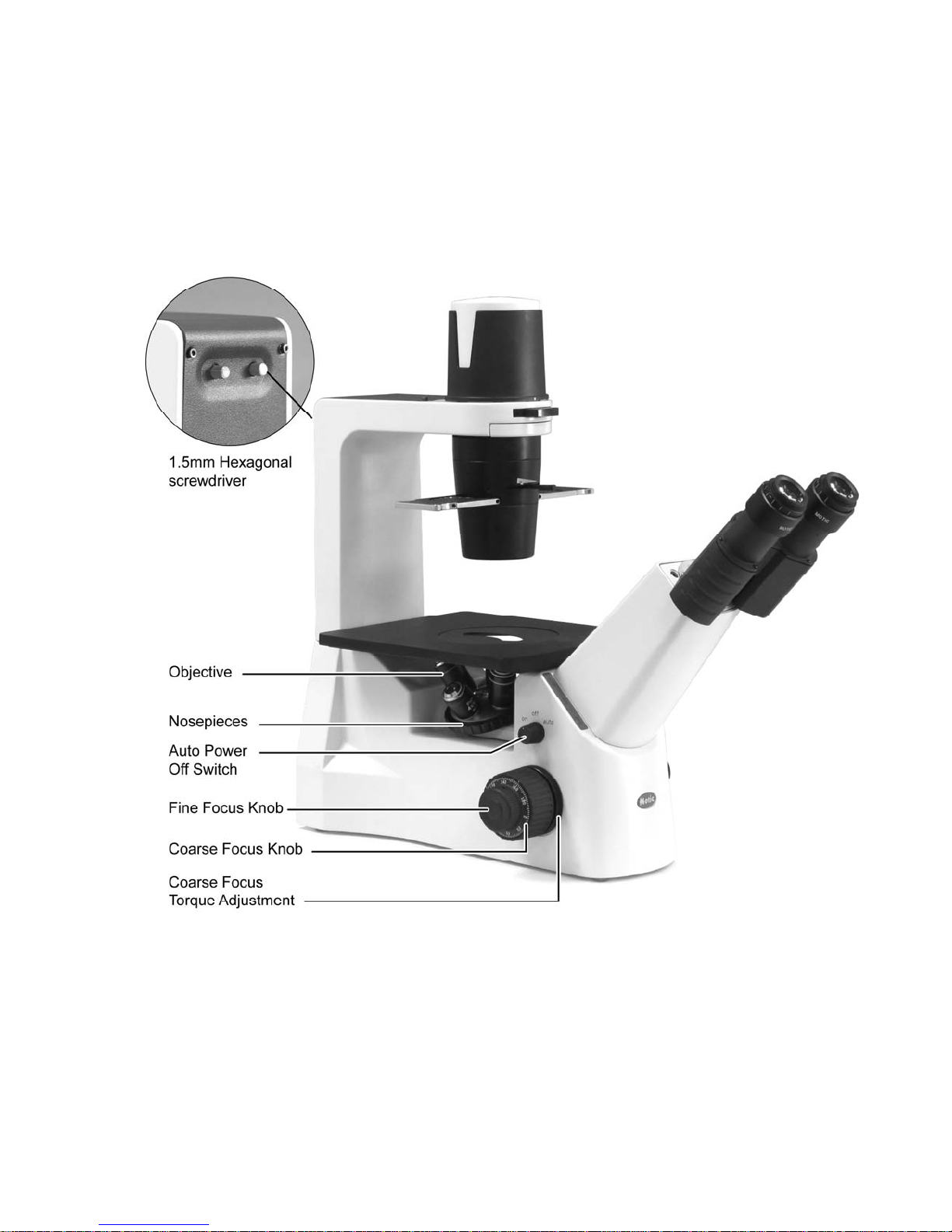

Model AE2000

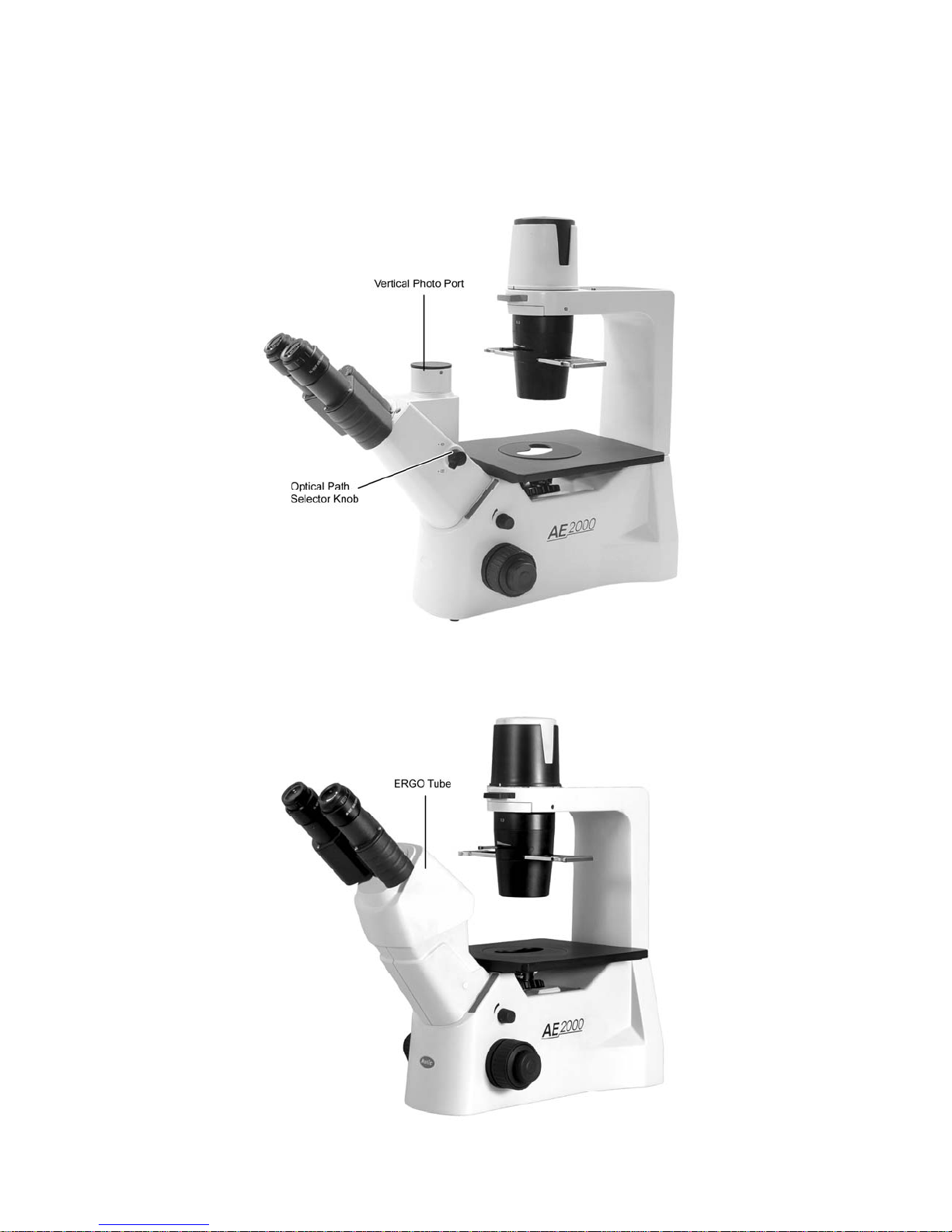

Model AE2000 TRI

Model AE2000 Ergo

3. Technical data

Technical data AE2000 AE2000 TRI AE2000 Ergo

Optical system Color-corrected infinity optics

Total Magnification 40X - 400X

Eyepiece tubes

360° rotatable Siedentopf with upper and lower position: upper position

offers approx. 40 mm extra viewing height

Interpupillary distance: 48 mm to 75 mm

Binocular 45° incline Trinocular 45°incline Ergo incline: 45°± 15°

Eyepiece N-WF 10X(ø20), wide field, high eye point

Nosepiece 4x, inclined backwards

Stage Fixed, Dimensions (width x depth): 200 x 239mm

Stage height 192mm

Object guide Verniers with numerical and alphabetic scale

X direction: numerical scale, readable from right to left

Y direction: alphabetic scale

Objectives

Plan-Achromat 4x, N.A. 0.1, W.D. 12.6mm

Plan-Achromat 10x, N.A. 0.25, W.D. 16.8mm

LWD Plan-Achromat 20x, N.A. 0.3, W.D. 4.7mm

LWD Plan-Achromat 40x, N.A. 0.5, W.D. 3mm

Plan-Achromat PH 4x Ph0, N.A. 0.1, W.D. 12.6mm

Plan-Achromat PH 10x Ph1, N.A. 0.25, W.D. 4.1mm

LWD Plan-Achromat PH 20x Ph2, N.A. 0.3, W.D. 4.7mm

LWD Plan-Achromat PH 40x Ph2, N.A. 0.5, W.D. 3mm

Condenser N.A. 0.3, W.D. 72mm

N.A. 0.4, W.D. 53mm

N.A. 0.5, W.D. 28mm

Coarse drive 42mm/rev.

Fine drive 0.2mm/rev.

Transmitted

illumination 6V/30W Halogen

3W LED

Dimension: W x D x H 217.5 x 556 x 497mm

II. Setting-up the Instrument

1. Working Environment

The location should be free from dust, moisture, chemical vapours and from mechanical vibrations.

Don't locate the instrument in bright or direct ambient light, in front of a lamp, or a will-lit bright wall. Best

image will be achieved without significant ambient light.

Environmental specification:

yIndoor use

yAltitude: Max 2000m

yAmbient temperature: 15°C~ 40°C;

yMaximum relative humidity: 75% for temperature up to 31°C decreasing linearly to 50% relative

humidity at 40°C

ySupply voltage fluctuations: Not to exceed ±10% of the normal voltage

yPollution degree: 2 ( in according with IEC60664)

yInstallation/Overvoltage category: 2 (in according with IEC60664)

yAir Pressure of 75kPa to 106 kPa

2. Input voltage and power

Automatic voltage selection works with electrical outlets worldwide. It is advised to always use a power

cord that is rated for the voltage used in your area and that has been approved to meet local safety

standards. Using the wrong power cord could cause fire or equipment damage.

In order to prevent electric fluctuation to the instrument electrics, always turn the power switch on the

instrument off before connecting the power cord.

This equipment must be used with UL60950-1 Listed power supply (E246759), MFR: LI TONG

ELECTRONICS CO., LTD. Model: LTE50E.S2.3.

yInput Voltage: 12VDC

yInput Power: 48W

yPower adaptor input rating: 100-240Vac, 47-63Hz, 1A

Attention: The plug of power adaptor is the "disconnect device" for whole unit. To save energy and

environmental priciple, we recommend you to pull out the plug if you will not use the device in long time.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.
