Moravian Instruments DataLab PC series User manual
DataLab PC
Industrial PC-compatible computer
(models DataLab PC 1200,DataLab PC 1000,
DataLab PC 800,DataLab PC 610,DataLab PC 600)
All information furnished by Moravian Instruments is believed to be accurate. Mora-
vian Instruments reserves the right to change any information contained herein without
notice.
DataLab devices are not authorized for and should not be used within Life Support Sys-
tems without the specific written consent of the Moravian Instruments. Product warranty
is limited to replacement of defective components and does not cover injury or property
or other consequential damages.
This document may be copied when keeping to the following conditions:
•The whole text must be copied without modifications and must contain all pages.
•All notifications of this kind must be mentioned in the documentation.
Copyright © 2004–2006, Moravian Instruments
Moravian Instruments
Masarykova 1148
763 02 Zlín
Czech Republic
tel./fax: 577 107 171
internet: www.mii.cz
mail: [email protected]
Contents
Introduction ................................. 5
Technicalspecifications ........................... 7
DataLab PC configurations .......................... 9
DataLab PC 1200 9
DataLab PC 1000 10
DataLab PC 800 11
DataLab PC 610 12
DataLab PC 600 13
Differences among DataLab PC configurations 14
Optional components 14
RAM memory 14
HDD and CF card 14
Operating system 15
Windows XP Embedded (XPe) 15
Writing data to CF card in Windows XP Embedded 16
Connectorplacement ............................ 17
ATX panel 17
Power supply and auxiliary circuits 17
Power supply connector and main switch 18
Auxiliary 12 V DC power output 18
Indication LEDs 18
Reset 18
Communicationlines ............................ 19
RS-485 19
RS-485 settings 19
Jumper settings 19
Watchdog .................................. 21
Jumpersettings ............................... 22
Mounting .................................. 23
Maintenance ................................ 24
CMOS RAM backup battery 24
4
5
Introduction
DataLab PC is a new line of compact computers fully compatible with PC standard, but
designed to work in industrial applications, laboratories and schools. They employ low-
power VIA EDEN processors, which enable working without active (fan assisted) cooling
of CPU and chipset. This ensures durability and reliable operation required in industrial
applications. On the other side the compatibility with the PC standard (VIA EDEN proces-
sors are fully compatible with x86 architecture) relatively high performance, rich set of
interfaces, communication capabilities and low price bring numerous advantages.
•Full compatibility with PC standard allows running of numerous operating systems
(Windows 2000, Windows XP, Linux), including systems designed for embedded appli-
cations (Windows CE, Windows XP Embedded, Embedded Linux).
•Small, compact and robust case protects the computer against mechanical damage
and allows easy manipulation. DataLab PC can be easily mounted on standard DIN
rail.
•Low power consumptions of CPUs (CPU and chipset heat sinks are passive, without
fans) ensures long durability without maintenance.
•High performance and large memory (it is possible to plug 64 MB up to 512 MB or
1 GB memory module to standard DIMM slot) enables running of big and demanding
application.
•Users can choose between standard 2.5" IDE hard drive or Compact Flash (CF) memory
card (it is necessary to use embedded OS like Windows XPe to use CF card instead of
HDD). Ability to work without hard drive adds to the overall reliability of the whole
computer.
•There are DataLab PC variants with standard 230 V/50 Hz AC power supply as well as
DC power supplies.
6
•Presence of all standard PC interfaces (RS-232C, LPT, Ethernet, USB 1.1 and 2.0, VGA,
PS/2 keyboard and mouse, Audio) on the standard ATX panel makes DataLab PC as
flexible as standard desktop PCs.
•The DataLab PC incorporates hardware USB-based watchdog. The watchdog driver in
the forms of Windows DLL, Active X component and Control Web driver is supplied
with every computer.
•DataLab PC computers are ideally suited to run Control Web process control software.
7
Technical specifications

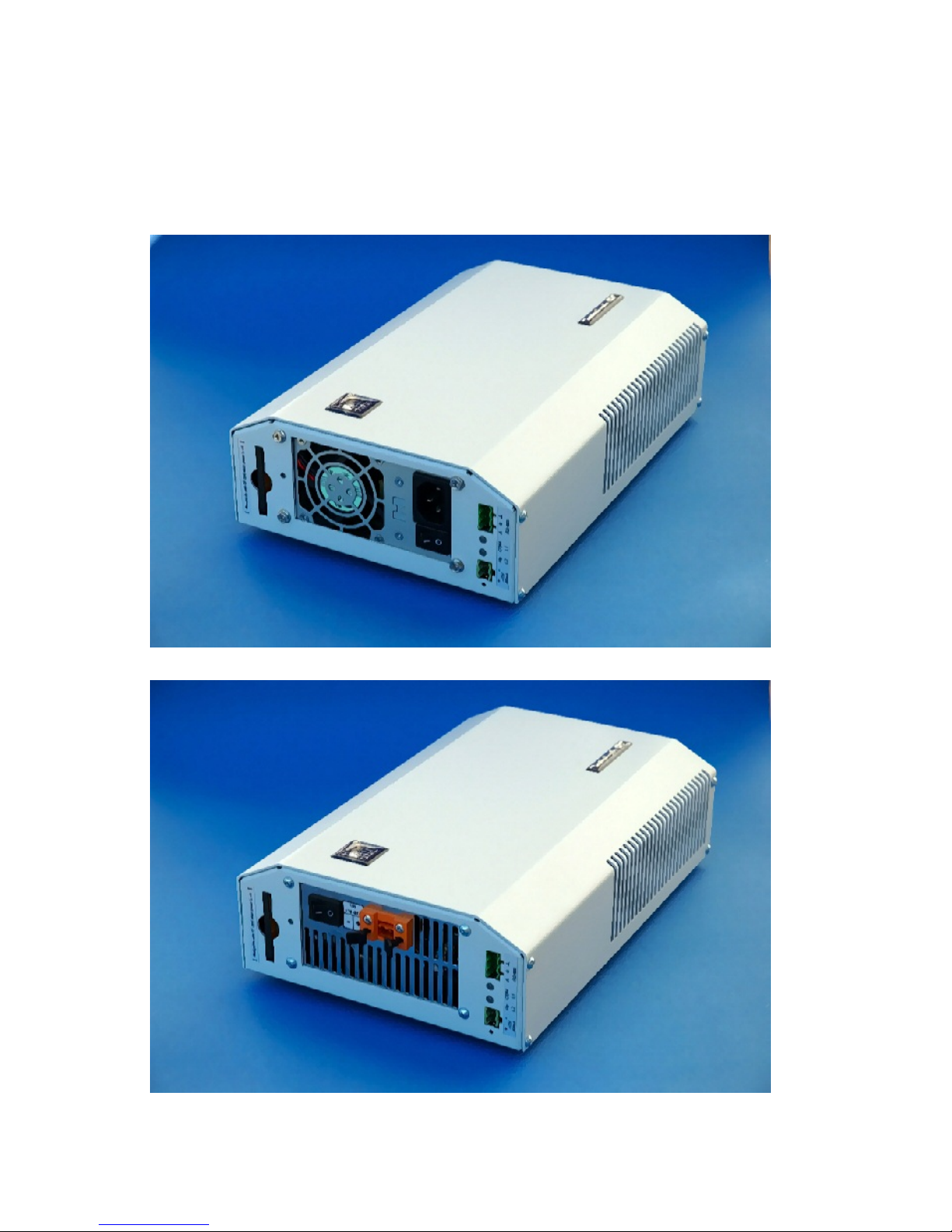

Power supplies
power line 230 V/50 Hz AC 11–20 V DC 18–28 V DC
supply 200 W ATX 80 W ATX-DC 120 W ATX-DC
Maximum AC power consumption
0.2 A at 230 V
Motherboard
Mini-iTX standard
Auxiliary DC output power supply
12 V / 500 mA DC, common ground
Mounting
Wall mounting on standard 32 mm DIN-rail
table-top case
Weight
max. 3.5 kg
278
76,5
186
DataLab PC
Figure 1 DataLab PC case dimensions
8
KBD
MOUSE
VGA
USB
ETH
RS-232C
LPT AUDIO
I
O
RS-485 +12 V DC
Compact Flash Card

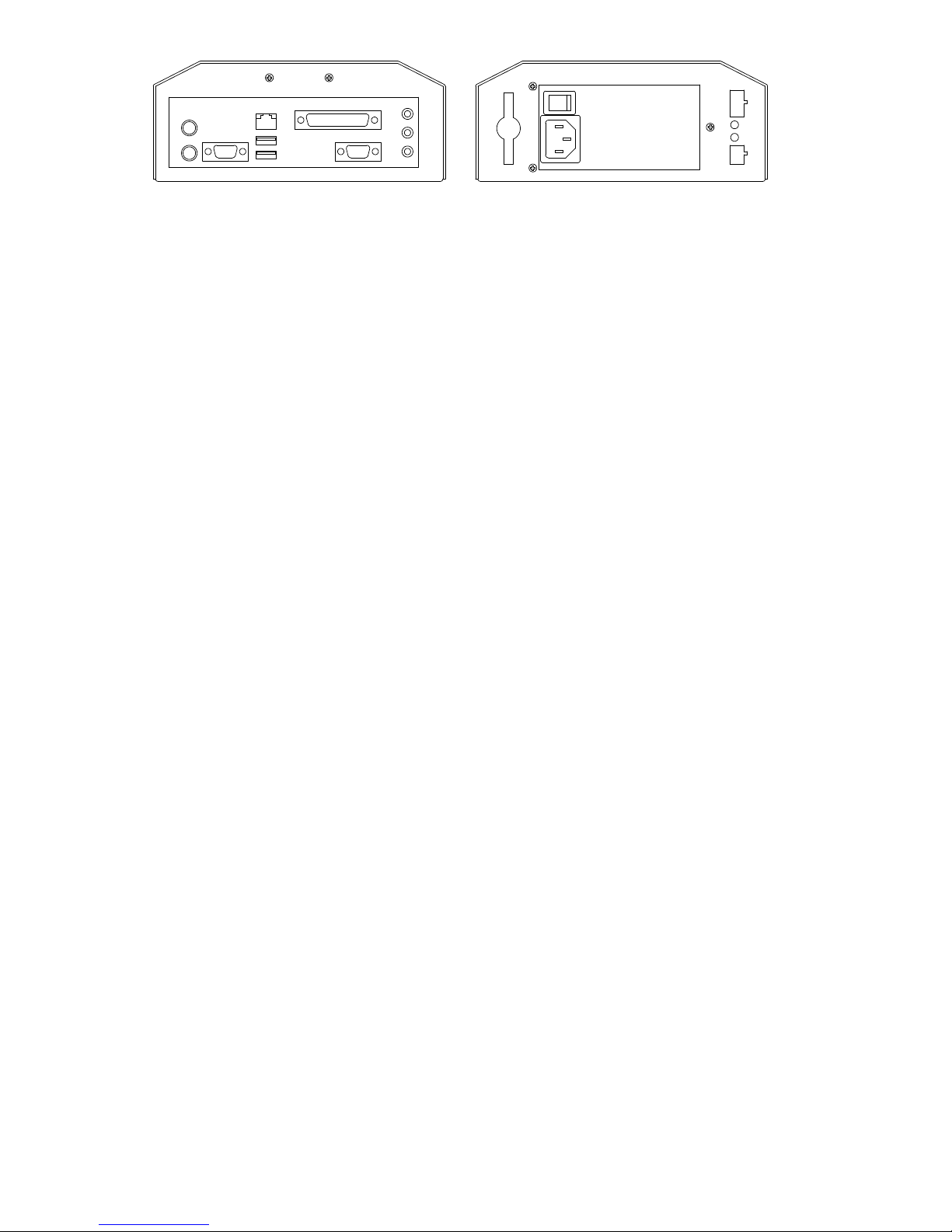

Figure 2 Front panels
Remark 1 Front panel connector placement can differ according to DataLab PC type.
9
DataLab PC configurations
DataLab PC is offered in several models differing in CPU speed, memory types and avail-
able ports. Other features are available for all models and are configurable according to
customer’s needs.

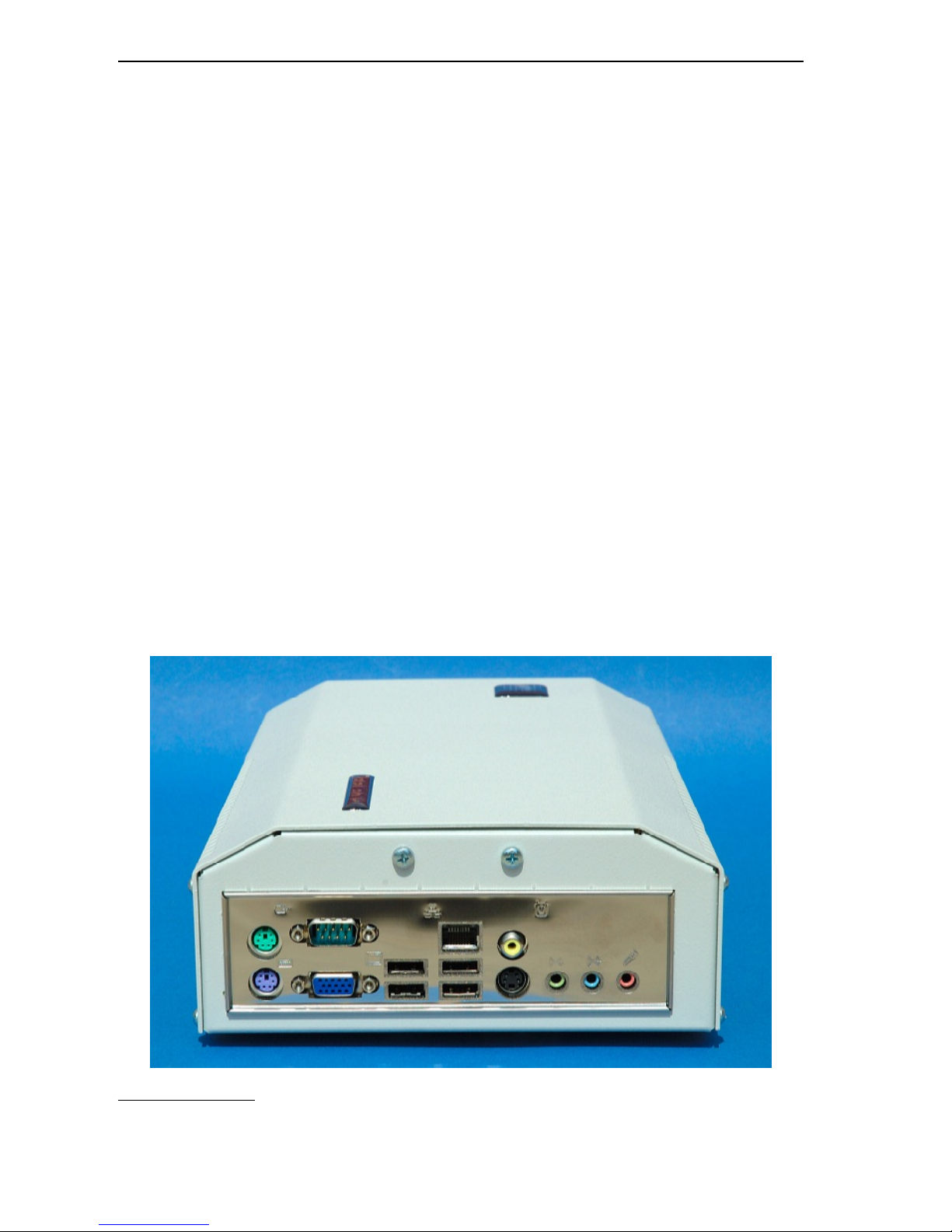

DataLab PC 1200
•CPU VIA Eden 1.2 GHz (x86 compatible)
•512 MB DDR2, 533 MHz SDRAM1, shared video memory
•230 V AC or 18–28 V DC and 11–20 V DC power supplies available, +12 V DC output
available for powering of peripherals
•typical power consumption (without HDD) 15 W
•watchdog
•interfaces:
— analog VGA output
— PS/2 (mini DIN) keyboard and mouse
— 1× RS-232C (COM1)
— 1× RS-4852
— 1× Gigabit Ethernet
— 4× USB 2.0
— audio In/Out
— Compact Flash Type 1 memory card slot
— optional 40 GB Hard Disk Drive3
One DIMM slot is available, memory size can be from 64 MB to 1 GB
1
RS-485 module is optional component and must be ordered separately
2
any 2,5" disk with ATA or SATA interface can be used
3
10

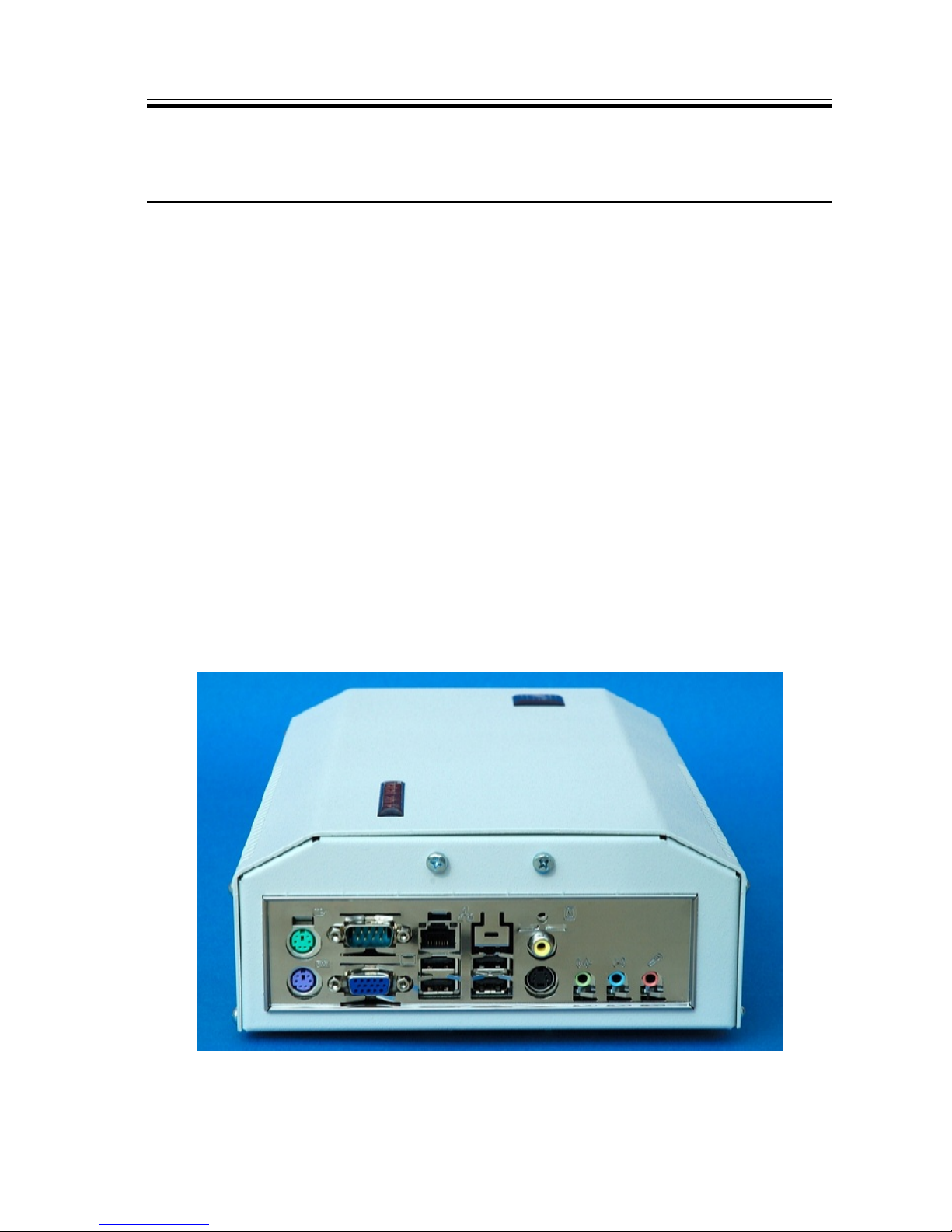

DataLab PC 1000
•CPU VIA C7 1 GHz (x86 compatible)
•512 MB DDR2, 533 MHz SDRAM4, shared video memory
•230 V AC or 18–28 V DC and 11–20 V DC power supplies available, +12 V DC output
available for powering of peripherals
•typical power consumption (without HDD) 15 W
•watchdog
•interfaces:
— analog VGA output
— PS/2 (mini DIN) keyboard and mouse
— 1× RS-232C (COM1)
— 1× 10/100 Mbps Ethernet
— 4× USB 2.0
— audio In/Out
— Compact Flash Type 1 memory card slot
— optional 40 GB Hard Disk Drive5
One DIMM slot is available, memory size can be from 64 MB to 1 GB
4
any 2,5" disk with ATA or SATA interface can be used
5
This manual suits for next models
