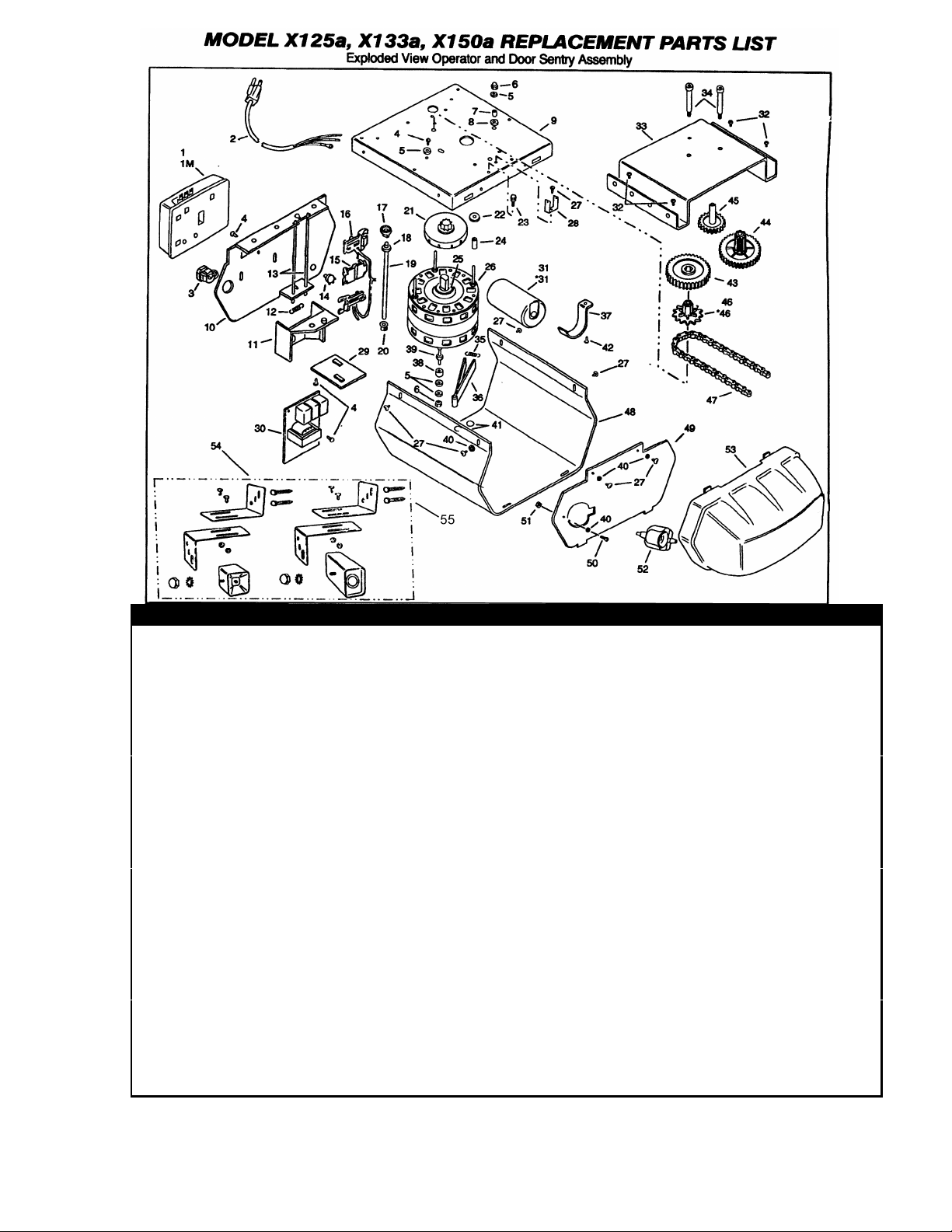

Moore o matic X125a Quick start guide

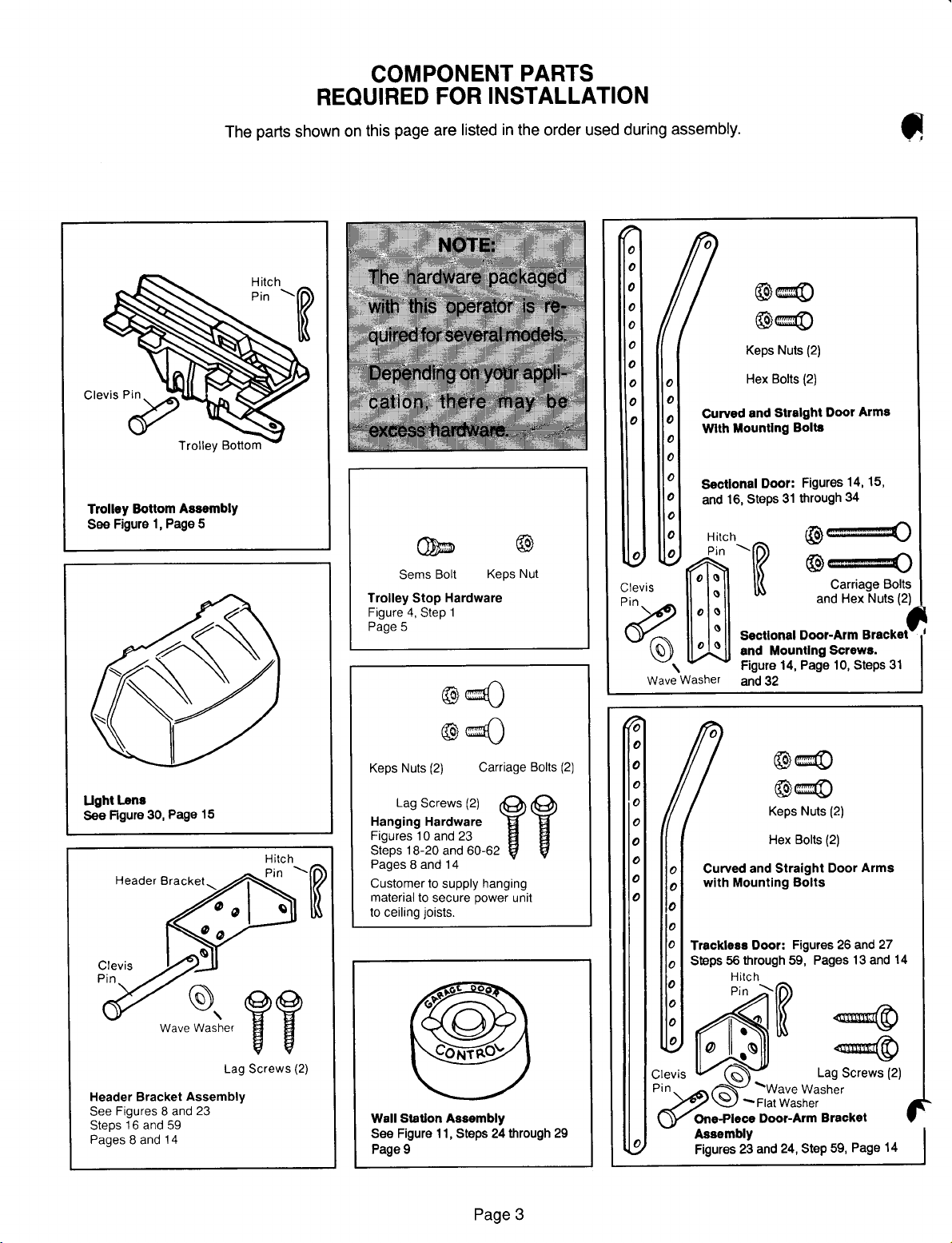

ITEM PART # DESCRIPTION QTY.

3210977 STRAIN RELIEF BUSHING 1

7A7265 SPACER .25 LONG 3

8A7268 GROMMET, .312 ID X.625OD 3

13 B5664 LIMIT ADJUST SCREW 2

16 209064-01 LIMIT SWITCH ASSY 1

17 B5587 KEYED BEARING (OPEN).228 1

18 A7095 RING, EXTERNAL PUSH-ON .374 ID 1

20 B5588 KEYED BEARING (CLOSED) .126 1

27 A8157 SCREW, #6 X ¼” PAN HEAD 10

29 AAE00306 TORQUE SENSOR ASSY 1

30 AAE00341 CONTROLLER (UL93) 1

31 210719 CAPACITOR, 43-53 MFD (MODEL X125 & X133) 1

31 210718 CAPACITOR, 53-64 MFD (MODEL X150) 1

34 A6737 BOLT, 5/16”X1-3/4” STRIPPER 2

35 A7104 SPRING 2

38 A6935 SPACER, NYLON .50 OD X .19 ID 1

41 A6741 GROMMET, .187 ID X .312 OD 2

43 A6721 GEAR, 38 TOOTH 1

44 A6723 GEAR, 36/9 TOOTH 1

45 A6720 GEAR, LIMIT 1

46 A6724 NLA USE A7274 FOR COMP. KIT 13 TOOTH SPRCKT (SECT.) 1

46 A6728 SPROCKET, 9 TOOTH (JAMB) 1

52 211024 LAMP HOLDER 1

53 8311-000 LIGHT LENS 1

54 AAE00324 DOOR SENTRY- PHOTO EYES ONLY 1

ANY PART NOT LISTED ABOVE FOR THIS MODEL IS OBSOLETE WITH NO SUB

DR- Delta Receiver MDR- Mega Code Receiver

This manual suits for next models
