Montigo C38-BV User manual

Check local codes and

read all instructions

prior to installation.

Leave this manual with

the owner.

Gas Fireplace

C38-BV

Installation

Operation &

Maintenance

What To Do If You Smell Gas:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas

supplier's instructions.

• If you cannot reach your gas supplier, call the re department.

Warning:

Improper installation, adjustment, altera-

tion, service or maintenance can cause

injury or property damage. Refer to this

manual. For assistance or additional

information consult a qualied installer,

service agency or the gas supplier.

For Your Safety:

Do not store or use gasoline

or other ammable vapors

and liquids in the vicinity of

this or any other appliance.

Page 2

C38-BV Gas Fireplace

Part No. XG0314

Introduction

Thank You for choosing a Montigo C-Series Fireplace.

About the C38 Fireplace:

The C38-BV includes a 23,000 BTU dual burner with embers and a

ﬁve piece ceramic logset. This model is available in four versions.

 Top Vent (Product Code C38B)

 Intermittent Pilot - Top Vent (Product Code C38B-I)

The C38-BV is rated for Natural Gas at 23,000 BTU/H (7.33 Kilo-

watts) Input or Propane at 23,000 BTU/H (7.33 Kilowatts) Input.

How to use this manual:

This manual covers installation, operation and maintenance. Lighting,

operation and care of this ﬁreplace can be easily performed by the

homeowner. However, all installation and service work should be per-

formed by a qualiﬁed or licensed installer, plumber, or gasﬁtter who is

qualiﬁed or licensed by the state, province, region, or governing body

in which the appliance is being installed.

This manual covers all models and unless otherwise speciﬁed, the

designation C38-BV refers to all models. Sections which are speciﬁc

to a particular model are marked with a

symbol,

plus the appropriate model number.

Warranty and Installation Information:

The Montigo warranty will be voided by, and Montigo disclaims any

responsibility for, the following actions:

 Modiﬁcation of the ﬁreplace and/or components including Direct-

Vent assembly or glass doors.

 Use of any component part not manufactured or approved by

Montigo in combination with this Montigo ﬁreplace system.

 Installation other than as instructed in this manual.

Consult your local Gas Inspection Branch on installation requirements

for factory-built gas ﬁreplaces. Installation & repairs should be done

by a qualiﬁed contractor.

Installations in Canada must conform to the current CAN/CGA B-

149.1 and .2 Gas Installation Code and local regulations.

Installations in the USA must conform to local codes, or in the

absense of local codes to the National Fuel Gas Code, ANSI Z223.1-

Table Of Contents

Introduction............................................................................... 2

Installation

Installing the Fireplace Shell .......................................... 3

Installing the Gasline...................................................... 4

The Remote Switch........................................................ 4

B-Vent Installation .......................................................... 4

Construction around the ﬁreplace

Facing................................................................ 5

Mantels and Surrounds ..................................... 5

Wiring ........................................................................... 6

Removing and Installing the Door.............................6 - 7

Installing the Logset ....................................................... 7

Installing the Horizontal Trim.......................................... 7

Operation............................................................................8 - 10

Maintenance..................................................................... 10 - 11

Warranty .................................................................................. 12

Appendix

A. Termination Locations.............................................. 13

CAUTIONS

Due to its high operating temperatures, the appliance

should be located out of traﬃc & away from furniture and

draperies.

Children and adults should be alerted to the hazards

of the high surface temperature, which could cause

burns or clothing ignition.

Young children should be carefully supervised when

they are in the same room as the appliance.

Clothing or other ﬂammable materials should not be

placed on or near the appliance.

Page 3

C38-BV Gas Fireplace

Part No. XG0314

Installing The Fireplace Shell

The ﬁreplace may be installed in any location that maintains clear-

ances to air conditioning ducts, electrical wiring and plumbing. Safety,

as well as eﬃciency of operation, must be considered when selecting

the ﬁreplace location. Try to select a location that does not interfere

with room traﬃc, has adequate ventilation, and oﬀers an accessible

pathway for Direct Vent installation. Refer to page 4 - B-Vent Installa-

tion for more information.

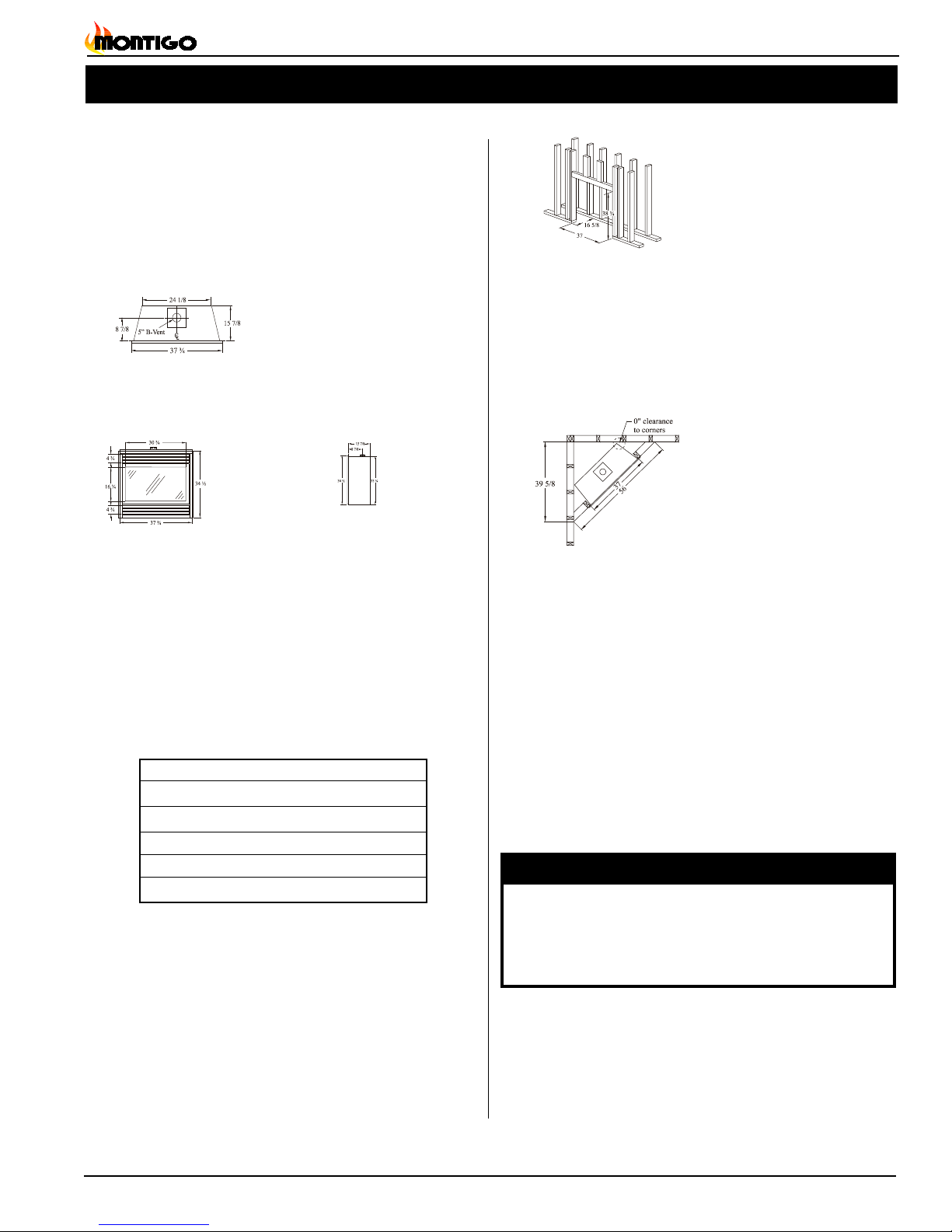

The ﬁreplace dimensions are shown below:

Installation

Figure 3. Corner framing dimensions.

Figure 2. Framing dimensions.

* When sheetrock is

not used behind the

ﬁreplace, framing

depth may be reduced

to 15 3/4"

Framing

Top Vent

Front View Rear Vent

Unprotected combustible walls which are perpendicular to the

ﬁreplace opening, must not project beyond the shaded area shown in

Figure 6b.

For protection against freezing temperatures, it is recommended that

outer walls of the chase be insulated with a vapour barrier. This will

Figure 1. Fireplace dimensions.

Installing a Shelf Over the Fireplace

When installing a shelf over the top of the ﬁreplace, the minimum al-

lowable clearance from the top of the ﬁreplace to a shelf is 15".(Prop-

er clearance must be maintained around the vent pipes, as speciﬁed

in the clearances section.)

WARNING:

When this appliance is installed directly on carpeting, tile or any

combustible material other than wood ﬂooring, it must be installed

on a metal or wood panel extending the full width and depth of

the appliance.

Clearances

These clearances apply to all dimensions except the framed opening,

where the clearance to combustibles is 0". The C38-BV clearances to

combustible materials are:

Top 15"

Back 0"

Side 0"

Floor 0"

Mantle* 6"

B-Vent (up to 7 1/2 ft) 2"**

* Refer to page 5.

** Above 7 1/2 feet, use clearances speciﬁed by the

B-vent manufacturer.

Page 4

C38-BV Gas Fireplace

Part No. XG0314

Installing The Gas Line

The gas line must be installed before ﬁnishing the C38-BV Fireplace.

Natural Gas requires a minimum inlet gas supply pressure of 5.5"

W.C. & a manifold pressure of 3.5" W.C. Propane Gas requires a

minimum inlet gas supply pressure of 11" W.C. & a manifold pressure

of 10" W.C. Provision must also be made for a 1/8" N.P.T. plugged

tapping and be accessible for test gauge connection immediately

upstream of the gas supply controls to the appliance. The ﬁreplace

gas connection and the main operating gas valve is located behind

the removable brass trim at the bottom of the unit and need only be

attached to the gas line with an approved ﬁtting, as required by the

applicable installation codes.

• Only use gas shut-oﬀ valves approved for use by the state, province,

region, or governing body, in which the appliance is being installed, or

as required by the applicable installation codes.

• Flexible gas connectors must not exceed 3 feet in length, unless it is

allowable within applicable installation codes.

The appliance and its individual shutoﬀ valve must be disconnected

Installation

Note: After gas line is connected, each appliance connection,

valveand valvetrain mustbe checkedwhileundernormal

operating pressure with either a liquid solution, or leak

detection device, to locate any source of leak. Tighten

any areas where bubbling appears or leak is detected until

bubbling stops completely or leak is no longer detected.

DO NOT use a ﬂame of any kind to test for leaks.

Installing The Remote Switch

The C38-BV's gas valve, located behind the lower brass trim, may be

connected to a wall switch. The valve generates its own power on a

millivolt circuit. Use only low voltage wire, and DO NOT connect

any external power to it.

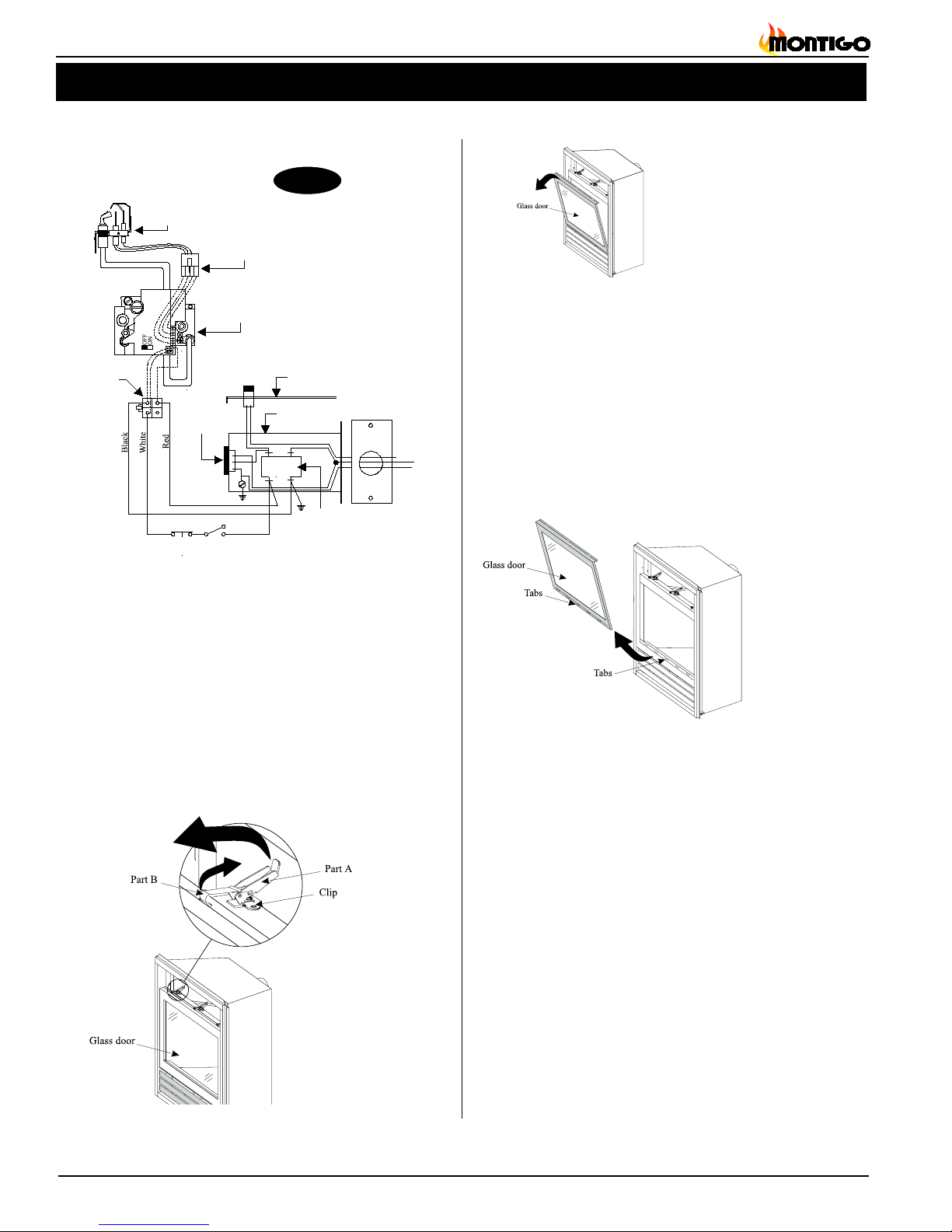

Refer to Figure 12 for wiring requirements.

Note: The switch location must not exceed 30' from the ﬁreplace.

Figure 5. Gas line access.

from the gas supply piping system during any pressure testing of that

system at test pressures in excess of 1/2 psig (3.5 kPa).

The appliance must be isolated from the gas supply piping system by

closing its individual manual shutoﬀ valve during any pressure testing

of the gas supply piping system at test pressures equal to or less than

1/2 psig (3.5 kPa).

B-Vent Installation

The C38-BV is certiﬁed for use with standard 5" B-Vent and requires

no B-Vent appliance connector. Simply attach the B-Vent to the ﬁre-

place ﬂue collar, and secure it using 1/4" sheet metal screws.

Refer to the current CAN/CGA B-149.1 and .2 or ANSI Z223.1-1988

Gas Installation Code for speciﬁc vent sizing.

Test your B-Vent installation after completion to ensure that no

combustible by-products are spilling from the ﬁreplace open-

ing. This draft test should be performed after a three(3) minute

warm up period. The manufacturer will not be responsible for

any installations with inadequate draw.

CAUTION:

Note: If more than 12 feet of B-vent is used on the vent runs,

use ceiling supports.

Page 5

C38-BV Gas Fireplace

Part No. XG0314

Finishing Around the Fireplace

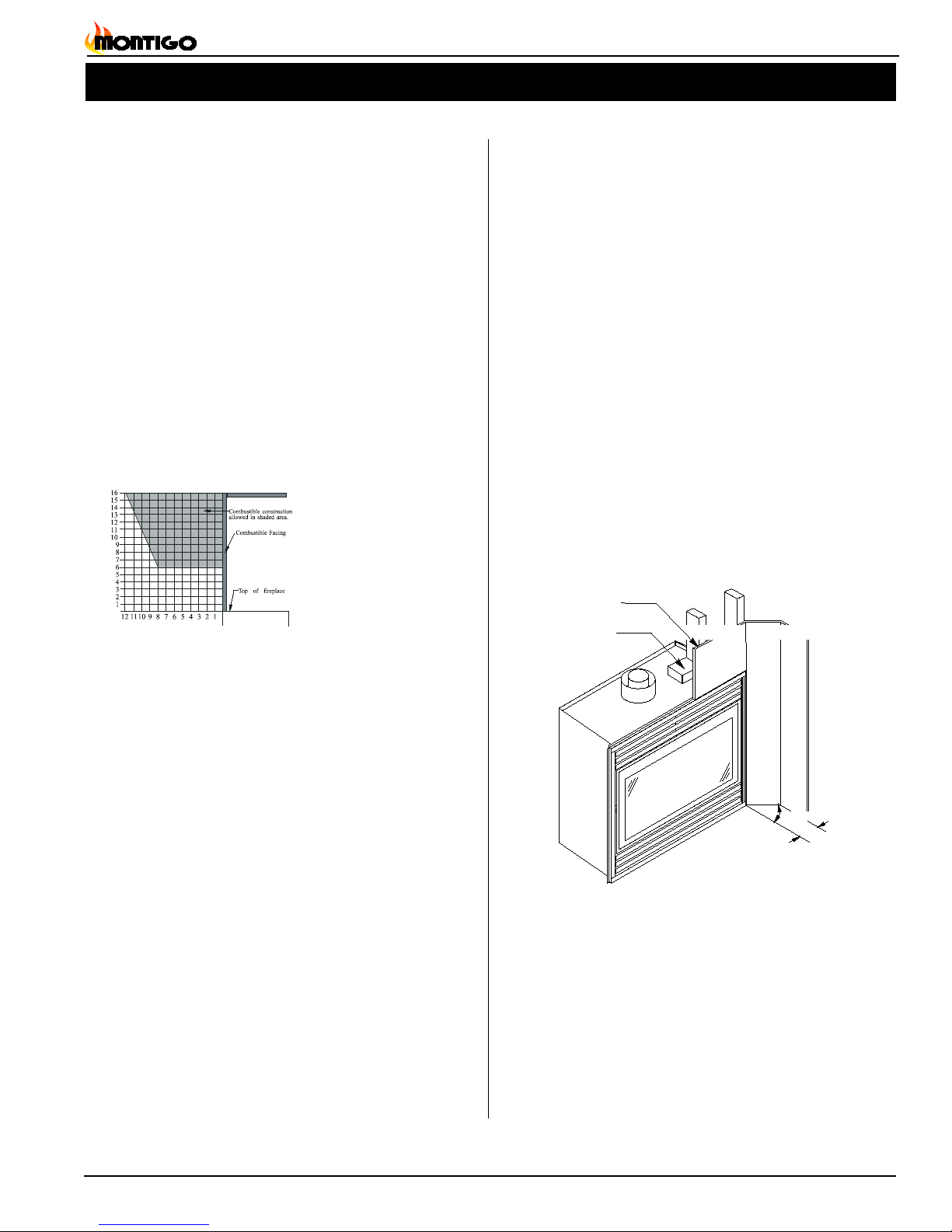

Combustible mantels and mouldings may be safely installed over the

top and on the front of the ﬁreplace provided that they do not project

beyond shaded area shown in Figure 6a. Side wall clearances are 3".

Combustible surrounds may be installed with 3" clearance to the side

of the ﬁreplace as shown in Figure 6b.

Fireplace Facing

When selecting the ﬁnish material for your ﬁreplace, it is important

to remember the following: TRIMS MUST NOT BE OBSTRUCTED

IN ANY WAY - to do so restricts the air supply for the control

compartments and heat exchanger it also prevents access for

servicing controls.

The face of the ﬁreplace may be painted to match the room decor,

provided you use a heat-resistant paint. Decorative facing must not

extend past the ﬁreplace opening at all, because it will interfere with

the access to retainers for removal of glass door.

Installation

Figure 6a. Combustible mantles and facings.

Mantels & Surrounds

NOTE: National Canadian Gas Association mantel test requirements

are for ﬁre hazard prevention to combustible materials.

New technology, to meet consumer and government demands for the

wise use of energy, has prompted us to manufacture many models of

ﬁreplaces which are hot, fuel and energy eﬃcient.

Please be aware; temperatures over the mantel will rise above nor-

mal room temperature and walls above ﬁreplace may be hot to touch.

We recommend careful consideration be given to the eﬀects of

elevated mantel temperatures which may be in excess of product

design, for example: candles, plastic or pictures. This can cause

melting, deformation, discoloration or premature failure of T.V. and

radio components.

Painting:

Special care is recommended by the Master Painters and Decorators

Association, when painting the ﬁreplace surrounds, to select and ap-

ply a quality Alkyd sealer prior to the applying of latex paints. This is

to prevent leaching of water from evaporation and causing a brownish

staining eﬀect to paint over coats.

Sheetrock/

Drywall

Header

45°

Figure 6b. Combustible surrounds.

Page 6

C38-BV Gas Fireplace

Part No. XG0314

Figure 9c. Removing the door.

Re-installing the door:

To re-install the door, tilt the top edge towards you and line up the

tabs of the bottom of the door with the slots on the ﬁreplace. Place

the tabs into the slots, and tilt the top of the door back towards the

ﬁreplace as far as it will go. Close the latches by hooking Part B onto

the groove at the top of the door and pushing Part A down completely.

Installation

Once the three latches are unhinged, tilt the top of the door forward

and lift it out of the slots. See ﬁgures 9b and 9c.

Figure 9b. Removing the door.

Removing and Installing

the Door

Removing the Door:

Remove the trim (as described on the next page) to access the door

latches. Open the latches by pulling Part A upwards and towards

you to disengage Part B from the door. Lift Part B clear of the door.

Repeat for all three latches. Be sure to hold the door carefully so it

does not fall. (See ﬁgure 9a.)

Figure 9a. Operating the door latches.

Gas Control and Pilot Wiring C38-BV-I

Honeywell (Q3450)

Pilot Assembly

Pilot Electrical

Harness Connector

Honeywell Gas

Control (SV9501M)

Gas Control

Connector Fuse

Limit

Switch Wall

Switch

Fan Plug

Receptacle

Junction Box

Junction Box Cover

White

Black

Green

40 VA

Transformer

115VAC

24VAC

Grnd Screw

Figure 8. Wiring for the C38-BV-I with Honeywell gas control and

pilot.

Wiring

Page 7

C38-BV Gas Fireplace

Part No. XG0314

Installation

NOTES:

If logs are not placed properly, excessive sooting will result.

The surface of the logs will crack due to the heat from the

ﬂames. This is a normal occurance.

Embers Flame Shaper

Log 'A' Figure 11. Installing the horizontal trim pieces.

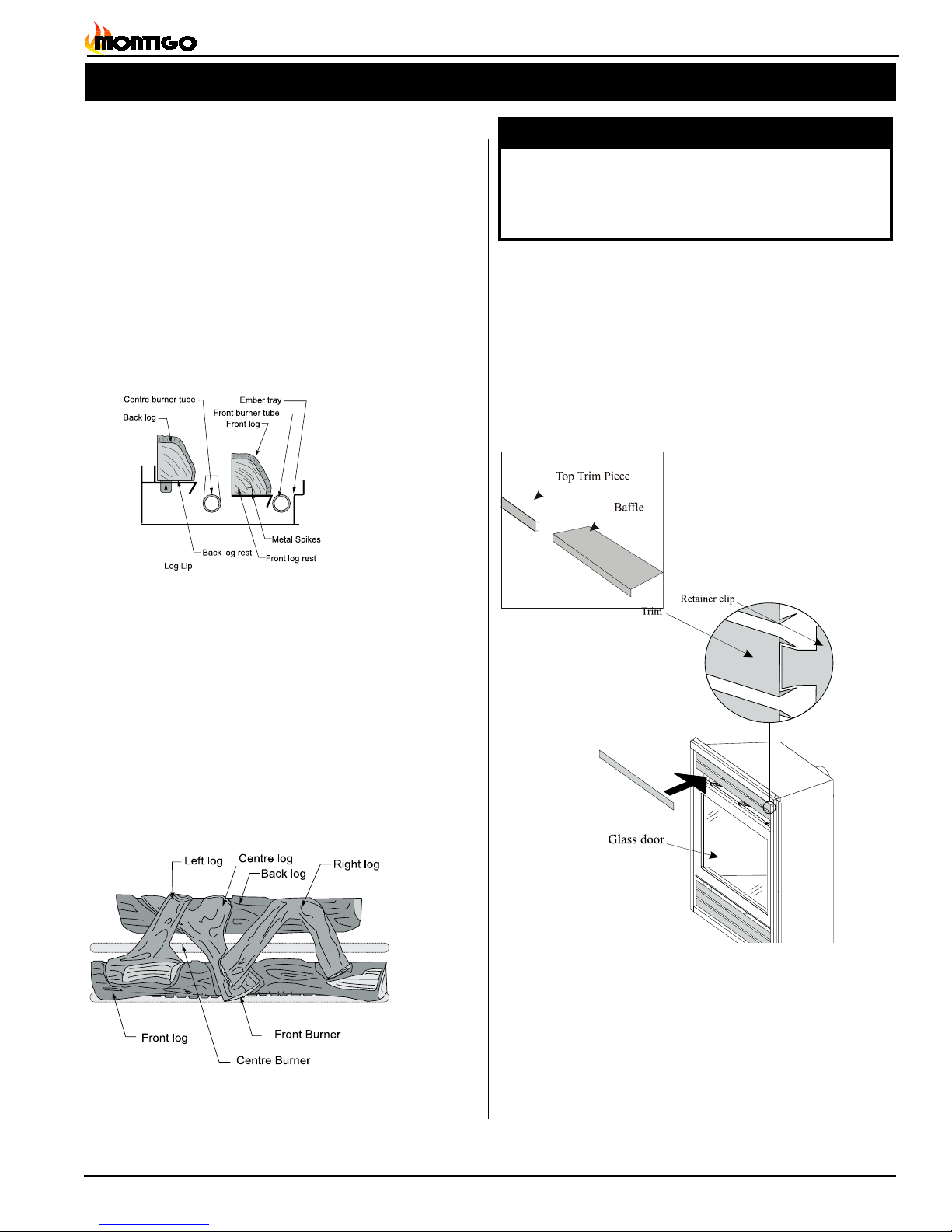

Installing the Trim & Bafﬂe

The ﬁreplace is shipped with 6 horizontal trim pieces (3 upper and 3

lower), which must be ﬁeld-installed.

Install the trim by placing the top edge of the trim over to the retainer

clips on either side of the ﬁreplace. Push the bottom edge ﬁrmly

inwards and the trim will snap on. (See ﬁgure 11) Remember to slide

the baﬄe into the top trim piece .(See Inset)

Note: Baﬄe should rest on top of the tabs.

Inset. Slide in baﬄe

before installing top trim.

Installing the Log Set

Installing the Logs:

The C38-BV is supplied with ﬁve ceramic ﬁbre logs. Unpack the logs

and handle them very carefully.

1. Remove the door cover and the glass door.

2. Place the Back log onto the back log rest as shown below in

ﬁgure 10a. The log has lip on the bottom which ﬁts into the slot

on the log rest.

3. Place the Front log onto the front log rest as shown in ﬁgure 10a.

Center the log from side to side, and push it against the back of

4. Place the top logs in position as shown in ﬁgure 10b, place the

centre log down ﬁrst, then the right and left logs.

5. Start the ﬁreplace. If the ﬂame appears satisfactory, replace the

glass door and door cover.

Figure 10a. Positioning for the front and back logs.

Figure 10b. Proper log placement.

Page 8

C38-BV Gas Fireplace

Part No. XG0314

WARNING: If you do not follow these instructions exactly, a re or explosion

may result causing property damage, personal injury or loss of life.

If you cannot reach your gas supplier, call the Fire De-

partment.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand,

don't try to repair it, call a qualiﬁed service technician. Force

or attempt to repair may result in a ﬁre or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualiﬁed service technician to inspect the

appliance and to replace any part of the control system, and

any gas control which has been under water.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance area for

gas. Be sure to smell next to the ﬂoor because some gas is

heavier than air and will settle on the ﬂoor.

What To Do If You Smell Gas:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone

in your building.

Immediately call your gas supplier from a neighbour's

phone. Follow the gas supplier's instructions.

To Turn Off Gas To Appliance:

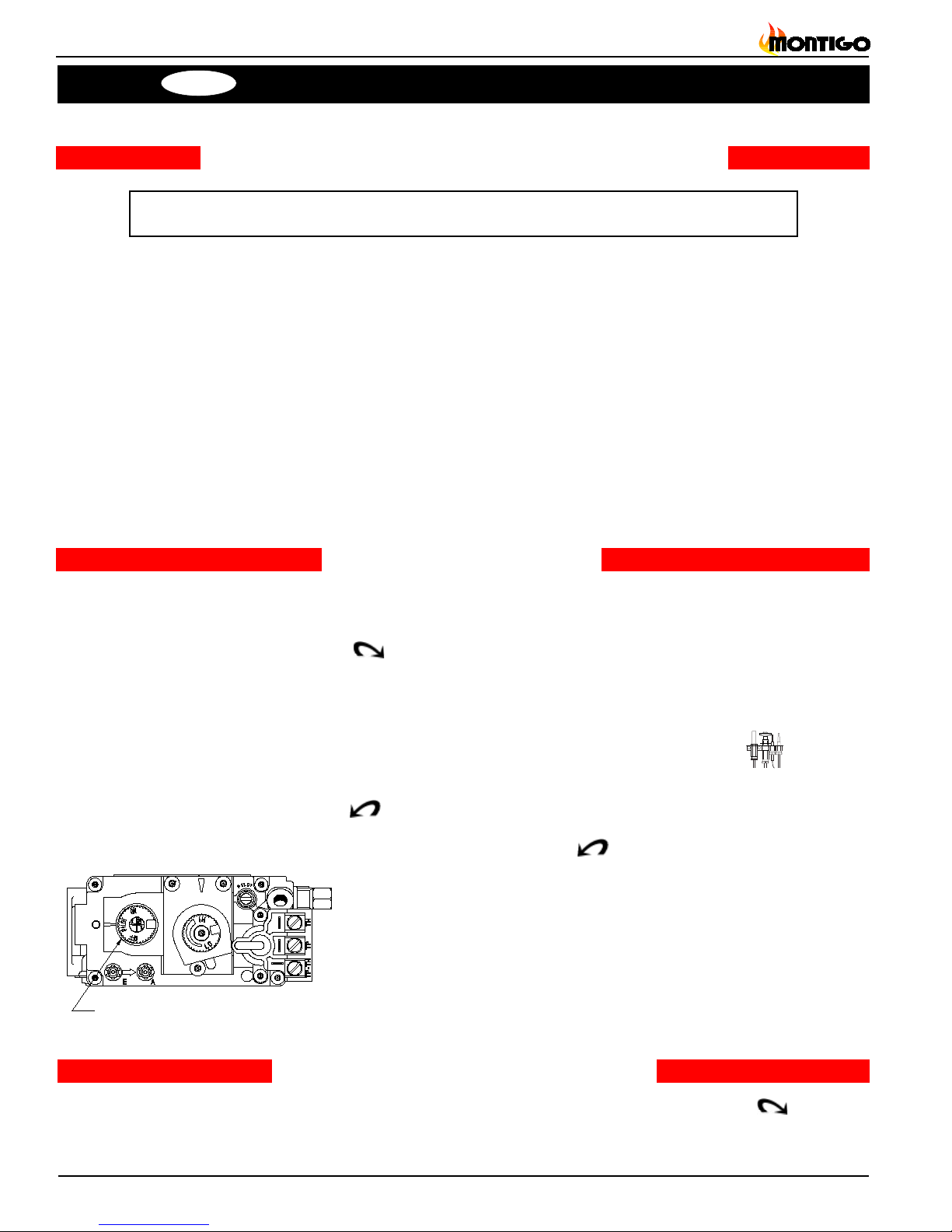

Operation - Model C38-BV

3. Push in gas control knob slightly and turn clockwise

to "Oﬀ". Do not force.

4. Flip up the lower trim.

1. Turn oﬀ remote switch.

2. Flip down the lower trim.

1. STOP! Read the safety information above on this label.

2. Flip down the lower trims.

3. Push in gas control knob and turn clockwise to "OFF."

4. Wait ﬁve (5) minutes to clear out any gas. Smell for gas,

including near the ﬂoor. If you then smell gas, STOP! Follow

"B" in the safety information above on this label. If you don't

smell gas, go to the next step.

5. Locate pilot burner (See illustration at right.) and follow

steps below.

6. Turn knob on gas control counterclockwise to "PI-

LOT."

7. Push in gas control knob completely and hold. Light with

Piezo Igniter button. Continue to hold the control knob in for

about (1) minute after the pilot is lit. Release the knob and it

will pop back up. Pilot should remain lit. If it goes out repeat

steps 3 through 8.

If knob does not pop up when released. Stop and im-

mediately call your service technician or gas supplier.

If the pilot will not stay lit after

several tries, turn the gas control

knob to "OFF" and call your service

technician or gas supplier.

8. Push in gas control knob and turn coun-

terclockwise to "ON."

9. Flip up the lower trim.

10.Turn on remote switch to ignite ﬁre.

Lighting Instructions:

C38-BV

with Continuous Pilot

For Your Safety - READ BEFORE LIGHTING:

Gas Control Knob

(Shown in "Pilot" postion.)

NOTE: Knob cannot be turned from

"PILOT" to "OFF" unless knob is

pushed in slightly. Do not force.

Page 9

C38-BV Gas Fireplace

Part No. XG0314

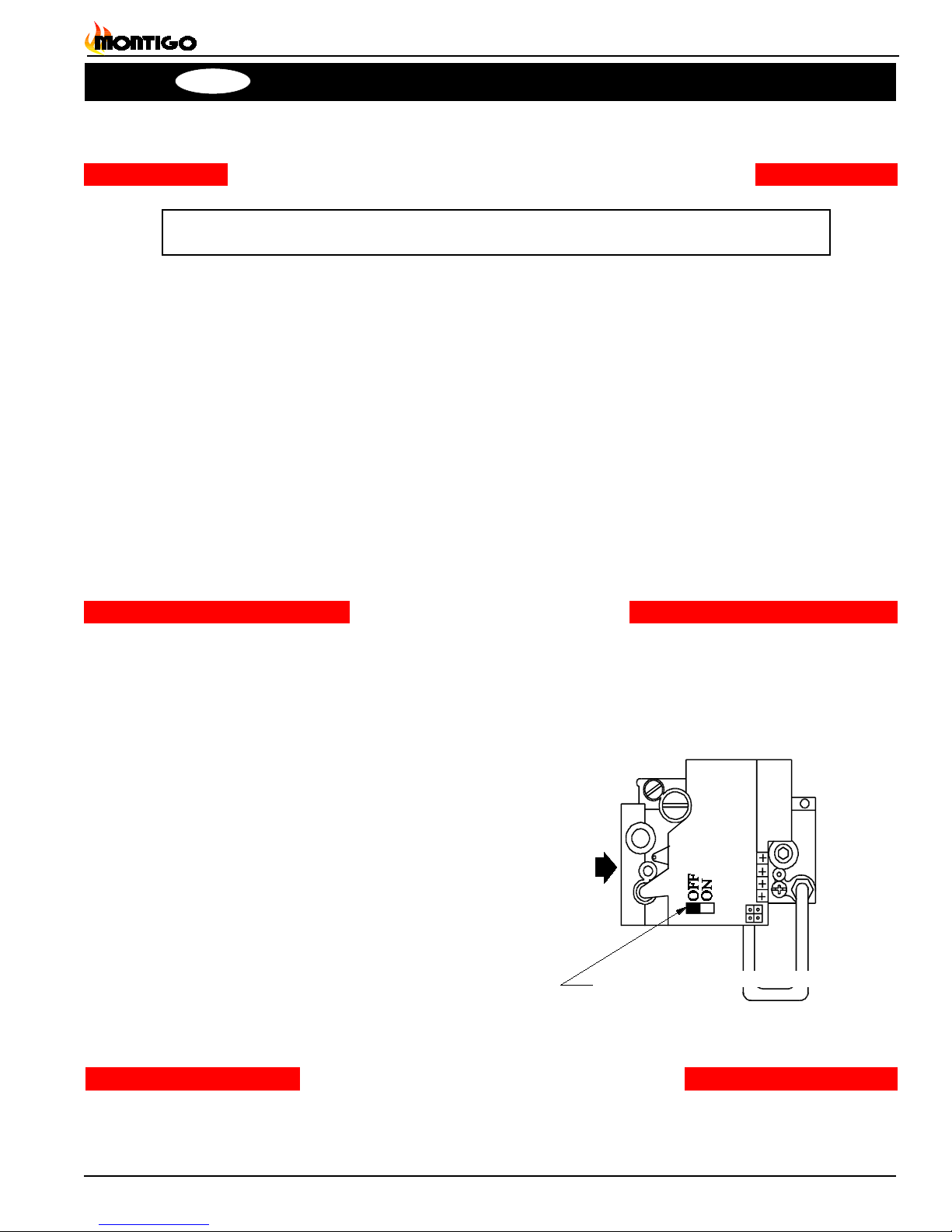

For Your Safety - READ BEFORE LIGHTING:

To Turn Off Gas To Appliance:

Lighting Instructions:

If you cannot reach your gas supplier, call the Fire

Department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by

hand, don't try to repair it, call a qualiﬁed service technician.

Force or attempt to repair may result in a ﬁre or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualiﬁed service technician to inspect

the appliance and to replace any part of the control system,

and any gas control which has been under water.

A. This appliance is equipped with an ignition system that

lights the pilot burner automatically. Do not attempt to

light the pilot by hand.

B. BEFORE LIGHTING smell all around the appliance area for

gas. Be sure to smell next to the ﬂoor because some gas

is heavier than air and will settle on the ﬂoor.

What To Do If You Smell Gas:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any

phone in your building.

Immediately call your gas supplier from a neighbour's

phone. Follow the gas supplier's instructions.

1. Turn oﬀ remote switch.

2. Flip down the lower trim.

3. Turn the switch on the gas control to "Oﬀ".

4. Flip up the trim.

1. STOP! Read the safety information above on this label.

2. Flip down the lower trims.

3. Turn switch on the gas control to OFF".

4. Wait 5 minutes to clear out any gas. If you smell gas,

STOP! Follow "B" in the safety information above on this

label. If you don't smell gas, go to the next step.

5. Turn switch on the gas control to "ON". NOTE: This unit is

equipped with an ignition system that lights the pilot burner

automatically. Do not attempt to light the pilot by hand.

6. Turn on wall switch.

7. Flip up the lower trim.

8. If the ﬁreplace does not operate, follow the instructions "To

Turn Oﬀ Gas To Appliance" and call your service technician

or gas supplier.

with Honeywell Electronic Ignition

WARNING: If you do not follow these instructions exactly, a re or explosion

may result causing property damage, personal injury or loss of life.

Operation - Model C38-BV-I

C38-BV-I

Gas

Inlet

Gas Control Switch

Shown in "On" Position

Page 10

C38-BV Gas Fireplace

Part No. XG0314

Maintenance

WARNING:

Do not attempt to clean glass when hot.

Do not clean glass with abrasive materials as any glass etch-

ing may cause premature glass failure.

CAUTIONS

Fireplace gas control must be in the “OFF” position and pilot

and main burners extinguished when cleaning appliance with

a vacuum.

Doors and logs can get very hot. Handle only when cool.

General

Have the ﬁreplace installation inspected yearly, including a visual

check of the vent system, the burner and the pilot ﬂame. For your

convenience a 1/8" manifold pressure tap is supplied on the gas

valve for a test gauge connection. See Figure 12.

For Natural Gas this appliance requires a minimum inlet pressure

of 5.5" W.C. and a manifold pressure of 3.5" W.C.

For Propane Gas this appliance requires a minimum inlet pres-

sure of 11" W.C. and a manifold pressure of 10" W.C.

Always keep the ﬁreplace area clear and free of combustible

materials, as well as gasoline and other ﬂammable vapours and

liquids.

Do not use this appliance if any part has been under water. Imme-

diately call a qualiﬁed service technician to inspect the appliance

and to replace any part of the control system and any gas control

which has been under water.

Operation

Lighting Instructions

See pages 8 and 9.

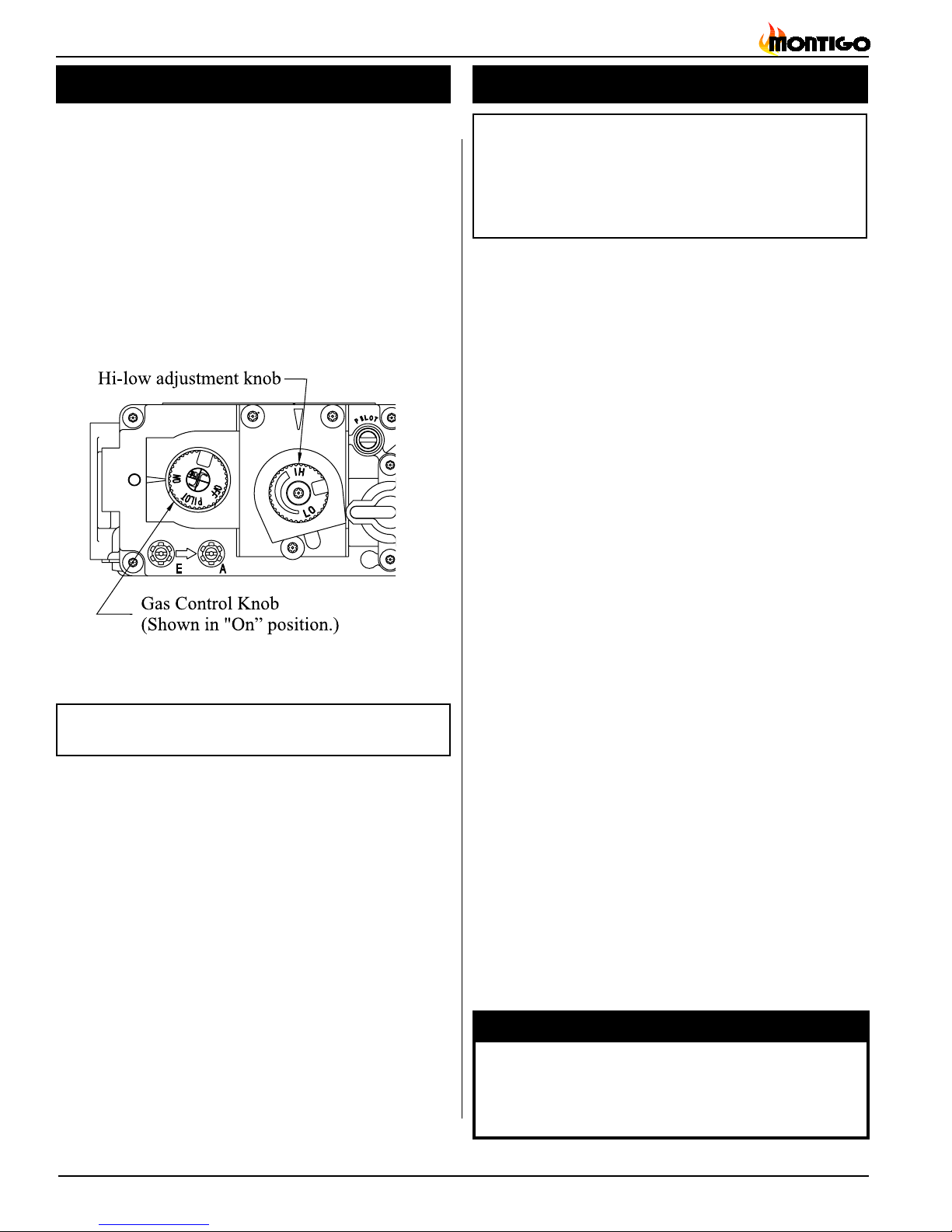

Burner Adjustment

The C38-BV is equipped with an adjustable burner, allowing you to

raise or lower the ﬂames. To adjust the ﬂames, locate the black knob

marked 'Hi-Lo', in the centre of the gas control valve (See Figure 11).

The front burners are not adjustable.

To raise the ﬂame height, turn the black knob (located behind the

lower trim) counterclockwise.

To lower the ﬂame height, turn clockwise.

Figure 11. 'Hi-Lo' Adjustment on the C38-BV's gas valve.

Cleaning

When the ﬁreplace is ﬁrst activated, there may be some smoking and

a visible ﬁlm may be left on the glass. This is a normal condition, and

is the result of burning of protective coatings on new metal.

Glass must be cleaned periodically to remove any ﬁlm (which is a

normal biproduct of combustion) which may be visible. Film can

easily be removed by removing the door, as shown on page 6-7.

Handle the door carefully, and clean it with non-abrasive glass

cleaners. One of the most eﬀective products is Kel Kem.

Silicone seals on inner door during initial ﬁring will "oﬀ gas", leav-

ing a visual deposit of a white substance on combustion cham-

ber walls. This can easily be removed using normal household

products.

Use a vacuum cleaner or whisk broom to keep the control com-

partment, burner, and ﬁrebox free from dust and lint.

Logs may be cleaned periodically with a vacuum to remove soot

Note: C38-BV-I models (electronic ignition) do not feature

hi/lo adjustment.

Other manuals for C38-BV

This manual suits for next models

Table of contents

Other Montigo Indoor Fireplace manuals

Montigo

Montigo SP28-F2 Owner's manual

Montigo

Montigo HP38DF PFC Manual

Montigo

Montigo 36ST Wiring diagram

Montigo

Montigo DelRay Square DRSQ34NI Instruction Manual

Montigo

Montigo E34DW Owner's manual

Montigo

Montigo EP28-4 Installation and operating instructions

Montigo

Montigo C34-DV Owner's manual

Montigo

Montigo L52DF-ST Instruction Manual

Montigo

Montigo R Series Instruction Manual

Montigo

Montigo L38FSDN Instruction Manual

Montigo

Montigo 36 Super Hot Wiring diagram

Montigo

Montigo E38-DVM Owner's manual

Montigo

Montigo B34-DV-2 Manual

Montigo

Montigo Homefire plus MD34-DV-2 Owner's manual

Montigo

Montigo B34DV Instruction manual

Montigo

Montigo MD44-DV User manual

Montigo

Montigo H38DF PRC Instruction manual

Montigo

Montigo M38BV-ST Owner's manual

Montigo

Montigo M38DVM Wiring diagram

Montigo

Montigo PVVEX58-200 Instruction Manual

Montigo

Montigo H-Series DF User manual

Montigo

Montigo H38DF ST Instruction Manual

Montigo

Montigo H34DL Manual

Montigo

Montigo L42DF series Manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
