Mini Audio Mixer

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

IMPORTANT WARNINGS & SAFETY INSTRUCTIONSIMPORTANT WARNINGS & SAFETY INSTRUCTIONS

The mixers are covered by a limited warranty, against any defects in workmanship for

a period of one year from the date of purchase. This warranty is non-transferable and

applies only to the original purchaser. If any warranty related issues occur, contact your

1. Power Supply

This mini-mixer is supplied with an external power supply unit. Use only the power

supply provided with your mixer. Use of any other power supply could cause damage to

the mixer and other equipment. Connect the power supply to the mixer BEFORE connecting

it to the power source outlet. Be sure to allow for free airflow around the mixer, as it

may become warm during long periods of operation. The mixer is shipped with the

correct power supply for the county in which it is to be used. This can be verified by

checking the label on the power supply.

2. Packing

The exterior and interior packaging has been designed protect the mixer during transit.

If any shipping damage has occurred, consult your dealer and the shipping provider.

3. Safety

Avoid exposing your mixer to excessive heat, humidity and dust. Store and operate

the mixer away from locations where it is likely to be exposed to these conditions.

Also, avoid placing your mixer in locations which may be subject to excessive

vibration/physical shocks that could cause mechanical damage to the mixer.

For the protection of the mixer and other audio equipment, always turn off the power

on the mixer and other system components before connecting or disconnecting audio

cables. Be aware that excessive volume levels are possible from the output of this

WARNING:

QUALIFIED SERVICE PERSONNEL!

THIS PRODUCT CONTAINS NO USER-SERVICEABLE PARTS!

REFER ALL MAINTENANCE, REPAIRS AND MODIFICATIONS TO

mixer Protect your hearing accordingly.

4. WARRANTY

dealer. Proof of purchase may be required.

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

TABLE OF CONTENTSTABLE OF CONTENTS

Page

.........................................

5-10

5-7

7-8

8-9

11-12

IMPORTANT WARNINGS & SAFETY INSTRUCTIONS

WHAT ABOUT THE MINI MIXER?

FEATURES

MIXER FRONT PANEL

DETAIL FEATURES

Mono Channels

Stereo Channels

Master Section

MP3 Player (Digital Audio Player) Section

SETTING UP

BLOCK DIAGRAM

SPECIFICATIONS

.........................................

MINI MIXER 6/8/10/12 CHANNEL

The Mini Mixer is a high quality mixer designed to provide the best sound and

features in a compact package. It is designed to provide transparent and accurate mixing

capability in an easy to use package.

The mixer consists of 2/4/6/8 x microphone/line inputs. Each mono channel features

Iow,mid and high EQ, balanced input, and a Digital Effect processor with 16 effects

to allow you to "tune" your sound.

The 2 stereo channels with high and low EQ allow you to mix your external devices into the

show with ease.

Easy to transport and quick to set up, the Mini Mixer is the ideal choice for the serious

professional.

The mixer consists of 2/4/6/8 microphone/line inputs and 2 Stereo Channels.

WHAT ABOUT THE MINI MIXER?WHAT ABOUT THE MINI MIXER?

The Mini Mixer is a full featured multi-channel mixer designed to delive the highest quality

sound for the best value.

The mini mixer is the solution when you are looking for a high quality, Iow-cost compact

audio mixer for personal studio and live applications. This was built to

suit a variety of applications, from desktop recording and AV production, to samller live

performances. Mini mixer offer no-nonsense mixing platforms-anywhere quality sound is

required. The layout of the controls is straightforward, so first time user's can be up and

mixing in no time. Feature like -10dB and line-level inputs and outputs, accurate 4-segment

meters, 3 band EQ, phantom power -as well as 1/8" and 1/4" headphone outputs provided

added mix and monitoring flexibility.

INTRODUCTION

Professional Mixer is the result of many years of experience in the use, design and manufacturing

of professional sound reinforcement products. We take great pride in engineering and building

every product and wish to thank you for entrusting us with your sound.

Please take a few minutes to read this manual completely in order to ensure that you get

the most out of your Mini Mixer.

MINI MIXER OVERVIEW:

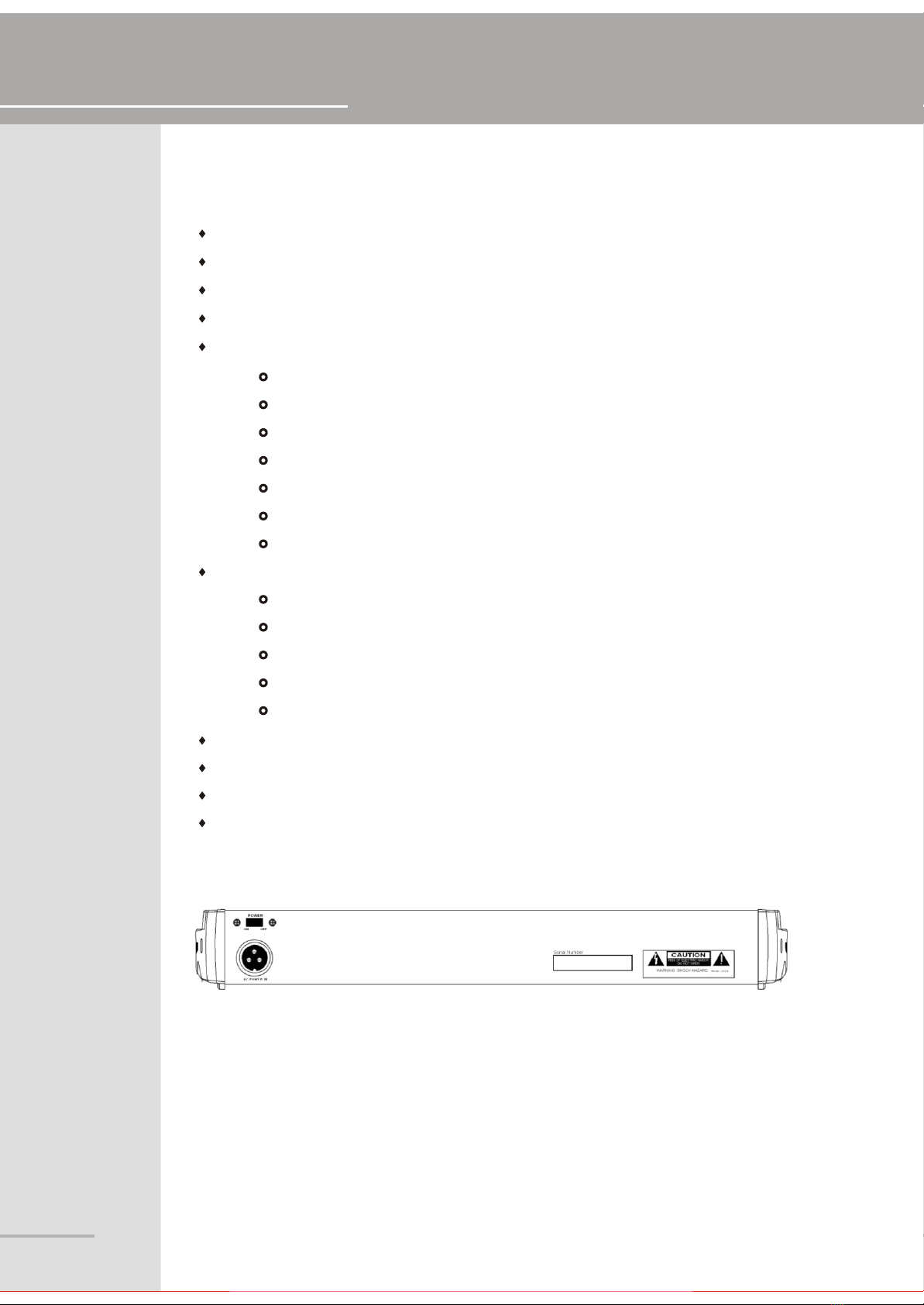

FEATURESFEATURES

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

2 x 2 Track (2TK) inputs (RCA + 3.5mm)

2TK to Mains/ Headphones Switches

Digital EFX: 16 effects

Headphone Outputs (TRS + 3.5mm) with level control

Mini Size,light weight

MP3 Player With USB jack

High Quality Multi-Channel Mixer

6/8/10/12 Channels

Channels

XLR+TRS balanced inputs

3 band (Low/Mid/High) EQ

Gain adjustment

EFX level control

L/R pan control

Phantom Power

Clip LED

Stereo Channels

TRS balanced inputs

2 band (Low/High) EQ

EFX level control

Balance adjustment

-10dB/ +4dB switch

MINI MIXER 6/8/10/12 CHANNEL

MIXER FRONT PANELMIXER FRONT PANEL

DETAILED FEATURESDETAILED FEATURES

Mono Mic / Line Input Channel

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

Each mono channel each feature a three band Equalization

("EQ") section. Each band is chosen from the prime

frequencies for most musical applications, and allows up

to 15 decibels of boost (increse) or cut (decrease) of the

signal in the tone range for which it controls. In the center-

detent position (0), the equalizer is bypassed (flat)and the

control has no effect on the tanal characteristics of the

signal. The HIGH control is centered at 12KHz. The MID

control is centered at 2.5kHz and the LOW EQ control is

1. Low Impedance (Low Z) MIC Input

Mono Channels

The law noise, high headroom "law Z" MIC inputs are for

use with balanced, law impedance dynamic or conderser

NOTE: Condenser micrphones generally require phantom

power. If your condenser microphone appears not to be

working check that the phantom power switch (master

microphones.

section - 5) is engaged.

2. LINE IN

These 1/4" Tip, Ring, Sleeve (TRS) jacks are designed to be

connected with (-10 to +4dBu) balanced or unbalanced

line level sources.

3. GAIN Control

In order to achieve the best signal to noise ratio and

adequate dynamic range, the input preamp level of the

Mit/Line channels is adjusted with o GAIN control on

each mono channel. Set the GAIN control by watching

the LED bar-graph meters-above the MAIN MIX level

control in the Master section of the mixer- while the

signal source for that channel is active (whether it be a

microphone or an instrumetn connected to the LINE IN of

the channel). The ideal level is between 0dB and +6dB

on the bar 9raph meters. If the CLIP LED on the channel

lights up consistently, the GAIN control is set too hi9h. It is

acceptable for the CLIP LED at flash periodically especially

with loud instruments like drums or during peak sound

levels during loud portions of a performance.

4. CLIP LED

The CLIP LEDs (on channels 1 to 4) will light up when the

input signal is driven too high This indicates that the signal

is overloading the preamp and causing distortion.

5. EQ Section

centered at 80Hz.

MINI MIXER 6/8/10/12 CHANNEL

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

6. EFX Section

The EFX control allows you to mix the dry (i.e. no effects)

sound with the effects signal. Same instruments and voices

sound better with a different level of the effects added in

to the clean signal. This control allow you to mix the effects

in as you like. Sometimes the sound by itself sounds good

with a certJon level of effects but when mixed with the other

channels signals, the sound does not sound the same. You

can tailor the sound of each input by adjsuting this control.

7. Pan and Level

Pan Control: On each mono channel, the PAN control

adjusts the left/right balance of the mono signal being

sent to the left and right MAIN MIX outputs.

8. The Channel LEVEL Control

The Channel LEVEL knob allows for control of the level

of the signal that is being sent to the MAIN MIX master

volume control. Adjust each channel level control to accquire

the best "mix" , or balance of signals, from each input.

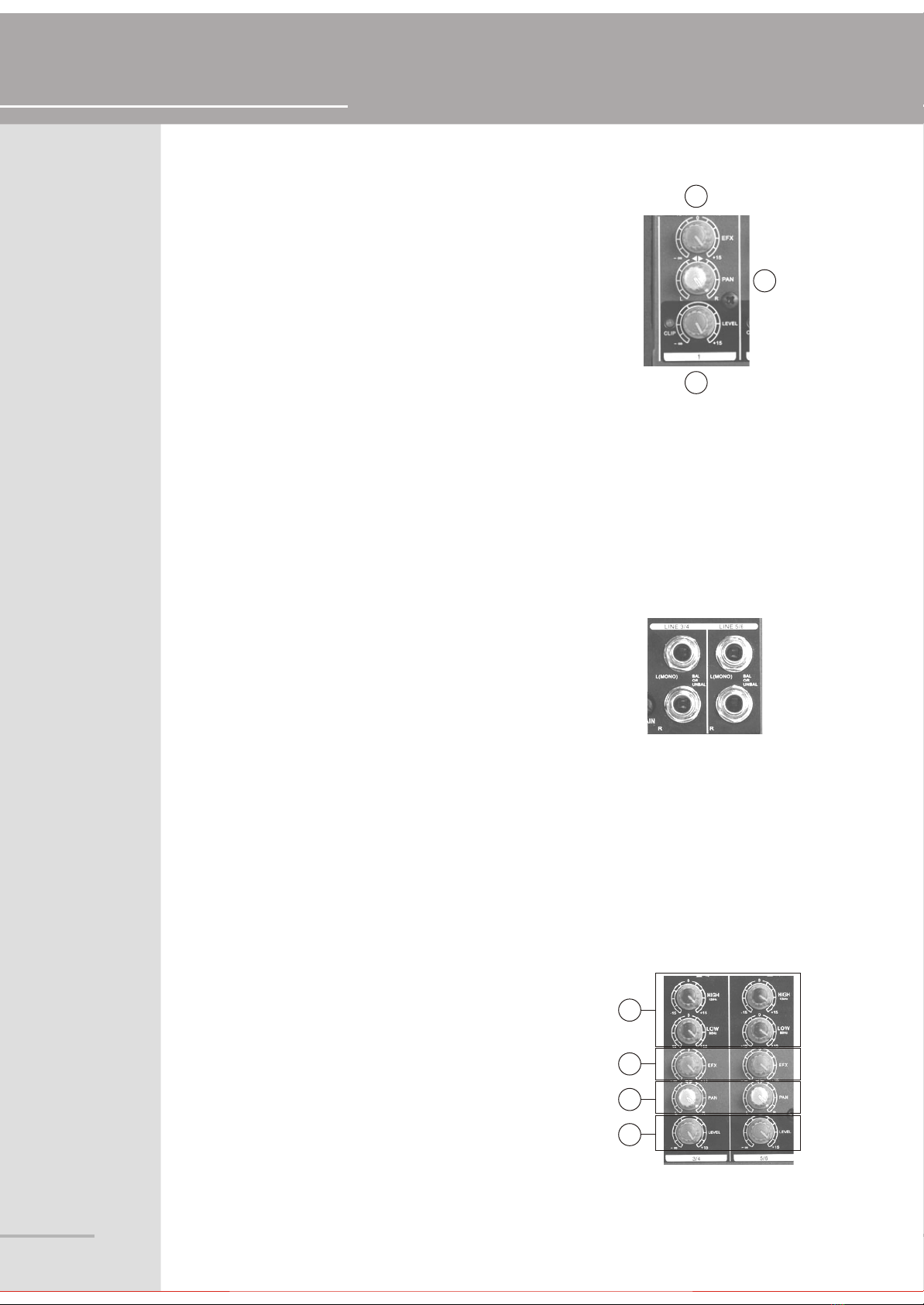

Stereo Channel Inputs

operates as a mono channel.

2. EFX

This control allows you to adjust any effects you want to

add to the signal of your stereo (2 channel) device in the

same fashion s the mono channels.

1. EQ(HIGH/LOW)

Each stereo channel feature a two band Equalization

section. Each band is chosen from the prime frequencies

for most musical applications, and allows up to 15 decibels

of boost (increse) or cut (decrease)of the signal in the tone

range for which it controls. In the centerdetent position (0),

the equalizer is bypassed (flat)and the control has no effect

on the tanal characteristics of the signal. The HIGH control

is centered at 12KHz. The LOW EQ control is centered at

80Hz.

Each of the stereo channels feature two line level inputs

withl/4'' Tip/ Ring/Sleeve(TRS) jacks for both balanced and

unbalanced left and righ input isgnals. These inputs can

occommodate both stereo and mono inputs. When using a

mono source, connect the cable to the LEFT (MONO) input

only. Stereo Channels have stereo inputs with left and right 1/4"

Tip/Ring/Sleeve (TRS) input jacks. LEFT (MONO) input: When

only one plug is inserted into the LEFT jack, the channel

This section also consists of two sets of three output jacks.

These are the bottom row of jacks in the "2TK OUT" section

PAN Control

3. PAN and LEVEL

On a stereo channel, with a stereo input connected, turning

the PAN control to the left will case right input's

signal level to decrease. Turning the PANcontrol fully

right on a stereo channel will cause the left Jnput's signal

level to decrease. If a mono input is connected to a stereo

channel, the PAN control will function as a PAN

control by adjusting the left/right PAN of the mono

signal being sent to the left and right MAIN MIX outputs.

4. Stereo Channel Level Control

The stereo channel level control allows for control of both

the left and right signals being sent to the MAIN MIX

master volume control. If a mono input is connected to a

stereo channel, the channel functions like a mono channel.

Master Section

The master section on the right side of the mixer controls

the final gain stage of the mixed signals from the input

channels. The MAIN MIX control allows for the adjustment

of the overall output level of the mini mixer.

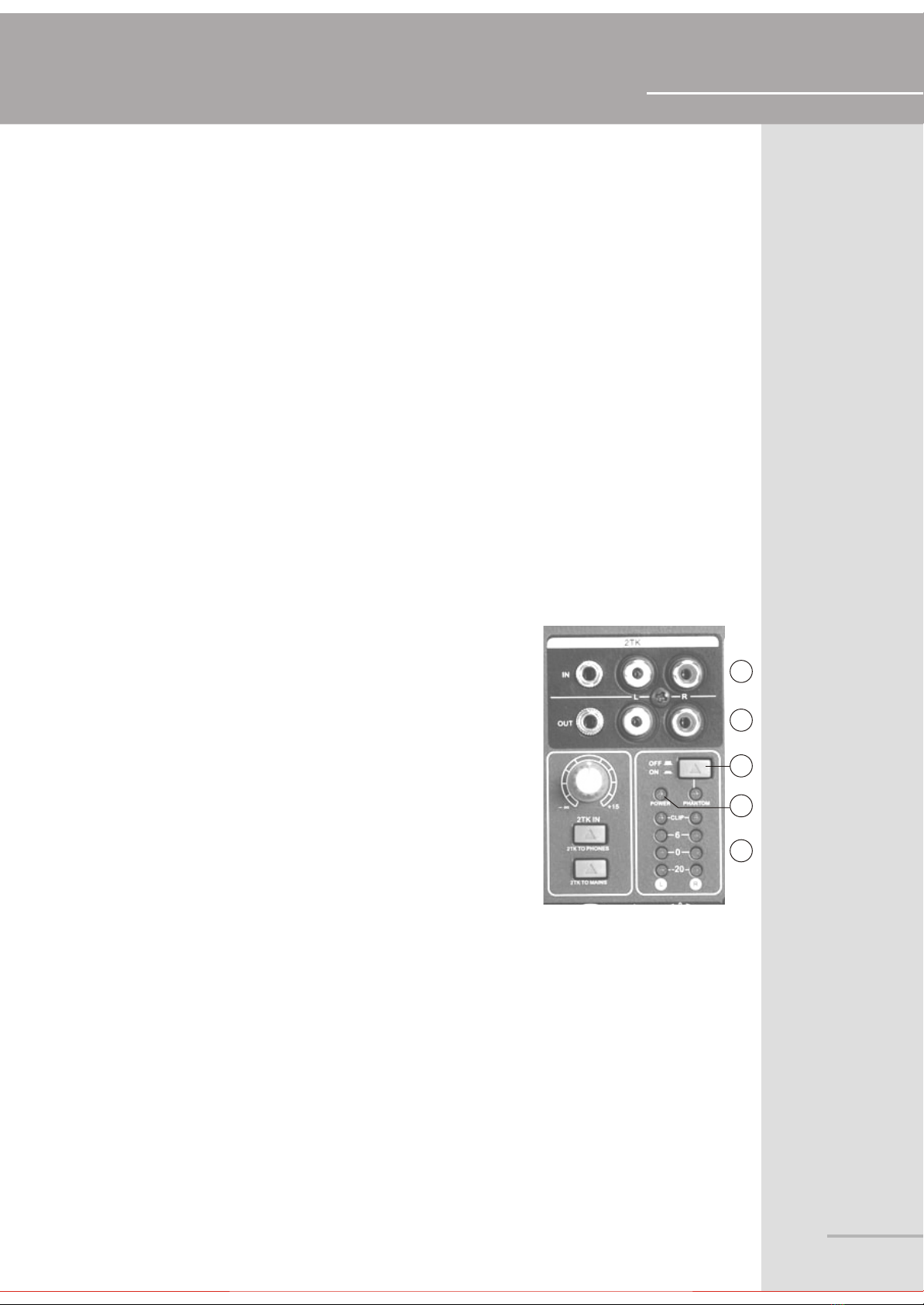

POWER LED & Signal Metering

1. POWER LED

This amber LED lights indicating power is on for the mixer.

2. Level Meters

The signal level of the MAIN MIX output is displayed on the

4 segment LED bar-graph meters. Levels shown are -20, 0,

6 and CLIP.

3. 2TK IN

This section consists of two sets of three input jacks. The top

row of jacks are the "2TK IN" jacks which are a 1/8" stereo

jack and a left and right RCA jack. These inputs allow for

the introduction of an external stereo signal to the mixer.

This signal is controlled by the 2TK IN volume control and

the 2TK TO PHONES switch as well as the 2TK TO MAINS

switch. When the 1/8" 2TK IN jack is used, it takes priority

over the RCA 2TK IN jacks.

4. 2TK OUT

MINI MIXER 6/8/10/12 CHANNEL

OPERATING MANUAL AND USER GUIDEOPERATING MANUAL AND USER GUIDE

The included power adaptor connects here. Use only the

featuring a 1/8" stereo jack, and left and right RCA jacks.

These outputs allow for the routing of MAIN MIX stereo

signal out of the mixer. This signal level is controlled by the

MAIN MIX volume control. When the 1/8" 2TK OUT jack is

used, it takes priority over the RCA 2TK OUT jacks.

5. PHANTOM Power Switch:

Condenser microphone require power; either from a

battery or power supply or getting it right off the mixer.

6. MAIN OUT1/4" L/R Outputs

Left and Right balanced, TRS (Tip, Ring, Sleeve) "output

jacks for connection to amplifier inputs or recording device

inputs.

7. Phones

stereo headphone output jack. A parallel connection to

a convenient 1/8" mini stereo headphone jack is also

included, allowing for portable headphones and ear

buds. Volume is set with the PHONES level control. Be

aware that very high volume levels are possible from this

output. Make sure the level is set all the way down before

connecting headphones.

This is a standard " Tip-Ring-Sleeve (TRS) amplified

8. FX Master Control

The FX Master Control allows you to choose which effect

you want to use. The FX to MAIN control allows you to

send as much of the effected sound to the MAIN output

controls. Keep in mind that you are adding signal and make

sure you are not overdriving the main output. The FX

on/off switch is a good way to quickly compare the "wet"

and "dry" sound.

9. POWER Switch - On/Off

This slide switch turns the unit on and off. Always power

down the mixer when it is not in use. Be sure to turn off all

system amplifiers or powered speakers before turning off

the mixer.

10. AC Power Cable Connector

power adaptor supplied with the mixer.

6 7

This manual suits for next models

Table of contents

Other Modify Music Mixer manuals

Modify

Modify MXL-2402 User manual

Popular Music Mixer manuals by other brands

Neve

Neve 8816 user manual

Mackie

Mackie Onyx Analogue Mixer brochure

Behringer

Behringer EUROPOWER PMP518M user manual

Peavey

Peavey S-32 Sanctuary Series Operation guide

Rane

Rane MP 4 Operator's manual

True

True T9 Touchscreen Console owner's manual

Studiomaster

Studiomaster Air Pro 24 instruction manual

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Service manual

Roland

Roland M-160 owner's manual

Yamaha

Yamaha MR1642 Operation manual

Ecler

Ecler MAC40v user manual

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects operating instructions

Veeder-Root

Veeder-Root TLS-350 Series System setup manual

Alto

Alto APM80.QUAD user manual

Omnitronic

Omnitronic PM-211 user manual

SoundCraft

SoundCraft B400 user guide

Roland

Roland SoundCanvas SC-8820 owner's manual

CARVIN

CARVIN RX 1200 operating manual
