MJ LED LIGHTNING WIRELESS BATTERY PAR 910 User manual

WIRELESS BATTERY PAR 910

MJ-3119A

(RGBA)

User Manual

======PROFESSIONAL LED LIGHTING ========

Thank you for choosing our LED wireless battery par light. For the sake of

your safety, Please read and follow these instructions carefully and keep

this manual in a safe place for future reference.

Before open the LED wireless battery par can light and if you want to do the

repair work, please make sure the power source is at the separation

condition.

Unceasingly carries on the product improvement about our company the

policy, in this instruction booklet carries the data will have the possibility to be

able to change in the future, when no longer separate notice change matters

concerned. Our company retains when the product improvement changes the

related specification the authority. This instruction booklet publisher cannot be

responsible regarding this instruction booklet in information accuracy, also

cannot the related consequence which causes regarding these information be

responsible

Most important: FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First

Charge before use. Plug in Power cord. Turn off Power Switch and wireless

Switch and Turn ON charger switch to charge.

Introduction

Unpacking: Thank you for purchasing this product, all products has been thoroughly tested and

has been shipped in perfect operating condition. Carefully check the shipping carton for damage

that may have occurred during shipping. If the carton appears to be damaged, carefully inspect

your fixture for any damage and be sure all accessories necessary to operate the unit has

arrived intact. In the case damage has been found or parts are missing, please contact the

manufacturer or your dealer for further instructions. Do not return this unit to your dealer without

first contacting.

Introduction: The Light is a DMX intelligent and battery powered LED par light. This par light is

light weight and compact which makes it a great piece for mobile DJ‟s and clubs.

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain

or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself; doing so will void your manufactures warranty. In the unlikely event your unit may

require service please contact the manufacturer or your dealer.

PLEASE recycle the shipping carton whenever possible.

General Instructions

To optimize the performance of this product, please read these operating instructions carefully

to familiarize you with the basic operations of this unit. These instructions contain important

safety information regarding the use and maintenance of this unit. Please keep this manual with

the unit, for future reference.

Notice :please pay attention to ventilation, to prevent the

battery overheat cause burning When charging.

Features

●Power supply: AC100V-250V

●Frequency: 50-60Hz

●Power consumption: 90W

●Light source: 9pcs 10W RGBA high brightness 4in1 led

●Lamp life: 6-10 ten thousand hrs

●LED angle: 30(±5) degree

●Color: 16.7 million kinds of color change

●Control channels: 4/8 CH

●Battery power & wireless DMX

●Wireless DMX-512 protocol

●Built in 2.4G receiver/ transmitter for wireless DMX operations

●Control mode: DMX512, master/slave, auto, sound active ,wireless DMX512

●Automatic model(by function button) : color change, color strobe, color dimmer,

color gradual change/color jump change

●Operation menu: 4 digit digital LED display

●Packing size: 265*165*275mm

●N.W: 3.5kg

●G.W: 4.2kg

Safety Precautions

●To reduce the risk of electrical shock or fire, do not expose this unit to rain or

moisture.

●Do not spill water or other liquids into or on to your unit.

●Be sure that the local power outlet match that of the required voltage for your

unit.

●Do not attempt to operate this unit if the power cord has been frayed or broken.

Do not attempt to remove or break off the ground prong from the electrical cord.

This prong is used to reduce the risk of electrical shock and fire in case of an

internal short.

●Disconnect from main power before making any type of connection.

●Do not remove the cover under any conditions. There are no user serviceable

parts inside.

●Never operate this unit when it‟s cover is removed.

●Never plug this unit in to a dimmer pack.

●Always be sure to mount this unit in an area that will allow proper ventilation.

Allow about 6” (15cm) between this device and a wall.

●Do not attempt to operate this unit, if it becomes damaged.

●This unit is intended for indoor use only; use of this product outdoors voids all

warranties.

●During long periods of non-use, disconnect the unit‟s main power.

●Always mount this unit in safe and stable matter.

There are three buttons on the rear panel of the lighting. One is for power, one is

wireless signal and the other is for charger.

●When use the fixture with DMX, not wireless, please switch the signal button

for “off”

●When use the wireless DMX, please switch the button for “on”

●When charge the light, please switch both of the button for “of”. At the same

time, if the switch for power is “on”, the light will be at work during the process of

charge, but will consume some power from the charge; if the switch for power is

“off”, the light will be blackout and not be at work.

Tip for the battery and charge:

●The battery can last for 3-4 hours when all LEDs on after full charge , and can

last for more than 6-8 hours on auto running mode. Up to 10 Hours with one color

diode on. Results will vary based on brightness of LEDs

●It is suggested to charge the battery for at least 4 hours, which will extend the

life span of the battery.

Charge Warning:

1.For carton box:

Please do NOT put in carton box while charging.

2.For Flight case:

Please do NOT close the case while charging.

3.For charge time:

Please do NOT charge over 10 hours.

For Battery Function and Charge

The unit has the function of battery powered. The button for battery and

charge is set on the rear panel. It is showed as the following picture,

and the function is described as below.

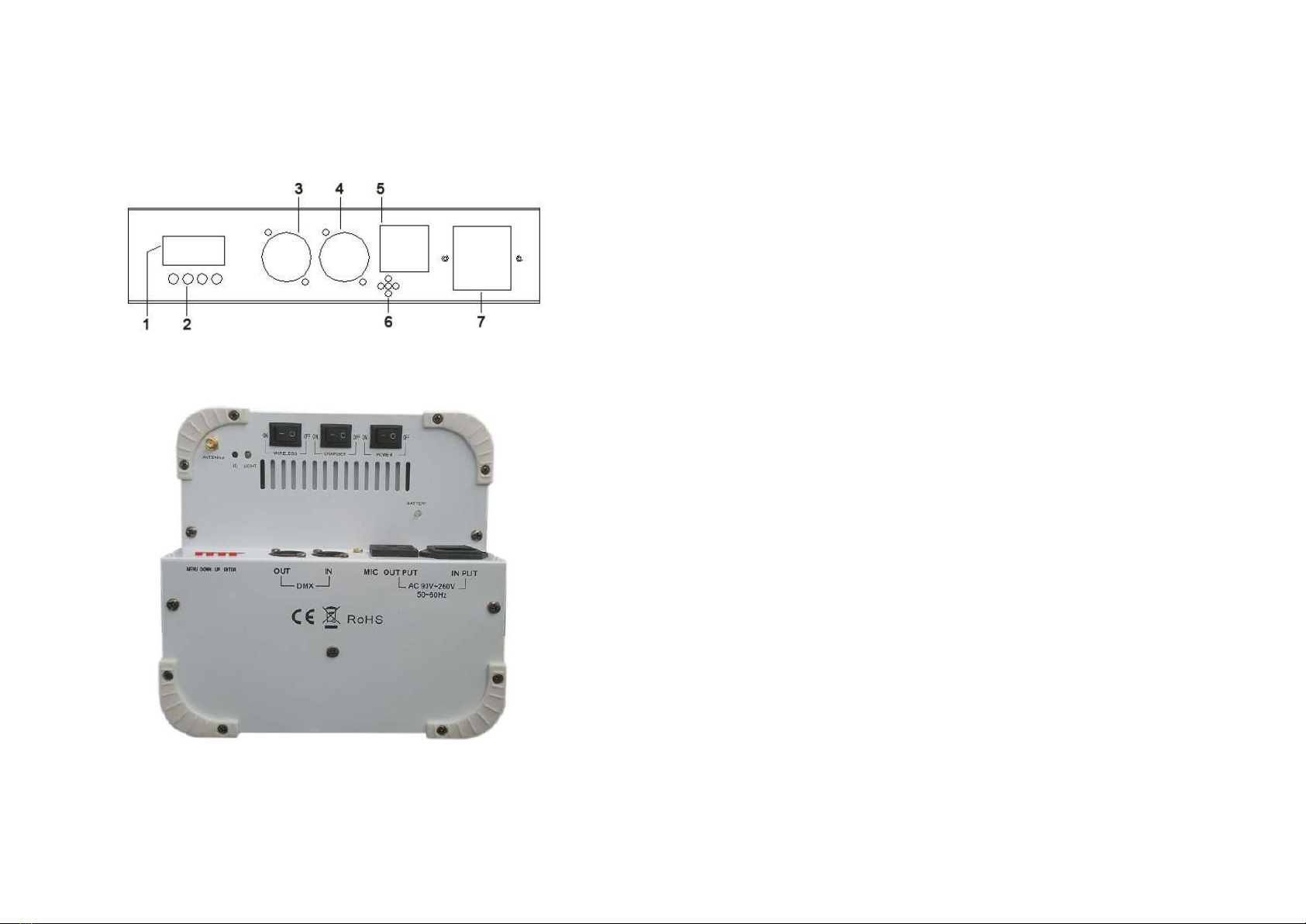

1. Alpha-numeric display 2. Touch switches 3. DMX-Out socket

4. DMX-In socket 5. Power out 6. Microphone 7. Power in

1. Antenna 2. ID code selector 3. Wireless indicator 4.Power

switch for wireless receiver 5. Power switch for charger 6. Power

switch for light power 7.Battery indicator

●Power-supply cords should be routed so that they are not likely to be walked

on or pinched by items placed upon or against them, paying particular attention to

the point they exit from unit.

●Cleaning -The fixture should be cleaned only as recommended by the

manufacturer. See “Cleaning” for details.

●Heat -The appliance should be situated away from heat sources such as

radiators, heat registers, stoves, or other appliances (including amplifiers) that

produce heat.

●The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a marked

change in performance

●Fuse standard is 2A/250V

●Grounded using yellow/green line

●The ambient temperature must always be under +35° C

Set Up

Power Supply: Before plugging your unit in, be sure the source voltage in your

area matches the required voltage for your light is workable in

100-240V/50~60Hz. Because line voltage may vary from venue to venue, you

should be sure your unit voltage matches the wall outlet voltage before

attempting to operate you fixture.

Operating Instructions

Operating Modes: You can use the light in 5 ways:

●Sound activation – The unit will activated by the sound signal.

●Static display – The unit will display the color in static way.

●Auto Mode -The unit will automatically chase through the different patterns.

●DMX control mode -This function will allow you to control the lighting with a

standard DMX 512 controller.

●Battery powered – This function will allow you to control the lighting

independently without any DMX cable

DMX Mode: Operating through a DMX controller give the user the freedom to

create their own programs tailored to their own individual needs. This function

also allows you to use your fixtures as pattern changing lights.

1. This function will allow you to control each individual fixtures traits with a

standard DMX 512 controller.

2. The light use 4/8 DMX channels to operate. Please see “DMX channel and

Functions” for the DMX traits.

3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to

any standard DMX controller. Set your desired DMX address following the setup

specifications that come with your DMX controller.

4. The unit can automatically recognize the DMX signal once the DMX connection

is done.

DMX Linking:

To ensure proper DMX data transmission, when using several DMX fixtures try to

use the shortest cable path possible. The order in which fixtures are connected in

a DMX line does not influence the DMX addressing. For example; a fixture

assigned a DMX address of 1 may be placed anywhere in a DMX line, at the

beginning, at the end, or anywhere in the middle. When a fixture is assigned a

DMX address of 1, the DMX controller knows to send DATA assigned to address

1 to that unit, no matter where it is located in the DMX chain.

Buttons instruction:

There are four touch buttons under the LED Alpha-numerical display: Menu,

Down, Up, Enter. Normally, the LED will display the current DMX address code of

the fixture. At this time, presses Menu to choose the function you want to set up.

Press and hold Up or Down to fast scrolling within the menu options. When an

options flashing the LED display, press Enter to confirm and Menu to exit.

Menu down up Enter

No.

Display

Function

1 A001

A001—A512 (8 channel) press “UP” and “Down”

button change the DMX address

2 d001

d001—d512 (4 channel) press “UP” and “Down”

button change the DMX address

3 CL01

CL01—CL15 (Color Mixing), press “UP” and

“Down” button change the mixing color

4 CC01

CC01—CC99 (Color change by Snapping), press

“UP” and “Down” button change the Snapping speed

5 EE01

EE01—EE99 (Color change by Fade), press “UP”

and “Down” button change the Fade speed

6 FF01

FF01—FF99 (Color change by pulse), press “UP”

and “Down” button change the pulse speed

7 ST99

ST01-ST99(Color Strobe, press “UP” and “Down”

button change the strobe speed

SE01

Sound sensitivity adjustment

SOU1

Sound mode 1/2/3

LED

LED display ON/OFF

IRCL

IR control(this model no function)

TENP

LED board temperature(this model no function)

TEST

Color testing

R000

R000—R255 (R dimming by hand)

G000

G000—G255 (G dimming by hand)

B000

B000—B255 (B dimming by hand)

U000

U000—U255 (A dimming by hand)

DMX channel

Channel

Value

4CH

8CH

CH1

Off

1-255

R dimmer

Main dimmer

CH2

Off

1-255

G dimmer

R dimmer

CH3

Off

1-255

B dimmer

G dimmer

CH4

Off

1-255

A dimmer

B dimmer

CH5

Off

1-255

A dimmer

CH6

0-9

Off

10-255

Strobe function slow-fast

CH7

0-9

Off

10-49

Color mixing

50-89

Color change by Snapping

90-129

Color change by Fade

130-199

Color change by pulse

200-219

Sound mode 1

220-239

Sound mode 2

240-255

Sound mode 3

CH8

No action

1-255

Speed control fast -slow

This manual suits for next models

Table of contents

Other MJ LED LIGHTNING Lighting Equipment manuals

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3110 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1280 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1350N User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2009B User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MATRIX BAR 910 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2007C-1000 36P1W25DRGB User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-B380 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2037C User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3126-4IN1 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1012A User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1034A User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2006A Series User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3372 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1018F User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1005-4IN1 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3072 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2400-2IN1 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3009 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2009A User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-1044-6IN1 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3112A User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-3046 User manual

MJ LED LIGHTNING

MJ LED LIGHTNING MJ-2010A-4IN1 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
