GOT1000 Startup Guide Ver. A

GT1020/GT1030-to-FR-E 700 Inverter

Overview:

This document provides a simple guide to setting up the GT1020 or GT1030

Graphic Operation Terminal (GOT) hardware and firmware for use with an

FR-E 700 Inverter.

Hardware Introduction:

The GT1020 and GT1030 are monochrome, 3-color backlight, two

communication channel GOT1000 Series touch panel interfaces used for

capturing user input to a system.

It should be noted that not all products from the GT1020 or GT1030 range are

compatible with a FREQROL inverter connection. Compatible products are

identified in the table below:

Model Size Extension Backlight Colors Comm. IF Power

LBD Green/Orange/Red RS-422

GT1020 3.7”

160 x 64 dot LBDW White/Pink/Red RS-422 24V DC

LBD Green/Orange/Red RS-422

GT1030 4.5”

288 x 96 dot LBDW White/Pink/Red RS-422 24V DC

For new GT1020 and GT1030 units, included in the box should be the

GT1020/GT1030 (A), 1 PLC Communication Connector (B), 1 rubber Panel

Mounting Packing (C), and 4 Panel Mounting Brackets (D).

Cabling:

Power

The applicable GT1020/GT1030 GOTs, require an external

24V DC power supply to be connected to the Power Terminal

on the back of the GOT.

B C

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

Communication

For the GT1020/GT1030 to communicate with the inverter, a communication

cable is required. The type of cable used is dependent on the number of

inverters used within the system, examples of which are illustrated below.

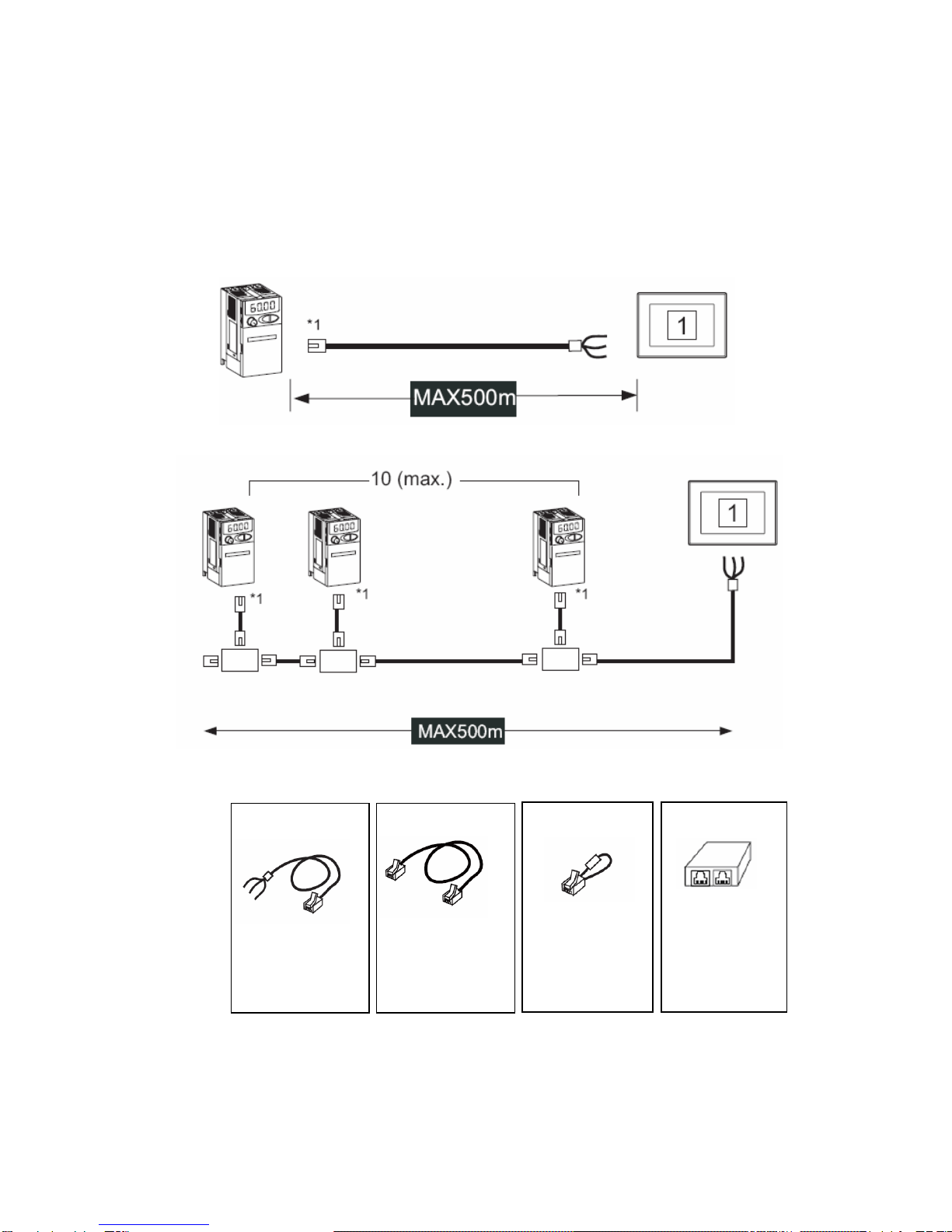

One inverter:

Multi-drop connection:

*1 Connect to the PU port of the inverter.

Key:

* Cables to be made by user

** For direct wiring to RS-485 terminal blocks refer to respective product

manual.

(A)

(B)

(

(B)

(C)

(A)

(B)

(D)

Distributor

RS-422

Between distributor

and inverter or

between distributors

RS-422

Mounting a

terminating

resistor

RS-422

• Between inverter

and GOT

(A)

(B)

(C)

(D)

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

GOT 



Inverter Wiring Diagrams

(A)

(B)

(C)

*1 The connector figure shows the engagement face.

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

GOT Terminals

The GT1020/GT1030 is fitted with screw terminals, use a small flathead

screwdriver to secure the wires within the PLC Communication Connector.

Terminal points are illustrated below:

Programming Cables:

The GT1020 and GT1030 come pre-installed with an OS and FX

communication driver, but without any project data. To download a project

from a PC running GT Designer2 to the GOT, a programming cable is

required that connects to the RS-232C 6-pin Mini-DIN port on the back of the

GOT. It is recommended to use a shielded USB A-type to Mini-B type cable

with a ferrite core paired with the GT10-RS2TUSB-5S, but any RS-232C

programming cable for the Q-Series will also work fine. A diagram of both is

shown below.

Note that using the GT10-RS2TUSB-5S will require a virtual USB COM port

driver to be installed on the PC. The COM port number can be automatically

or manually assigned so that it does not overlap with the existing COM port

numbers assigned on that PC. When using a Q-Series programming cable,

the COM port number already assigned to the RS-232C interface of the PC

will have to be checked.

QC30R2 (RS-232C)

USB + GT10-RS2TUSB-5S

PC GOT

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

GT Designer 2

(Version 2.73 or later)

To make sure the GT1020/GT1030 GOT is able to use

the latest functions and features, it is the responsibility

of the user to check and update the firmware (Standard

monitor OS) of the GOT.

Launch the latest copy of GT Designer2 and start a new project for the

corresponding GOT model (GT1020 or GT1030) with the “FREQROL500/700”

Inverter Type. Select “Yes” to set the Communication Setting and make sure

the Standard I/F-1 CH No. is set to 1 before selecting “OK”. The “Screen

Property” window that pops up for making a new screen can be either

canceled or accepted for the following steps.

Go to the “Communication” menu and select “To/From GOT” to bring up the

“Communicate with GOT” window. Go to the “Communication configuration”

tab and select “RS232” and the corresponding “Port No.” that connects the

PC to the GOT. With the GOT power ON, use the “Test” button to verify that

the PC and GOT can communicate properly then turn the GOT power OFF.

Installing OS and Communication Drivers

To access the OS installation mode of the GT1020/GT1030, switch the GOT

power from OFF to ON, while holding the bottom right corner of the touch

screen (in Horizontal layout), illustrated below:

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

While the “Please install the OS” screen is displayed, go to the “OS Install ->

GOT” tab in the “Communicate with GOT” window of GT Designer2 and select

“Standard monitor OS” and select ‘FREQROL 500/700’ from the

‘Communication Driver’ menu. Use the “Install” button to initiate the data

transfer and update the firmware. Once the firmware update has been

completed the GOT will automatically reboot and all features will be up to date.

Note that new project data will need to be downloaded to the GOT.

Select the following under communication driver

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

Inverter Settings

When setting the inverter communication parameters it is important to reset

the power afterwards so that the settings are saved to the inverter.

The parameters shown in the following table must be set using the PU

(Parameter Unit).

Note: Do not change these parameters, even though it is possible to monitor

them through the GOT. If they are changed, communication with the GOT is

disabled.

Setting item Parameter Set Value Setting Contents

Communication Station

number Pr.117 0-31 See following section

Communication Speed Pr.118 192 19200bps

Stop bit length Pr.119 10 Data length: 7bit

Stop bit length: 1bit

Parity check presence/

absence Pr.120 1 Odd

Number of

Communication retries Pr.121 9999 The inverter will not

come to an alarm stop.

Communication check

time interval Pr.122 9999 Communication check

Suspension

Wait time setting Pr.123 0 0ms

CR/LF selection Pr.124 1 With CR, without LF

Protocol selection Pr.549 0 Mitsubishi inverter

protocol

Operation mode

selection Pr.79 0 PU operation mode

Communication startup

mode selection Pr.340 1 Network operation mode

EEPROM write

selection Pr.342 0 Written to RAM and

EEPROM

Station Setting

Set each station number while making sure that each station number is used

only once. The station number can be set regardless of the cable connection

order. Station numbers do not have to be consecutive. The setting of the

Station number has to be between 0-31.

Indirect specification

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

When setting the station number indirectly, the station number of the inverter

can be changed using the 16-bit GOT internal data register (GD10 to GD25).

When specifying the station No. from 100 to 155 on GT Designer 2, the value

within GD10 to GD25 is equal to the station No.

Specification

station no. Compatible Device Setting range

100 GD10

101 GD11

102 GD12

103 GD13

104 GD14

105 GD15

106 GD16

107 GD17

108 GD18

109 GD19

110 GD20

111 GD21

112 GD22

113 GD23

114 GD24

115 GD25

0 to 31

If the associated device contains

a value outside this range an

error (dedicated device is out of

range) will occur.

Confirm Communication

The communication monitoring is a function that checks whether the GOT can

communicate with the Inverter. If no error is shown, communication has been

set up correctly.

Note: This document is for reference only. For detailed settings and safety information refer to the respective product manual.

Manual References:

Refer to the following manuals for more detailed explanations. For any further

questions, please contact your local Mitsubishi Product Provider.

GOT1000 Series Connection Manual 3/3 (SH(NA)-080532ENG)

- Sections 32.1, 32.2, 32.3, 32.4, 32.5 & 32.6
