REMOTE CONTROLLER

OPERATING INSTRUCTIONS

ADVANCED AND EVER ADVANCING

MAC-102CRC-E

CONTENTS

SAFETY PRECAUTIONS .................................................................................... 2

NAME OF EACH PART FOR R/C ........................................................................ 3

MANUAL OPERATION (COOL) ........................................................................... 3

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT .................................. 4

NAME OF EACH PART FOR UNIT ...................................................................... 5

FOR OWNERS .................................................................................................... 5

•This remote controller is for the exclusive use of the following models:

MS09NW, MS12NN, MS15NN, MS17NN

MS09NW2, MS12NN2, MS15NN2, MS17NN2

MS09TW, MS12TN, MS15TN, MS17TN

•To use this remote controller correctly and safely, be sure to read this operating instructions before use. Keep

this manual carefully for later reference.

REMOTE CONTROLLER

OPERATING INSTRUCTIONS

ADVANCED AND EVER ADVANCING

MAC-102CRC-E

CONTENTS

SAFETY PRECAUTIONS .................................................................................... 2

NAME OF EACH PART FOR R/C ........................................................................ 3

MANUAL OPERATION (COOL) ........................................................................... 3

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT .................................. 4

NAME OF EACH PART FOR UNIT ...................................................................... 5

FOR OWNERS .................................................................................................... 5

•This remote controller is for the exclusive use of the following models:

MS09NW, MS12NN, MS15NN, MS17NN

MS09NW2, MS12NN2, MS15NN2, MS17NN2

MS09TW, MS12TN, MS15TN, MS17TN

•To use this remote controller correctly and safely, be sure to read this operating instructions before use. Keep

this manual carefully for later reference.

SAFETY PRECAUTIONS

CAUTION

Replace the 2 batteries

with new ones of same

type.

•Using an old battery together

with a new one may result in

heat generation, leakage or an

explosion.

Do not charge or dis-

assemble the batteries

and do not throw them

into a fire.

•This may result in leakage, fire

or an explosion.

If liquid from the alka-

line batteries gets onto

your skin or clothes,

wash it well with clean

water.

•If liquid from the alkaline bat-

teries gets into your eyes,

wash them well with clean wa-

ter and consult a doctor at

once.

Handling of the remote controller

•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of

the indoor unit.

•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,

operate again.

•Use the remote controller carefully.

If it is dropped, thrown or it gets wet, the remote controller may not operate.

•Since the cautionary items shown here are important for safety, be sure to observe them.

Marks and their meanings are as shown below.

Incorrect handling could cause a serious hazard depending on the condi-

tions.

Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

SAFETY PRECAUTIONS

CAUTION

Replace the 2 batteries

with new ones of same

type.

•Using an old battery together

with a new one may result in

heat generation, leakage or an

explosion.

Do not charge or dis-

assemble the batteries

and do not throw them

into a fire.

•This may result in leakage, fire

or an explosion.

If liquid from the alka-

line batteries gets onto

your skin or clothes,

wash it well with clean

water.

•If liquid from the alkaline bat-

teries gets into your eyes,

wash them well with clean wa-

ter and consult a doctor at

once.

Handling of the remote controller

•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of

the indoor unit.

•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,

operate again.

•Use the remote controller carefully.

If it is dropped, thrown or it gets wet, the remote controller may not operate.

•Since the cautionary items shown here are important for safety, be sure to observe them.

Marks and their meanings are as shown below.

Incorrect handling could cause a serious hazard depending on the condi-

tions.

Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

AUTO

COOL HEAT

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

ON/OFF

AUTO

COOL

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

Signal transmitting section

Operation display section

ON/OFF (operate/

stop) button

Fan speed control button

Temperature buttons

Vane control button

RESET button

(This diagram shows an overall view.)

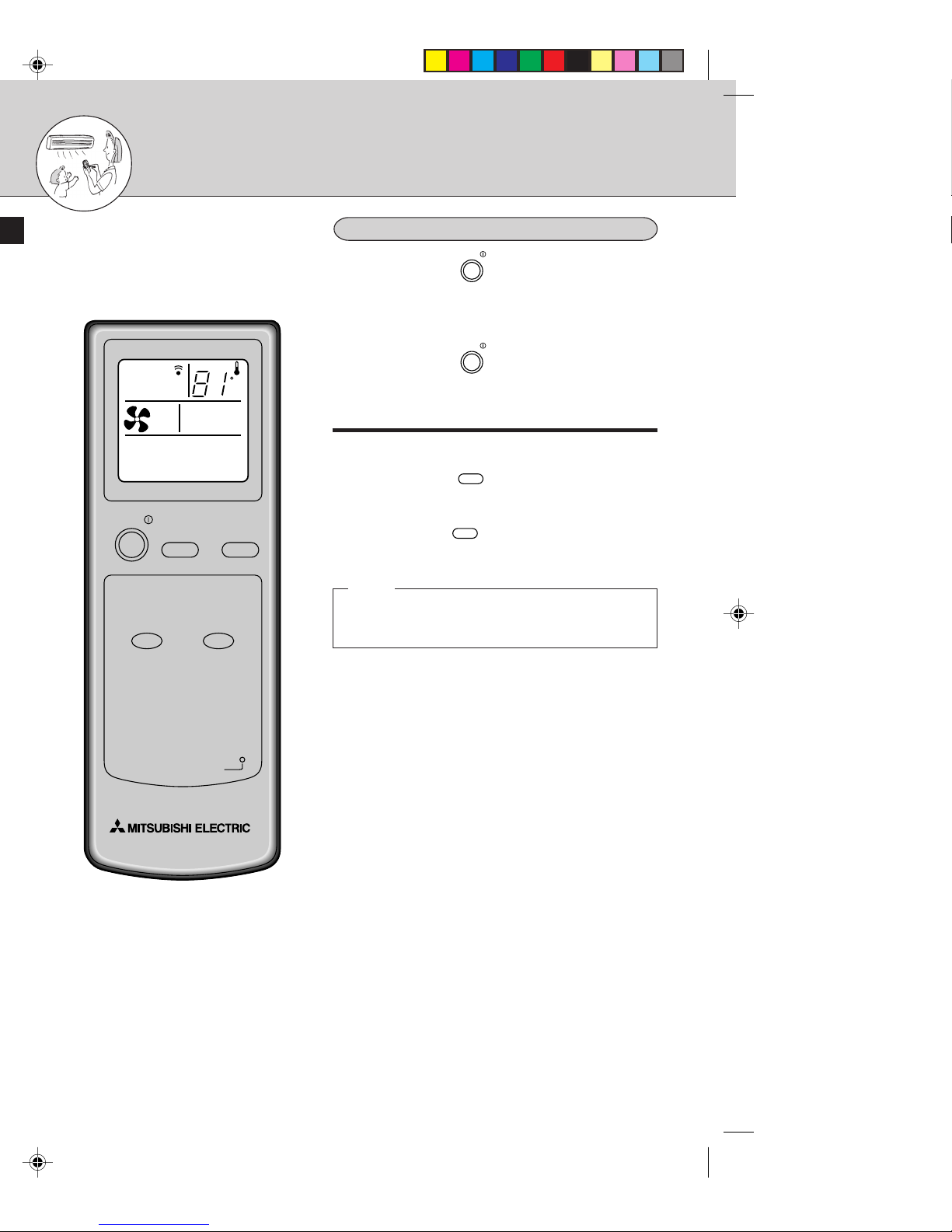

NAME OF EACH PART FOR R/C

MANUAL OPERATION(COOL)

To select the COOL mode

1Press the

ON/OFF

button.

To stop operation:

■Press the

ON/OFF

button again.

■When the set temperature is to be changed:

■Press the

DOWN

button to lower the tempera-

ture. One press lowers the temperature by

about 2 °F.

■Press the

button to raise the temperature.

One press raises the temperature by about

2 °F.

NOTE

When the ambient temperature is too high, the room

temperature may not reach the set temperature since

the unit operates to cool under high load.

Remote controller

AUTO

COOL HEAT

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

ON/OFF

AUTO

COOL

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

Signal transmitting section

Operation display section

ON/OFF (operate/

stop) button

Fan speed control button

Temperature buttons

Vane control button

RESET button

(This diagram shows an overall view.)

NAME OF EACH PART FOR R/C

MANUAL OPERATION(COOL)

To select the COOL mode

1Press the

ON/OFF

button.

To stop operation:

■Press the

ON/OFF

button again.

■When the set temperature is to be changed:

■Press the

DOWN

button to lower the tempera-

ture. One press lowers the temperature by

about 2 °F.

■Press the

button to raise the temperature.

One press raises the temperature by about

2 °F.

NOTE

When the ambient temperature is too high, the room

temperature may not reach the set temperature since

the unit operates to cool under high load.

Remote controller

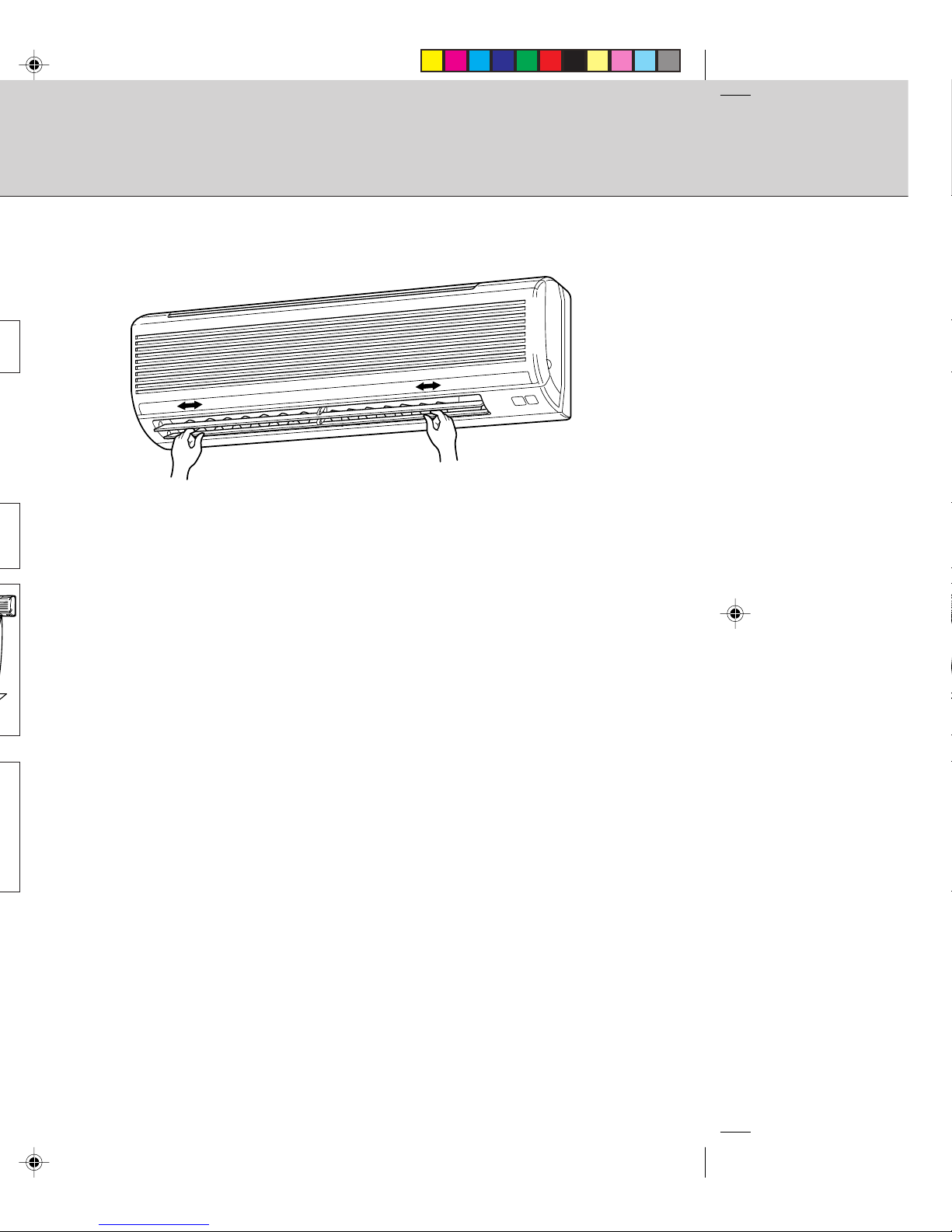

■To change the horizontal direction of the air flow, move the vertical vane manu-

ally.

Adjust the vane before operation starts.

Since the horizontal vane moves automatically, your fingers may be caught.

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT

AIR FLOW velocity and direction can be se-

lected as required.

■To change the AIR FLOW velocity,

press the

FAN

button.

Each time the button is pressed, the fan speed is

changed in sequence: (Low) →(Med.) →

(High) →AUTO

•Use the (High) notch to cool the room more.

•If the operating sound of the air conditioner disturbs

your sleep, use the (Low) notch.

■To change the AIR FLOW blowing di-

rection vertically, press the

VANE

button.

Each time the button is pressed, the angle of the

horizontal vane is changed in sequence: (1) →

(2) → (3) →(4) →(5) →(SWING) →AUTO

SWING OPERATION

Use the swing operation for the air flow to reach all cor-

ners of the room.

Recommended horizontal

vane range

Use the AUTO position usually.

Use position (1) or (2) in the

COOL mode when adjusting to

your requirements.

NOTE

■In the cooling operation, when the air conditioner is

operated with setting the horizontal vane to (4) or

(5) for 1 hour, the AIR FLOW direction is automati-

cally set to horizontal to prevent condensed water

from dropping.

■Adjust the vertical AIR FLOW direction using the re-

mote controller. If the horizontal vane is moved manu-

ally, it may cause trouble.

COOL

AUTO

COOL

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

ON/OFF

■To change the horizontal direction of the air flow, move the vertical vane manu-

ally.

Adjust the vane before operation starts.

Since the horizontal vane moves automatically, your fingers may be caught.

AIR FLOW VELOCITY AND DIRECTION ADJUSTMENT

AIR FLOW velocity and direction can be se-

lected as required.

■To change the AIR FLOW velocity,

press the

FAN

button.

Each time the button is pressed, the fan speed is

changed in sequence: (Low) →(Med.) →

(High) →AUTO

•Use the (High) notch to cool the room more.

•If the operating sound of the air conditioner disturbs

your sleep, use the (Low) notch.

■To change the AIR FLOW blowing di-

rection vertically, press the

VANE

button.

Each time the button is pressed, the angle of the

horizontal vane is changed in sequence: (1) →

(2) → (3) →(4) →(5) →(SWING) →AUTO

SWING OPERATION

Use the swing operation for the air flow to reach all cor-

ners of the room.

Recommended horizontal

vane range

Use the AUTO position usually.

Use position (1) or (2) in the

COOL mode when adjusting to

your requirements.

NOTE

■In the cooling operation, when the air conditioner is

operated with setting the horizontal vane to (4) or

(5) for 1 hour, the AIR FLOW direction is automati-

cally set to horizontal to prevent condensed water

from dropping.

■Adjust the vertical AIR FLOW direction using the re-

mote controller. If the horizontal vane is moved manu-

ally, it may cause trouble.

COOL

AUTO

COOL

AUTO

FAN VANE

RESET

TEMPERATURE

DOWN

ON/OFF

NAME OF EACH PART FOR UNIT

Air cleaning filter

(White bellows

type) (OPTION)

Deodorizing filter

(Gray sponge

type) (OPTION)

Air filter

Vertical vane

Display section

Front panel

Air inlet

Remote control

receiving section

MS09NW

MS09NW2

MS09TW

MS12NN, MS15NN, MS17NN

MS12NN2, MS15NN2, MS17NN2

MS12TN, MS15TN, MS17TN

Horizontal vane

Operation

Indicator lamp Receiving section

Operation Indicator

Operation

Indicator lamp

Receiving

section

Outdoor unit

MU09NW MU09TW MU12NN, MU15NN,

MU09NW2 MU12TN MU17NN

MU12NN2, MU15NN2,

MU17NN2

MU15TN, MU17TN

Air inlet

(back and side)

Drain outlet

Piping

Drainage hose

Air outlet

Indoor unit

FOR OWNERS

Remote controller (How to set the batteries)

1Remove the back lid and insert

batteries. Then reattach the back

lid.

Insert the minus pole of the batteries first.

Check if the polarity of the batteries is cor-

rect.

2Press the RESET button.

■If the RESET button is not pressed, the remote con-

troller may not operate correctly.

Press using

a thin stick.

Insert the minus pole

of the batteries first.

Handling of the remote controller

•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of

the indoor unit.

•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,

operate again.

•Use the remote controller carefully.

If it is dropped, thrown or it gets wet, the remote controller may not operate.

When installing on a wall, etc.

•Install the remote controller installation case in a position where the signal reception sound (beep) can

be heard from the indoor unit when the

ON/OFF

button is pressed.

Dry-cell batteries

Reference for replacing batteries

When the indoor unit does not respond to the signal from the remote controller, or the display becomes

dim, replace the batteries with new ones (size AAA).

•Though both alkaline batteries and manganese batteries can be used, alkaline batteries are recom-

mended because their service life is longer than that of manganese batteries.

•The service life of an alkaline battery is about 1 year.

However, a battery which the time limit is approaching may be exhausted soon. The recommended

usable time limit is indicated (month/year) on the bottom of the battery.

•Replace the 2 batteries with new ones of the same type.

•Do not use rechargeable batteries.

•To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a

long time.

•Dispose of exhausted batteries in the correct manner.

Refer to OPERATING INSTRUCTIONS attached to the air conditioner for details.

MS12NN, MS15NN,

MS17NN

MS12NN2, MS15NN2,

MS17NN2

MS12TN, MS15TN,

MS17TN

MS09NW, MS09NW2, MS09TW

NAME OF EACH PART FOR UNIT

Air cleaning filter

(White bellows

type) (OPTION)

Deodorizing filter

(Gray sponge

type) (OPTION)

Air filter

Vertical vane

Display section

Front panel

Air inlet

Remote control

receiving section

MS09NW

MS09NW2

MS09TW

MS12NN, MS15NN, MS17NN

MS12NN2, MS15NN2, MS17NN2

MS12TN, MS15TN, MS17TN

Horizontal vane

Operation

Indicator lamp Receiving section

Operation Indicator

Operation

Indicator lamp

Receiving

section

Outdoor unit

MU09NW MU09TW MU12NN, MU15NN,

MU09NW2 MU12TN MU17NN

MU12NN2, MU15NN2,

MU17NN2

MU15TN, MU17TN

Air inlet

(back and side)

Drain outlet

Piping

Drainage hose

Air outlet

Indoor unit

FOR OWNERS

Remote controller (How to set the batteries)

1Remove the back lid and insert

batteries. Then reattach the back

lid.

Insert the minus pole of the batteries first.

Check if the polarity of the batteries is cor-

rect.

2Press the RESET button.

■If the RESET button is not pressed, the remote con-

troller may not operate correctly.

Press using

a thin stick.

Insert the minus pole

of the batteries first.

Handling of the remote controller

•The range that the signal can reach is about 20 feet when the remote controller is pointed at the front of

the indoor unit.

•When a button is pressed, one or two beeps will be heard from the indoor unit. If no sound is heard,

operate again.

•Use the remote controller carefully.

If it is dropped, thrown or it gets wet, the remote controller may not operate.

When installing on a wall, etc.

•Install the remote controller installation case in a position where the signal reception sound (beep) can

be heard from the indoor unit when the

ON/OFF

button is pressed.

Dry-cell batteries

Reference for replacing batteries

When the indoor unit does not respond to the signal from the remote controller, or the display becomes

dim, replace the batteries with new ones (size AAA).

•Though both alkaline batteries and manganese batteries can be used, alkaline batteries are recom-

mended because their service life is longer than that of manganese batteries.

•The service life of an alkaline battery is about 1 year.

However, a battery which the time limit is approaching may be exhausted soon. The recommended

usable time limit is indicated (month/year) on the bottom of the battery.

•Replace the 2 batteries with new ones of the same type.

•Do not use rechargeable batteries.

•To prevent liquid leakage, take out all batteries when the remote controller is not going to be used for a

long time.

•Dispose of exhausted batteries in the correct manner.

Refer to OPERATING INSTRUCTIONS attached to the air conditioner for details.

MS12NN, MS15NN,

MS17NN

MS12NN2, MS15NN2,

MS17NN2

MS12TN, MS15TN,

MS17TN

MS09NW, MS09NW2, MS09TW

Table of contents

Other Mitsubishi Electric Remote Control manuals

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E User manual

Mitsubishi Electric

Mitsubishi Electric PAC-YT52CRA User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA User manual

Mitsubishi Electric

Mitsubishi Electric MHK2 User manual

Mitsubishi Electric

Mitsubishi Electric PAR-31MAA User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA User manual

Mitsubishi Electric

Mitsubishi Electric PAR-20MAA User manual

Mitsubishi Electric

Mitsubishi Electric MAC-821SC-E User manual

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA-J User manual

Mitsubishi Electric

Mitsubishi Electric PAR-21MAA User manual

Mitsubishi Electric

Mitsubishi Electric PAR-33MAAG User manual

Mitsubishi Electric

Mitsubishi Electric PAR-CT01MAU-SB User manual

Mitsubishi Electric

Mitsubishi Electric PAR-32MAA User manual

Mitsubishi Electric

Mitsubishi Electric PAC-ZC40L User manual

Mitsubishi Electric

Mitsubishi Electric PAC-YT53CRAU User manual

Mitsubishi Electric

Mitsubishi Electric PAR-30MAOA Specification sheet

Mitsubishi Electric

Mitsubishi Electric PAR-F27MEA User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim PAR-30MAA User manual

Mitsubishi Electric

Mitsubishi Electric PZ-43SMF-E User manual

Mitsubishi Electric

Mitsubishi Electric MRCH1 User manual

Mitsubishi Electric

Mitsubishi Electric Mr.Slim MA Series User manual

Mitsubishi Electric

Mitsubishi Electric Lossnay LGH-RX5-E Series User manual

Mitsubishi Electric

Mitsubishi Electric PAR-SL100A-E User manual

Mitsubishi Electric

Mitsubishi Electric PAR-W31MAA User manual

Popular Remote Control manuals by other brands

Panasonic

Panasonic EUR7622KB0 Operation guide

Bang & Olufsen

Bang & Olufsen Beo4 user manual

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 user manual

Multiplex

Multiplex PROFI TX 9 instructions

One Remote

One Remote RMB4 user manual

FUTABA

FUTABA 9ZAP - PART2 manual

HR Matic

HR Matic HR MULTI 3 quick start guide

Yamaha

Yamaha ACC-GNRST-30-20 installation instructions

EisSound

EisSound KBSOUND user manual

Marantz

Marantz RC101 user guide

Conrad

Conrad FS20 TC6 operating instructions

Anritsu

Anritsu MP1777A Operation manual

Niles

Niles WVC100 Installation & operating guide

RCA

RCA RCU1300 manual

Bang & Olufsen

Bang & Olufsen BEO6 Getting started

GE 94901 instruction manual

Onbon

Onbon YQ1-75 user manual

FUTABA

FUTABA R7108SB Full manual
