MINOURA RS-1100 User manual

- Page : 1 -

Seat Tube Stay

Front Tire Stopper

Knob Bolt - B

Upper Frame

Knob Bolt - A

BB Support Lock Button

BB Support Bracket

Knob Bolt - C

Leg - B

Leg - A

Lock Release Button

Lower Frame

Down Tube Supporter

Seat Tube Support Bracket

Arm

RS-1100 Bike Fellow 2 Repair Stand

INSTRUCTION MANUAL

Thank you for purchasing the Minoura RS-1100 repair stand.

This foldable, light weight multi purpose stand allows you to use it as both a repair stand

and a display stand.

A convenient Carrying Bag with a tool pocket is available as an option.

IMPORTANT NOTES:

RESOLUTION DIAGRAM

-Page : 2 -

HOW TO ASSEMBLE

¶ No tools are required to assemble your RS-1100.

Loosen Knob Bolt-A on Lower Frame, slide up

Upper Frame, and tighten again Knob Bolt-A

slightly (see Fig. 1) .

Open Leg-A fully until the leg locks (clicks) in

place. When you hear the click sound, Leg-A is

locked automatically.

After that, open Leg-B fully, then place this

stand on the floor (see Fig. 2) .

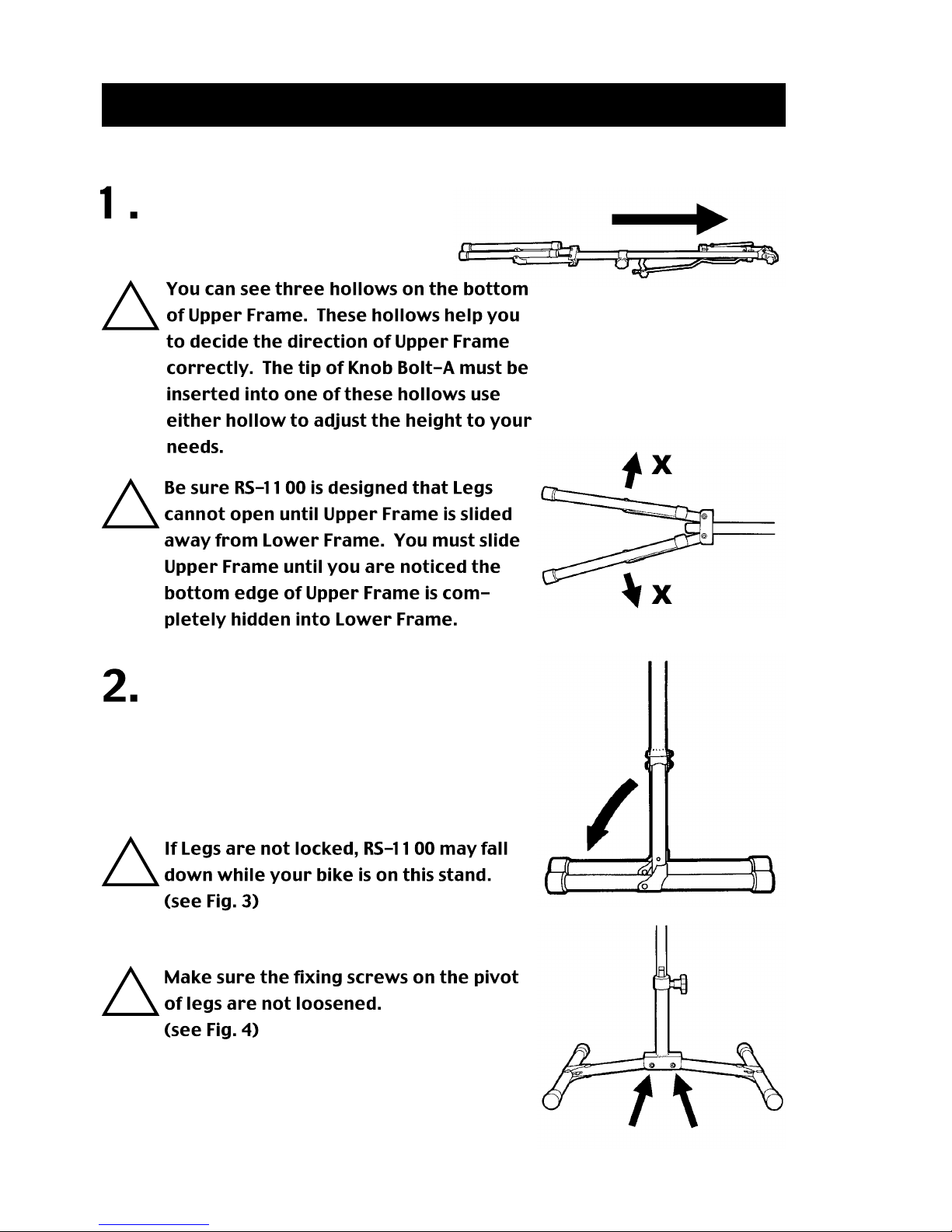

(Fig. 1)

(Fig. 2)

(Fig. 3)

(Fig. 4)

- Page : 3 -

Turn both Arm and Seat Tube Stay fully.

Insert Seat Tube Support Bracket through and

into the Seat Tube Stay, and insert the plastic

cap.

(see Fig. 5)

The BB Support Bracket will help your

bike stable during on this stand.

The BB Support Bracket will open auto-

matically when you open Arm.

(see Fig. 6)

When you wish to fold the legs, you must keep

pressing each Lock Release Button on the Leg-

B, then fold the Leg-A.

(see Fig. 8)

If you don’t wish to use BB Support Bracket or

if you wish to fold this stand, push the Lock

Button on the bottom of the Arm. The BB

Support Bracket may then folded up or down.

(see Fig. 7)

(Fig. 5)

(Fig. 6)

(Fig. 7)

(Fig. 8)

-Page : 4 -

USE RS-1100 AS A REPAIR STAND

Place RS-1100 on a flat stable surface.

Pull up the Arm Stopper and insert it into the

angled hollow firmly to lock it (see Fig. 9) .

Arm Stopper

To begin set the left side crank arm

downward or a little forward, then

twist your bike about 20 degrees

counter-clockwise and lift it up.

(see Fig. 10)

Place the down tube onto both Down Tube

Supporters gently.

(see Fig. 12)

(Fig. 9)

(Fig. 10)

(Fig. 11)

(Fig. 12)

- Page : 5 -

Then support the seat tube with Seat Tube

Support Bracket.

Adjust the position of the bracket not to pinch

the cable. The bike is supported safely .

(see Fig. 13)

Adjust the angle of Arm with Knob Bolt-B in

order to fit all contact points to the bike. Make

sure all contact points are supporting the bike

properly.

(see Fig. 14)

USE RS-1100 AS A DISPLAY STAND

Finally, sandwich the front wheel with both

Front Tire Supporters.

This device will make your bike stable and help

your work securely while the bike is on this

stand.

(see Fig. 14)

Place the RS-1100 on a flat and horizontal

floor.

Pull the Arm Stopper out fron the slot and lay it

down. (see Fig. 15)

Push the Lock Button of the Arm and fold down

the BB Support Bracket.

Then turn the Arm horizontally.

(see Fig. 16)

¶ RS-1100 also can be used as a display stand or temporary bike stand.

(Fig. 13)

(Fig. 14)

(Fig. 15)

(Fig. 16)

-Page : 6 -

Place the top tube down softly on

both Down Tube Supporter. (see Fig.

17)

FOR WARRANTY, MORE INFORMATION

CONTACT :

MINOURA JAPAN

1197-1 Godo, Anpachi

Gifu 503-2305 JAPAN

Phone: 81-584-27-3131

Fax: 81-584-27-4258

E-mail: [email protected]

URL: http:// www.minoura.co.jp

(Fig. 17)

MINOURA WARRANTY CENTER

1415 San Mateo Avenue,

South San Francisco, CA 94080 U.S.A.

Toll Free: 800-601-9592

MINOURA NORTH AMERICA

37653 B Argyle Rd.

Fremont, CA 94536 U.S.A.

Phone: 1-510-739-1395

Fax: 1-510-790-1108

E-mail: [email protected]
