User Manual for RIPTIDE ST

pg 12

pg. 12

pg. 13

pg. 14

pg. 14-15

pg. 15

pg. 16

pg. 17

Feature Information

Adding/Removing Remotes

Misc. Information

Battery Replacement

General Operation

Audio Modes

Troubleshooting

Technical Assistance

FAQ’s, FCC Disclaimer

Limited Warranty

CoPilot

Riptide ST

NoTe: do NoT reTUrN YoUr miNN KoTa moTor To YoUr

reTailer. YoUr reTailer is NoT aUTHoriZed To rePair

or rePlaCe THis UNiT. YoU maY oBTaiN serViCe BY:

• CalliNG miNN KoTa aT: 1-800-227-6433

• reTUrNiNG YoUr moTor To THe miNN KoTa FaCTorY

serViCe CeNTer;

• seNdiNG or TaKiNG YoUr moTor To aNY miNN KoTa

aUTHoriZed serViCe CeNTer oN eNClosed lisT.

Please iNClUde ProoF oF PUrCHase, serial NUmBer

aNd PUrCHase daTe For WarraNTY serViCe WiTH aNY

oF THe aBoVe oPTioNs.

PLEASE THOROUGHLY READ THIS USER MANU-

AL. FOLLOW ALL INSTRUCTIONS AND HEED ALL

SAFETY & CAUTIONARY NOTICES BELOW. USE OF

THIS MOTOR IS ONLY PERMITTED FOR PERSONS

THAT HAVE READ AND UNDERSTOOD THESE USER

INSTRUCTIONS. MINORS MAY USE THIS MOTOR ONLY

UNDER ADULT SUPERVISION.

serial NUmBer

PUrCHase daTe

Specifications subject to change without notice.

FEATURES

Steer Left

Prop ON/OFF

Steer Right

Increase Speed

Decrease Speed

COPILOT RIPTIDE ST REMOTE

SYSTEM COMPONENTS

AutoPilot ON/OFF

High Speed Bypass

COPILOT RIPTIDE ST RECEIVER

Preinstalled in sideplate

Side Plate Cover

Preinstalled

Learn Button

FEATURES

Lifetime Warranty

Flexible Composite Shaft

Depth / Drive Collar

Maximizer / Permanently

Sealed Electronics

Push Button Battery Gauge

Tilt Lock Lever Allows Easy

Retraction To Storage Position

Weedless Wedge

Propeller

Cool Running Permanent Magnet Motor

Fall away motor ramps

Wireless remote

Auto Pilot Indicator

(functional on equipped motors only)

System Ready Indicator

Factory installed CoPilot

INSTALLATION OF THE RIPTIDE ST:

We recommend that you have another person help with this procedure. Tools required: 7/16” wrench, #3 phillips screw-

driver and electric drill with a 9/32” bit.

1. Remove the four sideplate screws. Remove the right

sideplate and swing the left sideplate out and away from the base extrusion.

2. Place the motor on the bow of the boat in the deployed position:

• We recommend that the motor be mounted as close to the centerline of the boat as possible.

• Make sure the bow area under the mounting location is clear and unobstructed for drilling and accessible for you

to attach the nuts and washers.

• Make sure the mount is positioned so that the shaft is out beyond the rub strip of the boat by 1 1/2”. The lower

unit, as it is lowered into the water or raised into the boat, must not encounter any obstructions.

3. Once in position, mark four of the six holes provided in the bow mount base for drilling. If possible, use the four holes

that are farthest apart. Drill through the marked holes using a the 9/32” drill bit.

4. Mount the plate to the bow using the provided bolts, nuts and washers.

5. Replace the sideplates and sideplate screws.

INSTALLATION

CAUTION: MAKE SURE YOU MOUNT YOUR MOTOR

ON A LEVEL SURFACE. USE THE RUBBER WASHERS

TO CREATE A LEVEL SURFACE — IF NECESSARY.

Mount Bracket so

that during stow

and deploy, the

shaft will not

encounter boat’s

rub strip.

Mounting Holes

Le fait de Monter des Trous

cAUTIONS

Attention:

•Avoid running your motor with the propeller outside of the water. This may result in injuries from the rotat-

ing propeller.

•It is recommended to set the speed selector to zero and place the motor in the deployed position prior to

connecting power cables. Disconnect power cables prior to stowing.

•Always ensure that the power cables are not twisted or kinked; and that they are securely routed to avoid a

safety or trip hazard. Ensure cables are unobstructed in all locations to avoid damaging the wire insula-

tion. Damage to the insulation could result in failure or injury.

•Always inspect the insulation of the power cables prior to use to ensure they are not damaged.

•Disregarding these safety precautions may result in an electrical short of the battery(s) and/or motor.

Always disconnect the motor from the battery(s) before cleaning or checking the propeller.

•Avoid submerging the complete motor as water may enter the lower unit through control head and shaft.

Water in the lower unit may cause an electrical short and damage the lower unit. This damage will not be

covered by warranty.

Caution!

•Always operate the motor in a safe distance away from obstructions. Never approach the motor when the

propeller is running. Contact with a spinning propeller may endanger you or others.

•Always exercise safe practices when using your motor; stay clear of other watercrafts, swimmers, and any

floating objects. Always obey water regulations applicable to your area of operation.

•Never operate the motor while under the influence of alcohol, drugs, medication, or other substances which

may impair your ability to safely operate equipment.

•This motor is not suitable for use in strong currents exceeding the thrust level of the motor.

The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level

does not exceed 2,5m/sec≈.

OPERATION

GENERAL:

System Ready (green): The motor is equipped with a system ready indicator. Indicator light will be on when motor is

deployed and power is applied to the motor. When the motor is properly stowed the indicator light will go off indicating

all power has been turned off to the motor. If this indicator light does not come on when deployed, check that motor is

connected to battery properly and motor is completely deployed. If indicator light does not go off when stowed, be sure

that stow/deploy lever is fully latched and locked into the stowed position.

TO STOW:

Push and hold the stow/deploy lever down. Gently tilt and pull the composite shaft or control head until the motor engages

the motor ramps. Motor should rest on the motor ramps and lock into place. The stow/deploy lever should latch auto-

matically into the stowed position. System ready indicator light (green) MUST go off for the motor to be stowed properly.

TO DEPLOY:

Push in and rotate the stow/deploy lever down. Gently slide the motor out from the ramps. Lower the motor to the desired

depth making sure it clicks into a secure, vertical position. System ready indicator light (green) will be lit indicating motor is

ready for operation.

TRANSPORTATION:

In conditions where the stowed motor is subject to high levels of shock or vibration, take care to provide a secure stow.

Move the depth collar snug against the steering motor and tighten.

WARNING : WHEN RAISING OR LOWERING MOTOR,

KEEP FINGERS CLEAR OF ALL HINGE AND PIVOT

POINTS AND ALL MOVING PARTS.

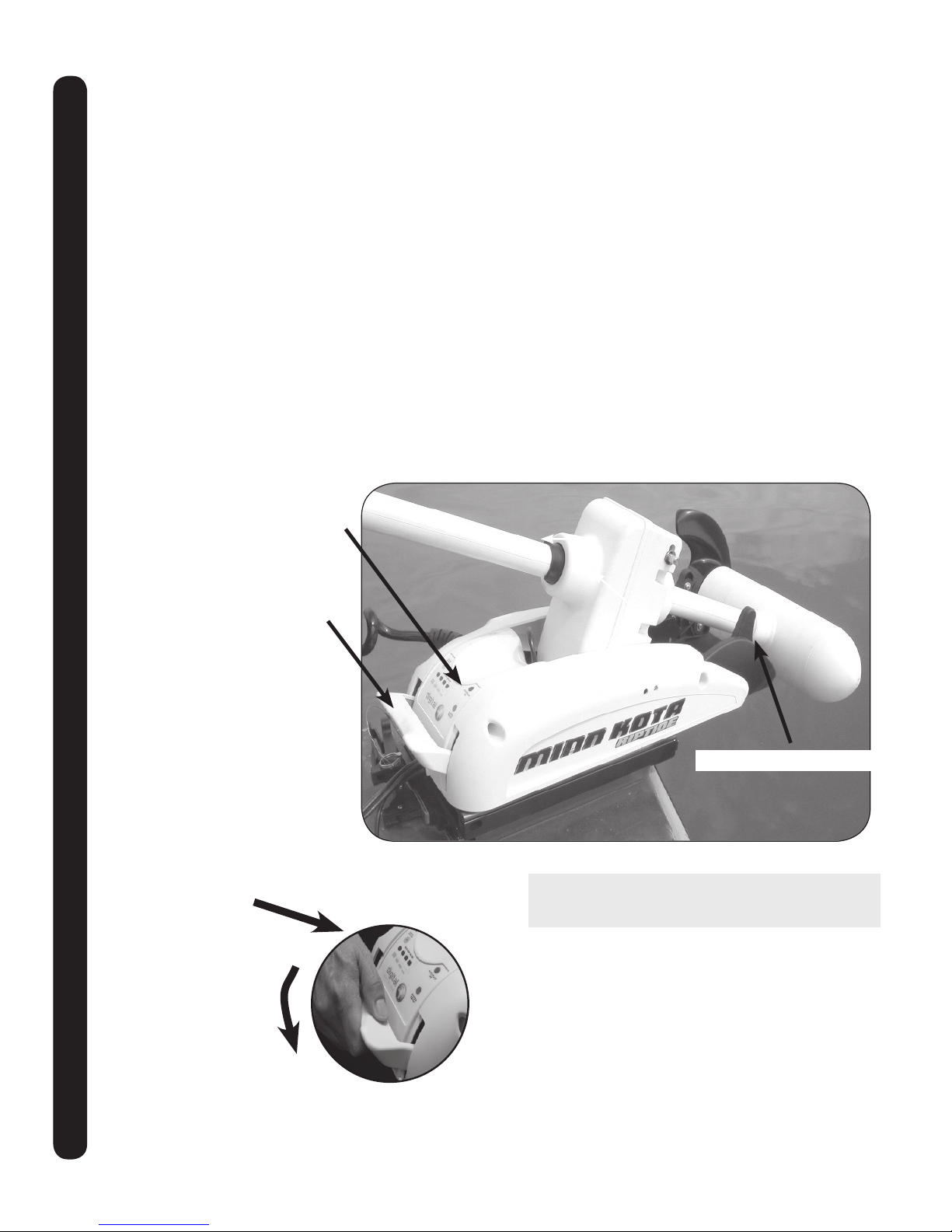

Fall away motor ramps

Tilt Lock Lever Operation

System Ready Indicator

TO DEPLOY

1. PUSH IN

2. PUSH

DOWN

cONTROLS AdjUSTmENTS

Drill a small hole in rib.

Leave slack .

Tie wrap cable.

AUTOPILOT™ CONTROLS: AUTOPILOT ON EQUIPPED MOTORS ONLY

The MINNKOTA AutoPilot uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in

the direction you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the

change and steers itself back to the original heading. The AutoPilot direction is set every time a steering change is

made. To change direction, steer until the control head points to the desired course. The AutoPilot will pull the bow of

the boat around and correct automatically until the boat is moving in the direction you chose.

1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor

from turning, or in extremely windy conditions, the automatic steering may stop. Any steering input on the foot pedal

will reset the system to normal.

2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will

continue to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the

system ready indicator will go off.

3 This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or

large, ferrous metal objects near ( within 12” of ) the trolling motor control head.

4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabi-

lize.

5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass

to wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.

6. When broad speed changes are made, the motor heading may change slightly. This is normal.

DEPTH ADJUSTMENTS:

Firmly grasp and hold the composite shaft above the PowerDrive

housing. Loosen the depth/drive collar knob until the shaft slides

freely. Raise or lower the motor to the desired depth. Tighten the

depth/drive collar knob to secure the motor in place.

EXTERNAL TRANSDUCER INSTALLATION:

Transducer cables should be routed through the coil cable and han-

dle as shown. Leave enough slack for proper deployment and

retraction. Mount transducer according to transducer instructions.

NOTE: An external transducer is not included with your trolling

motor.

BATTERY INFORmATION cIRcUIT BREAkER

BATTERY INFORMATION:

The motor will operate with any deep cycle marine 12 volt battery

[24 volts require two and 36 volts requires three]. For best results, use a deep cycle MinnKota marine battery with at

least an 115 ampere hour rating. The actual ampere draw is subject to your particular environmental conditions and

operation requirements.

Maintain battery at full charge. Proper care will significantly improve the battery life. Failure to recharge lead-acid batteries

(within 12-24 hours) is the leading cause of premature battery failure. For best results, use a variable rate MinnKota

charger.

If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine

battery for your trolling motor.

Advice regarding batteries:

Never connect the (+) and the (–) terminals of the battery together. Take care that no metal object can fall onto the

battery and short the terminals. This would immediately lead to a short and utmost fire danger. Recommendation:

Use battery boxes and covered battery terminal clamps like Minn Kota accessory #MK-BC-1.

The motor is equipped with a battery gauge. This LED gauge provides an accurate display of the remaining charge in the

battery. The gauge is only accurate when the motor is off. The gauge reads as:

•Four lights = full charge •Three lights = good charge •Two lights = low charge •One light =

recharge.

Push Button Battery Gauge

Boat Rigging and Motor Installation:

An over-current protection device (circuit breaker or fuse) must be used with this motor. Coast Guard requirements

dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker

or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor

used. The following breaker sizes are recommended guidelines:

Maximum thrust Voltage / Recommended circuit breaker rating

30# to 45# 12V 50A @ 12VDC

50# to 55# 12V 60A @ 12VDC

65# to 70# 24V 50A @ 24VDC

80# 24V 60A @ 24VDC

101# 36V 50A @ 36VDC

E-Drive 48V 40A @ 48VDC

The appropriate wire size needed to connect your trolling motor to the trolling motor batteries varies depending on the

length of cable needed and voltage of the motor. For additional information, please consult appropriate ABYC (American

Boat and Yacht Council) and Coast Guard requirements.

Reference:

United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats

BATTERY cONNEcTION mAXImIZER

MAXIMIZER™:

The built-In Maximizer’s electronics create pulse width modulation to provide longer running time and extended battery

life. With the Maximizer speed control, you may, in some applications, experience interference in your depth finder dis-

play. We recommend that you use a separate deep cycle marine battery for your trolling motor and that you power the

depth finder from the starting / cranking battery. If problems still persist, call our service department at 1-800-227-6433.

BATTERY CONNECTION

12 Volt Systems:

1. Make sure that the motor is switched off (speed selector on “0”).

2. Connect positive (+) red lead to positive (+) battery terminal.

3. Connect negative (–) black lead to negative (–) battery terminal.

4. For safety reasons do not switch the motor on until the propeller

is in the water.

24 Volt Systems:

1. Make sure that the motor is switched off (speed selector on “0”).

2. Two 12 volt batteries are required.

3. The batteries must be wired in series, only as directed in wiring

diagram, to provide 24 volts.

a. Connect a connector cable to positive (+) terminal of battery

1 and to negative (–) terminal of battery 2.

b.Connect positive (+) red lead to positive (+) terminal on bat-

tery 2.

c. Connect negative (–) black lead to negative (–) terminal of

battery 1.

4. For safety reasons do not switch the motor on until the propeller

is in the water.

36 Volt Systems:

1. Make sure that the motor is switched off (speed selector on “0”).

2. Three 12 volt batteries are required.

3. The batteries must be wired in series, only as directed in wiring

dia

gram, to provide 36 volts.

a. Connect a connector cable to positive (+) terminal of battery

1 and to negative (–) terminal of battery 2.

b. Connect a connector cable to positive (+) terminal of battery

2 and to negative (–) terminal of battery 3.

c. Connect positive (+) red lead to positive (+) terminal on bat-

tery 3.

d. Connect negative (–) black lead to negative (–) terminal of

battery 1.

4. For safety reasons do not switch the motor on until the propeller

is in the water.

If installing a leadwire plug, observe proper polarity and fol-

low instructions in your boat owner’s manual.

See wiring diagram on following pages.

• IMPROPER WIRING OF 24 VOLT SYSTEM COULD CAUSE

BATTERY EXPLOSION!

• KEEP LEADWIRE WING NUT CONNECTION TIGHT AND

SOLID TO BATTERY TERMINALS.

• LOCATE BATTERY IN A VENTILATED COMPARTMENT.

wIRINg dIAgRAm

B+

M+

B-

M-

12v

24v

36v

RED M+

BLACK M-

RED

WHITE

FOOT PEDAL

CONTROL BOARD

STEERING MOTOR

BATTERY GAUGE

BATTERY 1 BATTERY 2

BLACK B-

RED B+

COIL CORD

MOTOR

RED M+

BLACK M-

BLACK

COMPASS

SENSOR

BOARD

BATTERY 1

BATTERY 1 BATTERY 2

BATTERY 3

BLACK

AUTOPILOT INDICATOR, RED

SYSTEM READY INDICATOR, GREEN

REED SWITCH

AUTO PILOT INDICATOR, RED

(EQUIPPED MOTORS ONLY)

MOMENTARY / CONSTANT

INDICATOR, GREEN

ACCESSORY PLUG

SPEED ADJUSTMENT KNOB

AUTOPILOT ON EQUIPPED MOTORS ONLY

ACCESSORY PLUG

THIS IS A UNIVERSAL MULTI-VOLTAGE DIAGRAM. DOUBLE CHECK YOUR MOTORS VOLTAGE FOR PROPER CONNECTIONS

Over-Current Protection Devices not shown in illustrations.

CONTROL BOARD/

CARTE DE COMMANDE

Other manuals for RIPTIDE ST

Table of contents

Other MINN KOTA Outboard Motor manuals

MINN KOTA

MINN KOTA TERROVA Series User manual

MINN KOTA

MINN KOTA TERROV QUEST User manual

MINN KOTA

MINN KOTA ULTERRA i-Pilot User manual

MINN KOTA

MINN KOTA CE Master User manual

MINN KOTA

MINN KOTA ENDURA C2 User manual

MINN KOTA

MINN KOTA POWERDRIVE V2 User manual

MINN KOTA

MINN KOTA RIPTIDE TERROVA CP-80 User manual

MINN KOTA

MINN KOTA ULTERRA User manual

MINN KOTA

MINN KOTA ENDURA MAX User manual

MINN KOTA

MINN KOTA ULTREX User manual

MINN KOTA

MINN KOTA EDGE User manual

MINN KOTA

MINN KOTA FORTREX User manual

MINN KOTA

MINN KOTA Terrova 30 User manual

MINN KOTA

MINN KOTA TALON User manual

MINN KOTA

MINN KOTA ULTERRA User manual

MINN KOTA

MINN KOTA Riptide RT User manual

MINN KOTA

MINN KOTA Riptide User manual

MINN KOTA

MINN KOTA Endura C2 50 User manual

MINN KOTA

MINN KOTA RIPTIDE SE User manual

MINN KOTA

MINN KOTA PowerDrive User manual

MINN KOTA

MINN KOTA PowerDrive 55 series User manual

MINN KOTA

MINN KOTA CE Master User manual

MINN KOTA

MINN KOTA Riotide SP User manual

MINN KOTA

MINN KOTA 1862014 User manual

Popular Outboard Motor manuals by other brands

Yamaha

Yamaha VF150 owner's manual

Sleipner

Sleipner SEP-IP30 installation guide

Suzuki

Suzuki DF 40 Service manual

SELVA MARINE

SELVA MARINE Corse owner's manual

TOHATSU

TOHATSU BFT 250A owner's manual

KONRAD

KONRAD Series 600B Maintenance manual

Mercury

Mercury 8 Bigfoot 4-Stroke Installation operation maintenance warranty manual

Sleipner

Sleipner E-Vision Electric Thruster E300 installation guide

Suzuki

Suzuki DF40A manual

IST

IST 18.BF200D manual

Side-Power

Side-Power SP 155 TC i Installation and user manual

Mercury

Mercury 40 FourStroke Operation and maintenance manual

Quick

Quick BTR250 user manual

Yamaha

Yamaha VF90 owner's manual

Yamaha

Yamaha D150H owner's manual

Yanmar

Yanmar ZT350 series Operation manual

MotorGuide

MotorGuide X3-40 Operation and maintenance manual

Mercury

Mercury 30 - 60 HP installation manual
