Mini Gadgets HCPanel User manual
WALL PANEL HIDDEN
CAMERA
SKU: HCPanel
THANK YOU FOR PURCHASING THE WALL PANEL HIDDEN
CAMERA
Please read this manual before operating the wall panel hidden
camera and keep it handy.
Sometimes the easiest way to hide something is right in front of
everyone. Our newest hidden camera resides within a wall plate,
easily hiding it away while sitting in plain view. With its ability to
record high definition color video as well as its motion activation
feature you'll be sure to catch every detail from the moment
someone enters the room. It's built in rechargeable battery
eliminates the need to constantly replace batteries and it's Micro SD
card storage allows you to adjust the capacity to your needs.
Your purchase should include:
1 x Wall Panel Hidden Camera
1 x USB Cord
1 x Instruction booklet
GET FAMILIAR WITH YOUR WALL PANEL HIDDEN CAMERA
MicroSD
Card Slot
USB Port Mode
Switch
Camera
Lens
Audio
Reset
Power
Indicator
Light
OPERATING THE WALL PANEL HIDDEN CAMERA
IMPORTANT NOTICE: Allow the device to charge 4 – 6 hours before
using.
HOW TO CHARGE THE DEVICE
1. Insert the USB cable into the USB port on the device
2. Insert the USB cable into the USB port on your computer
The blue indicator light will turn on
HOW TO TURN THE DEVICE ON/OFF
1. Press the Power button located inside the device to turn the
device on
The blue indicator light will turn on
o The device is now ON and in standby mode
2. Press and hold the Power button again to turn the device off
The indicator light will turn off
o The device is now OFF
HOW TO RECORD VIDEO MANUALLY
1. Turn the device ON
2. Press the Power button again
The blue indicator light will flash twice times and then
turn off
o The device is now recording
3. Press the Power button again to stop and save your recording
The blue indicator light will flash twice and then stay
on
o The device is now in standby mode
HOW TO RECORD VIDEO USING MOTION DETECTION
1. Turn the device ON
2. Move the Mode Switch to the RIGHT to enter Motion
Detection Mode
The green indicator light will flash twice and then turn
off

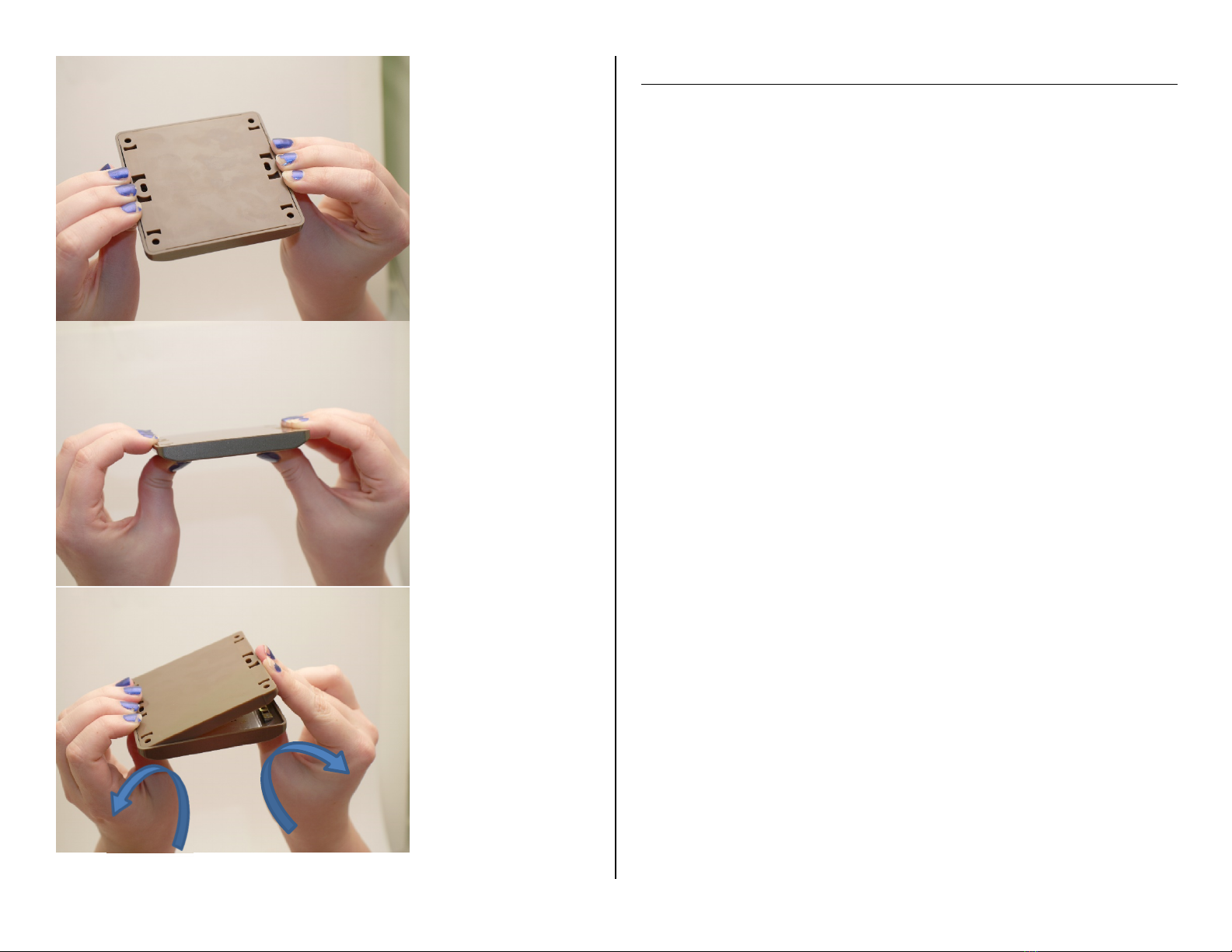

TIP: Hold the edges
of the face plate and
gently press up and
out on the front of
the face plate to
release the backing
When motion is detected the green light will flash
three times and then turn off
The device will automatically record and save video
when motion is detected
3. Press the Power button to stop recording
The blue indicator light will flash twice and then stay
on
o The device is now in standby mode
HOW TO RECORD VIDEO USING AUDIO DETECTION
1. Turn the device ON
2. Move the Mode Switch to the LEFT
3. Press the Audio button
The blue and green indicator lights will both flash twice
and then turn off
When audio is detected the blue and green indicator
lights will both flash and then turn off
The device will automatically record and save video
when audio is detected
4. Press the Power button to stop recording
The blue indicator light will flash twice and then stay
on
o The device is now in standby mode

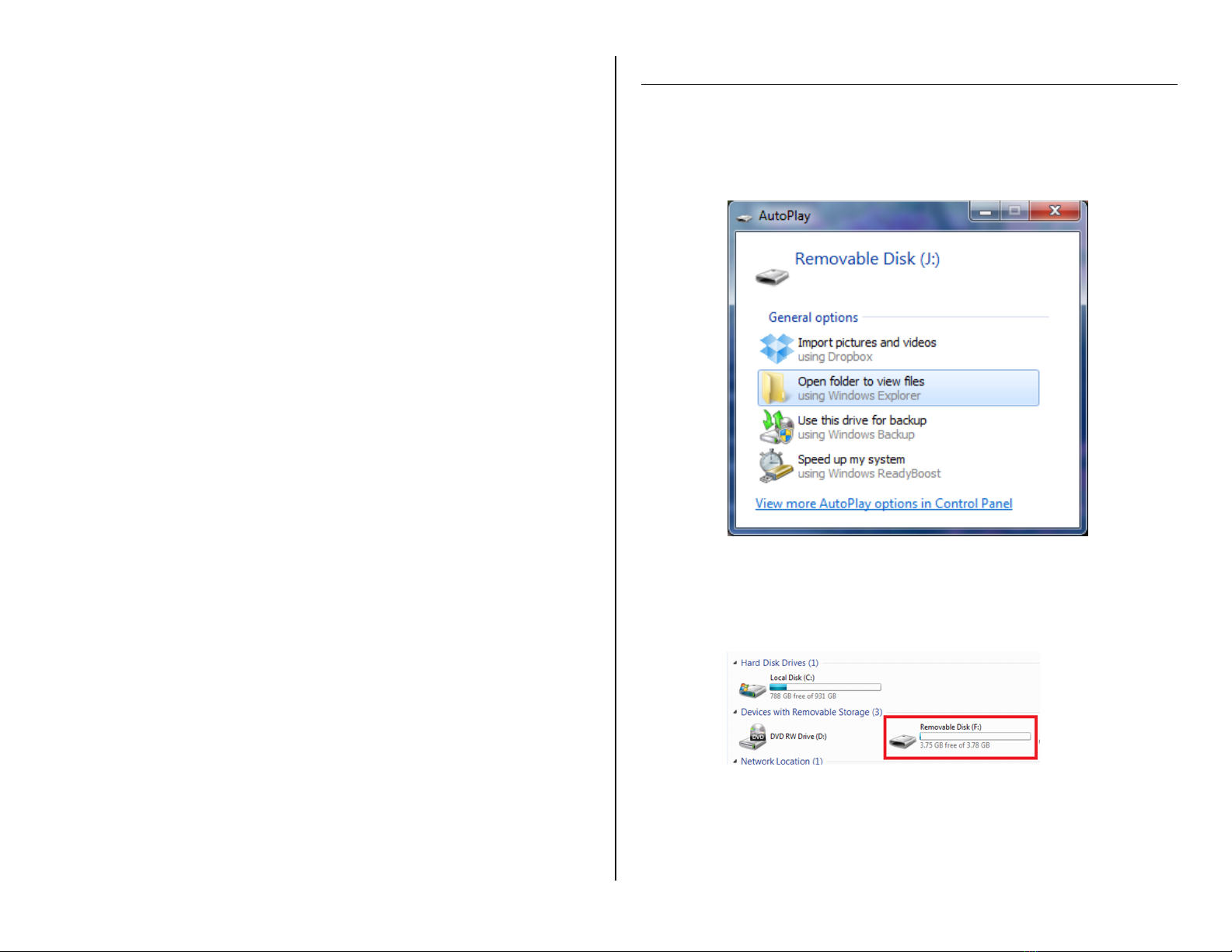

RETRIEVE THE FILES TO YOUR PC
1. Plug the device into your PC using the USB cable
2. Locate “Removable Disk” inside the (My) Computer folder
AutoPlay Removable Disk > Open folder to view files
Or…
Go to Start > Computer > Removable Disk
3. Open the Removable Disk drive
4. Open the DCIM folder
5. Double click the file you want to view
VLC Player is recommended for watching videos
TROUBLESHOOTING
THE DEVICE WON’T TURN ON
Charge the device for at least 4 hours before the first use
Make sure the charging cable is securely inserted into the
device and into the power source
THE DEVICE ISN’T CHARGING
Replace the battery or charging cable
If you are charging via a wall power source, you may need to
charge via your PC. The AC adapter might be bad
THE DEVICE HAS CRASHED
You need to reset the device
MY COMPUTER DOESN’T RECOGNIZE THE DEVICE
Unplug the device from your PC and reboot the device
Unplug the device from your PC and reboot your PC
Try using a different USB slot on your PC
Replace the USB cable
THE SOUND OR VIDEO IS UNCLEAR
The device needs charging
OTHER PROBLEMS
Call our technical support at 770–694–6923
SPECIFICATIONS
Video Resolution
1280x720
Video Format
AVI
Frames per Second
30
Motion Detection
Yes
Water Resistant
No
Battery Life
400 minutes
Type of Memory
MicroSD Card
Memory Capacity
32GB
Recording Capacity
2GB ≈ 1 hour
4GB ≈ 2 hours
8GB ≈ 4 hours
16GB ≈ 8 hours
32GB ≈ 16 hours
USB Interface
2.0 USB
Player Software
VLC recommended
Operating Systems Windows 2000 – Windows 8
Mac OSX
Linux
