Milleteknik NOVA FLX M User manual

NOVA FLX M

NOVA 24V 15A FLX M, NOVA 24V 25A FLX M

350-152

Publication date 2022-10-11

Table of Contents

1. Revisions and the edition of this document .......................................................................... 5

2. Variant overview NOVA ....................................................................................................... 5

3. Enclosures ........................................................................................................................ 6

3.1. Bracket ................................................................................................................... 6

3.2. Mounting on a wall or in a 19 "rack ........................................................................... 7

3.3. Mounting ................................................................................................................ 7

4. Component overviews ........................................................................................................ 7

4.1. Component overviewNOVA FLX M ........................................................................... 7

5. Batteries - placement and connection .................................................................................. 8

5.1. Placement of batteries ............................................................................................. 8

5.2. Connecting batteries in FLX M ................................................................................. 9

5.3. Connect battery fuse / blade fuse ........................................................................... 10

5.4. Connection of batteries in FLX S, FLX M and FLX L ................................................ 10

6. PCB description of PRO2v3 .............................................................................................. 11

6.1. Fuses ................................................................................................................... 12

6.2. Connect the mains to the motherboard (PCB) ......................................................... 12

6.2.1. Connect mains ........................................................................................... 12

6.3. Connect load ........................................................................................................ 13

6.4. Connection of load 15 A - 25 A units ....................................................................... 13

6.5. Load cards with blade fuses ................................................................................... 14

6.6. Alarm via communication ....................................................................................... 15

6.7. Communication to a parent system ......................................................................... 15

6.8. Configuration of communication via RS-485 ............................................................ 15

6.9. Dip switch 1-8 ....................................................................................................... 16

6.9.1. Address setting for external communication (Dip switch 1-4) .......................... 16

6.9.2. Mains failure delay (dip 5-6) ........................................................................ 16

6.9.3. Low battery level (dip 7) .............................................................................. 17

6.9.4. LED (dip 8) ................................................................................................ 17

6.9.5. Battery test (dip 8) ...................................................................................... 17

6.10. Reboot to confirm changes in address, battery and alarm settings to parent sys-

tem ............................................................................................................................. 18

6.11. Alarm card for PRO2 ........................................................................................... 18

7. Multiple units into one parent system ................................................................................. 19

8. Commissioning - how to start the unit ................................................................................ 20

8.1. 72 hours after commissioning / battery change ........................................................ 20

8.2. System test ........................................................................................................... 20

8.3. Recovery .............................................................................................................. 20

9. Alarm displayed on cabinet door ....................................................................................... 20

10. Adjustment of tamper switch ........................................................................................... 21

11. Maintenance .................................................................................................................. 22

11.1. About batteries .................................................................................................... 22

11.2. battery change .................................................................................................... 22

11.3. Battery recycling ................................................................................................. 23

12. NOVA product sheet ....................................................................................................... 24

12.1. SSF1014 certified battery backup with communication ........................................... 24

12.1.1. Name, article number, e-number and certificate number .............................. 24

12.1.2. About NOVA FLX ...................................................................................... 24

12.1.3. Area of use .............................................................................................. 25

12.1.4. Installation video ....................................................................................... 25

12.2. Regulations and certifications ............................................................................... 25

12.2.1. Standards that product (s) meet and are approved for ................................. 25

12.2.2. Requirements that the product meets ......................................................... 26

12.3. Spare operating times, power outlet and load output power .................................... 26

12.3.1. Charging current for batteries and battery capacity ..................................... 26

12.3.2. Power outlet NOVA FLX ............................................................................ 27

12.3.3. Power outlet ............................................................................................. 27

12.3.4. Permitted average load according to SSF1014 Alarm class 1-4: .................. 28

12.3.5. Reserve operating times for different alarm classes - overview .................... 28

12.4. Circuit boards - Technical data ............................................................................. 28

12.4.1. Technical data, motherboard: PRO 2 V3 ..................................................... 28

12.4.2. Technical data, alarm cards for PRO 2 and PRO2 V3 .................................. 29

12.5. Power supply ...................................................................................................... 30

12.5.1. Power supply - Technical Data RSP-320-24 ................................................ 30

12.5.2. Power supply - Technical Data HRP-600-24 ............................................... 31

12.6. Technical data enclosures .................................................................................... 31

12.6.1. Enclosures - Technical Data FLX M ........................................................... 31

12.7. Link to the latest information ................................................................................. 32

12.8. Warranty, support, country of manufacture and country of origin ............................. 32

12.8.1. Warranty 5 years ...................................................................................... 32

12.8.2. Manufacturer support ................................................................................ 32

12.8.3. Support .................................................................................................... 32

12.8.4. Contact us ................................................................................................ 33

12.8.5. Country of manufacture ............................................................................. 33

12.8.6. Designed and produced by: Milleteknik AB ................................................. 33

12.9. Product life cycle, environmental impact and recycling ........................................... 33

12.10. Batteries - recommended, not included ............................................................... 33

12.10.1. Batteries are not included they are sold separately .................................... 33

12.10.2. Battery combinations NOVA FLX M .......................................................... 33

12.10.3. Certified with battery type ........................................................................ 34

12.10.4. 20 Ah, 12 V AGM battery ......................................................................... 34

12.10.5. Reserve operating times for different alarm classes - overview ................... 34

13. Connection of battery box ............................................................................................... 36

13.1. Installation of battery box, what to do in battery backup .......................................... 36

13.2. Connection of batteries battery box ...................................................................... 37

13.3. Connection of battery box NOVA FLX with battery backup NOVA FLX ..................... 38

13.4. Wiring diagram and jumper .................................................................................. 39

13.5. Battery backup (NOVA FLX) with 4 battery boxes (NOVA FLX) ............................... 40

13.6. Tamper switch when using battery box(-es) ........................................................... 40

14. Address and contact details ............................................................................................ 40

1. REVISIONS AND THE EDITION OF THIS DOCUMENT

The current and most recently published edition of this document is available at www.milleteknik.se.

The validity of this document can not be guaranteed, as new editions are published without prior notice.

READ THIS FIRST!

Electronics, regardless of enclosure, are intended for use in a controlled indoor envi-

ronment.

Ventilation must not be covered.

Only authorized persons should install and maintain the system.

It is the installer's responsibility to ensure that the system is suitable for its intended

use.

Documents accompanying the system must be kept in or in its immediate vicinity.

Mains voltage should be disconnected during installation.

All information subject to change.

Upon installation of this product, the installer acknowledges and accepts the limitations

of this product as described in this manual.

ABOUT GLASS TUBE FUSES ON CERTIFIED

DEVICES

There are glass tube fuses on the circuit board's load outputs, these

have a tripping time of approx. 150 ms. In the event that a glass tube

fuse trips on ONE load output, the voltage on ALL load outputs drops

to 0 V for 150 ms.

The installer is responsible for ensuring that there is an energy buffer

of at least 150 ms in systems that the battery backup supplies power

to or accepts a power failure of 150 ms.

2. VARIANT OVERVIEW NOVA

Table 1. Variant overview

Product name Certified name Mother-

board:

PRO1

Mother-

board

PRO2:

Mother-

board

PRO2 v3

Mother-

board:

PRO3

NOVA 12V 10A FLX S 12 V meets the requirements but

is not certified. - - - x

Product name Certified name Mother-

board:

PRO1

Mother-

board

PRO2:

Mother-

board

PRO2 v3

Mother-

board:

PRO3

NOVA 12V 10A FLX M - - - x

NOVA 12V 10A FLX L - - - x

NOVA 24V 5A FLX S NOVA 25 50-FLX-S X X - X

NOVA 24V 10A FLX S NOVA 25 100-FLX-S X X - X

NOVA 24V 5A FLX M NOVA 25 50-FLX-M X X - X

NOVA 24V 10A FLX M NOVA 25 100-FLX-M X X - X

NOVA 24V 15A FLX M NOVA 25 150-FLX-M X X X -

NOVA 24V 25A FLX M NOVA 25 250-FLX-M X X X -

NOVA 24V 5A FLX L NOVA 25 50-FLX-L X X - X

NOVA 24V 10A FLX L NOVA 25 100-FLX-L X X - X

NOVA 24V 15A FLX L NOVA 25 150-FLX-L X X X -

NOVA 24V 25A FLX L NOVA 27 250-FLX-L X X X -

3. ENCLOSURES

3.1. Bracket

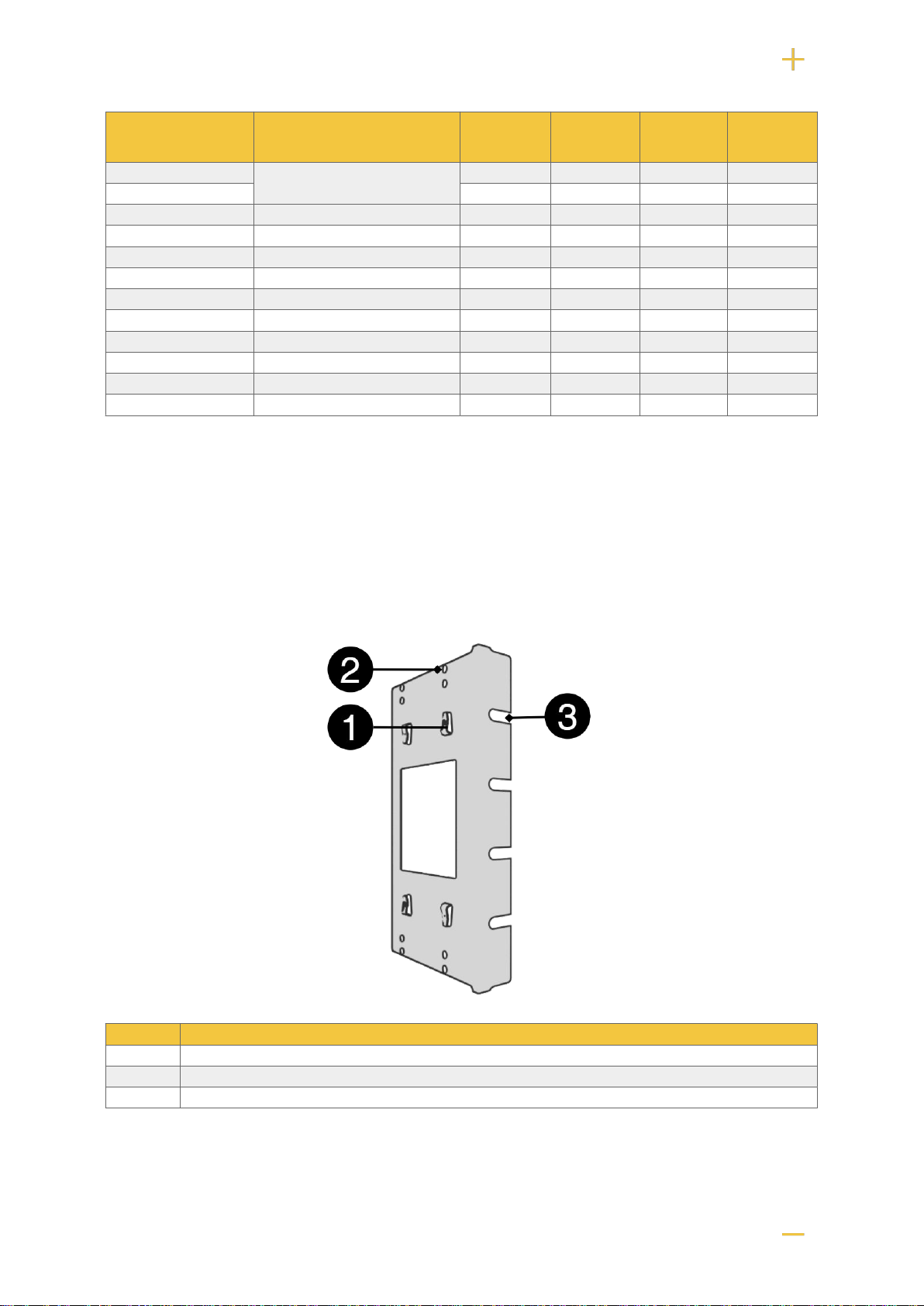

Brackets are used so that the unit can be mounted on a wall or in a 19 "rack.

Nr Explanation

1 Clip in bracket that secures the bracket to the housing.

2 Holes for screws - can be used to secure the bracket in the housing.

3 The brackets is screwed to a wall or 19 "rack.

3.2. Mounting on a wall or in a 19 "rack

The unit can be mounted in a 19 ”rack or on a wall. The included brackets can be attached in two

ways: When mounting on a wall, the brackets must sit backwards, against the wall. When mounting in a

19 ”rack, the console must be at the front edge of the unit.

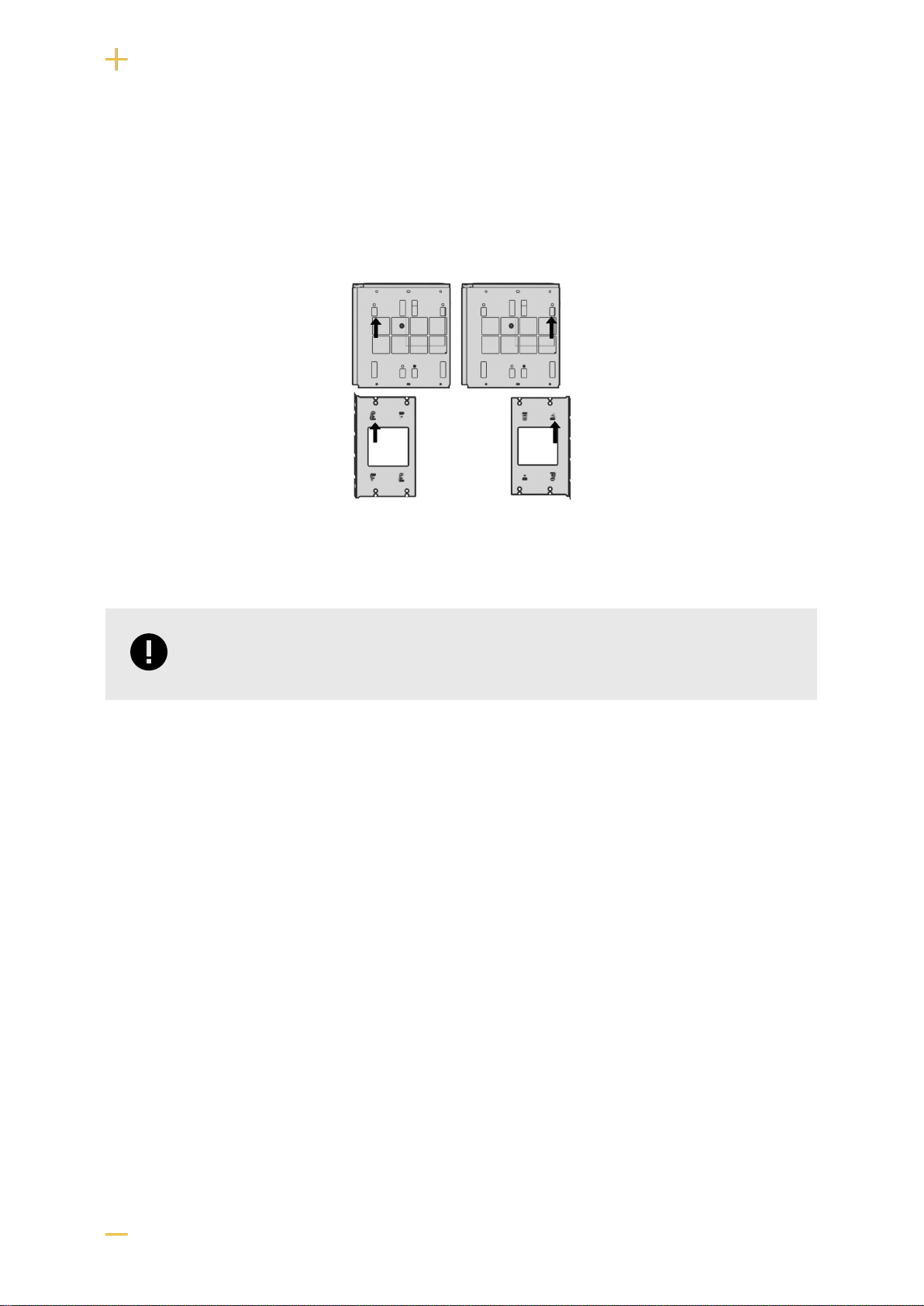

Figure 1. FLX M - mount brackets

Left bracket facing the front for mounting in a 19 "rack.

Right bracket facing the back for wall mounting.

IMPORTANT

Leave 100 mm free around the air vents.

3.3. Mounting

Use the appropriate screw for mounting on a wall or in a 19" rack. Screws for mounting on a wall or in a

rack are not included.

4. COMPONENT OVERVIEWS

4.1. Component overviewNOVA FLX M

Table 2. Component overview

Letter Explanation

A Bracket, reversible for wall mounting or 19 "rack.

B Sabotage contact. If alarm class 3 (SSF) is to be met, the tamper switch must be on the wall.

C Cabinet in powder-coated sheet metal.

D Load card - load is connected here.

E Power supply.

F Cable entries.

G Motherboard.

G1 Effect card.

G2 Load card.

H Lockable door.

I Space for batteries.

5. BATTERIES - PLACEMENT AND CONNECTION

5.1. Placement of batteries

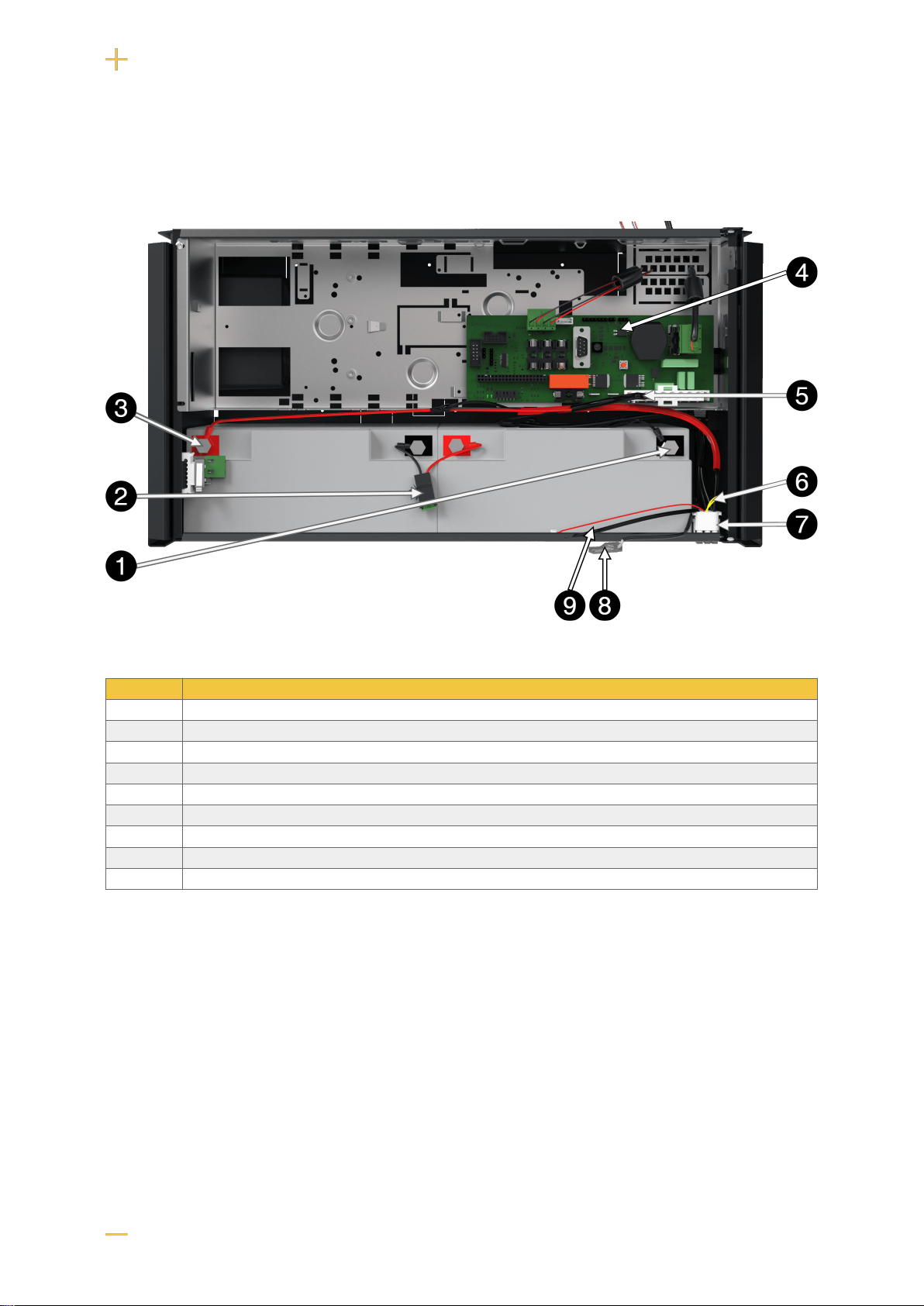

5.2. Connecting batteries in FLX M

Figure 2. Connection of batteries in FLX M. Motherboards may differ depending on the configuration, but connection of batteries takes

place in the same way.

Note that cards (4) differ from different configurations.

Nr Explanation

1 Minus coil for battery cable from 4.

2 Fuse.

3 Plus terminal for battery cable from 4.

4 Motherboard, varies with configuration.

5 Battery cables are located on the system board.

6 Yellow cable, which must be cut when connecting the battery box.

7 Connection for connection of battery box.

8 Alarm cable for battery box.

9 Cable for tampering in battery box.

5.3. Connect battery fuse / blade fuse

Figure 3. Fuse holders with blade fuses are connected to + and minus on batteries

5.4. Connection of batteries in FLX S, FLX M and FLX L

Battery wiring is mounted on the circuit board upon delivery. Pictures below only show how to connect

wiring.

1. Place the batteries in the cabinet with the battery terminals facing outwards.

2. Connect the battery cable. Red cable on + and black cable on -.

• If possible, disconnect mains voltage when replacing the battery.

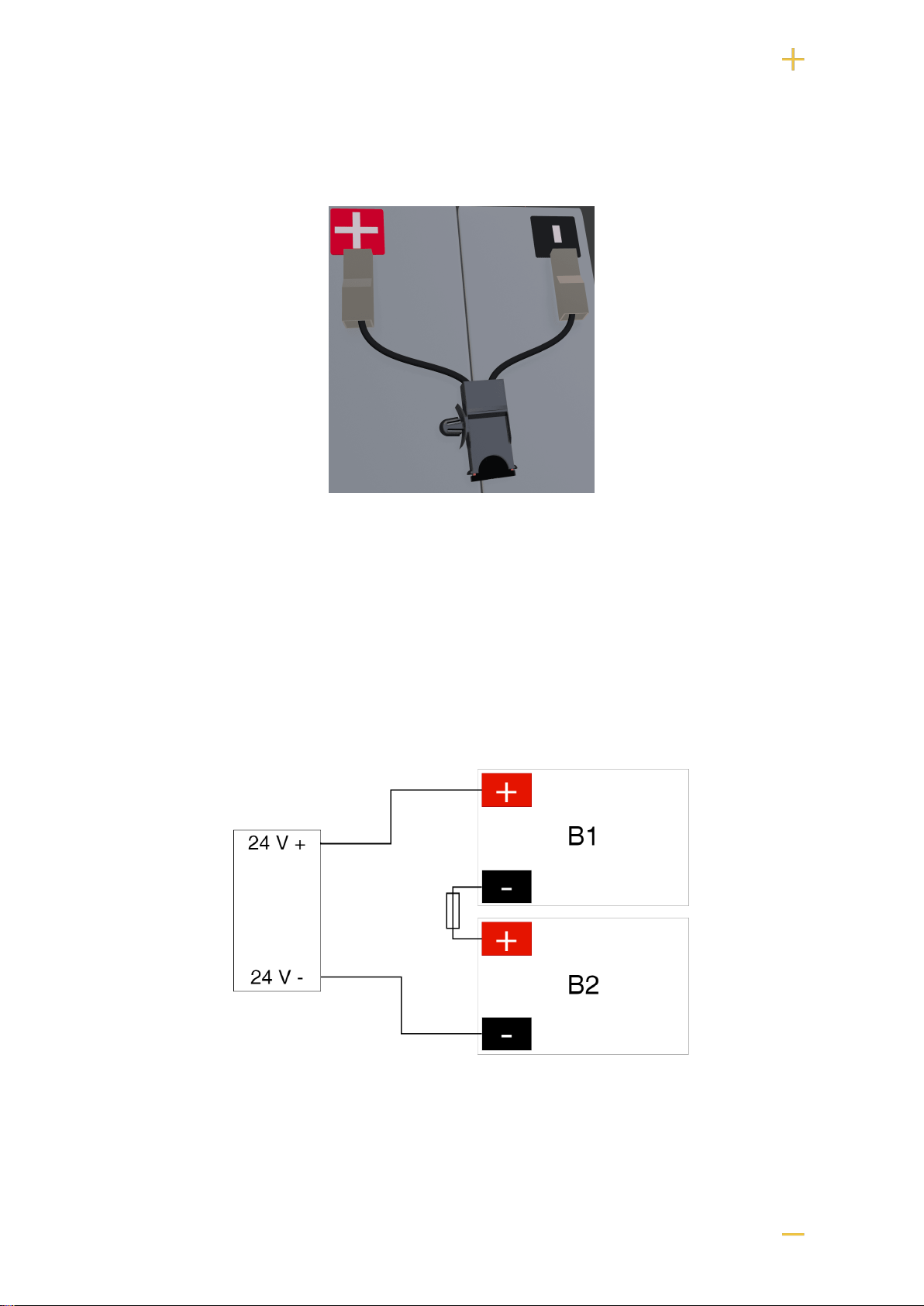

Figure 4. Wiring diagram for batteries in battery backup

Connect the terminals correctly so that you do not damage the equipment.

Other manuals for NOVA FLX M

This manual suits for next models

Table of contents

Other milleteknik Power Supply manuals

milleteknik

milleteknik EN54 User manual

milleteknik

milleteknik ECO 12V 10A FLX S User manual

milleteknik

milleteknik 1U01D10024P1501 User manual

milleteknik

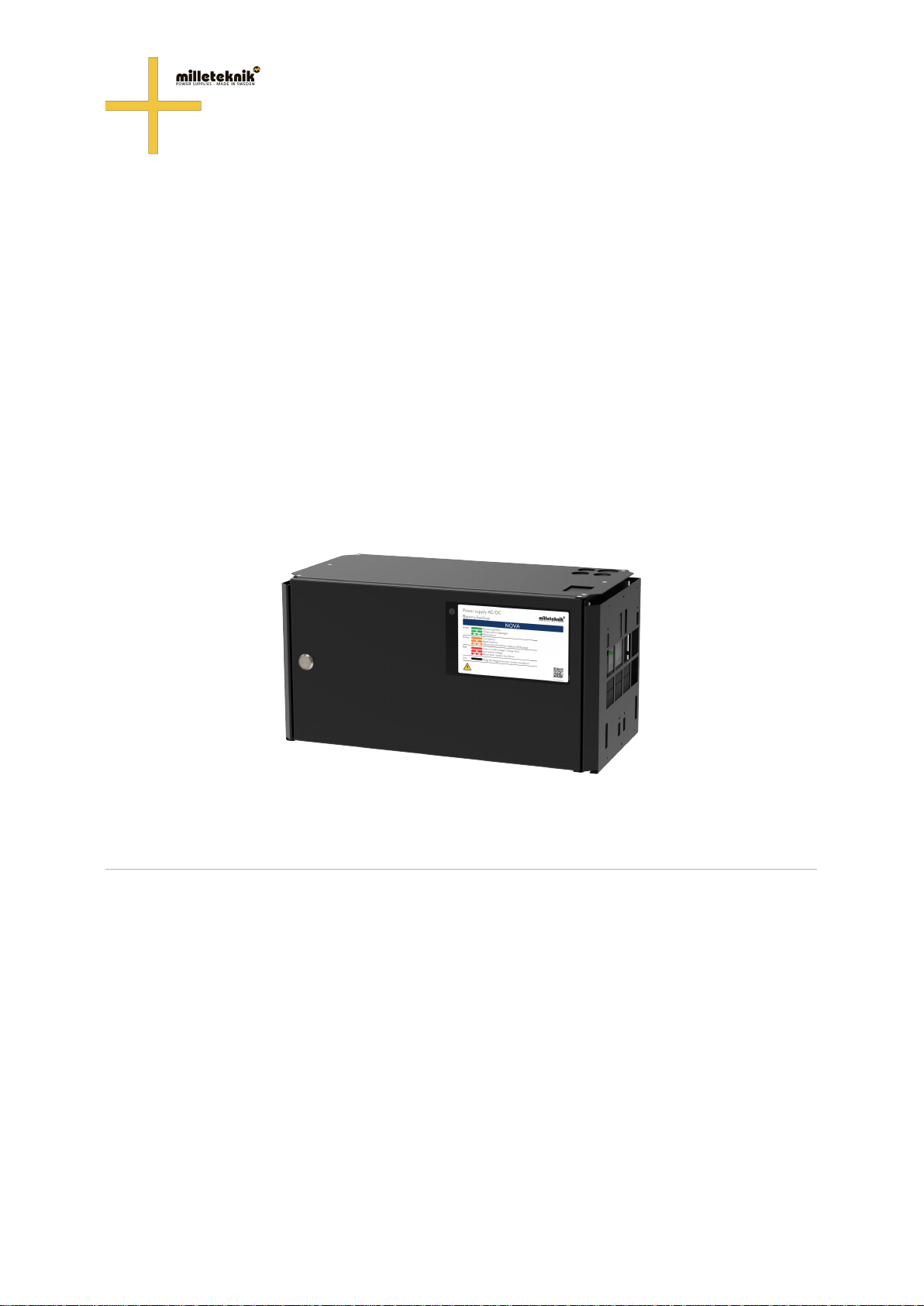

milleteknik ECO 12V 10A FLX S User manual

Popular Power Supply manuals by other brands

Monacor

Monacor PS-12CCD instruction manual

VOLTIMA

VOLTIMA MagicBox 15 Installation and operating instructions

Agilent Technologies

Agilent Technologies 6032A Service manual

Miller

Miller Auto Deltaweld 452 owner's manual

BCP

BCP PUOUBK How to install

HC 2210 manual

Puls

Puls CT5.241 installation manual

OCZ

OCZ ZX1250W Technical specifications

iseg

iseg ECH 238 manual

Power

Power XXL A Series instruction manual

Agilent Technologies

Agilent Technologies 6631B Service manual

Renogy

Renogy PHOENIX 300 user guide

HP 6200B Operating and service manual

Epson

Epson Stylus Scan 2500 Product information sheet

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 manual

Puls

Puls MiniLine ML50.100 instruction manual

Puls

Puls AS-Interface SLA4.100 installation manual

Kenwood

Kenwood PS-60 instruction manual

milleteknik NOVA FLX M User manual

Popular Power Supply manuals by other brands
