Miller Electric Coolmate Coolmate 4 User manual

Processes

TIG (GTAW)

MIG (GMAW)

Plasma Cutting

Resistance Welding

Input Power Single-Phase

Input Voltage 115 VAC or 230 VAC, 50/60 Hz

Max. Cooling Capacity 9,700–18,000 BTU/hr

Light/Heavy Industrial Applications

Manufacturing

Aerospace

Automotive

Tube Mills

Automation

Coolmate™Series Coolant

Systems

Issued Oct. 2010 • Index No. AY/7.2

Closed-loop design with radiator reduces coolant temperatures and

prevents the system from overheating. Closed-loop design also

recirculates the coolant through a fan-cooled heat exchanger.

The Power of Blue®

Rustproof coolant reservoir molded of polyethylene for durability and

corrosion resistance.

Standard inlet/outlet torch fittings are compatible with TIG and MIG

torches having standard 5/8-18 left-hand fittings.

10 ft (3 m) power cords with plugs are longer than most power cords in

the industry — providing the extra length when required.

Compatible with Miller coolants and are ideal for warm and cold

weather conditions, while providing HF or corrosion protection.

Coolmate 3

Coolant

Coolmate 1

Coolmate 3.5

Coolant systems are warranted for 1 year, parts and labor.

Quick

Specs

Coolmate 4

Coolmate V3

Miller Electric Mfg. Co.

An Illinois Tool Works Company

1635 West Spencer Street

Appleton, WI 54914 USA

Web Site

www.MillerWelds.com

Equipment Sales US and Canada

Phone: 866-931-9730

FAX: 800-637-2315

International Phone: 920-735-4554

International FAX: 920-735-4125

Model

Coolmate 1

Coolmate 1 CE

Coolmate 3

Coolmate 3 CE

Coolmate V3

Coolmate V3 CE

Coolmate 3.5

Coolmate 4

Coolmate 4 CE

Coolmate 3X

Maximum

Current Draw

50 Hz 60 Hz

— 2.1 A

0.65 A 0.55 A

5.9 A 4.7 A

2.5 A 3.0 A

5.9 A 4.7 A

Rated

Cooling

Capacity**

1,210 W

(4,120 BTU/hr)

1.1 qt/min (1 L/min)

1,420 W

(4,840 BTU/hr)

1.1 qt/min (1 L/min)

1,420 W

(4,840 BTU/hr)

1.1 qt/min (1 L/min)

1,660 W

(5,660 BTU/hr)

1.1 qt/min (1 L/min)

1,780 W

(6,070 BTU/hr)

1.1 qt/min (1 L/min)

1,660 W

(5,660 BTU/hr)

1.1 qt/min (1 L/min)

Maximum

Cooling

Capacity*

2,850 W

(9,700 BTU/hr)

1.8 qt/min (1.7 L/min)

3,820 W

(13,000 BTU/hr)

4.2 qt/min (4.0 L/min)

3,820 W

(13,000 BTU/hr)

4.2 qt/min (4.0 L/min)

4,140 W

(14,000 BTU/hr)

5.0 qt/min (4.7 L/min)

5,500 W

(18,000 BTU/hr)

5.9 qt/min (5.6 L/min)

4.140 W

(14,000 BTU/hr)

5.0 qt/min (4.7 L/min)

Motor Input

Voltage 50/60 Hz

115 VAC, 60 Hz

230 VAC, 50/60 Hz

115 VAC

230 VAC

115 VAC

Tank

Capacity

1 gal

(3.8 L)

3 gal

(11.4 L)

3 gal

(11.4 L)

3.5 gal

(13.2 L)

4 gal

(15 L)

3 gal

(11.4 L)

Net

Shipping

Weight

29 lb

(13 kg)

43 lb

(20 kg)

54 lb

(24 kg)

70 lb

(32 kg)

40 lb

(18 kg)

158 lb

(72 kg)

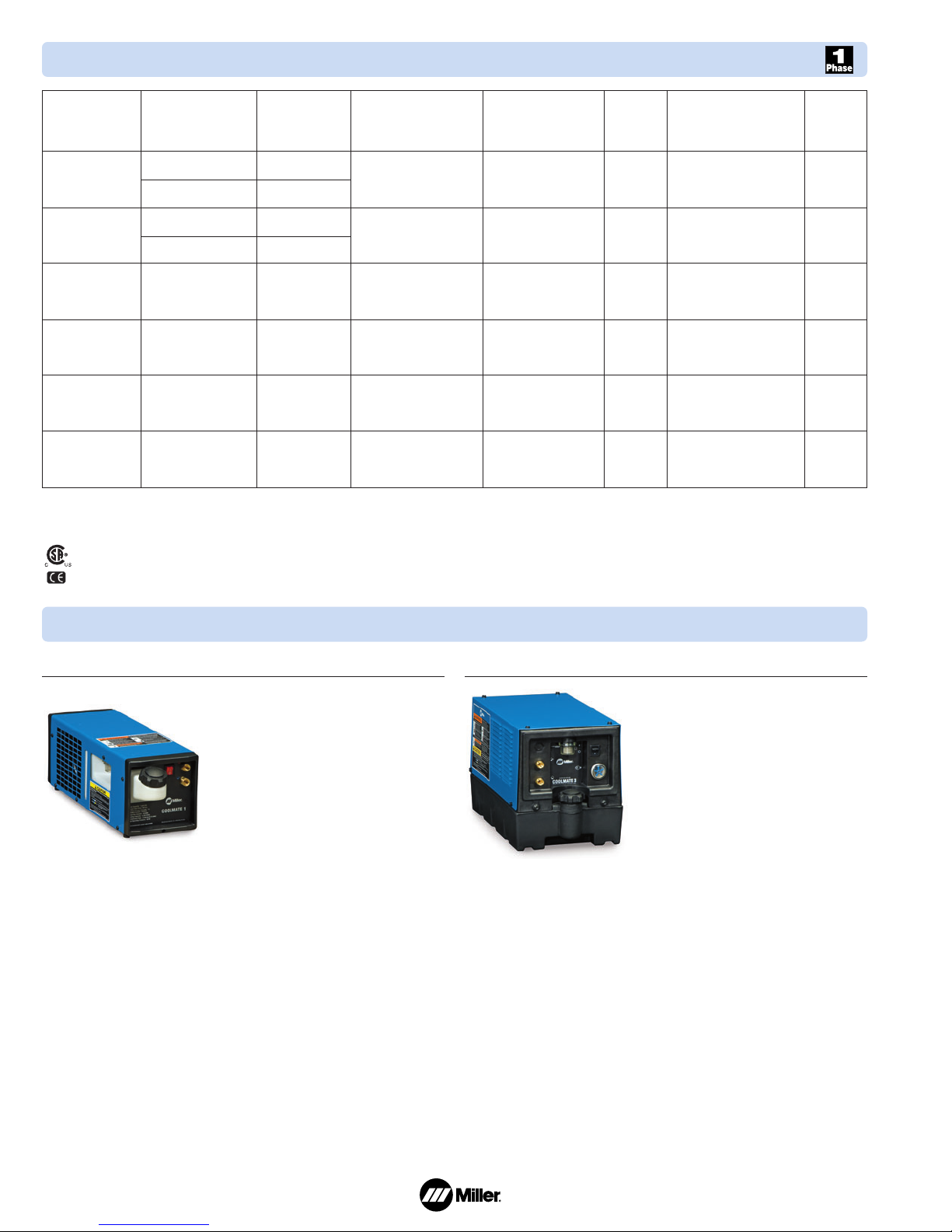

Specifications (Subject to change without notice.)

Dimensions

H: 8 in (203 mm)

W: 7-1/2 in (191 mm)

D: 23-3/4 in (603 mm)

H: 13-1/4 in (337 mm)

W: 12-1/4 in (311 mm)

D: 23-1/4 in (584 mm)

H: 33 in (838 mm)

W: 9-1/4 in (235 mm)

D: 9-1/4 in (235 mm)

H: 11-3/4 in (298 mm)

W: 15-3/4 in (400 mm)

D: 26 in (660 mm)

H: 16-1/4 in (413 mm)

W: 15-1/4 in (387 mm)

D: 18-3/4 in (476 mm)

H: 17 in (432 mm)

W: 27 in (686 mm)***

D: 39 in (991 mm)

All CE models conform to the applicable parts of the IEC 60974 series of standards.

All models are certified by Canadian Standards Association to both the Canadian and U.S. Standards.

*Maximum cooling capacity is based on a 25°C (77°F) environment at maximum flow with a 65°C (149°F) coolant temperature rise.

**Rated IEC standard cooling capacity is based on a 25°C (77°F) environment at a flow of 1 L/min with a 40°C (104°F) coolant temperature rise.

***Width measurement includes rear wheels and axle. Cooler width without rear wheels and axle is 22-1/4 in (565 mm).

Coolmate™1

#300 360 115 VAC, 60 Hz

#300 360-00-1 115 VAC, 60 Hz CE

#300 459 230 VAC, 50/60 Hz

#300 459-00-1 230 VAC, 50/60 Hz CE

Light industrial, 1-gallon cooler designed for water-cooled

torches on power sources rated up to 200 A*.

• Designed to integrate with smaller Dynasty and Maxstar models

and Syncrowave 200

• Compact horizontal design allows stacking and convenient mounting

• Lightweight at 25 lb (11 kg) dry

• Equipped with lighted on/off power switch on front panel

• Filter and coolant filling spout are conveniently located for

easy access

• Fluid level sight window

• Polyethylene-molded coolant tank and filler spout are rustproof

• Thermally protected piston pump guards against overheating

• Stainless steel oscillating piston pump provides consistent

coolant flow and pressure rating with long pump-life expectancy

Coolmate™3

#043 007 115 VAC, 50/60 Hz

#043 007-01-2 115 VAC, 50/60 Hz CE

#043 008 230 VAC, 50/60 Hz

#043 008-01-2 230 VAC, 50/60 Hz CE

Economical, 3-gallon cooler designed for water-cooled torches

rated up to 500 A*.

• Compact horizontal design allows stacking and convenient mounting

• Midsize cooler weighs 40 lb (18 kg) dry

• On/off power switch, “paddle wheel” coolant flow indicator, filter

and coolant filling spout are all conveniently located on front panel

• Polyethylene-molded coolant tank, fan shroud and filler spout

are rustproof

• Factory-set pressure relief valve (55 PSI) maintains consistent

pressure during operation

• Thermally protected 1/4 HP motor guards against overheating

• Efficient fin and tube heat exchanger

• Brass-body, positive displacement rotary vane pump

provides consistent coolant flow and pressure rating with

long pump-life expectancy

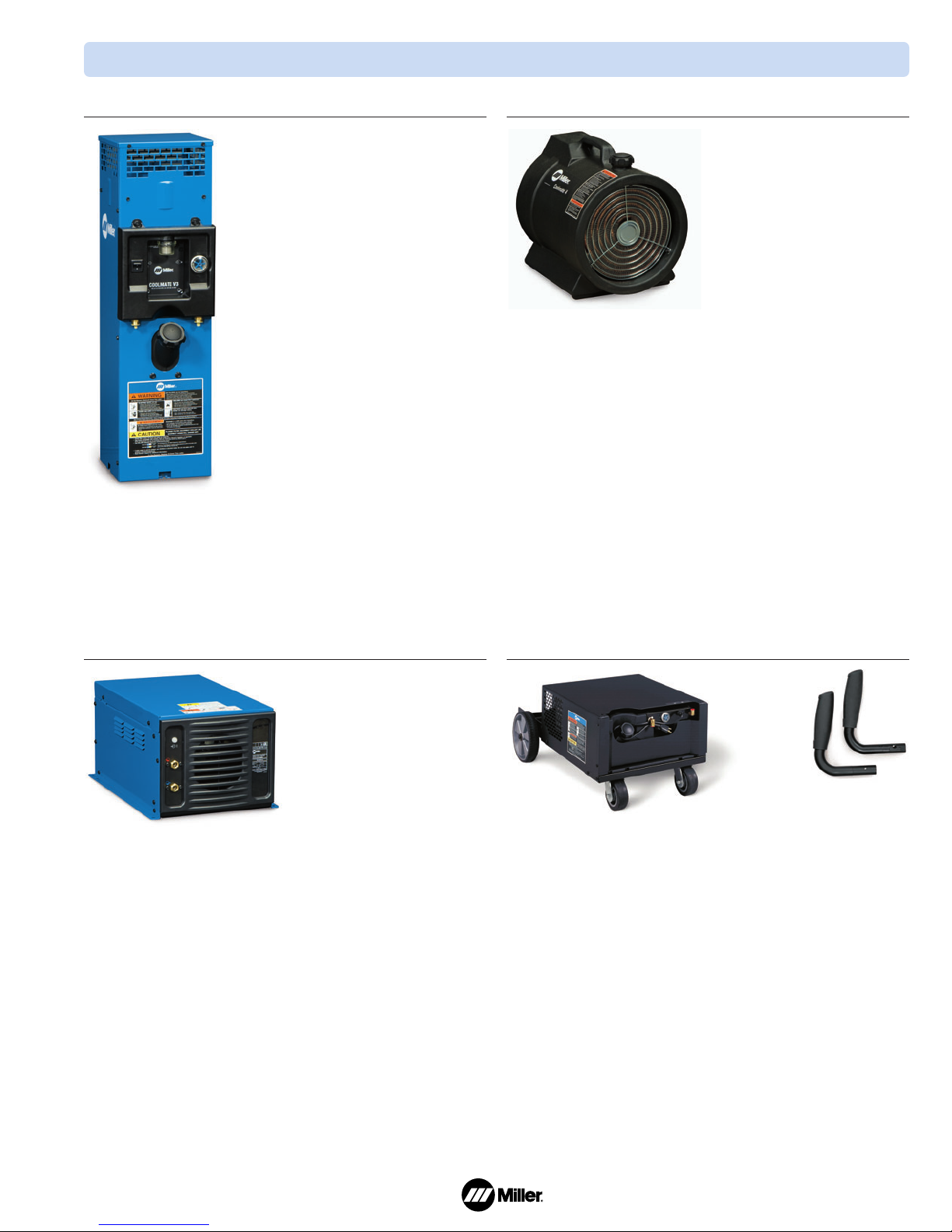

Product Descriptions

*May vary with torch design and cable length.

Coolmate™V3

#043 009 115 VAC, 50/60 Hz

#043 009-01-2 115 VAC, 50/60 Hz CE

Vertical, 3-gallon cooler designed

for water-cooled torches rated up to

500 A*.

• Distinct, vertical design allows

mounting onto a power source

running gear or gas cylinder rack

•Weighs only 48 lb (22 kg) dry

• On/off power switch, “paddle wheel”

coolant flow indicator, filter and

coolant filling spout are all

conveniently located on front panel

• Polyethylene-molded coolant tank, fan

shroud and filler spout are rustproof

• Factory-set pressure relief valve

(55 PSI) maintains consistent

pressure during operation

• Thermally protected 1/4 HP motor guards against overheating

• Efficient fin and tube heat exchanger

• Brass-body, positive displacement rotary vane pump

provides consistent coolant flow and pressure rating with

long pump-life expectancy

Coolmate™3.5

#300 245 115 VAC, 50/60 Hz

Industrial, 3.5-gallon cooler designed for water-cooled torches

rated up to 600 A*.

• Designed to integrate with Dynasty 350/700 and Maxstar 350/700

• Horizontal design allows stacking or convenient mounting onto a

MIGRunner™cart

• Weighs only 64 lb (29 kg) dry

• Polyethylene-molded coolant tank, fan shroud and filler spout

are rustproof

• Factory-set pressure relief valve (55 PSI) maintains consistent

pressure during operation

• Thermally protected 1/4 HP motor guards against overheating

• Efficient fin and tube heat exchanger

• Equipped with internal check valves to prevent coolant flow when

torch is disconnected

• Brass-body, positive displacement rotary vane pump

provides consistent coolant flow and pressure rating with

long pump-life expectancy

Coolmate™4

#042 288

115 VAC, 50/60 Hz

#042 288-01-5

115 VAC, 50/60 Hz CE

The best performer in its class — industrial, 4-gallon cooler

designed for water-cooled torches rated up to 600 A*.

• Weighs only 38 lb (17 kg) dry

• Tough, one-piece case is portable and rustproof

• Convenient carrying handle and filler spout are molded into case

• Easily accessible coolant filter

• Factory-set pressure relief valve (60 PSI) maintains consistent

pressure during operation

• Thermally protected 1/4 HP motor guards against overheating

• Efficient fin and tube heat exchanger

• Coolant system has a constant flow of coolant inside to keep the

pump primed and to reduce algae buildup in the tank

• Brass-body, positive displacement rotary vane pump

provides consistent coolant flow and pressure rating with

long pump-life expectancy

Coolmate™3X

#300 419

115 VAC, 50/60 Hz

Industrial, 3-gallon cooler designed for water-cooled torches

rated up to 500 A*.

• Includes easy load dual cylinder rack, running gear and handles

for Syncrowave 250 DX/350 LX

• “Paddle wheel” coolant flow indicator, filter and coolant filling

spout are all conveniently located on front panel

• Polyethylene-molded coolant tank, fan shroud and filler spout

are rustproof

• Factory-set pressure relief valve (55 PSI) maintains consistent

pressure during operation

• Thermally protected 1/4 HP motor guards against overheating

• Efficient fin and tube heat exchanger

• Brass-body, positive displacement rotary vane pump

provides consistent coolant flow and pressure rating with

long pump-life expectancy

Product Descriptions

Includes

wheels and

handles.

*May vary with torch design and cable length.

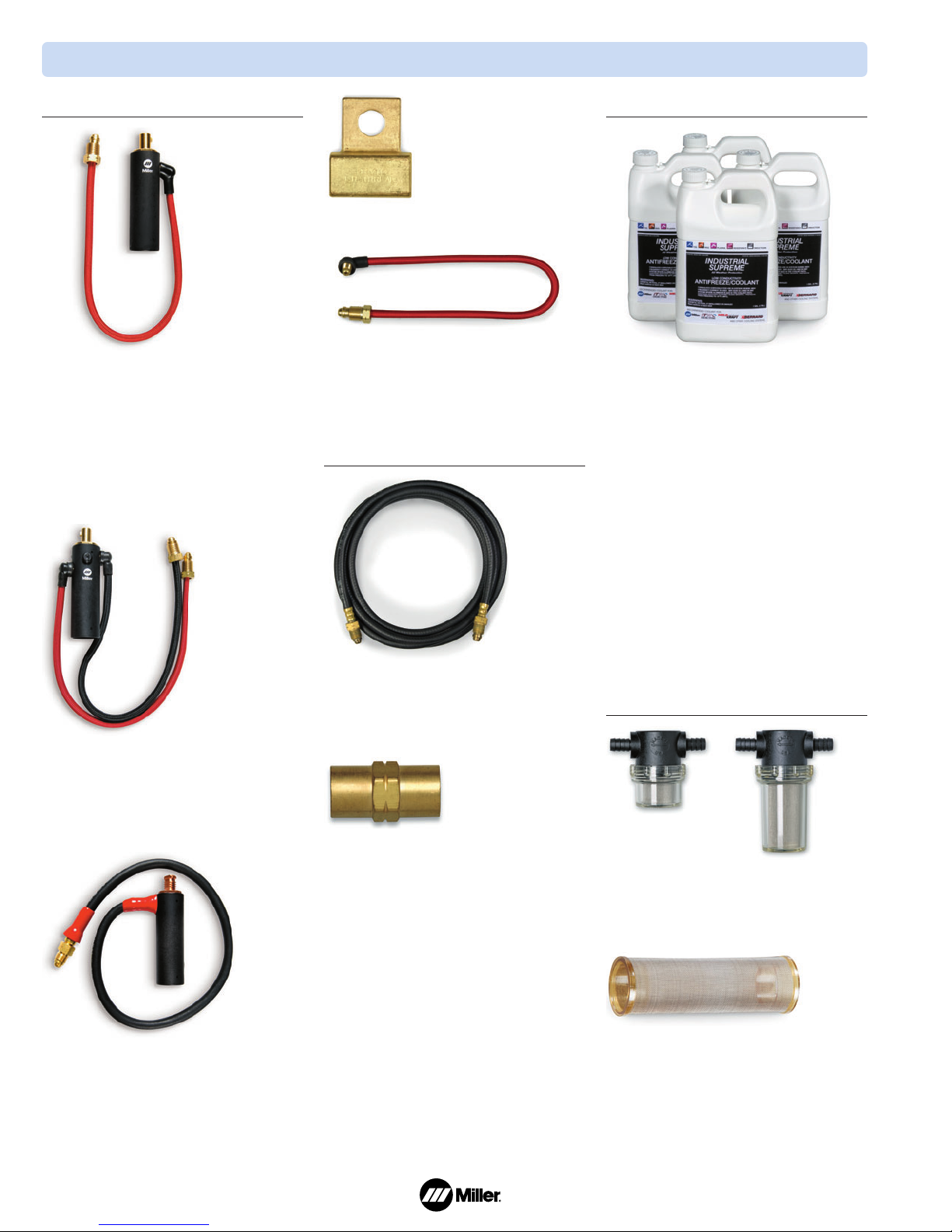

Water-Cooled TIG Torch Adapters

50 mm Dinse with Water Return Line

#195 377

For Maxstar 200, 300 and 350, Dynasty

200, 300 and 350, and Syncrowave 250

and 350.

Used with (WP125, WP24W,

WP25, WP20, WP18, WP12, CS310,

CS410, WP22, WP27) water-cooled torch.

Order from Miller Service Parts.

50 mm Dinse Flow Thru #195 380

For Econotig and Syncrowave 180 and

200.

Used with (WP125, WP24W, WP25,

WP20) water-cooled torch.

Order from

Miller Service Parts.

50 mm Thread Lock Style #225 028

For Dynasty 700 and Maxstar 700.

Used

with (WP125, WP24W, WP25, WP20,

WP18, WP12, CS310, CS410, WP22, WP27)

water-cooled torch.

Order from Miller

Service Parts.

Water-Cooled TIG

Block Adapter #45V11

For Miller power

sources with stud-type

output terminals.

Order from Miller

Service Parts.

Replacement Water Hose for

Dinse Adapter #222 809

18 in (457 mm).

Order from Miller

Service Parts.

Water Hoses and Connectors

Water Hose Extension

#40V76R6 6 ft (1.8 m)

Hose with two male 5/8 in 18 LH thread

connections.

Order from Miller Service Parts.

Water Coupler #057 020

Brass hose fitting with 5/8 in 18 LH thread.

Order from Miller Service Parts.

Coolants

Sold in multiples of four in 1-gallon

recyclable plastic bottles. Miller coolants

contain a base of ethylene glycol and

deionized water to protect against freezing

to -37°F (-38°C) or boiling to 227°F (108°C).

Low-Conductivity Coolant

(Clear, Pre-Mixed) #043 810

For TIG and MIG applications. NOT for use

in push-pull systems or systems where

aluminum is in coolant path/circuit.

Aluminum-Protecting Coolant

(Green, Pre-Mixed) #043 809

Primarily used in push-pull systems where

aluminum is in coolant path/circuit and

high frequency is NOT used.

Replacement Filter Assemblies

Filter Assemblies

#166 564

For Coolmate 1, 3, V3 and 3X

#215 667

For Coolmate 3.5

Order from Miller Service Parts.

Filter Strainer

#146 249

For Coolmate 4

Located inside pump assembly. See owner’s

manual.

Order from Miller Service Parts.

Genuine Miller Accessories

#166 564

Filter #215 667

Filter

With gas and

water return

line

Genuine Miller Accessories

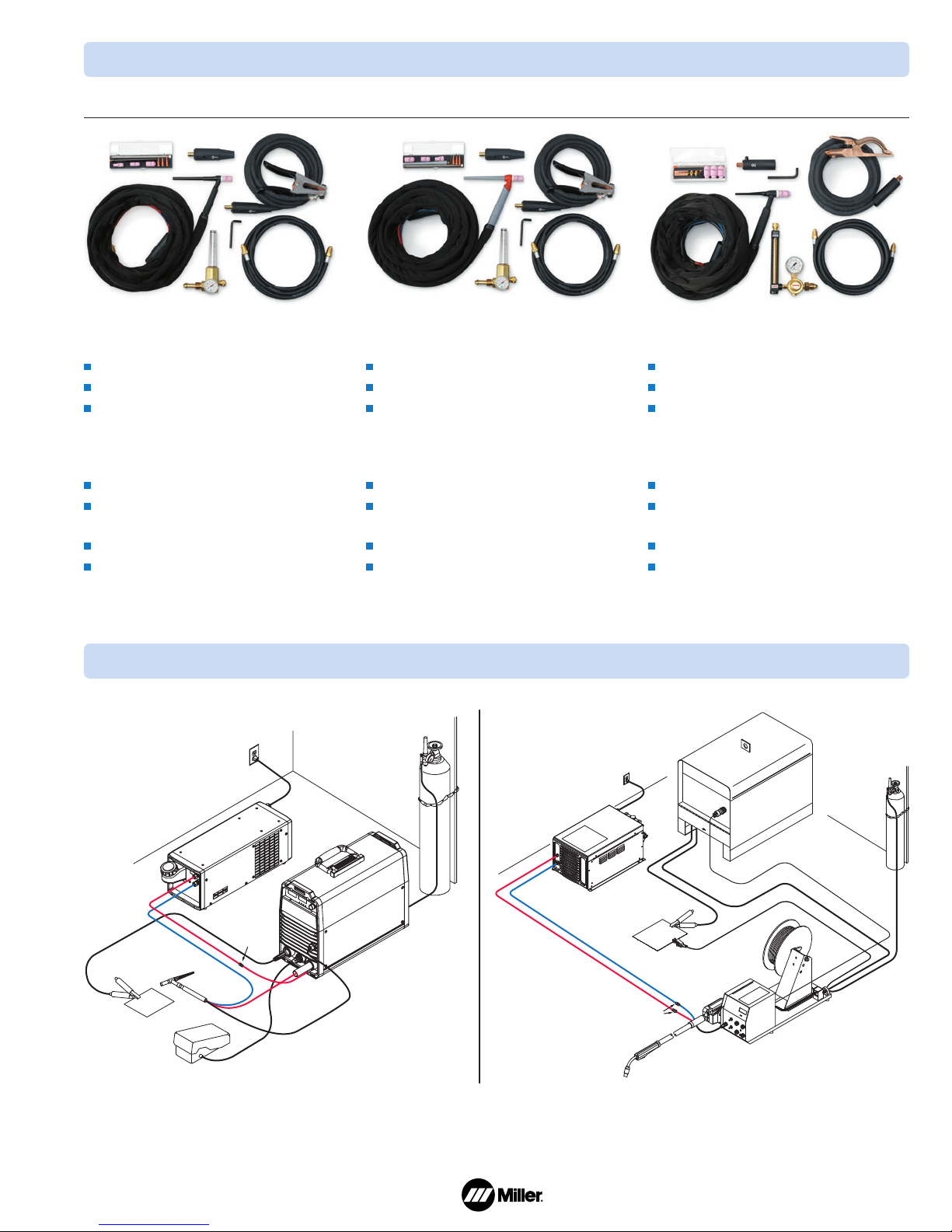

250 A with WP20 Water-Cooled Torch

#300 185

25 ft (7.6 m) Weldcraft®WP20 torch

Torch cable cover

AK4C torch accessory kit includes

shielding cups, collets, collet bodies

and 2% cerium tungsten electrodes

(1/16, 3/32 and 1/8 in)

Smith®regulator/flowmeter HM2051A-580

12 ft (3.7 m) rubber gas hose (regulator

to machine)

Water-cooled Dinse torch adapter

15 ft (4.6 m) 1/0 work cable with clamp

and Dinse connector

300 A with CS310 Water-Cooled Torch

#300 183

25 ft (7.6 m) Weldcraft®CS310 torch

Torch cable cover

CS310AKC torch accessory kit includes

shielding cups, collets, collet bodies

and 2% cerium tungsten electrodes

(1/16, 3/32 and 1/8 in)

Smith®regulator/flowmeter HM2051A-580

12 ft (3.7 m) rubber gas hose (regulator

to machine)

Water-cooled Dinse torch adapter

15 ft (4.6 m) 1/0 work cable with clamp

and Dinse connector

400 A with WP18SC Water-Cooled Torch

#300 186

25 ft (7.6 m) Weldcraft®WP18SC torch

Torch cable cover

AK18C torch accessory kit includes

shielding cups, collets, collet bodies

and 2% cerium tungsten electrodes

(3/32, 1/8 and 5/32 in)

Smith®regulator/flowmeter H1954D-580

12 ft (3.7 m) rubber gas hose (regulator

to machine)

Water-cooled thread lock torch adapters

12 ft (3.7 m) 4/0 work cable with clamp

Torch Kits

Typical Coolmate™Connections

MIG (GMAW) ConnectionsTIG (GTAW) Connections

Water

Coupler

Coolant Out

Coolant In

Coolant

In Water Coupler

Coolant Out

Coolant In

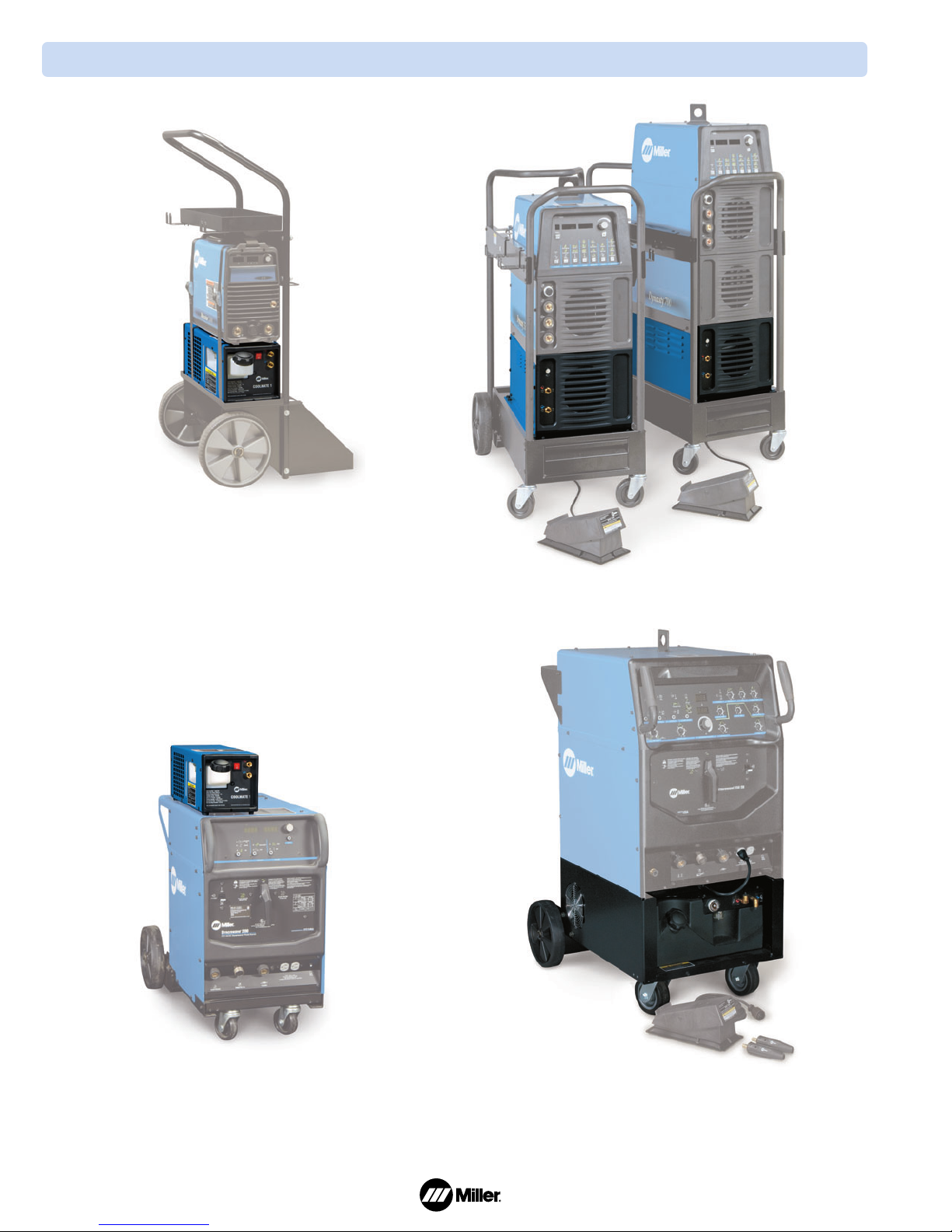

Typical Coolmate™Usages

Coolmate 1 shown with

Maxstar®200 DX TIGRunner®

Coolmate 1 shown with

Syncrowave®200 Runner

Coolmate 3.5 shown with

Dynasty®350 and 700 TIGRunners®

Coolmate 3X shown with

Syncrowave®250 DX TIGRunner®

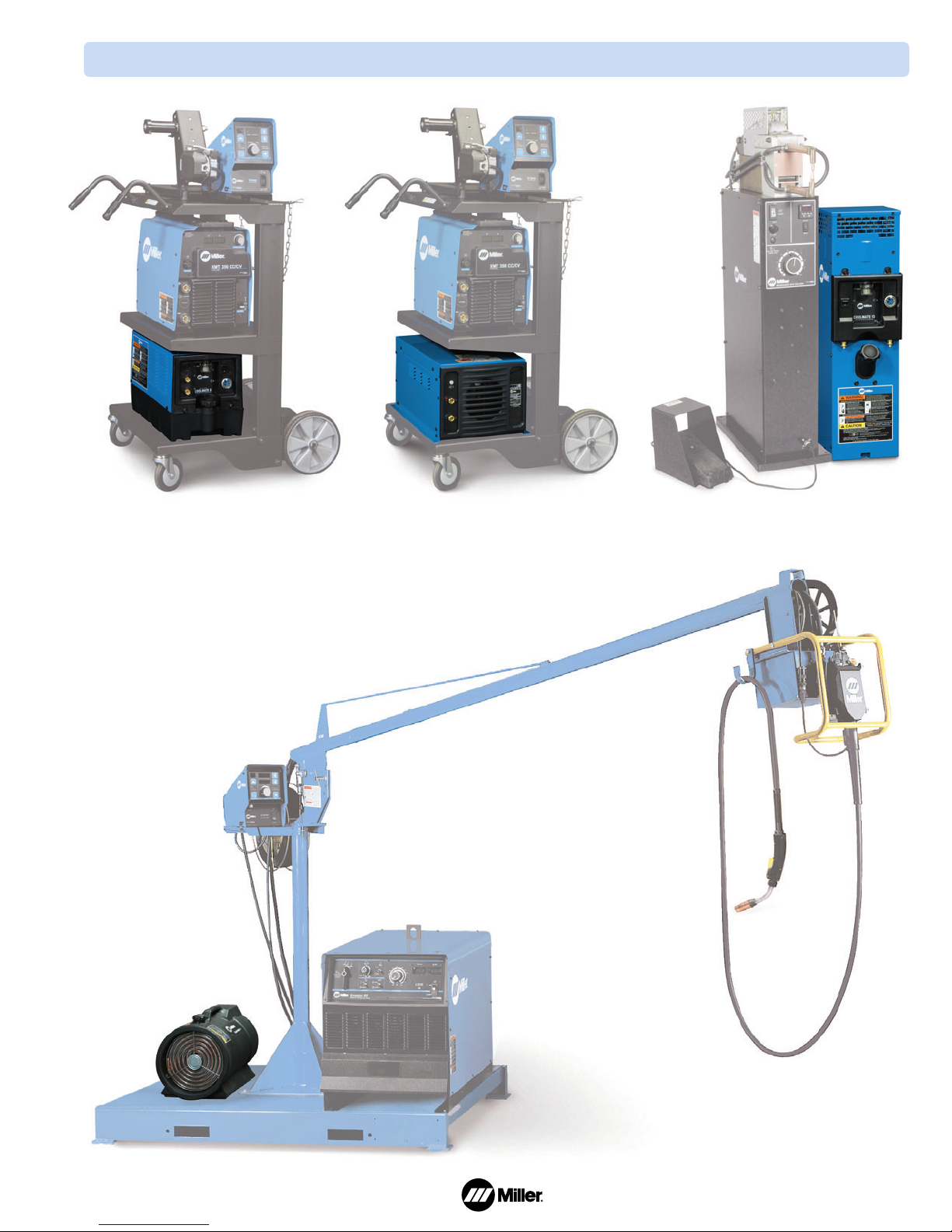

Typical Coolmate™Usages

Coolmate 3 shown with

XMT®350 MIGRunner™

Coolmate 3.5 shown with

XMT®350 MIGRunner™

Coolmate 4 shown with

70 Series Swingarc™

Coolmate V3 shown with

stationary spot welder

Equipment and Options Stock No. Description Qty. Price

Coolmate™1 #300 360 115 VAC, 60 Hz

#300 360-00-1 115 VAC, 60 Hz with CE

#300 459 230 VAC, 50/60 Hz

#300 459-00-1 230 VAC, 50/60 Hz with CE

Coolmate™3 #043 007 115 VAC, 50/60 Hz

#043 007-01-2 115 VAC, 50/60 Hz with CE

#043 008 230 VAC, 50/60 Hz

#043 008-01-2 230 VAC, 50/60 Hz with CE

Coolmate™V3 #043 009 115 VAC, 50/60 Hz

#043 009-01-2 115 VAC, 50/60 Hz with CE

Coolmate™3.5 #300 245 115 VAC, 50/60 Hz with CE

Coolmate™4 #042 288 115 VAC, 50/60 Hz

#042 288-01-5 115 VAC, 50/60 Hz with CE

Coolmate™3X #300 419 115 VAC, 50/60 Hz

Accessories

Water-Cooled TIG Torch Adapters #195 377 50 mm Dinse with water return line

Order from Miller Service Parts

#195 380 50 mm Dinse flow thru with gas and water return line

#225 028 50 mm thread lock style

#45V11 Water-cooled TIG block

#222 809 18 in (457 mm) replacement water hose

Water Hose Extensions #40V76R6 6 ft (1.8 m) hose with two male 5/8 in 18 LH thread connections

Order from Miller Service Parts

Water Coupler #057 020 Brass hose fitting with 5/8 in 18 LH thread

Low-Conductivity Coolant #043 810 For TIG and MIG applications. NOT for push-pull systems or where aluminum

(Clear, Pre-Mixed) is in coolant path/circuit.

Aluminum-Protecting Coolant #043 809 For push-pull systems where aluminum is in coolant path/circuit

(Green, Pre-Mixed) and high frequency is NOT used.

Filter Assemblies #166 564 For use with Coolmate 1, 3, V3 and 3X

Order from Miller Service Parts

#215 667 For use with Coolmate 3.5

Filter Strainer #146 249 For use with Coolmate 4.

Order from Miller Service Parts

Torch Kits #300 185 250 A with WP20 water-cooled torch

#300 183 300 A with CS310 water-cooled torch

#300 186 400 A with WP18SC water-cooled torch

Date: Total Quoted Price:

Ordering Information

Litho in USA

Distributed by:

Other manuals for Coolmate Coolmate 4

This manual suits for next models

Table of contents

Other Miller Electric Welding System manuals

Miller Electric

Miller Electric XMT 456 CC User manual

Miller Electric

Miller Electric Snap Start II User manual

Miller Electric

Miller Electric MT-24-12-1 User manual

Miller Electric

Miller Electric S-21E User manual

Miller Electric

Miller Electric RHC-14 User manual

Miller Electric

Miller Electric Dynasty 700 User manual

Miller Electric

Miller Electric MILLERMATIC 35 SKP-35 User manual

Miller Electric

Miller Electric Thunderbolt XL AC/DC User manual

Miller Electric

Miller Electric Big Blue 401DX User manual

Miller Electric

Miller Electric Maxstar 200 STR User manual

Miller Electric

Miller Electric SQUAREWAVE 1000 User manual

Miller Electric

Miller Electric MOG-Pak2 APR User manual

Miller Electric

Miller Electric 375 User manual

Miller Electric

Miller Electric SubArc User manual

Miller Electric

Miller Electric AUTO ARC MW 4150 User manual

Miller Electric

Miller Electric XMS 4000 User manual

Miller Electric

Miller Electric Millermatic Vintage M-25 Gun User manual

Miller Electric

Miller Electric SHOPMATE 300 DX User manual

Miller Electric

Miller Electric Legend 302 User manual

Miller Electric

Miller Electric Millermatic Passport Plus User manual

Miller Electric

Miller Electric DU-OP User manual

Miller Electric

Miller Electric SWINGARC SINGLE 12 User manual

Miller Electric

Miller Electric PipePro 304 User manual

Miller Electric

Miller Electric Syncrowave 500 User manual

Popular Welding System manuals by other brands

Berner

Berner PLASMACUT 54 instruction manual

Pro Spot

Pro Spot PR-155 Assembly instructions

Forney

Forney 210 operating manual

Thermal Arc

Thermal Arc 400S operating manual

Lincoln Electric

Lincoln Electric HANDYMIG 170I Operator's manual

GYS

GYS PROTIG 201 AC/DC Original instructions

TAFA

TAFA 30*8B35 owner's manual

Lincoln Electric

Lincoln Electric INVERTEC V350-PRO CE Technical specifications

ESAB

ESAB Buddy Arc 145 instruction manual

CIGWELD

CIGWELD 636804 use instructions

Red-D-Arc

Red-D-Arc DC-400 Operator's manual

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 owner's manual

Elettro

Elettro HI-MIG 3000 SYNERGIC instruction manual

WIA

WIA Weldmatic 270 CP132-2 Operator's manual

Sonics

Sonics H520T instruction manual

Miller

Miller Big Blue 400D owner's manual

NewArc

NewArc RT2000 Operational manual

Hypertherm

Hypertherm powermax1000 Operator's manual
