Milesight GD11 User manual

Docking Station Kit

GD11

User Guide

Safety Precautions

Milesight will not shoulder responsibility for any loss or damage resulting from not following the

instructions of this operating guide.

The device must not be disassembled or remodeled in any way.

Do not place the device outdoors where the temperature is below/above operating range.

Do not place the device close to objects with naked flames, heat source (oven or sunlight),

cold source, liquid and extreme temperature changes.

The device must never be subjected to shocks or impacts.

Do not power off the device when it’s upgrading or formatting, or it will cause operation

system error.

All information in this guide is protected by copyright law. Whereby, no organization or individual

shall copy or reproduce the whole or part of this user guide by any means without written

authorization from Xiamen Milesight IoT Co., Ltd.

For assistance, please contact

Milesight technical support:

Email: iot.support@milesight.com

Support Portal: support.milesight-iot.com

Tel: 86-592-5085280

Fax: 86-592-5023065

Address: Building C09, Software Park III,

Xiamen 361024, China

Revision History

Date

Doc Version

Description

Jan. 17, 2023

V 1.0

Initial version

Contents

1. Product Introduction ......................................................................................................................... 4

1.1 Overview ...................................................................................................................................4

1.2 Features ................................................................................................................................... 4

1.3 Specifications .......................................................................................................................... 4

2. Hardware Introduction ...................................................................................................................... 5

2.1 Packing List ..............................................................................................................................5

2.2 Hardware Overview ................................................................................................................. 5

2.3 Dimensions(mm) .....................................................................................................................6

3. Power Supply ..................................................................................................................................... 6

4. Installation ......................................................................................................................................... 6

5. App Development .............................................................................................................................. 7

1. Product Introduction

1.1 Overview

Docking station kit GD11 is mainly designed for DS7610 IoT Display to achieve interactive

collaboration with screen operations.

1.2 Features

Plug-and-play Type-C power supply and bidirectional power supply available

Provides easy installation, flexible mounting options, and specialized design to hide

wires

Support extra DI/DO/RS485 industrial serial ports via optional docking station

Provide SDKs to develop and install 3rd-Party Android applications on DS7610 to allows

to customize systems

Built-in LED indicator to know working status

1.3 Specifications

Data Interfaces

Ports

1 × DI + 1 × DO

Connector

3.5 mm Terminal Block

Digital Input

Dry contact, Galvanic Isolation

Digital Output

SPDT Relay Contact Rating: 3A@DC Max: 30 V or AC Max: 250 V

Serial Port

Port

1 × RS485

Connector

3.5 mm Terminal Block

Terminal Resistor

1 × 120 Ω Resister Switch

Baud Rate

1200~115200 bps

Mode

DTU Transparent

USB

Ports

2 × Type-C Ports

USB Port 1

Power supply connector

USB Port 2

1. Data transmission between docking station and DS7610

2. Bidirectional power supply connector

Others

Reset Button

1 × Reset Button (Internal)

LED Indicator

1 × Power

Physical Characteristics

Power Supply

5 VDC by USB Type-C Port

Color & Material

Black, PC+ABS

Ingress Protection

IP30

Operating Temperature

-20°C to +50°C (-4℉to +122℉)

Relative Humidity

0% ~ 95% (non-condensing) at 25°C/77℉

Dimensions

70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in)

Installation

Desktop, Wall Mounting

2. Hardware Introduction

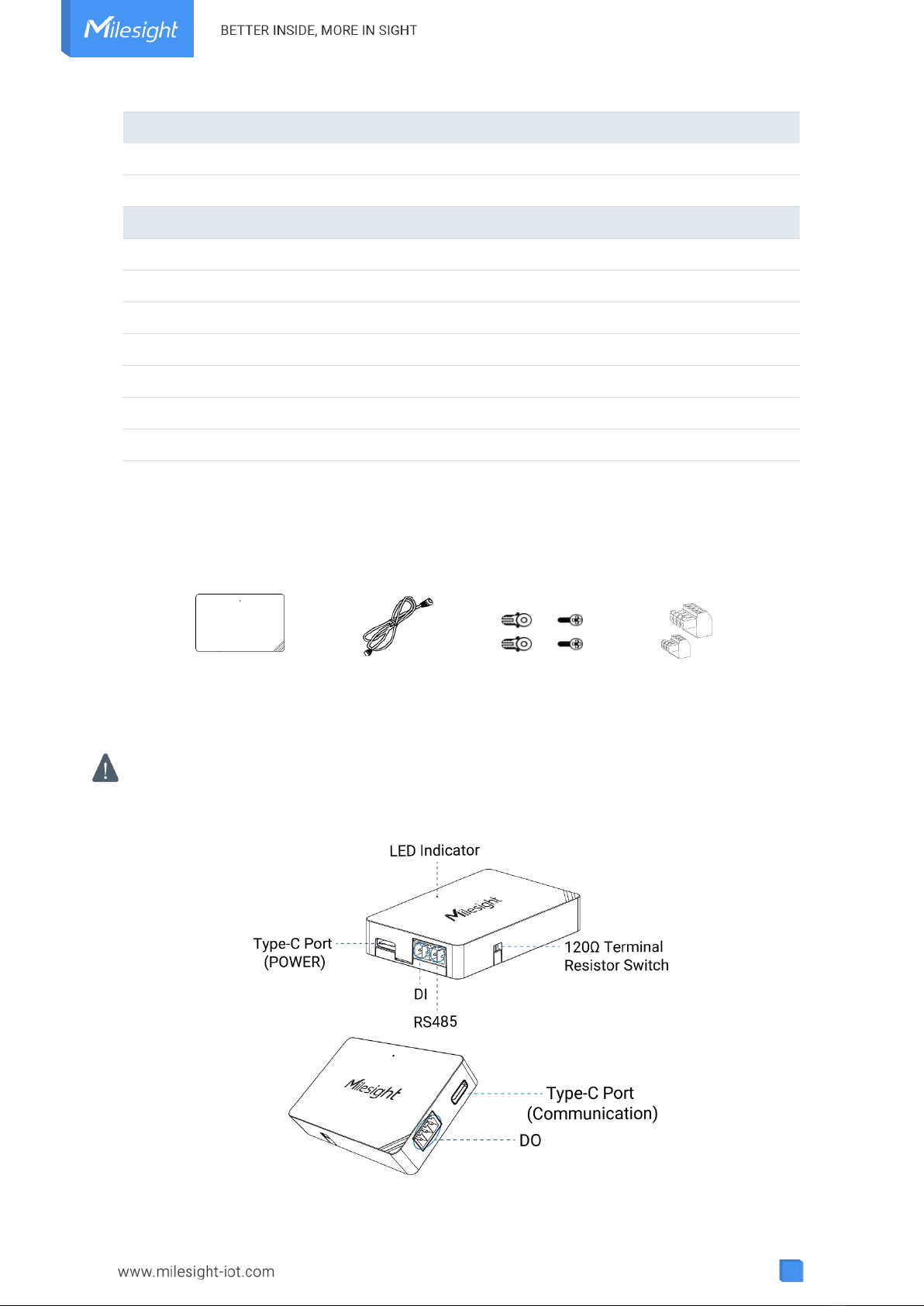

2.1 Packing List

1 × Docking

Station

1 × Type-C Cable

(2m)

2 × Wall

Mount Screw Kits

2 × Terminal

Blocks

If any of the above items is missing or damaged, please contact your sales Representative.

2.2 Hardware Overview

120 Ω Terminal Resistor Switch: the device will add a 120Ω termination resistor to avoid

data-corrupting reflections if RS485 data rate is high or cable length is long.

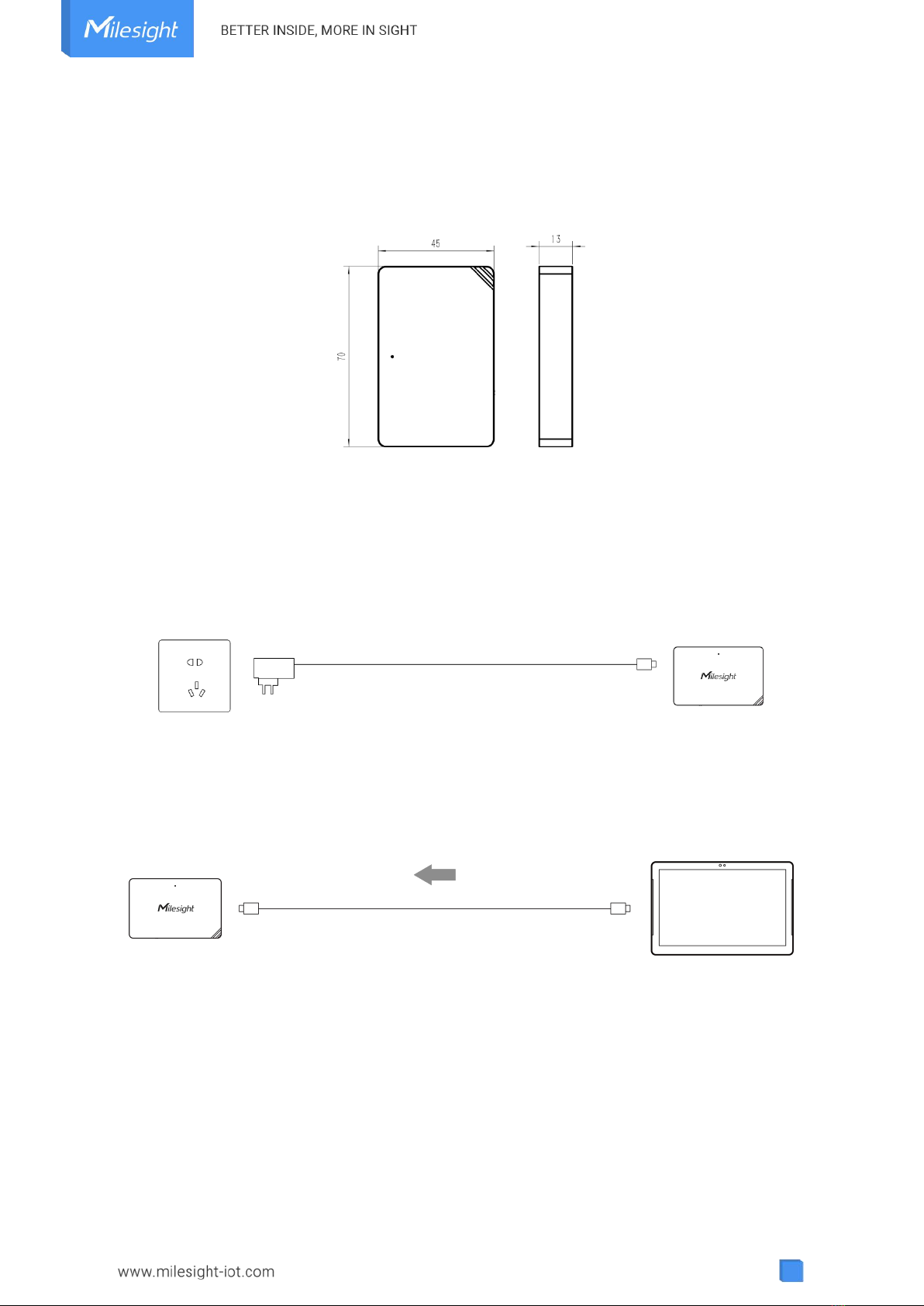

2.3 Dimensions(mm)

3. Power Supply

Docking station can be powered via both Type-C ports. Choose one of the following methods to

power up the IoT Display.

Powered by a POWER Type-C port

Connect type-C(POWER) port to 5VDC power supply. In this way, the docking station can also be

used to power DS7610 via another type-C port.

Powered by DS7610

Connect DS7610 to docking station via type-C port (communication) to provide the power

supply.

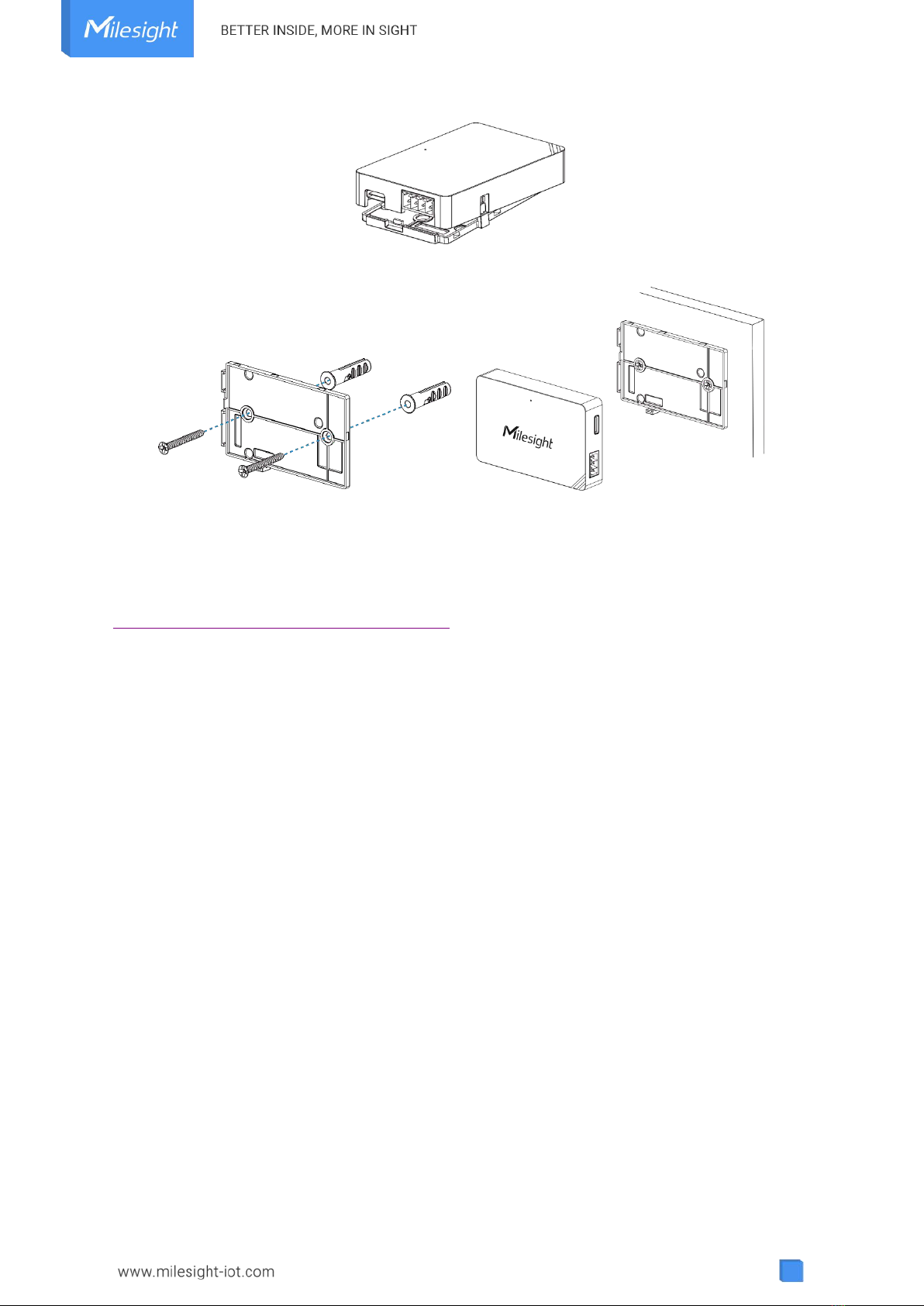

4. Installation

The docking station can be placed on a desktop or mounted onto a wall.

1. Take off the back cover, and fix the wall plugs into the wall according to the drilling position as

referred.

2. Screw the cover on the mounting positions and install back the device.

5. App Development

Milesight provides Devloper API document to allow DS7610 to use this docking station:

https://github.com/Milesight-IoT/DS7610-SDK

Before using docking station kit on DS7610, ensure the DS7610 firmware version is 72.0.0.5-r2

and later.

-END-
