Miele KWT4154UG1 User manual

Installation Instructions

KWT4154 UG-1 en-CA

Installation, repair and maintenance work should be performed by

a Miele authorized service technician in accordance with national

and local safety regulations and the provided installation instructions.

,Avoid the risk of electrical shock

- Plug into a grounded 3-prong

outlet.

- Do not move the ground plug.

- Do not use an adapter.

- Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

Improper connection of the

equipment grounding conductor

may result in electric shock. If you

are in any doubt as to whether the

appliance has been properly

grounded, have the appliance

checked by a qualified electrician or

service technician.

Installation, repairs and other work

by unqualified persons could be

dangerous. The manufacturer will

not be held responsible for damage

or injury arising from unauthorized

work.

Before installing the appliance,

verify that the voltage, load and

circuit rating information found on

the data plate match the household

electrical supply.

If there are any questions regarding the

electrical connection of this appliance

to the power supply, please consult a

licensed electrician or call the Miele

Technical Service.

V1-800-565-6435

The appliance comes with a UL-listed,

3-wire power supply cord.

The appliance requires a 3-wire

receptacle.

The receptacle must be installed by a

licensed electrician only.

In the case of side-by-side installations,

a separate outlet must be used for each

appliance. Ideally, the power outlet

should be next to the appliance and

easily accessible. Do not connect the

appliance to the power supply by an

extension cord. Extension cords do not

guarantee the required safety of the

appliance (danger of overheating).

If any changes are needed to the

household wiring or power supply, this

work must be performed by a qualified

electrician.

Electrical connection

This appliance must be built in;

otherwise it could tip over.

To ensure that the appliance

functions correctly in tropical

climates where the ambient

temperature exceeds 38°C and air

humidity levels exceed 70%, the

appliance MUST be used in a

climate-controlled room.

Location

The appliance should be installed in a

dry, well-ventilated room.

The room temperature should not go

above or below the climate range for

which the appliance is designed.

The higher the ambient temperature of

the room, the more energy the

appliance requires to operate.

The appliance should not be installed

where it will be exposed to direct

sunlight or directly adjacent to a

heat-producing appliance such as an

oven or a radiator.

Climate range

The appliance is designed for use

within certain climate ranges (ambient

temperatures), and should not be used

outside this range. The climate range of

the appliance is stated on the data

plate inside the appliance.

Climate range Ambient room

temperature

SN-ST

SN-T

+10°C to +32°C

+16°C to +32°C

+18°C to +38°C

+18°C to +43°C

+10°C to +38°C

+10°C to +43°C

If the appliance is used in a room that is

too cold, the cooling system will switch

off for too long, causing the internal

temperature in the appliance to rise,

with the risk of affecting the wine stored

there.

Ventilation

The air at the back of the appliance

gets warm. The appliance housing unit

must be constructed to allow sufficient

space for ventilation.

The air intake and outlet must not be

covered or blocked in any way.

They should be dusted on a regular

basis.

Before installation

^Before building in, remove all

accessories from the appliance.

^Remove any cable clips from the rear

of the appliance.

^Check that all parts at the back of the

appliance are unhindered. Carefully

remove any hindrances.

Installation

The appliance is supplied right-hand

hinged. If left-hand door hinging is

required, follow the instructions below.

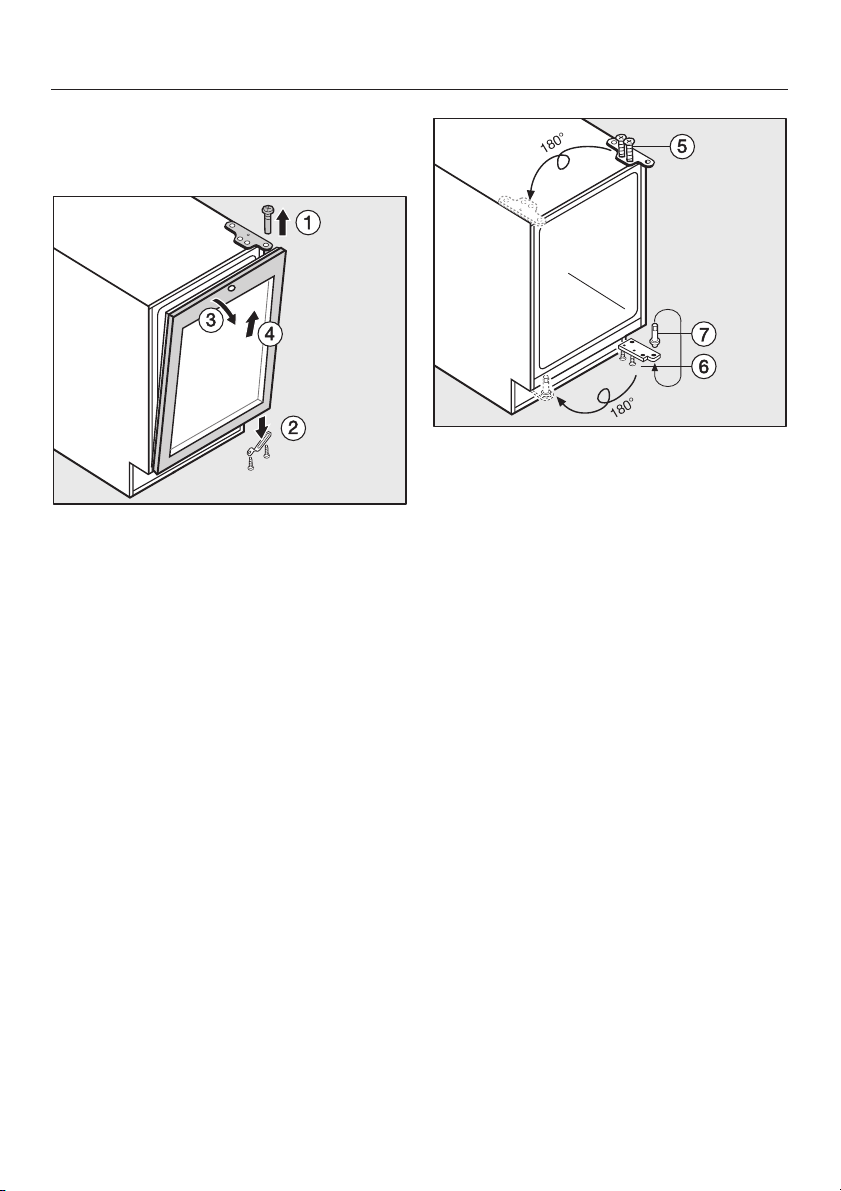

^Close the door, and unscrew the top

hinge pin from the door a.

^Unscrew the door stay bfrom

underneath the door.

^Tip the door forward slightly c, and

lift it up and off d.

^Unscrew the top hinge plate e, turn

it around, and refit it on the opposite

side.

^Unscrew the lower hinge plate f.

^Remove the hinge pin g, and

replace it in the hinge plate from

underneath. Ensure that the spacer

on which the hinge pin sits is

correctly positioned.

^Turn the hinge plate around, and refit

it on the opposite side.

Changing the door hinging

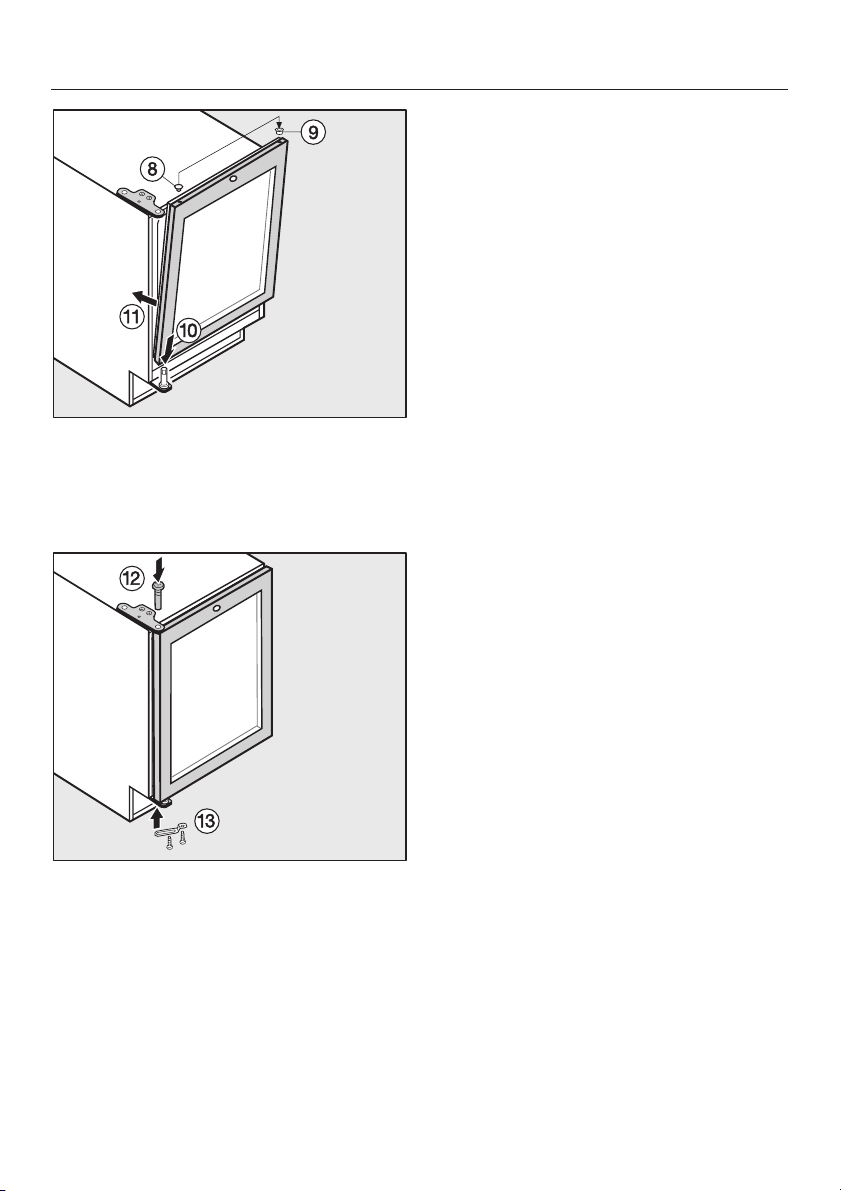

^Swap over the plug hand the hinge

pin guide iin the top of the door.

^Hang the door on the lower hinge pin

j, and close the door k.

^Refit the top hinge pin lthrough the

hinge pin plate into the door.

^Refit the door stay munderneath the

appliance by securing one screw into

the appliance door and another

through the plastic part of the hinge

pin plate.

Changing the door hinging

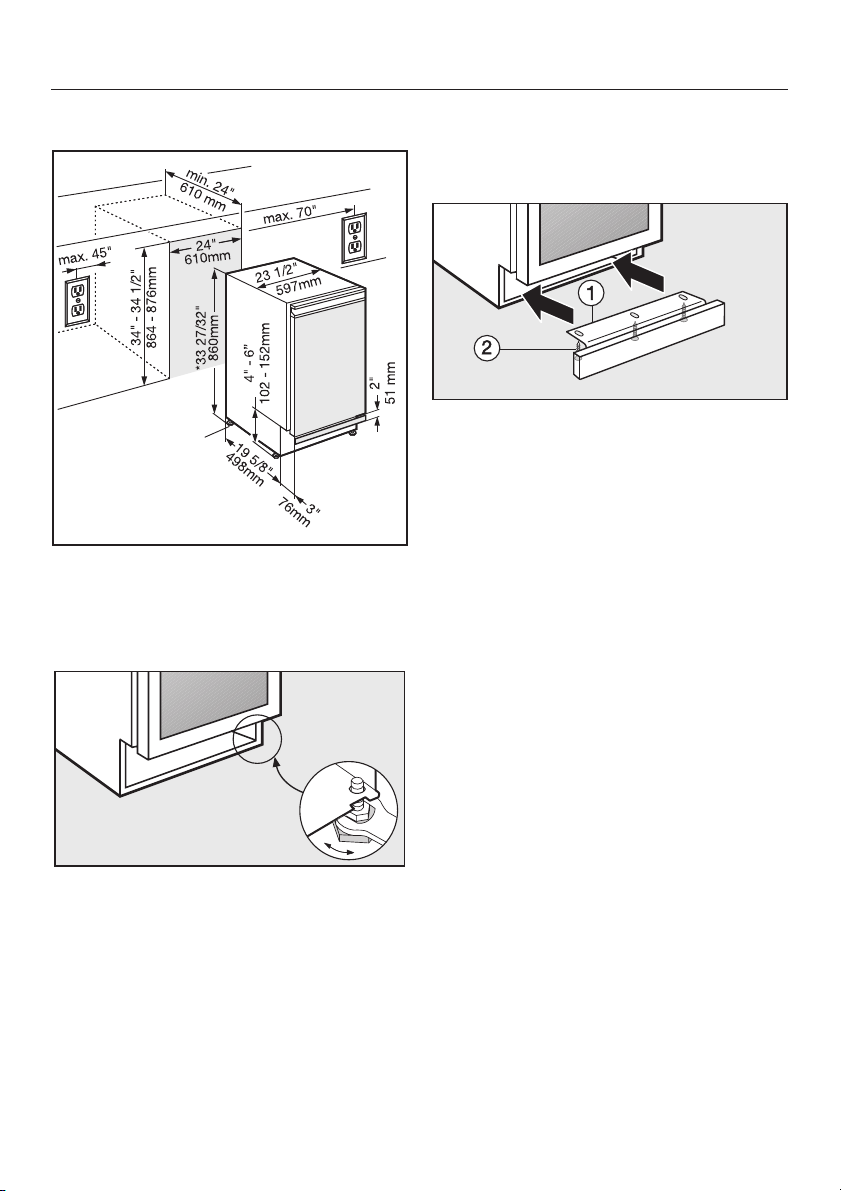

Appliance dimensions

* The overall height can be increased by 2

inches (50 mm) by adjusting the feet.

Adjustments

^Use the flat wrench provided to

adjust the feet as needed, so that the

appliance fits the countertop height.

Preparing the appliance

^With two people, carefully tip the

appliance backward.

^Attach the supplied trim panel a

below the appliance, and loosely

tighten the screws b.

^Arrange the trim panel aover the

long holes in the appliance door

recess.

^Tighten the screws ball the way

down onto the trim panel a.

Under-counter installation

Fitting the appliance into place

^Slide the appliance into the

installation area.

Ensure that the power cord does not

get caught.

Make sure the power socket remains

accessible.

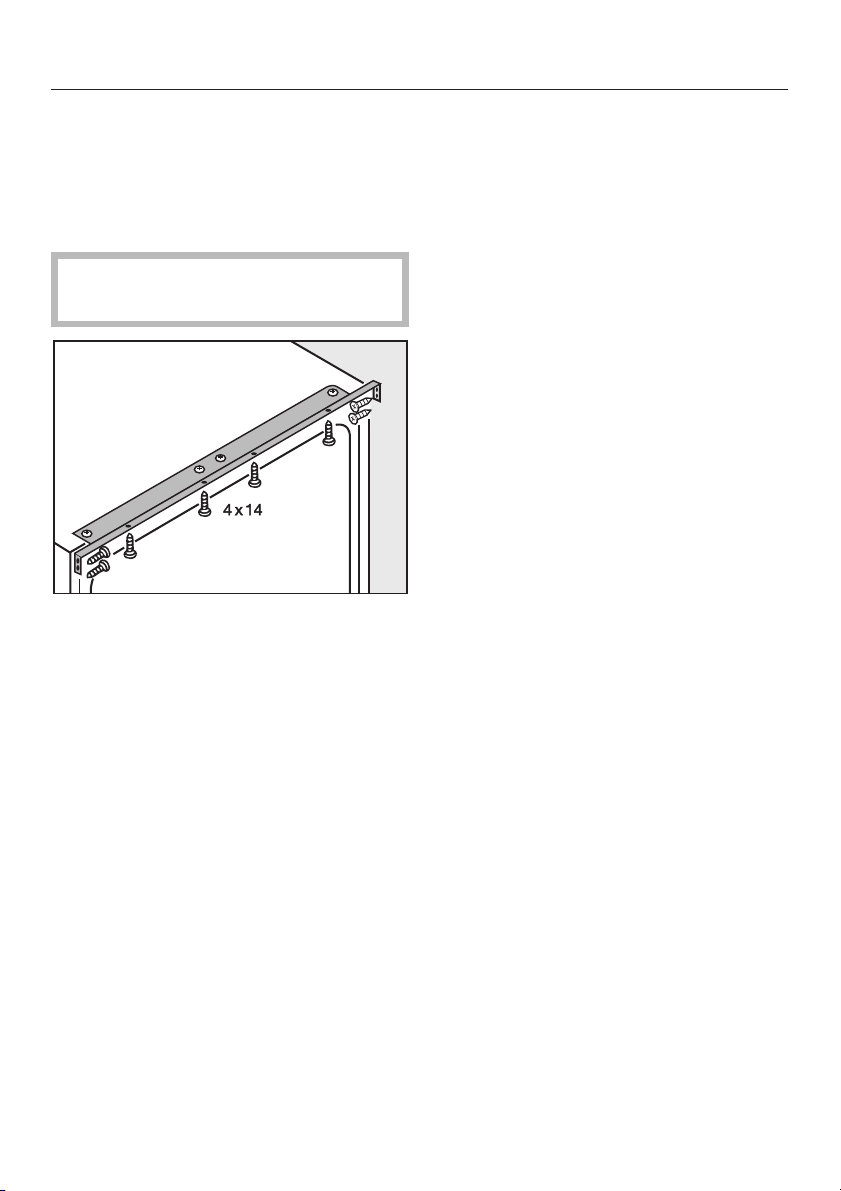

^Using the attachment strip and

screws, fit the appliance into place.

Under-counter installation

Subject to change without notice / 3208

KWT 4154 UG-1

M.-Nr. 06 873 220 / 00
