Miele PW 5065 User manual

Operating and installation instructions

for washer-extractor

PW 5065

To avoid the risk of accidents or

damage to the machine it is

essential to read these instructions

before it is installed and used for the

first time. M.-Nr. 09 145 460

en-GB

Disposal of the packing

material

The transport and protective packing

has been selected from materials which

are environmentally friendly for disposal

and should be recycled.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation!

Disposal of your old machine

Electrical and electronic machines

often contain materials which if handled

or disposed of incorrectly, could be

potentially hazardous to human health

and to the environment. They are,

however, essential for the correct

functioning of your machine. Please do

not therefore dispose of it with your

household waste.

Please dispose of it at your local

community waste collection / recycling

centre or contact your dealer for

advice. Ensure that it presents no

danger to children while being stored

for disposal.

Energy saving tips

Energy and water consumption

– Water consumption and energy

usage are determined by the size of

the load.

To make the most out of your

machine load the maximum dry load

for the programme you are using.

– If smaller loads are washed using the

Cottons programmes, the automatic

load recognition system will reduce

the amount of water, time and energy

used.

– Use the Quick wash programme for

small loads.

Detergent

– Do not exceed the amounts of

detergent recommended by the

manufacturer on the packaging.

– Reduce the amount of detergent for

smaller loads.

When drying with a tumble dryer

Selecting the highest possible spin

speed for the wash programme will

save energy when drying in a tumble

dryer afterwards.

Caring for the environment

Caring for the environment..........................................2

Warning and Safety instructions .....................................6

Operating the washer-extractor .....................................10

Control panel .....................................................10

Display ..........................................................11

Before using for the first time.......................................12

Notes and tips on laundry care .....................................13

1. Sort the laundry .................................................13

2. Load the drum ..................................................14

3. Select a programme .............................................14

Garment care label symbols .........................................15

Short instructions ................................................16

Spinning ........................................................20

Maximum final spin speed...........................................20

Rinse and interim spin ...........................................20

To omit the final spin (Rinse hold) ..................................20

To omit the spin between rinses and the final spin .....................20

Delay start.......................................................21

Programme chart .................................................22

Basic programmes ................................................22

Special programmes ...............................................24

Note for test institutes: Standard programme in accordance with EN 60456 . 25

Programme sequence .............................................28

Changing the programme sequence .................................30

To cancel a programme ............................................30

To interrupt a programme ...........................................30

To alter a programme ..............................................30

Adding or removing laundry after a programme has started ................31

Detergent .......................................................32

Water softeners ...................................................33

Washing with several components ....................................33

Fabric conditioner or liquid starch.....................................34

Automatic dispensing of fabric conditioner or liquid starch to laundry at

the end of a programme ..........................................34

Adding fabric conditioner or liquid starch separately ...................34

Adding starch separately .........................................34

Contents

Colour run and dye removers/dyes ....................................34

External dispensing system..........................................35

Cleaning and care ................................................37

Cleaning the machine ..............................................37

Cleaning the water inlet filters ........................................39

Problem solving guide ............................................40

The programme does not start .......................................40

Fault messages in the display ........................................41

General problems .................................................42

An unsatisfactory wash result ........................................43

The drum door cannot be opened by pressing the Door button..............44

To continue a programme after an interruption to the power supply ..........44

Opening the drum door in the event of a blocked drain outlet and/or

power failure .....................................................45

After sales service ................................................48

PC / Optical interface...............................................48

Optional accessories ...............................................48

Installation and connection ........................................49

Front view........................................................49

Rear view ........................................................50

Installing the machine ..............................................51

Installation surface.................................................52

Removing the transit bars ...........................................52

Re-fitting the transit bars ............................................54

Levelling the machine ..............................................54

Screwing out and adjusting the feet .................................54

Securing the machine to prevent it slipping ...........................55

Washer-dryer stack ................................................56

Installation on a raised plinth .........................................56

Payment system...................................................56

Plumbing ........................................................57

Connection to the cold water supply ................................57

Connection to the hot water supply .................................58

Water drainage ...................................................59

Dump valve version .............................................59

Machines with a drain pump ......................................59

Contents

Electrical connection ...............................................60

Single phase AC 230 V - country variant .............................61

Technical data ...................................................62

Changing default settings..........................................63

Settings menu J..................................................64

Language J......................................................64

Settings/Supervisor level menu .....................................65

Suds cooling .....................................................66

Time of day ......................................................66

Supervisor level ..................................................67

Display contrast ...................................................67

Display brightness .................................................67

Standby (Display) .................................................67

Memory .........................................................68

Auto load control ..................................................68

Pre-wash water ...................................................68

Main wash water ..................................................68

Rinse water ......................................................68

Minimum iron duration ..............................................70

Pre-wash Cottons/

Minimum iron .....................................................70

List special progs. .................................................70

Hygiene .........................................................70

No. rinses Cottons .................................................71

No. rinses Minimum iron ............................................71

Pre-rinse Cottons ..................................................71

Pre-rinse Minimum iron .............................................71

Spin free of charge ................................................71

Contents

This machine conforms to current

safety requirements. Inappropriate

use can, however, lead to personal

injury and damage to property.

To avoid the risk of accidents and

damage to the machine, please

read these instructions carefully

before using it for the first time. They

contain important information on its

safety, use and maintenance.

Keep these instructions in a safe

place and ensure that they are

made available to new users. They

must be made aware of these

warning and safety instructions.

Pass them on to any future users/

owners of the machine.

Correct application

Only use the machine to wash items

which are specified by the

manufacturer to be machine-washable

on the wash-care label, and textiles

composed of hand-washable wool or

wool blend fabrics as well as satin,

lace, silk and other hand-washable

garments. Any other applications may

be dangerous. The manufacturer

cannot be held liable for damage

resulting from incorrect or improper use

of the machine.

~This machine must be used as

described in these operating

instructions and must be checked on a

regular basis to make sure it is

functioning correctly. Maintenance

must be carried out when necessary.

~This machine is not intended for use

by persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience or

knowledge, unless they have been

shown how to use it correctly by a

person responsible for their safety.

~This machine is not intended for

outdoor use.

~Keep children away from the

machine at all times. It is not a toy! To

avoid the risk of injury do not allow

children to play on or near it or to play

with its controls. Supervise its use by

the elderly or infirm, and supervise

children whilst you are using it.

~It is the operator's responsiblity to

ensure that the standard of disinfection

in thermal as well as chemo thermal

procedures is maintained (in

accordance with local authority

regulations) by carrying out suitable

validation tests. Disinfection

programmes must not be interrupted,

as this can have a limiting effect on the

disinfection result.

Warning and Safety instructions

Technical safety

~Before setting up the machine,

check it for any externally visible

damage.

Do not install or use a damaged

machine.

~The electrical safety of this machine

can only be guaranteed when correctly

earthed. It is most important that this

basic safety requirement is observed

and regularly tested, and where there is

any doubt the on-site wiring system

should be inspected by a qualified

electrician. The manufacturer cannot be

held liable for the consequences of an

inadequate earthing system (e.g.

electric shock).

~Unauthorised repairs could result in

unforeseen dangers for the user, for

which Miele cannot accept liability.

Repairs should only be undertaken by a

Miele approved service technician. If

this is not done, any resultant damage

will not be covered by the guarantee.

Ensure current is not supplied to the

machine until after maintenance or

repair work has been carried out.

~Do not make any alterations to the

machine, unless authorised to do so by

Miele.

~In the event of a fault or for cleaning

purposes, the machine is only

completely isolated from the electricity

supply when:

– it is switched off at the wall socket

and the plug is withdrawn, or

– it is switched off at the isolator

switch, or

– it is switched off at the mains, or

– the mains fuse has been withdrawn,

or the screw-out fuse is removed (in

countries where this is applicable).

~This machine must only be

connected to the on-site water supply

using a new hose kit. Old hoses must

not be re-used. Check the hose

regularly for signs of wear. Change in

good time to avoid the risk of leaks and

subsequent damage.

~Faulty components must only be

replaced by genuine Miele original

spare parts. Only when these parts are

fitted can the safety standards of the

machine be guaranteed.

~Do not connect the machine to the

mains electricity supply by an extension

lead or a multi-socket unit. These do

not guarantee the required safety of the

machine (e.g. danger or overheating).

Warning and Safety instructions

~If this machine is being used in a

commercial environment please ensure

that all relevant health and safety

regulations are obeyed.

~This machine must not be used in a

non-stationary location (e.g. on a ship).

~In areas which may be subject to

infestation by cockroaches or other

vermin, pay particular attention to

keeping the machine and its

surroundings in a clean condition at all

times. Any damage which may be

caused by cockroaches or other vermin

will not be covered by the guarantee.

Correct use

~Do not install your machine in rooms

where temperatures below freezing

may occur. Frozen hoses may burst or

split. The reliability of the electronic

control unit may be impaired at

temperatures below freezing point.

~Before using the machine for the

first time, check that the transit bars at

the rear of the machine have been

removed (see section on "Installation

and connection"). During spinning, a

transit bar which is still in place may

result in damage to both the machine

and adjacent furniture or appliances.

~Turn off the stopcock if the machine

is to be left for any length of time (e.g.

holiday), especially if there is no floor

drain (gully) in the immediate vicinity.

~Flooding danger.

If hooking the drain hose into a wash

basin, check that the water can drain

off quickly enough to prevent the sink

from overflowing. Make sure the drain

hose is secure, so that the force of the

water flowing out of the hose does not

dislodge it.

~Take care to ensure that foreign

objects (e.g. nails, pins, coins, paper

clips) do not find their way into the

machine with the laundry. These may

damage components of the machine

(e.g. suds container, drum), which in

turn can result in damage to the

laundry.

~If the correct amount of detergent is

dispensed, the machine should not

need to be descaled. If, however, you

do wish to descale the machine only

use proprietary non-corrosive descaling

agents and strictly observe the

instructions on the packaging. A

special descaling agent is available to

order from your Miele Dealer or the

Miele Spare Parts Department.

Warning and Safety instructions

~Textiles which have been

pre-treated in solvent based cleaning

agents must be thoroughly rinsed in

clean water before being washed in the

machine.

~Never use solvent based cleaning

agents, e.g. those containing benzine,

in this machine, as this may result in

damage to component parts and create

toxic fumes. Such agents also pose a

fire and explosion hazard.

~Benzine, petrol, paraffin, or any

easily flammable liquid must not be

stored or used near the machine. Fire

and explosion risk!

~Only use dyes specified by the

manufacturer as being suitable for use

in a washing machine. Always observe

the manufacturer's instructions

carefully.

~Colour run and dye removers

contain sulphur compounds which can

cause damage such as corrosion. Do

not use these products in this machine.

~Avoid contact of stainless steel

surfaces (front, lid, casing) with liquid

cleaning and disinfecting agents which

contain chlorine or sodium

hypochlorite. These agents can have a

corrosive effect on stainless steel.

Aggressive vapours containing chlorine

bleach can also be corrosive. Do not

store open containers of these agents

near the machine.

~Do not use a high pressure cleaner

or hose to clean the machine.

~It is particularly important to observe

the manufacturer's instructions when

using a combination of cleaning agents

and special application products.

Products must only be used for

applications approved by the

manufacturer to avoid any material

damage or the occurrence of strong

chemical reactions

Accessories

~Accessory parts may only be fitted

when expressly approved by Miele. If

other parts are used, guarantee,

performance and product liability

claims will be invalidated.

Miele cannot be held liable for

damage caused by non-compliance

with these Warning and Safety

instructions.

Warning and Safety instructions

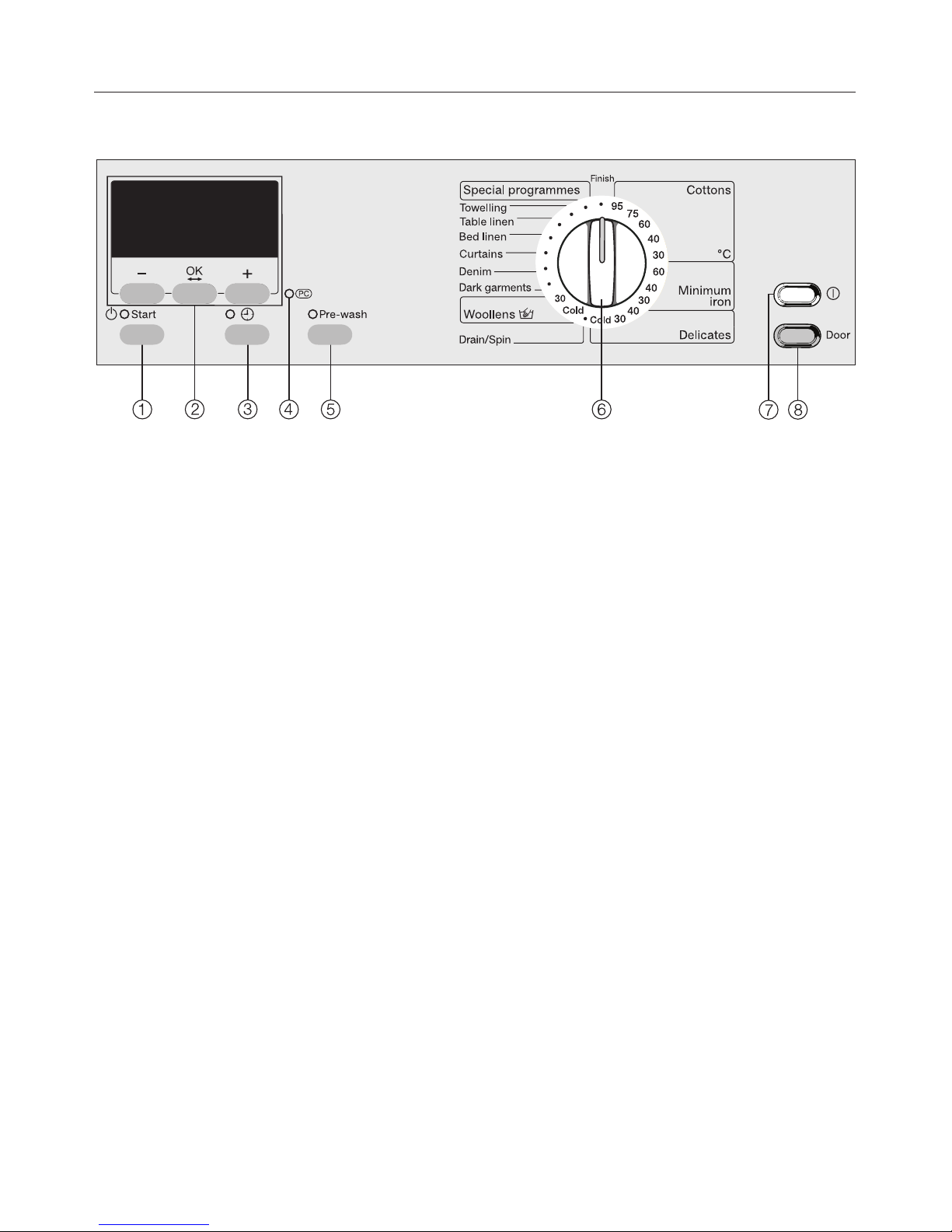

Control panel

aStart button

Starts the selected programme.

bDisplay with –, OK and + buttons

See the following pages for more

information.

c+button

For selecting delay start.

dPC/Optical interface

This is used by service technicians

to run diagnostic checks on your

machine and can also be used to

update programming data in the

future.

ePre-wash button with indicator light

fProgramme selector

For selecting a programme. The

programme selector can be turned

clockwise or anti-clockwise.

gOn-Off button s

To save energy, the machine will

switch itself off automatically 15

minutes after the end of the

programme/anti-crease phase or

after being switched on, if no other

selection is made.

hDoor button

Opens the machine door.

Operating the washer-extractor

Other manuals for PW 5065

Table of contents

Other Miele Washer manuals

Miele

Miele W 5824 User manual

Miele

Miele PWM 912 SI User manual

Miele

Miele PW 5065 OS User manual

Miele

Miele W 1203 WASHING MACHINE Parts list manual

Miele

Miele W 3748 User manual

Miele

Miele W 1913 User manual

Miele

Miele WCE 330 User manual

Miele

Miele TOUCHTRONIC W 3039 Specification sheet

Miele

Miele W 2514 WPS User manual

Miele

Miele W 404 WPS User manual

Miele

Miele PWT 6089 Vario User manual

Miele

Miele PW 5065 User manual

Miele

Miele W 526 User manual

Miele

Miele W 304 Plus User manual

Miele

Miele W 1903A WASHING MACHINE - OPERATING User manual

Miele

Miele W 460 WPS User manual

Miele

Miele IR 6002 User manual

Miele

Miele Allerwash W 2584 WPS User manual

Miele

Miele PW 5105 EL User manual

Miele

Miele PG 8583 WW ADP LD User manual

Miele

Miele PG 8581 User manual

Miele

Miele W 211 User manual

Miele

Miele PWM 520 EL User manual

Miele

Miele NOVOTRONIC W 1918 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
