Miele PW 5065 LP User manual

Installation plan

Washing machine

PW 5065 AV/LP

To avoid the risk of accidents or damage to the machine, it is essential to read

operating and installation instructions before installation and commissioning

This prevents both personal injury and damage to the machine.

en - GB

10 144 240 / 01

2 10 144 240 / 01

Legend:

Connection required

Connection optional or required,

depending on model

AV

Dump valve

KW

Cold water connection

AW

Drain connection

LP

Drain pump

B

Machine anchors

PA

Equipotential bonding

BW

Grey water connection

SLA

Peak-load connection

DOS

Dispenser connection

UG

Box plinth

EL

Electrical connection

UO

Open plinth

F

Machine feet, adjustable

WTV

Washer-dryer stacking kit

KG

Payment system

WW

Hot water connection

KGA

Payment system connection

XKM

Communication module

PW 5065 en - GB

10 144 240 / 01 3

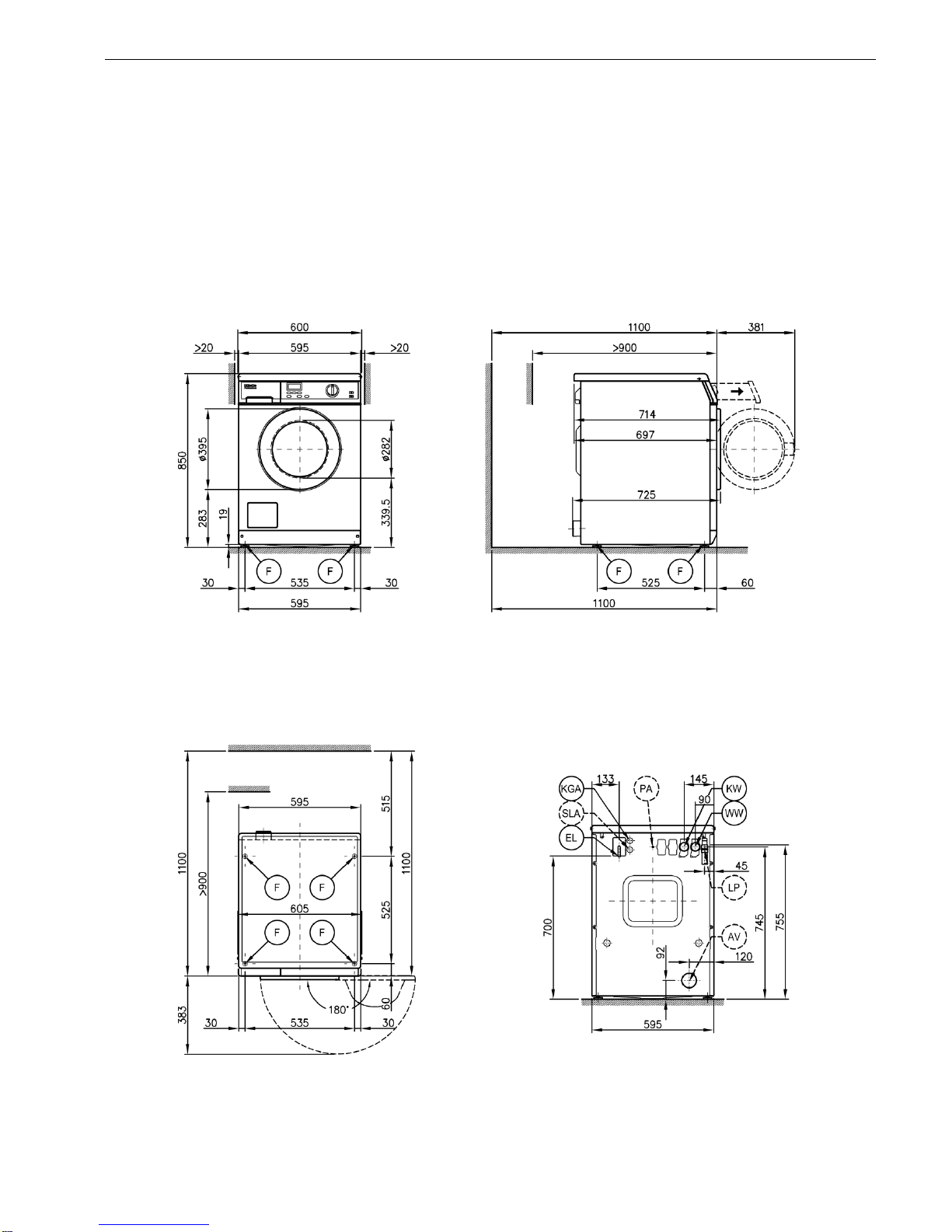

Machine dimensions

en - GB PW 5065

4 10 144 240 / 01

Installation

PW 5065 en - GB

10 144 240 / 01 5

Washer-dryer stack

en - GB PW 5065

6 10 144 240 / 01

Installation

PW 5065 en - GB

10 144 240 / 01 7

Installation

en - GB PW 5065

= standard, = optional, + = only on request, - not available

8 10 144 240 / 01

Technical data

PW 5065 AV

PW 5065 LP

Drum volume

l

59

Load capacity

kg

6.5

Door opening diameter

mm

282

Max. spin speed

rpm

1400

g factor

526

Residual moisture (standard load per DIN 60456)

%

49

Electrical connection (EL)

Standard voltage

2N AC 400 V

Frequency

Hz

50

Total rated load

kW

5.5

Fuse rating (B trip rating according to EN 60898)

A

2 x 16

Supply lead min. cross-section

mm²

4 x 1.5

Supply lead without plug for hard-wired connection



Length of supply lead

mm

1800

Alternative voltage (convertible by Service)

1N AC 230 V

Total rated load

kW

2.85

Fuse rating (B trip rating according to EN 60898)

A

1 x 16

Supply lead min. cross-section

mm²

3 x 1.5

Non-standard voltage OS 440 (Offshore)

3 AC 440 V

Frequency

Hz

-

60

Total rated load

kW

-

5.05

Fuse rating (B trip rating according to EN 60898)

A

-

3 x 16

Supply lead min. cross-section

mm²

-

4 x 1.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

1800

Non-standard voltage OS 230 (Offshore)

1N AC 230 V

Frequency

Hz

-

60

Total rated load

kW

-

3.2

Fuse rating (B trip rating according to EN 60898)

A

-

1 x 16

Supply lead min. cross-section

mm²

-

3 x 1.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

1800

Variations in the following countries:

Standard voltage 13A (GB only)

2N AC 400 V

Frequency

Hz

-

50

Total rated load

kW

-

5.5

Fuse rating (B trip rating according to EN 60898)

A

-

2 x 13

Supply lead min. cross-section

mm²

-

4 x 1.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

2000

Alternative voltage (convertible)

1N AC 230 V

Total rated load

kW

-

2.85

Fuse rating (B trip rating according to EN 60898)

A

-

1 x 13

Supply lead min. cross-section

mm²

-

3 x 1.5

Standard voltage 25A (GB only)

1N AC 220-240 V

Frequency

Hz

-

50

Total rated load

kW

-

5.05 - 6.0

Fuse rating (B trip rating according to EN 60898)

A

-

1 x 25

Supply lead min. cross-section

mm²

-

3 x 2.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

2000

PW 5065 en - GB

= standard, = optional, + = only on request, - not available

10 144 240 / 01 9

Technical data

PW 5065 AV

PW 5065 LP

Standard voltage (CH, DK only)

3N AC 400 V

Frequency

Hz

-

50

Total rated load

kW

-

4.8

Fuse rating (B trip rating according to EN 60898)

A

-

3 x 10

Supply lead min. cross-section

mm²

-

5 x 1.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

2000

Standard voltage (B only)

-

2N AC 400 V

Frequency

Hz

-

50

Total rated load

kW

-

5.5

Fuse rating (B trip rating according to EN 60898)

A

-

2 x 16

Supply lead min. cross-section

mm²

-

4 x 2.5

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

2000

Alternative voltage (convertible)

-

1N AC 230

Total rated load

kW

-

2.85

Fuse rating (B trip rating according to EN 60898)

A

-

1 x 16

Supply lead min. cross-section

mm²

-

3 x 2.5

Standard voltage (N only)

1N AC 220-240 V

Frequency

Hz

50

Total rated load

kW

2.95 - 3.45

Fuse rating (B trip rating according to EN 60898)

A

3 x 16

Supply lead min. cross-section

mm²

3 x 1.5

Supply lead with plug



Length of supply lead

mm

2000

Standard voltage (AUS only)

-

1N AC 230 V

Frequency

Hz

-

50

Total rated load

kW

-

2.85

Fuse rating

A

-

1 x 16

Supply lead min. cross-section

mm²

-

3 x 1.5

Supply lead with plug

-



Length of supply lead

mm

-

2000

Standard voltage (CDN only)

-

2 AC 208 V

Frequency

Hz

-

60

Total rated load

kW

-

4.0

Fuse rating

A

-

2 x 20

Supply lead min. cross-section

mm²

-

4 AWG10

Supply lead without plug for hard-wired connection

-



Length of supply lead

mm

-

2000

Standard voltage (J only)

-

1N AC 200 V

Frequency

Hz

-

50 –60

Total rated load

kW

-

3.7

Fuse rating

A

-

1 x 20

Supply lead min. cross-section

mm²

-

3 x 2.75

Supply lead with plug

-



Length of supply lead

mm

-

2000

Cold water (KW)

Permissible water flow pressure

kPa

100 - 1000

Required flow rate (cold water connection only)

l/min

11

Required flow rate (with additional hot water connection)

l/min

10

Average water consumption (60°C standard programme)

l/h

36

Connection to be provided on site, external thread according to DIN 44991

Inch

¾“

Connection hose ½“ with ¾“ threaded union



Connection hose length

mm

1550

en - GB PW 5065

= standard, = optional, + = only on request, - not available

10 10 144 240 / 01

Technical data

PW 5065 AV

PW 5065 LP

Hot water (WW)

Max. water intake temperature

°C

70

Permissible water flow pressure

kPa

100 - 1000

Min. flow rate

l/min

11

Average water consumption (60°C standard programme)

l/h

13

Connection to be provided on site, external thread according to DIN 44991

Inch

¾“

Connection hose ½“ with ¾“ threaded union



Connection hose length

mm

1550

Drain valve (AV)

Connection (ext. diameter)

mm

75 (DN70)

-

Drainage temperature, max.

°C

90

-

Max. transient flow rate

l/min

62

-

Drain pump (LP)

Hose connection (external diameter)

mm

-

22 (DN22)

Drainage temperature, max.

°C

-

90

On-site hose sleeve (int. diameter x length)

mm

-

22 x 30

Max. transient flow rate

l/min

-

26

Max. head height (from lower edge of machine)

mm

-

1000

Drain hose DN 22 with connector (supplied as standard)

-



Connection hose length

mm

-

1500

Equipotential bonding (PA)

Machine connection (separate kit required)



Peak load/energy management (SLA)

Machine connection (separate kit required)



Control signal voltage

AC 230 V

Payment system connection (KGA)

Connection of payment systems



Liquid dispensing (DOS)

Connection for liquid detergents (conversion kit required)

+

No. of dispenser pumps, max.

No.

4

Communication module (XKM)

RS 232 serial interface (XKM module retrofitting kit)



Installation on machine feet (F)

No. of machine feet

No.

4

Machine foot, height-adjustable with thread

mm

±4

Machine foot diameter

mm

40

Anchoring (B)

Standard anchoring

Floor anchor kit (for 2 machine feet)



Wood screws according to DIN 571

mm

6 x 50

Rawl plugs (diameter x length)

mm

8 x 40

Anchoring of Miele plinths

Accessory: Miele plinth (fasteners included)



Required anchor points

No.

4

Wood screws according to DIN 571

mm

8 x 65

Rawl plugs (diameter x length)

mm

12 x 60
