Miele DA 1160 Owner's manual
Built-Under
Ventilation Hood
DA 1160
8mieleusa.com
Built-Under Ventilation Hood
DA 1160
FOREVER BETTER
DA 1160
Page 2 of 4
SPECIFICATIONS
DA 1160 — Item 28116055USA
Vented or Recirculating Maximum 400 CFM
Dimensions 239/16” (598 mm) W x 5” (125 mm) H x
1911/16” (500 mm) D
Minimum distance above cooktop Please refer to page 20 of the installation manual
Color Available in brushed stainless steel or
RAL colors (for orders over 10 units)
Electrical
Electrical Requirements 120 V, 60 Hz, 15 Amps
Power Cord Moled Plug 6.5 ft. (2m); NEMA 5-15
Optional Accessories
OdorFree Charcoal Filter DKF 18-1 OdorFree Charcoal Filter
Reducing Collar (air flow max. 400 CFM)
Shipping
Shipping Weight 24.7 lbs (11.2 kg)
Support
Call 800.843.7231
20/20 82020technologies.com
FEATURES
Designed for recirculated or vented use
Installation: Under-cabinet, wall mounting
Maximum 400 CFM
Removable, dishwasher-safe stainless
steel lters
Sliding control panel for light and 4 fan
speed
Integrated halogen lighting
Stainless steel nish
RAL color option for orders over 10 units
For recirculating mode,
Recirculating Kit included.
OdorFree Charcoal Filter needs to be
purchased separately
PRODUCT VIEWS
DA 1160
Page 3 of 4

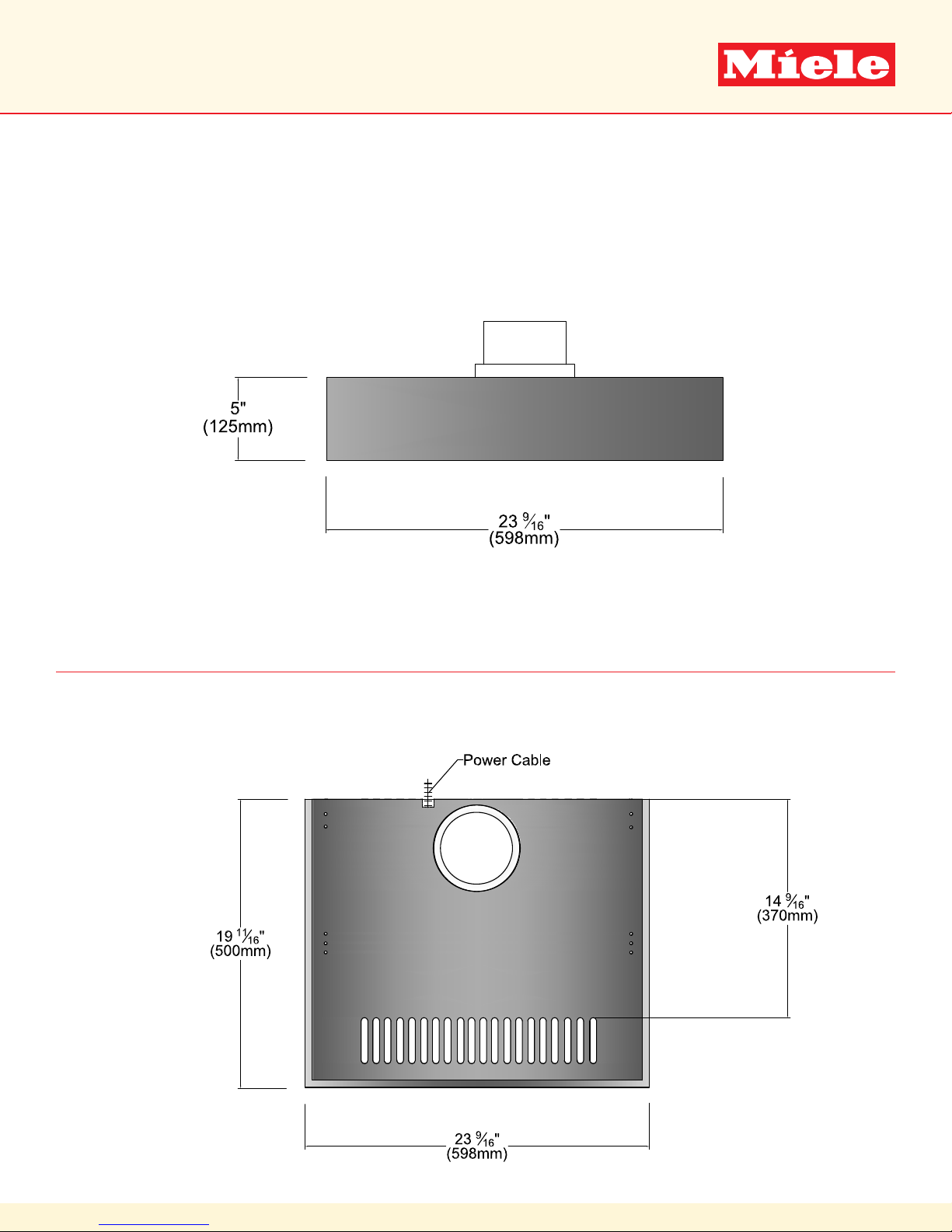

Front View
Built-Under Ventilation Hood
DA 1160
FOREVER BETTER
Top View
Built-Under Ventilation Hood
DA 1160
FOREVER BETTER
DA 1160
Page 4 of 4
PRODUCT VIEWS

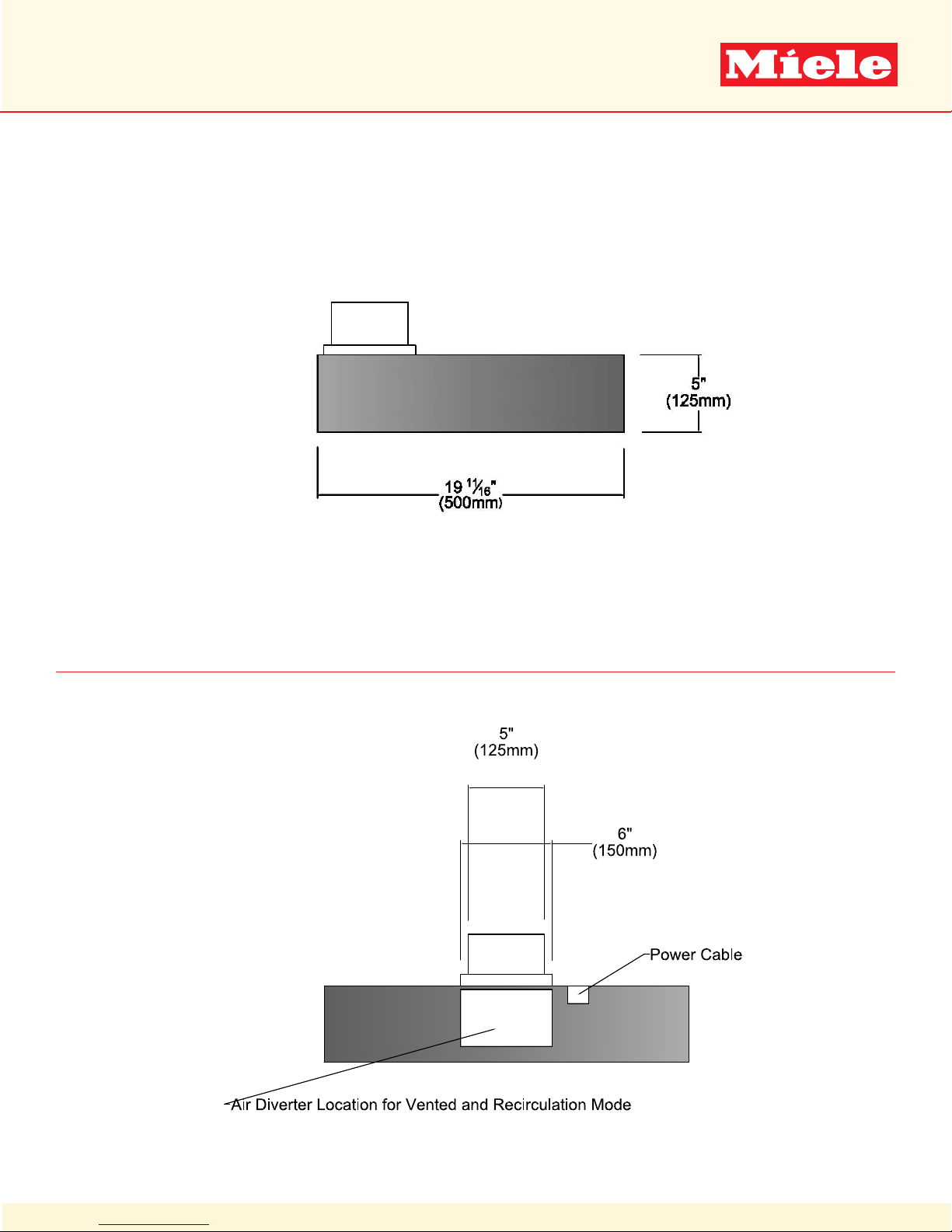

Side View
Rear View
