Installation
*INSTALLATION*
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
The room in which the cooktop is installed must conform to all
relevant local and national building regulations and safety
regulations.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
A gas cooktop must not be installed directly next to a deep fat
fryer as the gas flames could ignite the fat in the fryer. It is essential
to maintain a distance of at least 300mm between these two
appliances.
When installing the cooktop, make sure that the gas hose and
electrical connection cable cannot come into contact with hot
appliance parts.
The electrical cable and any flexible gas connection pipes must be
installed in such a way so that they do not come into contact with
any moving kitchen parts (e.g. a drawer), and cannot become
trapped.
Carefully observe the safety clearances listed on the following
pages.
11135230-03
Installation
*INSTALLATION*
Safety distances
Safety distance above the cooktop
A minimum safety distance must be
maintained between the cooktop and
the rangehood above it. See the
rangehood manufacturer's operating
and installation instructions for details.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance as per AS/
NZS 5601.1 must be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, you should observe the
greatest safety distance.
11135230-03
Installation
*INSTALLATION*
Safety distances to the sides and
back of the appliance

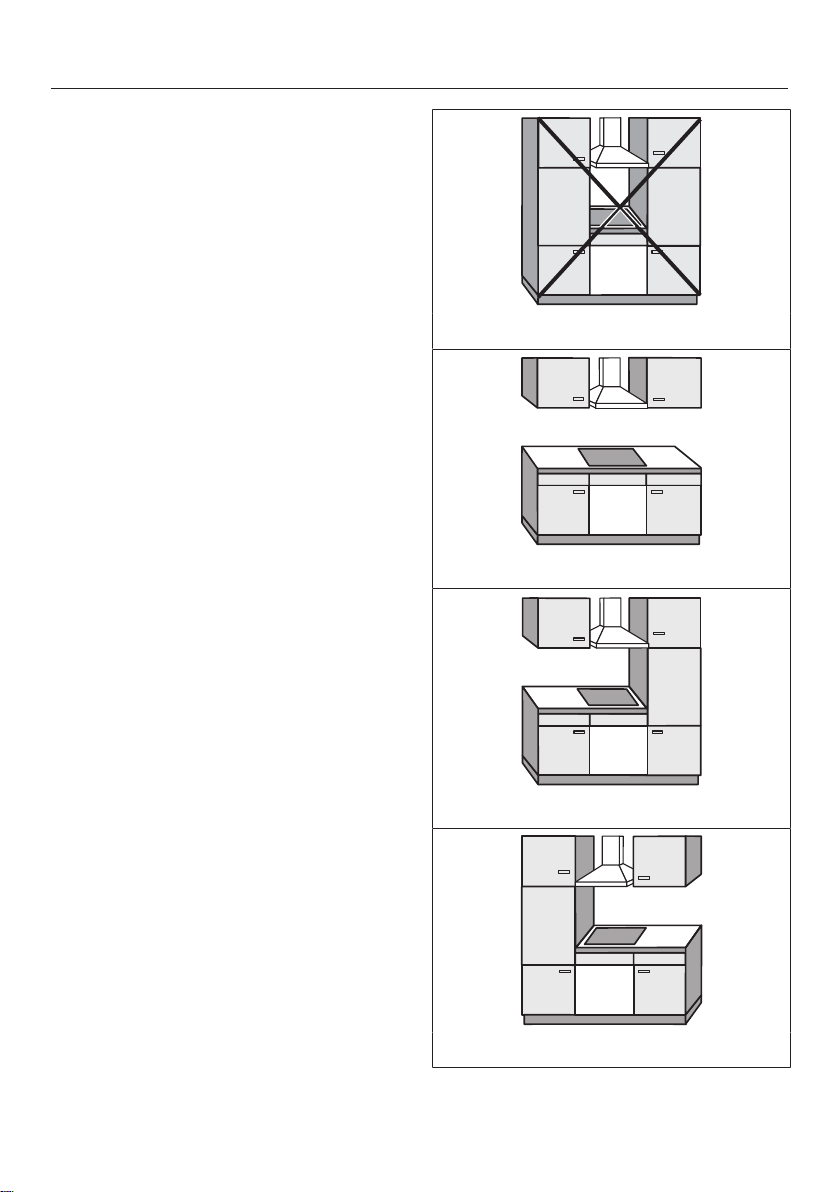

Ideally the appliance should be installed
with plenty of space on either side.
There may be a wall at the rear and a
tall unit or wall on one side (right or left).
On the other side, however, no tall unit
or wall should stand higher than the
appliance. Before installing the
appliance, check that the location
provides the required clearances from
combustible material and, if necessary,
provide protection to adjacent surfaces
as required by regulations.
Not allowed
Recommended
Not recommended
Not recommended
11135230-03
Installation
*INSTALLATION*
A gas appliance shall be installed such
that the surface temperature of any
nearby combustible surface* will not
exceed 65°C above ambient.
The minimum clearance from a
combustible surface shall be a 200mm
horizontal distance from the periphery
of any gas burner (AS/NZS 5601.1).
If that horizontal clearance is less than
200mm, that vertical surface must be
protected by a non-combustible
material for 150mm above the top of
the edge of the nearest burner for the
full dimension of the cooktop (depth,
width).
X Height from worktop surface to the
top of the edge of the burner
The shown area indicates the protected
surface, which may be ceramic tiles or
other approved material.
*Combustible surface:
A material which will ignite and burn,
and includes material which has been
flameproofed.
Clearance underneath the appliance
A minimum safety clearance of 15mm
must be provided underneath the
appliance.
Please note that clearance must also be
provided for the installation of the
flexible gas connection hose and mains
electrical cable if the appliance is to be
installed above a closed surface (e.g.
an oven).
11135230-03
Installation
*INSTALLATION*
Detailed dimensions
Height of pan supports above the worktop surface
aVertical distance
bWorktop surface
cPan support
The vertical distance from the top of the pan supports to the surface of the
worktop is 57mm.
11135230-03
Installation
*INSTALLATION*
Distances from burner to the edge of the appliance
KM3034-1
KM3054-1
11135230-03
Installation
*INSTALLATION*
Installation notes

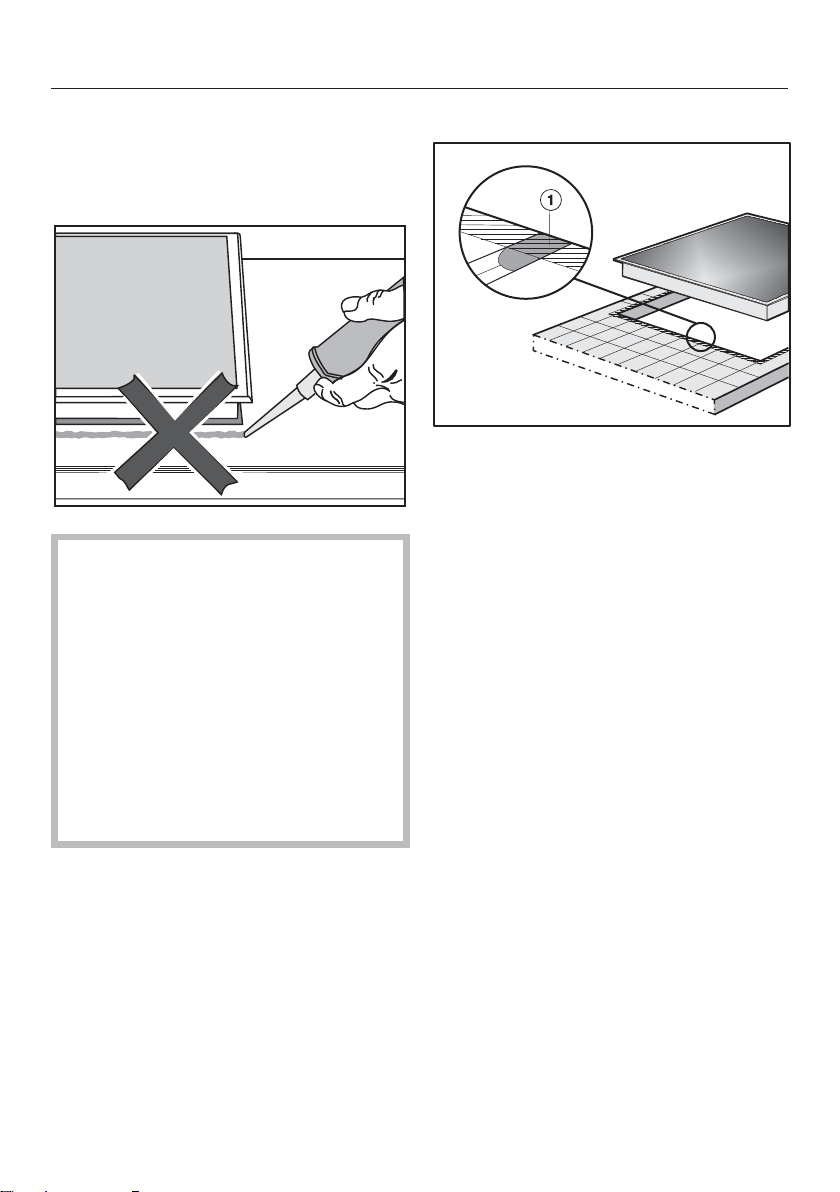

Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
11135230-03
Installation
*INSTALLATION*
Installation dimensions
All dimensions in this instruction booklet are given in mm.
KM 3034-1
aFront
bBuilding-in depth
cMains connection box with mains connection cable, L = 2,000 mm
dGas connection R½ - ISO7-1
eElectronics housing - maximum building-in depth 78mm
11135230-03
Installation
*INSTALLATION*
KM 3054-1
aFront
bBuilding-in depth
cMains connection box with mains connection cable, L = 2,000 mm
dGas connection R½ - ISO7-1
eElectronics housing - maximum building-in depth 78mm
11135230-03
Installation
*INSTALLATION*
Installation
Preparing the worktop
Create the worktop cut-out as shown
in the cooktop diagram. Remember
to maintain the minimum safety
distances (see “Installation – Safety
distances”).
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
The sealing strip ensures that the
cooktop will sit securely in the cut-out
without slipping. Any gap between the
frame and worktop will become
smaller over time.
Installing the cooktop
Attach the sealing strip provided
underneath the edge of the cooktop.
Feed the mains connection cable
down through the worktop cut-out.
Place the cooktop centrally in the
cut-out. When doing this make sure
that the seal of the appliance sits
flush with the worktop on all sides.
This is important to ensure an
effective seal with the worktop.
If the seal does not meet the worktop
correctly on the corners, the corner
radii (≤R4) can be carefully scribed to
suit.
Do not use any additional sealant
(e.g. silicone).
Connect the cooktop to the electricity
supply (see “Installation – Electrical
connection”).
Connect the cooktop to the gas
supply (see “Installation – Gas
connection”).
