COOKER HOOD
INSTRUCTION MANUAL
Read this manual carefully before operation
Pictures in this manual are for reference only, the product in kind prevail.
MH60B3250X-ES
MH60B4300B-ES
MH90B4300B-ES
MH90B3250X-ES
RECOMMENDATIONS AND SUGGESTIONS
The instructions for Use apply to several versions of this appliance. Accordingly, you
may find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
The minimum distance between the supporting surface for the cooking vessels on the
hob and the lowest part of the range hood. ( When the range hood is located above a
gas appliance, this distance shall be at least 65 cm. If the instructions for installation for
the gas hob specify a greater distance, this has to be taken into account. The distance of
65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at
safety extra low voltage,Provided these parts do not give access to live parts if deformed ;)
Check that the mains voltage corresponds to that indicated on the rating plate fixed to
the hood.
For Class I appliances,check that the domestic power supply guarantees adequate earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.
The route of the flue must be as short as possible.
The air must not be discharged into a flue that is used for exhausting fumes from
appliances burning gas or other fuels.
If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning
appliances),a sufficient degree of aeration must be guaranteed in the room in order to
prevent the backflow of exhaust gas. The kitchen must have an opening communicating
directly with the open air in order to guarantee the entry of clean air.
When the cooker hood is used in conjunction with appliances supplied with energy
other than electric, the negative pressure in the room must not exceed 0,04 mbar to
prevent fumes being drawn back into the room by the cooker hood.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Regulations concerning the discharge of air have to be fulfilled.
USE
The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.
Never use the hood for purposes other than for which it has been designed.
Never leave high naked flames under the hood when it is in operation.
Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that
it does not engulf the sides.
Deep fat fryers must be continuously monitored during use: overheated oil can
burst into flames.
Do not flame under the range hood; risk of fire.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
“CAUTION: Accessible parts may become hot when used with cooking appliances”.
MAINTENANCE
The cooker hood and its filter should be cleaned regularly according to the instruction.
Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
Clean and/or repace the Filters after the specified period(Fire hazard).
Clean the hood using a damp cloth and a neutral liquid detergent.
The appliance uses 4 hob elements at most.
The symbol is packaging indicates that this product may not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you purchased the product.
3 4
5678
9 10 11
2
4
2.2
3
2.1
5
1
20 12 11
21 10
1
Ref. Qty.
1
2.1
Blower,Filter.
Hood Body,complete with: Controls, Light,
1 Lower Decorative Chimney
2.2 1 Upper Decorative Chimney
3 1
4
Flange ( optional )
1 Exhaust Pipe
5 2 The Activated Charcoal filter ( optional )
1 Instruction Manual
COMPONENTS
Product Components
Qty. Documentation
10
7
11
Screws 5 x 50
Hood fixing bracket
7
Wall Plugs
12
6 Screws 4,2 x 9,5
20 1
21 2 Chimney fixing bracket
Ref. Qty. Optional Installation Components
2 4
5678
9 10 11
3
2 3
5678
9 10 11

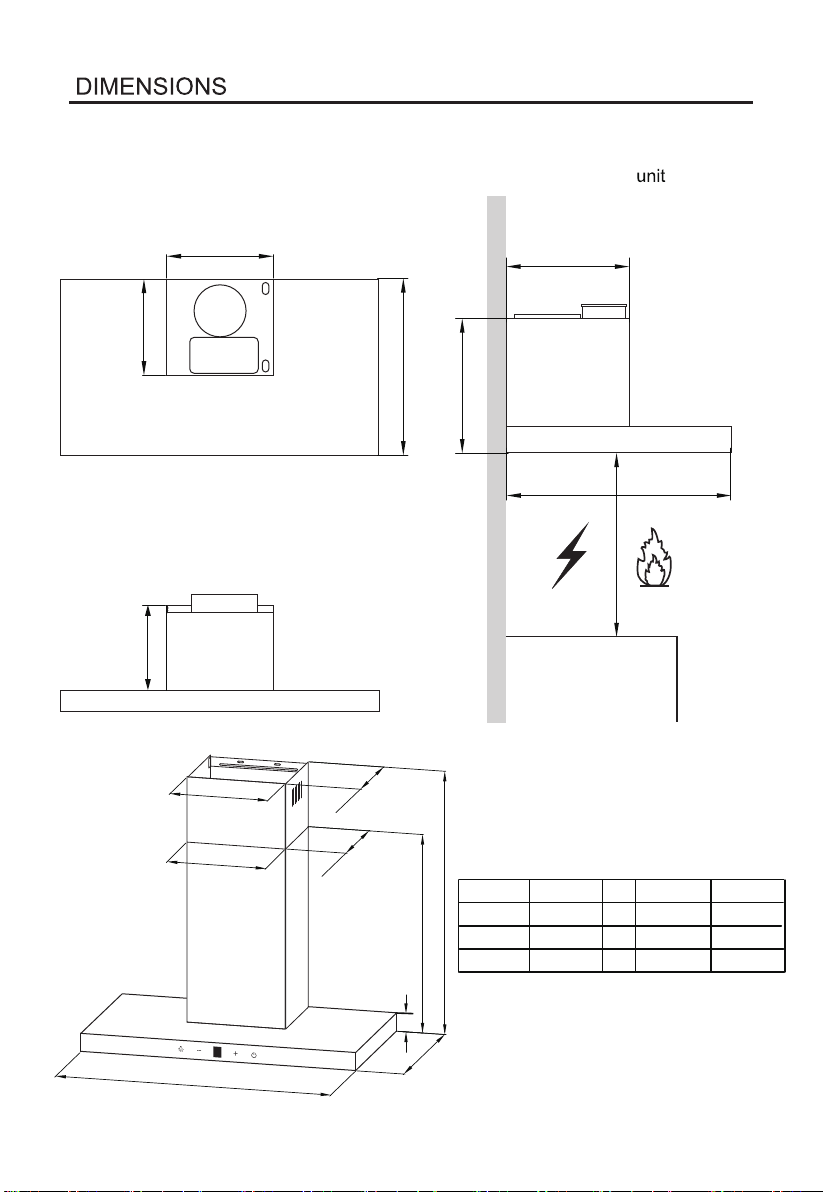

300 286
500
Min. Min.
240 286
40 500
A
B280
304
306
598/898
287
289
500
Option A B
1430465-800
2530565-1000
650mm 650mm
Chimney
：mm
400+
390
500+490
3630665-1200
600+590
Height
430-800
530-1000
630-1200
4
INSTALLATION
As a first step, proceed with the following drawings:
A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood
is to be fitted.
A horizontal line A at 970 – 1070 mm above the cooker top.
A horizontal line B at a X mm above the horizontal line A.
A horizontal line C at a 243 mm below the horizontal line A .
Mark Points:
Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
Repeat this operation on the other side and on the vertical reference line, checking that the
three marks are leveled.
Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
Repeat this operation on the other side, checking that the two marks are on the same
horizontal line.
Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line . Repeat
this operation on the other side , checking that the two marks are leveled.
Fix the brackets :
Drill holes at the marked points with a ɸ10 mm drill bit.
Insert the Wall Plugs 11 into the holes.
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
WALL DRILLING AND BRACKET FIXING
100 100
C(3)
Option Chimney X
1400X390 160-500
2500X490 260-700
Vertical reference line
243
234
678
9 10 11
3600X590 360-900
5
B
Lower decorative chimney
Fix the exhaust pipe on the hood body,
connect chimney and hood body with 2
screws 12. connect chimney fixing
bracket and chimney with 2 screws 12.
Hook the hood body
Hook the hood body to the bracket 20.
Level the hood body itself.
Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at
the points (3).
Wrong
CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
If to install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
Fix the pipe 4 in position using sufficient pipe clamps (not
supplied).
Remove possible charcoal filters.
Upper Decorative Chimney
Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to
the horizontal line B
Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12 .
Right
6
Light Low Mid
High Power
After plugging, buzz once to declare the hood is connected with electricity. After the
Press the Power button, control motor power: under standby state, press this button, motor
Press the Light button, control light being on and off independently without any other buttons’
Press the High button, valid under power-on state. While running at middle or low speed
Press the Low button, valid under power-on state. While running at high or middle speed
connection:
will run at low speed, and light for power and low speed button will be on; under power-on
state, press this button, hood will enter 3-min-delay-shutdown state, press power button again
under this state, the hood will turn off( motor stops running).
help. Press it once, lights will be on.Press again, they will be off.
mode, press this button, the hood will enter high speed mode. If already running at high
speed, pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood
cancels delay shutdown mode and enter high speed running state.
mode, press this button, the hood will enter low speed mode. If already running at low speed,
pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood cancels
delay shutdown mode and enter low speed running state.
Speed adjustment(for some models).
Light Low Mid
High Power
USE
7
When the fan is running.
Display "0". Delayed shutdown mode, or standby mode.
Increase the motor speed. When + are on.
Turn the Motor ON. When is off.
Automatic shutdown after 3 minutes. When is on.
Turn the Motor OFF. When is flashing.
Turn the Motor and Lights ON. When is off.
Change the motor speed circularly When is on.
Enter delayed shutdown mode(Automatic
shutdown after 3 minutes). When is on.
Turn the Motor and Lights OFF. When is flashing.
Button Function Remarks
Turns the lighting system on or off. Button on.
Decrease the motor speed. When + are on.
Display fan gear “1、2、3、b”.
(1—2—3—b—1—2—3).
Speed adjustment. (For some models)
8
MAINTENANCE
GREASE FILTERS
ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)
REPLACING THE ACTIVATED CHARCOAL FILTER
LIGHTING
LIGHT REPLACEMENT(Completed by professionals)
CLEANING METAL SELF-SUPPORTING GREASE FILTERS
The filters must be cleaned every 2 months of operation, or
more frequently for particularly heavy usage, and can be
washed in a dishwasher.
Remove the filters one by one pushing them towards the back
side of the hood unit and simultaneously pulling downwards.
Any kind of bending of the filters has to be avoided when washing
them. Before fitting them again into the hood make sure that they
are completely dry. (The color of the filter surface may change
throughout the time but this has no influence to the filter efficiency).
When fitting the filters into the hood pay attention that they are
mounted in correct position the handle facing outwards.
Remove the metal grease filters.
Remove the saturated activated charcoal filter.
Fit the new filters.
Replace the metal grease filters.
Cannot replaced the light bulbs, the entire light module has to be replaced.
When changing the light modules, the contacts are live.
Before changing the light module(s), unplug the appliance from the mains or switch off the
circuit breaker in the fuse box.
Replacing the light modules
These filters are not washable and cannot be regenerated, and must be replaced approximately
every 4 months of operation, or more frequently with heavy usage.
234
5678
10 11
9
Remove the grease filter and carefully remove the 2 screws from the front plate (a cross
headed screwdriver will be needed to remove the screws).
Disconnect the terminal of LED light.
Press LED light on the back of the front plate, take the LED light out.
Replace the lamp(commercially available LED lamp (max.1.5w).
Press LED light on the front of front plate, install the LED light on the front plate.
Connect the terminal of LED light and light leads.
Carefully fasten the 2 screws on the front plate ,reinstall the grease filter.
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old
household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to optimize the recovery and recycling of the materials they
contain, and reduce the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of
the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the correct disposal of
their old appliance.
234
5678
911
Max Power Voltage Picture Lamp Cap ILCOS D code
Round/ Diameter
: 70mm 1.5W DC 12 V —— DSR-1.5-S-70
10
This manual suits for next models
3
Table of contents
Languages:
Other Midea Ventilation Hood manuals
Midea
Midea MHS60S User manual
Midea
Midea 330152 User manual
Midea
Midea MCH-90J15 User manual
Midea
Midea MHAA90BL User manual
Midea
Midea A24MABOF50 Manual
Midea
Midea MCHT60L07 User manual
Midea
Midea B7+ User manual
Midea
Midea MHC60GSS User manual
Midea
Midea WHK 7.62 BL User manual
Midea
Midea MCH-90J82 User manual
Midea
Midea MHC90GSS User manual
Midea
Midea CMPTRAL-SG60 User manual
Midea
Midea MHB90S User manual
Midea
Midea MHC60SS User manual
Midea
Midea MCH-90B82 User manual
Midea
Midea MHT90BL User manual
Midea
Midea E60MEW0A09 Manual
Midea
Midea MHC60SS User manual
Midea
Midea MH90A3200W-ES User manual
Midea
Midea 330422 User manual
