Mhouse WG2 Product manual

Installation instructions and warnings

English

IST WG2-GB 4865 Rev. 02

MhouseKit WG2

For the automation of swing gates.

2WG2 Instructions

Information

Contents

1 Warnings 3

2 Product description 4

2.1 Applications 4

2.2 Description of the automation 4

2.3 Description of Devices 5

2.3.1 WG1 Electromechanical Gearmotors 5

2.3.2 Release keys 5

2.3.3 CL2 Control Unit 6

2.3.4 PH1 Photocells 6

2.3.5 KS1 Key-Operated Selector Switch 6

2.3.6 FL1 Flashing Light with Incorporated Aerial 6

2.3.7 TX4 Radio Transmitters 6

3 Installation 7

3.1 Preliminary checks 7

3.1.1 Operating Limits 8

3.1.2 Tools and Materials 8

3.1.3 List of Cables 8

3.2 Preparing the Electrical System 9

3.2.1 Connection to the Electrical Mains 9

3.3 Installation of the Various Devices 9

3.3.1 WG1 gearmotor mounting 9

3.3.2 Photocells 11

3.3.3 KS1 Key-Operated Selector Switch 12

3.3.4 FLI Flashing Light 12

3.3.5 CL2 Control Unit 13

3.4 Power Supply Connection 15

3.5 Initial checks 15

3.5.1 Recognition of Connected Devices 15

3.5.2 Recognition of Gate Leaves' Opening and Closing Angles16

3.5.3 Checking the Radio Transmitters 16

3.6 Regulations 16

3.6.1 Selecting the Speed of the Leaf 16

3.6.2 Selecting the Type of Operating Cycle 17

3.7 Testing and commissioning 17

3.7.1 Testing 17

3.7.2 Commissioning 17

4 Maintenance 18

4.1 Dismantling and Disposal 18

5 Additional information 19

5.1 Advanced Adjustments 19

5.1.1 Adjusting the Parameters with the Radio Transmitter 19

5.1.2 Checking the Adjustments with the Radio Transmitter 20

5.2 Optional Accessories 20

5.3 Adding or Removing Devices 20

5.3.1 ECSBus 20

5.3.2 STOP Input 20

5.3.3 Recognition of Other Devices 21

5.3.4 Addition of Optional Photocells 21

5.4 Memorization of Radio Transmitters 22

5.4.1 Memorization Mode 1 22

5.4.2 Memorization Mode 2 22

5.4.3 "Remote" Memorization 22

5.4.4 Deleting a Radio Transmitter 23

5.4.5 Deleting all the Radio Transmitters 23

5.5 Troubleshooting 23

5.6 Diagnostics and Signals 24

5.6.1 Photocells 24

5.6.2 Flashing light 24

5.6.3 Control Unit 25

6 Technical characteristics 26

7 Annexes 28

7.1 Annexe 1: CE Declaration of Conformity of WG2 Components 29

7.2 Annexe 2: CE Declaration of Conformity of Power Operated Gate 31

7.3 Annexe 3: Operating Guide 33

7.3.1 Safety regulations 33

7.3.2 Gate Control 33

7.3.3 Maintenance Operations to Be Performed by the User 34

7.3.4 Replacing the Remote Control Battery 34

This manual may be reproduced provided no part of it is omitted or

modified. No part of this manual may be translated into other languages

without the prior authorization and subsequent examination by

MHOUSE

MHOUSE disclaims all responsibility for damage resulting from improper

use of its products. You are therefore invited to read this manual carefully.

MHOUSE, in order to improve its products, reserves the right to modify

them at any time without prior notice. In any case, the manufacturer

guarantees their functionality and fitness for the intended purposes.

For any information please contact:

MHOUSE S.r.l.

via Pezza Alta, 13, Z.I. 31046 Oderzo

Tel: 0422 202109

Fax: 0422 852582

email: [email protected]

http: www.mhouse.biz.

WG2 is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of

the Nice S.p.a group.

WG2 Instructions 3

•If this is the first time that you install a WG2 gate automation system

we recommend that you dedicate some of your time to reading this

manual. You should read it before you start installing the system, so you

don't have to rush to finish the work.

Keep all the components of the WG2 system handy so that you can

read, check and verify all the information contained in this manual.

However, do not carry out the adjustment and memorization stages

otherwise, during the actual installation of the products, you will have to

deal with settings that differ from the original factory ones.

•When reading this manual, pay special attention to the sections

marked by the following symbol:

these sections are particularly important for safety.

•Store this manual safely for future use.

•This manual, as well as the design and manufacture of the devices

that make up WG2, comply fully with the standards and regulations in

force.

•Considering the hazards that may exist during the installation and

operation of WG2, it is necessary that also the installation be carried out

in strict compliance with current legislation, standards and regulations,

particularly:

•This manual contains important information regarding

personal safety; before you start installing the components, it is

important that you read and understand all the information

contained herein. Do not proceed with the installation if you have

doubts of any sort; if necessary, refer to the MHOUSE customer

service department for clarifications.

•Before you start with the installation, make sure that each

single WG2 device is suitable for the intended automation

purposes; pay special attention to the data provided in chapter 6

"Technical Characteristics". If even a single device is not suitable

for the intended application, do not proceed with the installation.

•Before you start with the installation, check whether

additional devices or materials are needed to complete the

automation with WG2 based on the specific application

requirements.

•The WG2 automation system must not be used until the

automation has been commissioned as described in paragraph

3.7.2 "Commissioning".

•The WG2 automation system cannot be considered as a

suitable intrusion protection system. If you require efficient

protection you need to integrate WG2 with other devices.

•The packing materials for WG2 must be disposed of in

compliance with local regulations.

•Do not make modifications to any components unless

provided for in this manual. This type of operations will only

cause malfunctions. MHOUSE disclaims any liability for damage

resulting from modified products.

•Do not immerse the automation parts in water or any other

liquid. During installation, ensure that water does not leak into

the control unit or other open devices.

•In the event that liquid substances have penetrated inside the

automation devices, immediately disconnect the power supply

and contact the MHOUSE customer service department. The use

of WG2 in these conditions can be dangerous.

•Keep all components of WG2 away from heat sources and

open flames; these could damage the components and cause

malfunctions, fire or dangerous situations.

•During long periods of inactivity, the optional battery (PR1)

should be removed and stored in a dry location to prevent

leakage of noxious substances.

•Connect the control unit only to a power supply line equipped

with safety grounding system.

•All operations requiring the opening of the protection shell of

any WG2 device must be performed with the control unit

disconnected from the power supply (and from the PR1 buffer

battery, if featured); if the disconnection device is not identifiable,

post the following sign on it: "WARNING: MAINTENANCE WORK

IN PROGRESS".

•In the event that any automatic switches or fuses are tripped,

you must identify the failure and eliminate it before you reset

them.

•If a failure occurs that cannot be solved using the information

provided in this manual, refer to the MHOUSE customer service

department.

1 Warnings

4WG2 Instructions

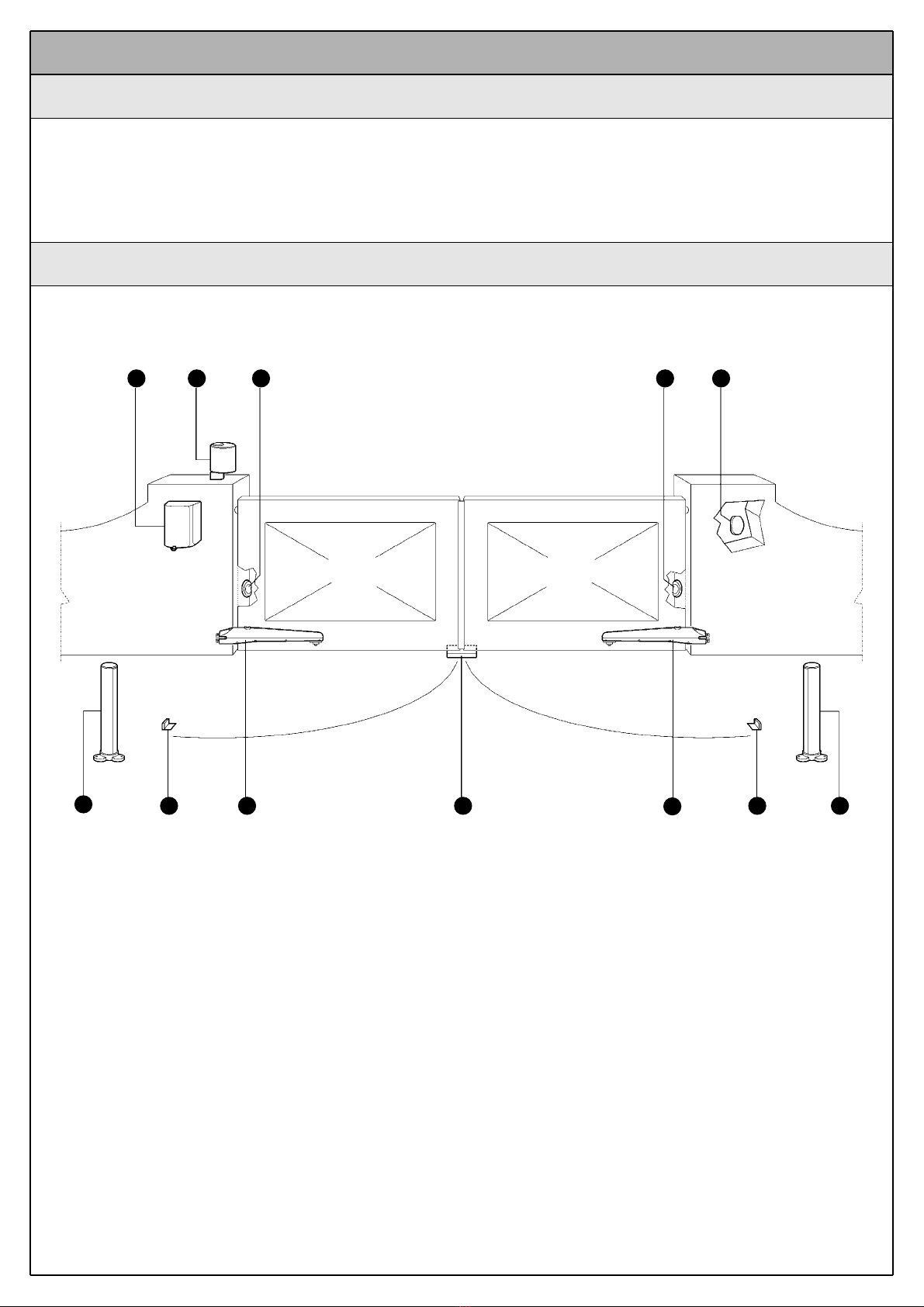

The following example of a typical WG2 application will serve to clarify a few terms and aspects of a gate automation system:

A)CL2 control unit

B) FL1 flashing light with incorporated aerial

C) Pair of PH1 photocells

D) KS1 key-operated selector switch

E) Pair of PT50 posts for photocells (not included)

F) Pair of opening stops (not included); the natural strike may be

sufficient, otherwise the mechanical stops of the gearmotor can be

used, see Figure 26

G) WG1 gearmotors

H) Closing stop (not included)

EF G H GFE

B C C D

Figure 1

2 Product description

2.1 Applications

WG2 is a set of components designed for the automation of single-leaf

or double-leaf gates in residential applications.

Any applications other than those described above or under

different conditions from those specified in this manual are

forbidden.

WG2 operates with electric power. In the event of a power failure, the

gearmotor can be released using suitable keys in order to move the gate

manually. Alternatively, the PR1 buffer battery (optional accessory) can

be used.

2.2 Description of the automation

16 WG2 Instructions

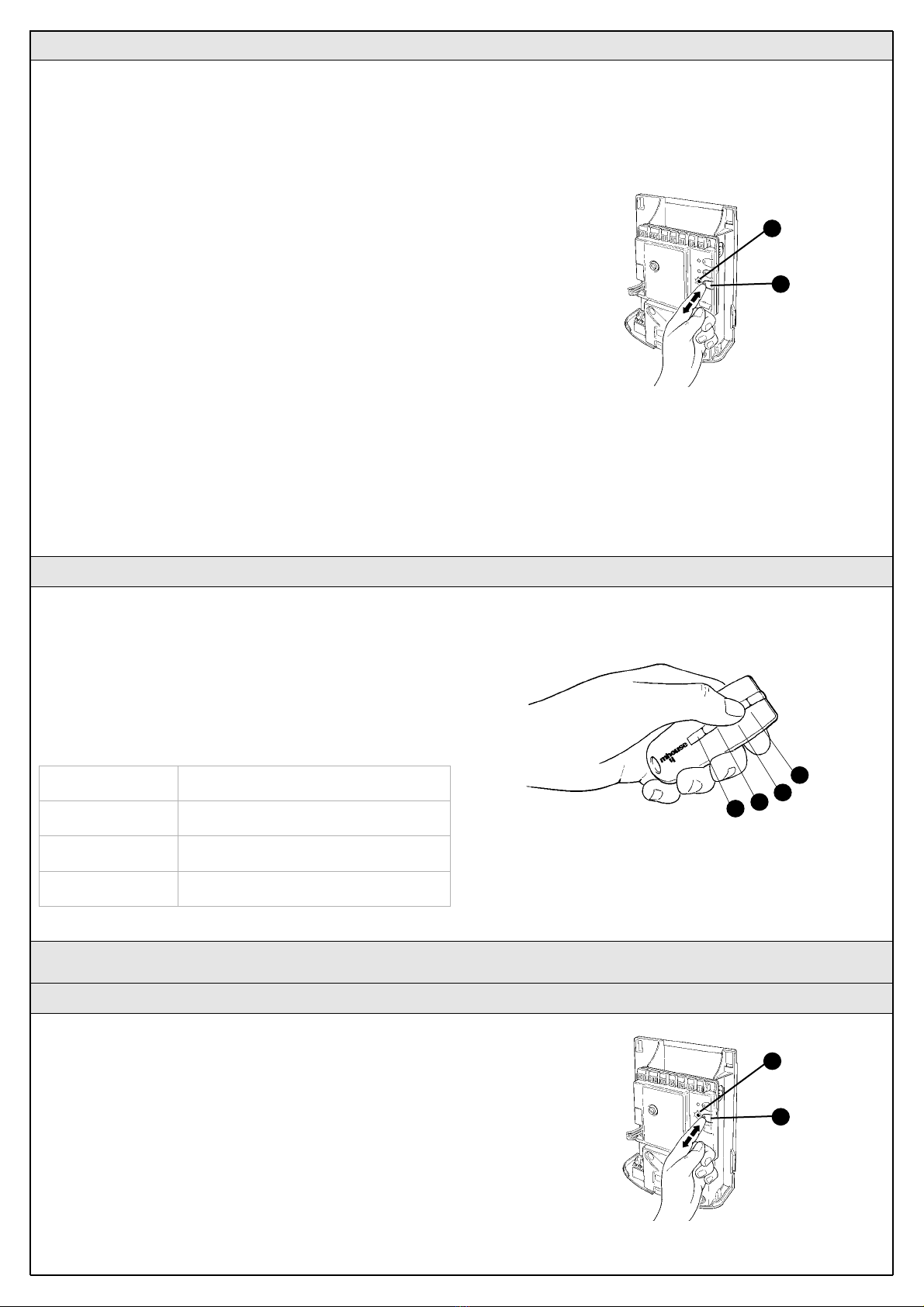

3.5.3 Checking the Radio Transmitters

After recognizing the devices, the control unit must learn to recognize the

leaves' opening and closing angles .

During this stage, the leaves' opening angle is measured from the

closing mechanical stop to the opening mechanical stop.

Fixed and sufficiently sturdy mechanical stops are required.

1 Release the motors using the appropriate keys (see the "Gearmotor

Release" paragraph on page 34) and move the leaves to mid travel so

that they are free to move in both opening and closing directions; then

lock the motors.

2On the control unit press the P3 button [B] and hold it down for at least

three seconds, then release the button.

Wait for the control unit to complete the recognition stage: closing of the

M1 motor to the mechanical stop, closing of the M2 motor to the

mechanical stop, opening of the M2 and M1 motors to the opening

mechanical stop; complete closing of M1 and M2.

•If the first manoeuvre of one or both leaves is not to close, press P3

to interrupt the recognition stage, then switch the polarity of the motor/s

that opened by exchanging the two brown and blue wires on the

terminal.

•If the first motor to move in the closing direction is not M1, press P3

to interrupt the recognition stage, then switch the motor connections on

the terminals.

•If any device is triggered during the recognition stage (photocells, key-

operated selector switch, pressure on P3, etc.), the recognition stage will

immediately be interrupted. It will therefore be necessary to start again

from the beginning.

3If at the conclusion of the search the P3 LED [A] flashes, it means that

an error has occurred; see paragraph 5.5 "Troubleshooting".

The opening angles recognition stage can be repeated again at any time,

even after the installation (for example, if one of the opening stops is

moved); just repeat the procedure starting from step 1.

3.5.2 Recognition of Gate Leaves' Opening and Closing Angles

Figure 57

To check the transmitters just press one of the four buttons, make sure

that the red LED flashes and that the automation executes the

command.

The command associated to each button depends on how they have

been memorized (see paragraph 5.4 "Memorization of Radio

Transmitters"). The transmitters supplied have already been memorized

and when you press the buttons the following commands are

transmitted:

Button T1 "OPEN" command

Button T2 "Open pedestrian gate" command

Button T3 "Open only" command

Button T4 "Close only" command

3.6 Regulations

3.6.1 Selecting the Speed of the Leaf

The leaves can be opened and closed at two speeds: "slow" or "fast".

To switch from one speed to the other press the P2 button [B]

momentarily; the corresponding P2 LED [A] will light up or go off; if the

LED is off the speed is "slow", if the LED is on the speed is "fast".

Figure 59

Figure 58

WG2 Instructions 5

WG2 consists of the devices shown in figure 2;

make immediately sure that they correspond to

the contents of the package and verify the

integrity of the devices.

Note: to adapt WG2 to local regulations, the

contents of the package may vary; an exact list

of the contents is shown on the outside of the

package under the "Mhousekit WG2 contains"

heading.

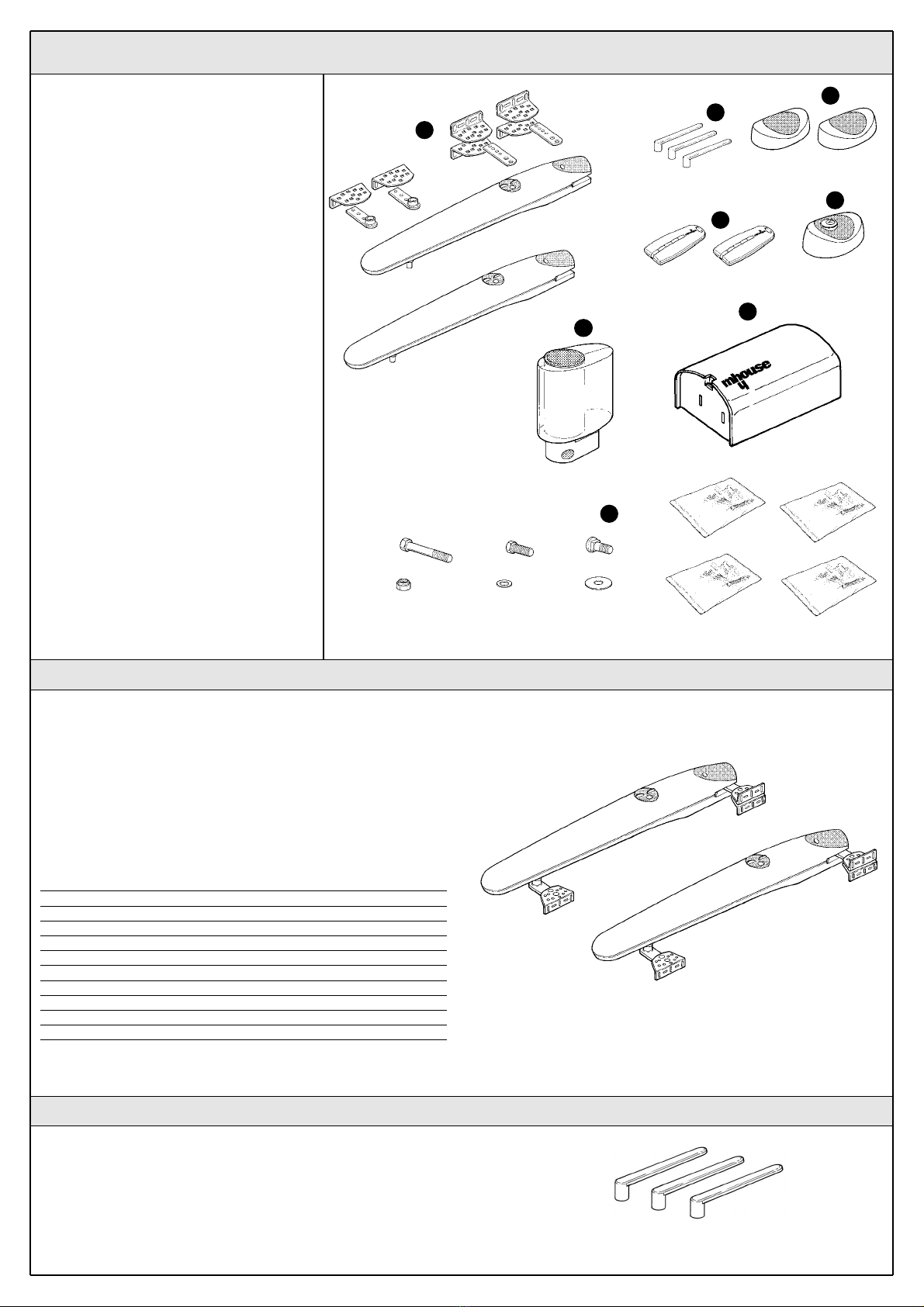

2.3 Description of Devices

A) 2 WG1 electromechanical gearmotors

complete with mounting brackets(*)

B) 3 release keys.

C) 1 pair of PH1 photocells (consisting of a TX

and an RX).

D) 2 TX4 radio transmitters.

E) 11 KS1 key-operated selector switch and

two keys.

F) 1 FL1 flashing light with incorporated aerial.

G) 1 CL2 control unit.

H) Miscellaneous small parts: screws, screw

anchors, etc., see tables1, 2, 3, 4 and 5 (*).

(*) the screws needed to secure the front and

rear brackets are not supplied because their

type depends on the material and thickness of

the gate.

WG1 is an electromechanical gearmotor consisting of a worm screw

reduction gear and a 24Vdirect current motor. It features a key-operated

mechanical release mechanism that allows you to move the gate

manually in the event of a power failure.

The gearmotor is fitted with three mounting brackets (one at the front

and two at the rear) and two adjustable stops (small plates that can be

loosened and adjusted on the teeth to limit the opening and closing

stroke) that offer trouble-free installation in all conditions.

Table 1: list of small parts for two WG1 units Q.ty

M10 self-locking nuts 2 pcs.

M8 self-locking nuts 8 pcs.

Front plates 2 pcs.

Rear plates 2 pcs.

Mounting brackets 6 pcs.

10x40 hex-head screws 2 pcs.

8x10 hex-head screws 2 pcs.

8x35 carriage screws 8 pcs.

8x24 flat washers 2 pcs.

8x16 flat washers 8 pcs.

2.3.1 WG1 Electromechanical Gearmotors

The three keys enable the gearmotor to be released in the event of a

power failure.

2.3.2 Release keys

Figure 3

Figure 2

Figure 4

6WG2 Instructions

2.3.3 CL2 Control Unit

2.3.4 PH1 Photocells

The CL2 unit actuates the gearmotors and provides for the control and

supply of the different components; it features an electronic board with

incorporated radio receiver; a housing [B] for the PR1 buffer battery

(optional), which is necessary for operation in case of power failure.

The CL2 control unit can actuate the gearmotors with two speeds:

"slow" and "fast".

The three P1, P2 and P3 buttons [C] and the corresponding LED's are

used to program the control unit.

To facilitate the electrical connections there are separate terminals for

each device [A], which are removable and colour-coded based on the

function performed. Next to each input terminal there is a LED that

signals its status.

The connection to the power supply is very easy: just insert the plug in a

power outlet.

Table 2: List of small parts for CL2 Q.ty

4.2X32 self-tapping screw 4 pcs.

s 6 c nylon screw anchor 4 pcs.

Figure 5

The pair of PH1 wall-mounted photocells, once they are connected to

the control unit, enable the detection of obstacles found on the optical

axis between the transmitter (TX) and the receiver (RX).

Table 3: List of small parts for PH1 Q.ty

3.5X25 self-tapping screw 4 pcs.

4.2X32 self-tapping screw 4 pcs.

s 5 c nylon screw anchor 4 pcs.

2.3.5 KS1 Key-Operated Selector Switch

The KS1 key-operated two-position selector switch enables gate

control without using the radio transmitter. It is equipped with internal

light for locating in the dark.

There are two commands, which depend on the direction of rotation of

the key: "OPEN" and "STOP"; then the key, which is spring loaded,

returns to the centre position.

Figure 7

Table 4: List of small parts for KS1 Q.ty

HI LO 4X9.5 screw 2 pcs.

3.5X25 self-tapping screw 4 pcs.

s 5 c nylon screw anchor 4 pcs.

2.3.6 FL1 Flashing Light with Incorporated Aerial

Table 5: List of small parts for FL1 Q.ty

4.2X32 self-tapping screw 4 pcs.

s 6 c nylon screw anchor 4 pcs.

The flashing light is controlled by the CL2 control unit and signals

danger when the gate is moving. Inside the flashing light there is also

the aerial for the radio receiver.

Figure 8

2.3.7 TX4 Radio Transmitters

The radio transmitters are used for the remote control of the gate

opening and closing manoeuvres. They feature four buttons that can all

be used for the 4 types of command to a single automation unit, or to

control up to 4 different automation units.

The transmission of the command is confirmed by the LED [A]; an eyelet

[B] allows them to be hung on a keyring. Figure 9

Figure 6

WG2 Instructions 7

The installation must be carried out by qualified and skilled

personnel in compliance with the directions provided in chapter

1 "WARNINGS".

3 Installation

3.1 Preliminary checks

WG2 must not be used to power a gate that is not efficient and

safe. It cannot solve defects resulting from incorrect installation

or poor maintenance of the gate.

Before proceeding with the installation you must:

•Make sure that the weight and dimensions of the gate fall

within the specified operating limits. If they do not, WG2 cannot

be used.

•Make sure that the structure of the gate is suitable for

automation and in compliance with regulations in force.

•Make sure that there are no points of greater friction in the

opening or closing travel of the gate leaves.

•Make sure that the gate is well balanced: it must not move by

itself when it is placed in any position.

•Make sure that the mounting positions of the various devices are

protected from impacts and that the surfaces are sufficiently sturdy.

•Make sure that the mounting surfaces of the photocells are flat

and that they enable the proper alignment between TX and RX.

•Check the size limits referring to Figure 10.

•Make sure there is enough space even when the gate is open.

•Using the leaf opening angle as a guideline, check that the

values in Table 6 can be met.

100

729

45 392

Figure 11

Min 150mm

Figure 10

Max 150mm

•"C" depends on how the rear bracket is mounted (see Figure 17) and

may vary from 53 mm to 176 mm. It is normally about 150mm.

•"D" is easy to measure on the gate.

•"A" is the sum of "C" and "D".

•The value of "B" can be calculated from the value of "A" and the

opening angle of the leaves. For example: if "A" is 150mm and the

opening angle of the leaves is 100°, the value of "B" is about 150mm.

Make sure that "B" is equal or similar to "A". This ensures the leaf moves

smoothly, thereby reducing the strain on the gearmotor.

Figure 12

Table 6

8WG2 Instructions

3.1.1 Operating Limits

Chapter 6 "Technical Characteristics" provides the fundamental data

needed to determine whether all the WG2 components are suitable for

the intended application.

In general, WG2 is suitable for the automation of gates featuring leaves

up to 2 m wide, weighing up to 250 kg, with opening angle of up to 130°

for residential applications.

The shape of the gate and the climatic conditions (e.g. presence of

strong wind) may reduce these maximum limits. In this case it is

necessary to measure the torque needed to move the leaves under the

worst conditions, and to compare it to the data provided in the technical

characteristics chart for the WG1 gearmotor.

3.1.2 Tools and Materials

Make sure you have all the tools and materials needed to install

the system; make sure that they are in good condition and

serviceable according to current safety standards. See examples

in Figure 13.

3.1.3 List of Cables

The cables required for the installation of WG2 may vary depending on the type and quantity of devices to be installed; figure 14 shows the cables

needed for a typical installation; no cable is supplied with WG2.

Table 7: list of cables

Connection Cable type Maximum length allowed

[A] Power supply line 3x1.5mm2cable 30m (note 1)

[B] FLASH light output 2x0,5mm2cable 20m

[C] Radio aerial RG58 type shielded cable 20m (recommended less than 5m)

[D] ECSBus input/output 2x0,5mm2cable 20m (note 2)

[E] STOP input 2x0,5mm2cable 20m (note 2)

[F] OPEN input 2x0,5mm2cable 20m (note 2)

[G] M1 and M2 motors output 3x1mm2cable 10m

Figure 14

WARNING: the cables used must be suitable for the type of installation; for example, an H03VV-F type cable is recommended for indoor

applications, while H07RN-F is suitable for outdoor applications.

Note 1 A power supply cable longer than 30 m may be used provided it has a larger gauge, e.g. 3x2.5mm2, and that a safety grounding system

is provided near the automation unit.

Note 2 For the ESCbus, STOP and OPEN cables, there are no special contraindications to the use of a single cable that groups together multiple

connections; for example, the STOP and OPEN inputs can be connected to the KS1 selector switch using a single 4x0,5mm2cable.

B C DA ED

DGG

Figure 13

1Choose the mounting position in accordance with the specifications in

paragraph 3.1 "Preliminary Checks".

2Check that the mounting surface is perfectly smooth, vertical and

sufficiently compact. WG1 does not come with a mounting system,

consequently one will have to be chosen according to the surface

material.

3Lay the conduit for the power cable.

4To obtain the rear supports, assemble two brackets and the rear plate

as shown in Figure 16.

5To obtain different "C" values (see Figure 12) assemble the brackets and

plate as shown in Figure 17.

6To obtain the front support, assemble one bracket and the front plate

as shown in Figure 18.

7Loosen the two screws and remove the back cover of the gearmotors.

8Move the leaves to the "gate closed" position.

9Referring to the "B" distance calculated from Table 6, place the rear

support in the correct position on the mounting surface, Check that there

is a suitable surface at the values in Figure 22, i.e. where the front

support is mounted.

10 Mark the drill points for the rear support using the support itself as a

reference point. Drill holes in the mounting surface for 4 anchors [A] with

a diameter of at least 8 mm (not included in supply). Fix the plate with

suitable screws [C] and washers [B].

WG2 Instructions 9

With the exception of the power line that supplies the control unit, the

rest of the system uses extra-low voltage (approx. 24V); the wiring can

therefore be done by personnel that is not properly qualified, provided

that all the instructions in this manual are carefully observed.

After selecting the position of the various devices (refer to figure 1) you

can start preparing the conduits for the electrical cables connecting the

devices to the control unit.

The conduits are designed to protect the electrical cables and prevent

accidental breakage, which may be caused by the passage of vehicles,

for instance.

3.2 Preparing the Electrical System

Although the connection of WG2 to the electrical mains is beyond the

scope of this manual, we wish to remind you that:

•The power supply line must be laid and connected by a

qualified professional electrician.

•Alternatively, have a suitably protected 16A "shuko" outlet

installed, where you can plug in WG2.

•The power supply line must be protected from short circuits

and ground leakage; a device must be provided to enable the

disconnection of the power supply during the installation and

maintenance of WG2 (the plug with outlet are suitable for this

purpose).

3.2.1 Connection to the Electrical Mains

3.3 Installation of the Various Devices

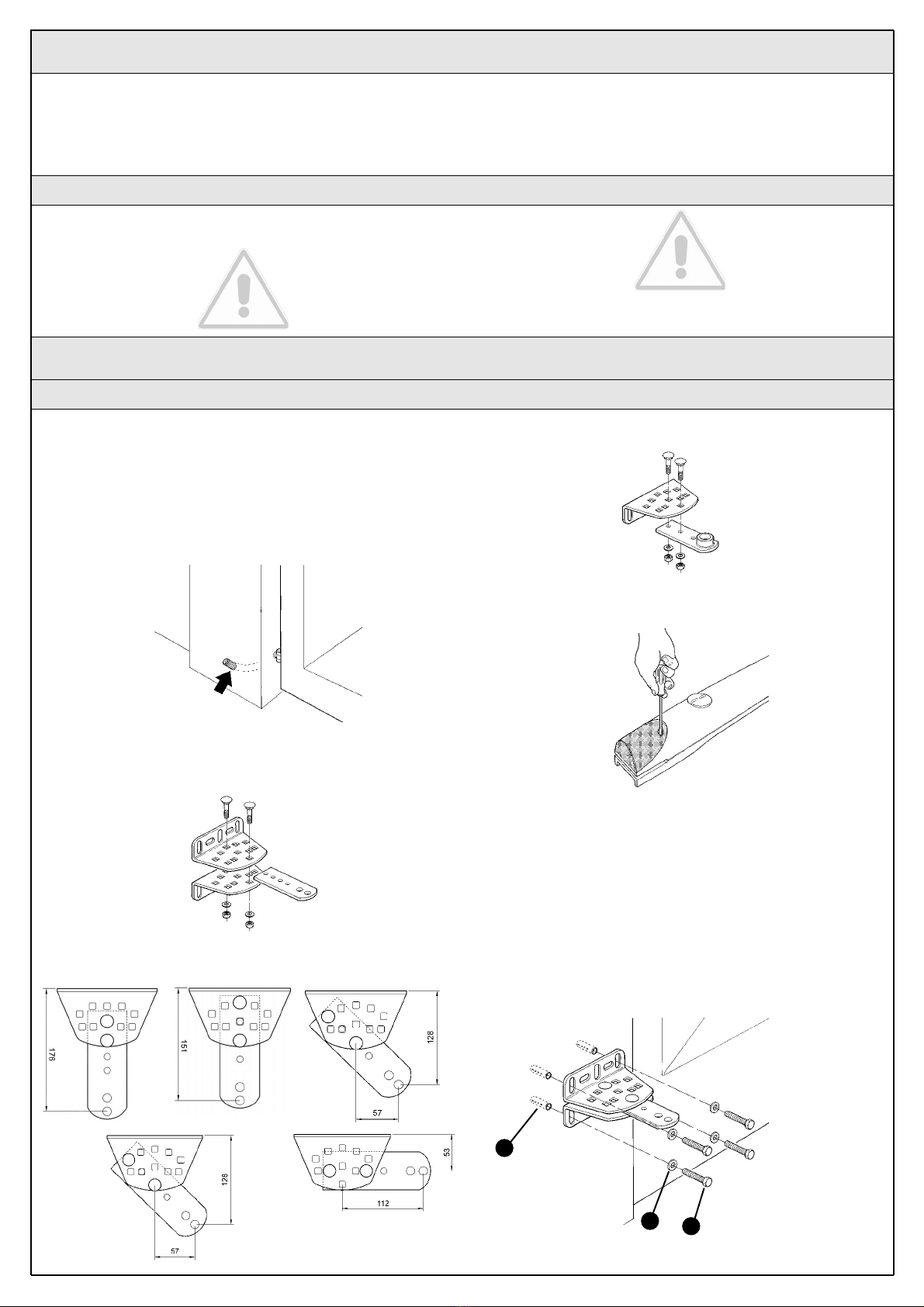

3.3.1 WG1 gearmotor mounting

Figure 15

Figure 16

Figure 18

Figure 19

Figure 17 Figure 20

Other manuals for WG2

Table of contents

Other Mhouse Gate Opener manuals

Mhouse

Mhouse MhouseKit WK2 User manual

Mhouse

Mhouse WG2 Manual

Mhouse

Mhouse WG10SK Product manual

Mhouse

Mhouse MhouseKit WS2S User manual

Mhouse

Mhouse WG20 Product manual

Mhouse

Mhouse MhouseKit WS2S User manual

Mhouse

Mhouse MhouseKit WG2S User manual

Mhouse

Mhouse WT1S Product manual

Mhouse

Mhouse MhouseKit PF Product manual

Mhouse

Mhouse MhouseKit WS2S User manual

Mhouse

Mhouse SL1S User manual

Mhouse

Mhouse SL1 User manual

Popular Gate Opener manuals by other brands

Elite

Elite CSW200UL instruction manual

CAME

CAME FROG-PM4 installation manual

SOMFY

SOMFY FX230 installation manual

Aprimatic

Aprimatic ONDA 500 installation instructions

Turnstiles

Turnstiles FSW 900 manual

Erreka

Erreka BUL BL33 Quick installation and programming guide

Erreka

Erreka VULCAN S manual

Beninca

Beninca R1-2 WBV quick start guide

Erreka

Erreka VULCAN D user manual

Motorline professional

Motorline professional FORT User& installer's manual

Beninca

Beninca BOB5024 manual

AGA

AGA GATEMASTER 900 HD installation manual

Chamberlain

Chamberlain MotorLift HC280ML Mechanical installation

SOMFY

SOMFY Dexxo RTS Pro INSTALLATION INSTRUCTIONS-ILLUSTRATIONS

Cardin

Cardin BL Series manual

Westfalia

Westfalia 85 27 06 instruction manual

CAME

CAME F500 installation manual

Extel

Extel VERA quick guide
