MGE UPS Systems Comet EXtreme CLA User manual

51033776EN/AA - Page 1

www.mgeups.com MGE UPS SYSTEMS

Comet

EXtreme CLA

6 kVA

Installation manual

Page 2 - 51033776EN/AA

51033776EN/AA - Page 3

... and checking the contents

1. Unpacking

Comet EXtreme CLA 6 kVA

Tower model

Rack model

Comet EXtreme CLA module.

connection cable.

documentation.

telescopic rails and 19" rack mounting hardware.

Page 4 - 51033776EN/AA

Mounting the rails in the rack.

The rails and the screws required to mount them are included in the box.

2.1 Mounting (Rack model)

2. Installation

51033776EN/AA - Page 5

2.2 Checking equipment compatibility

Check that the UPS and CLA modules are compatible:

2.3 Batteries to be used

Use only 12 V / 65 Ah lead-acid batteries.

Connect them as indicated below to obtain the required backup time:

2. Installation

This operation may be carried out only by qualified electricians using the necessary safety equipment for work on live parts

(insulated tools, gloves, goggles).

The connection of each module to the electrical supply must be protected by an easily accessible circuit

breaker (not supplied). A module can be isolated from the electrical supply by opening this circuit

breaker.

Before making any connections or working on the equipment, make sure the battery circuit breaker is in OFF

position and that the main contacts of the upstream protective devices of the electrical installation are open (OFF

position).

For maximum battery life, CLA and UPS modules must be installed in the same room as batteries so that the automatic

regulation of the charge voltage as a function of temperature can work correctly.

2.4

Connecting the batteries to the

Comet EXtreme

CLA module

UPS no.

Comet EXtreme CLA 6kVA 51033060 or 51033061

Comet EXtreme CLA 6kVA Rack 51033561

CLA no.

51033069

51033569

2 hours

Comet EXtreme CLA 6kVA 1 string of 20

12V / 65Ah batteries

4 hours 8 hours

2 parallel-connected strings of 20

12V / 65Ah batteries

3 parallel-connected strings of 20

12V / 65Ah batteries

Backup time

Page 6 - 51033776EN/AA

2. Installation

L +

BATTERIE/BATTERY

L -

25A

12V-65Ah

Use a 3-conductor cable (shielded, max.

length 6 m, 3 x 4 mm2conductors) to be

passed through the shielded cable gland.

Use a 25 A circuit breaker

(curve B) for protection.

Note: the cable and circuit breaker are not

supplied with the product.

1. Prepare the cable.

2. Unscrew the plate and dismantle the

metal cable gland on the Comet EXtreme

CLA module.

3. Mount the cable gland on the shielded

cable.

4. Connect the 3 conductors to the terminal

block and refit the plate.

5. Connect the other end of the cable to the

circuit breaker.

2.5 Connecting the Comet EXtreme CLA module to the power source

L +

RESEAU/MAINS/NETZ

Use a flexible cable (3 x 2.5 mm2

conductors) to be passed through the plastic

cable gland.

Always connect the earth wire

first. Use a 10 A circuit breaker

(curve C) for protection.

Note: the cable and circuit breaker are not

supplied with the product.

1. Prepare the cable.

2. Unscrew the plate with the plastic cable

gland.

3. Connect the 3 conductors and remount

the plate.

51033776EN/AA - Page 7

2. Installation

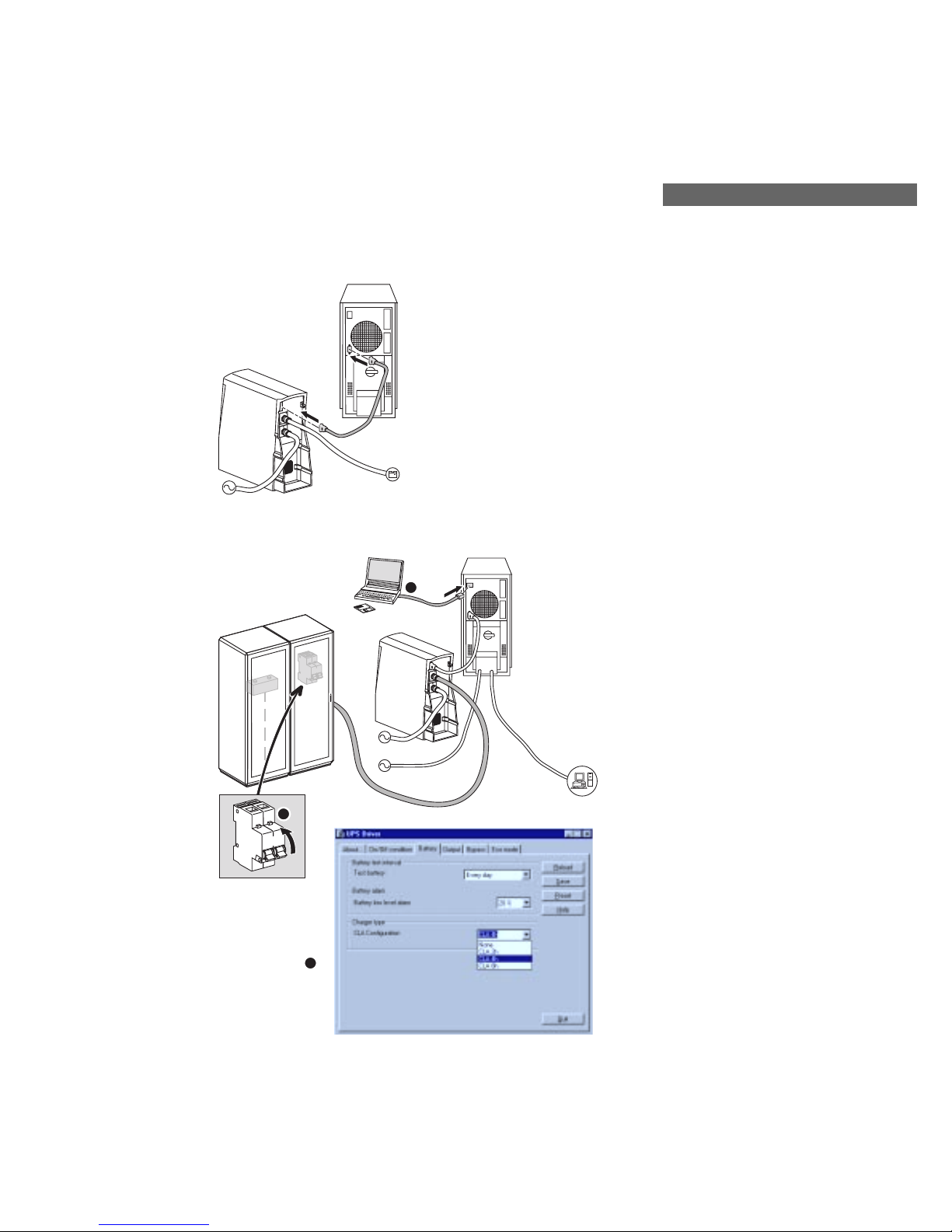

2.6 Connecting the UPS to the Comet EXtreme CLA module

Use the connection cable supplied with the

module.

2.7 Setting the UPS

Before connecting the loads to be protected

and starting the system, the UPS must be

reconfigured using the UPS Driver software

supplied on a diskette with the UPS.

1. Switch the battery circuit breaker to ON

position.

2. Connect a PC to the UPS using an RS232

cable.

3. Run the UPS Driver software installed on

a diskette. Go to the "battery" menu and

select the battery backup time (2, 4 or 8

hours) corresponding to the new

configuration.

Once the backup time has been set, click to

save the settings and exit UPS Driver. This

procedure is necessary for fast recharge of

the batteries by the Comet EXtreme CLA.

The installation is now ready and you can

connect the equipment to be protected.

50A

12V-65Ah

25A

Page 8 - 51033776EN/AA

Weight in kg

Dimensions and weights

3. Technical specifications

Comet EXtreme CLA

Tower model

Rack model

0.75 x Pn 0.5 x Pn

Dimensions in mm (H x W x D)

443 x 173 x 465

177(4U) x 483 x 462

Rated

power (Pn)

2-hr CLA

4-hr CLA

8-hr CLA

2 hrs 30 min

5 hrs 40 min

9 hrs

3 hrs 20 min

7 hrs 30 min

13 hrs 40 min

5 hrs 20 min

13 hrs 40 min

21 hrs

Recharge time

(to 90% full backup time)

2-hr CLA

9 hrs

4-hr CLA 8-hr CLA

15 hrs 21 hrs

Operating voltage and frequency of the Comet EXtreme CLA

Battery backup times

Voltage: 160 to 260 V.

Frequency: Same as that of the UPS.

Recharge time and current

The total recharge current is 5.5 A whatever the configuration.

5103377600/AA

MGE UPS SYSTEMS

140, Avenue Jean Kuntzmann

ZIRST - Montbonnot St Martin

38334 - Saint Ismier Cedex - France

www.mgeups.com

Nothing will stop you now

5103377600-AA
