ROHRTEST-4, v. 8.8 MESSEN NORD GmbH
page 5

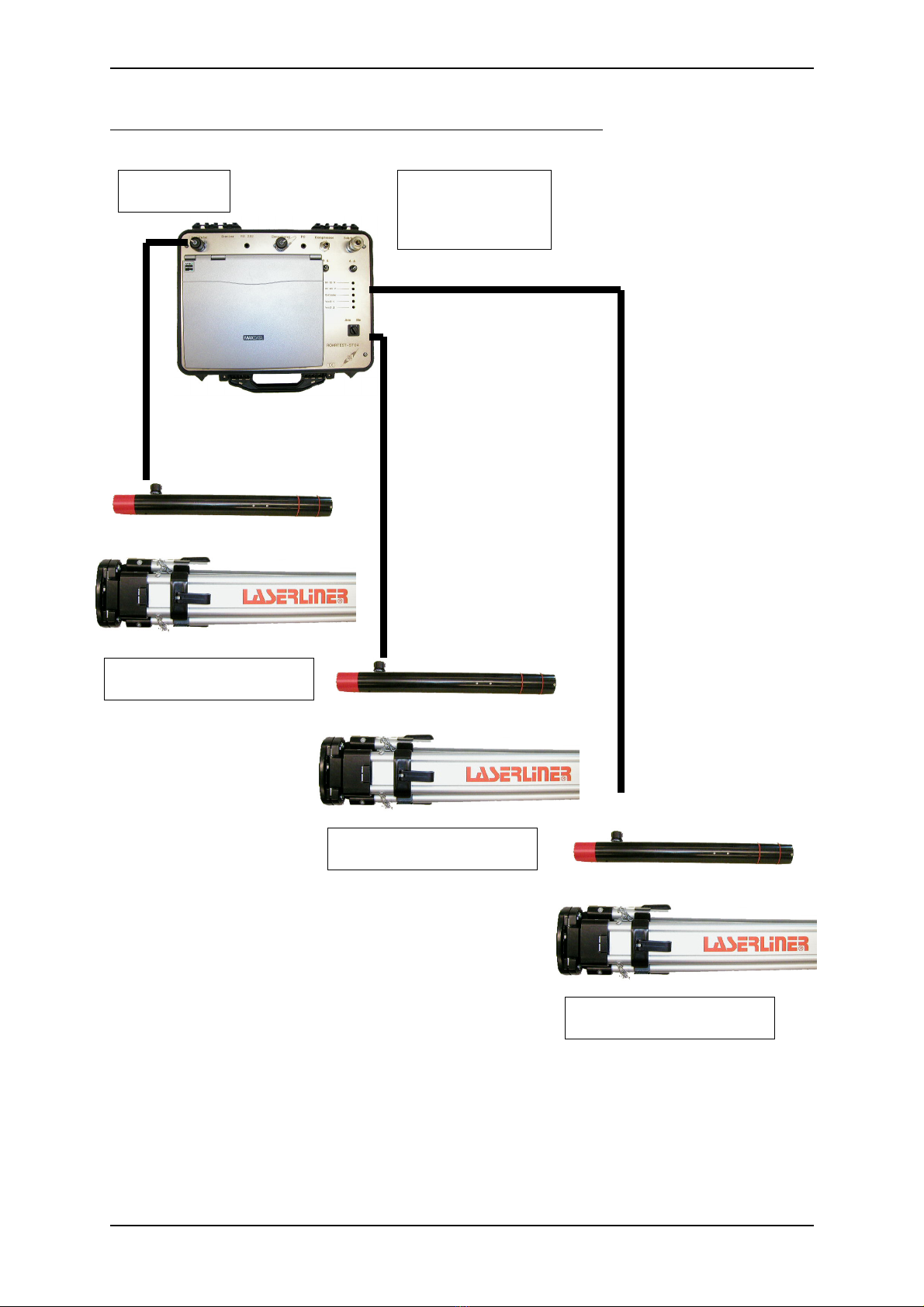

System-components Test procedures
Control unit, integrated AIR/VACUUM (RT-ST04) This unit is required for all Test procedures,
contains measuring-equipment for AIR / VACUUM
tests, supplie unit, data-transformers and test
controller for all measuring-facilities
Tests acc. to EN 1610 (L) i.e.
External measuring equipment AIR (RT-EXTL) External Filling and measuring unit for testing high
pipe dimensions, application directly at the pipe
fastener, makes filling procedure fast and save
Tests acc. to EN 1610 (L) i.e.
Measuring-equipment SHAFT (RT-SP04) Shaft and separator-tests acc. to EN 1610,
ATV/DWA M 143/6, EN 858-1, EN 858-2, DIN
1999-100, DIN 4040-100 i.e.
Measuring-equipment WATER (RT-WA04) Allows water loss tests by automatic supplying
and measuring the lost water. Unit can keep up a
given pressure or a level in connection with
external sensors.
Tests acc. to EN 1610 (W) i.e.
External water pressure sensor
(RT-EXTW)
Allows in connection with RT-WA04 the water loss
test by keep up the water start level. Apllication of
the pressure sensor directly at the pipe fastener.
Tests acc. to EN 1610 (W) i.e.
External water pressure sensor
(nozzle model) (RT-EXTWR)
Allows in connection with RT-WA04 the water loss
test by keep up the water start level. Apllication of
the pressure sensor at the drain outlet.
Tests acc. to EN 1610 (W) i.e.
Measuring-equipment HIGH PRESSURE
(RT-HD04)
Tests of DIN EN 805 as well as. the former Norm
DIN 4279 (water, high pressure)
Air-distribution-unit (RT-LV04) Muffs and stand-tests with compressed air after
ATV/DWA M 143/6, DIN EN 1610, Control of the
tests and blister-pressure for Max. 4 Fasteners as
well as a Junction test fastener
Junction test fastener (RT-MU04) Manually driven reel with connection-management
100 m to the Junction test fasteners over only one
hose-management with interior-lying main lead for
measuring-sensor, air-control and observation-
camera
Optional fade-in of the Test parameter into the
video-picture
