Memorex MMP3780 - 1 GB Digital Player User manual
User’s Guide
Guía del usuario
MMP3780
Before operating this product, please read these instructions completely.
Antes de operar este producto, lea este instructivo en su totalidad.
1GB MP3/WMA
Digital Audio Player
Reproductor de audio digital
MP3/WMA con 1GB
COPYRIGHT:
• Distributing copies of MP3, WMA with DRM or WAV tracks without permission is a
violation of international copyright laws.
SAFETY:
• Vibration experienced during walking or exercising will not affect the player. However,
dropping the player or dropping a heavy object on the player may result in damage or
sound distortion.
• Avoid spilling any liquid onto or into the player.
• Do not leave the player in a location near heat sources; in a location subject to direct
sunlight, excessive dust, sand, moisture, rain or mechanical shock; on an unlevel
surface; or in a car with the windows closed during periods of excessive heat.
ROAD SAFETY:
• Do not use headphones while driving, cycling or operating any motorized vehicle. It
may create a traffic hazard and it is illegal in some areas. It can be potentially
dangerous to play your headset at a high volume while walking, especially at pedestrian
crossings. You should exercise extreme caution or discontinue use in potentially
hazardous situations.
FCC WARNING:
• This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless the
modifications are expressly approved in the instruction manual. The user could lose
the authority to operate this equipment if an unauthorized change or modification is
made.
PRECAUTIONS
1
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
2
FCC DECLARATION
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: 1) This device may not cause interference, and 2) This
device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shield cable must be used with this unit to ensure
compliance with class B FCC limits.
Dear Customer:
Selecting fine audio equipment such as the unit you’ve just purchased is only the start
of your musical enjoyment. Now it’s time to consider how you can maximize the fun
and excitement your equipment offers. This manufacturer and the Electronic Industries
Association’s Consumer Electronics Group want you to get the most out of your
equipment by playing it at a safe level. One that lets the sound come through loud and
clear without annoying blaring or distortion and, most importantly, without affecting
your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher
volumes of sound. So what sounds “normal” can actually be loud and harmful to your
hearing. Guard against this by setting your equipment at a safe level BEFORE your
hearing adapts.
To establish a safe level:
• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion.
Once you have established a comfortable sound level:
• Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future.
After all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment.
Since hearing damage from loud noise is often undetectable until it is too late, this
manufacturer and the Electronic Industries Association’s Consumer Electronics Group
recommend you avoid prolonged exposure to excessive noise. This list of sound levels
is included for your protection.
3
Decibel
Level Example
30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE:
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet engine
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
4
A
S
S
O
C
I
A
T
I
O
N
EST. 1924
E
L
E
C
T
R
O
N
I
C
I
N
D
U
S
T
R
I
E
S
EIA
We
LISTENING
For A Lifetime
Want You
LOCATION OF CONTROLS
5
1
2
3
4
5
6
7
8
9
10
1. MIC (Microphone)
2. USB Jack
(USB CABLE PART NO.
337-01000-E050*)
3. Display
4. Battery Compartment
(Rear of Unit)
5. Stop ■/Power Off Button
6. Play/Pause ®p/Power
On button
7. Headphones Hangstrap Hole**
8. Navigation Control: (clockwise)
Navigation π/Volume +
Navigation ®/Skip/Search n
Navigation †/Volume -
Navigation √/Skip/Search o
Menu/Enter (center)
9. Headphones Jack**
(Bottom of Unit)
(HEADPHONES PART NO.
261-32201-E001*)
10. LOCK Switch
(Bottom of Unit)
*Consumer Replaceable Part
(See page 36 to order.)
**The headphones included with this unit
come with a necklace and a detachable
hangstrap.
USING THE NECKLACE STRAP
6
Unscrew the detachable hangstrap
from the headphones/necklace.
1
Insert the cord through the hangstrap hole.
2
Loop the cord around the locking piece
and pull until tightened. Screw the
detachable hangstrap back onto the
headphones/necklace.
3
7
BATTERY INSTALLATION
When the bars in the battery indicator (in the display) become low (see Figure 1),
replace the battery as follows.
1. Disconnect the headphone plug from
the Headphones jack on the bottom of
the unit. Then, remove the Battery
Compartment cover on the rear of the
unit by sliding it out.
2. Insert one (1) “AAA” battery, following the
polarity indicated in the Battery Compartment,
as shown in Figure 2. An alkaline battery is
recommended for the longest playing time.
3. Slide the Battery Compartment cover back
onto the rear of the unit.
BATTERY PRECAUTIONS
Follow these precautions when using a battery in this device:
1. Use only the size and type of battery specified.
2. Be sure to follow the correct polarity when installing the battery as indicated. Reversed
batteries may cause damage to the device.
3. If the device is not to be used for a long period of time, remove the battery to prevent damage
or injury from possible battery leakage.
4. Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.
(Follow battery manufacturer’s directions.)
Figure 1
Figure 2
FULL 50% EMPTY
8
DOWNLOADING AND TRANSFERRING FILES
SUPPORTED OPERATING SYSTEMS
This unit is compatible with the following Operating Systems:
Windows ME, 2000 and XP or Mac 9.2X
Please refer to the following pages to learn how to: transfer files, convert music on
an audio CD into MP3 or WMA format using Windows Media Player 10, transfer
MP3/WMA files and WMA files with DRM 9 using Windows Media Player 10, and
safely remove your unit from the computer.
NOTE: Visit www.Microsoft.com to download the corresponding Windows Media
Player for your computer.
DOWNLOADING AND TRANSFERRING FILES (CONT.)
9
TRANSFERRING FILES
You can download digital music files from the Internet or use encoding software to
convert music that you have on an audio CD into MP3 or WMA format. Once these
files are stored on your computer you can easily copy them to your player.
For Windows XP, if you have Windows Media Player 10, you can transfer music
files (MP3, WMA, WMA files with DRM 9) to the player through the "Sync" function
of Windows Media Player 10. Connect your computer to the USB port on your
computer using the USB cable.
“Removable Disk” will appear in
your "My Computer" folder which
indicates the player is connected.
Then, follow the procedure on page
12 to transfer music files to the
player.
For Windows ME, Windows 2000 or Windows XP (without Windows Media
Player 10),transfer music files as follows:

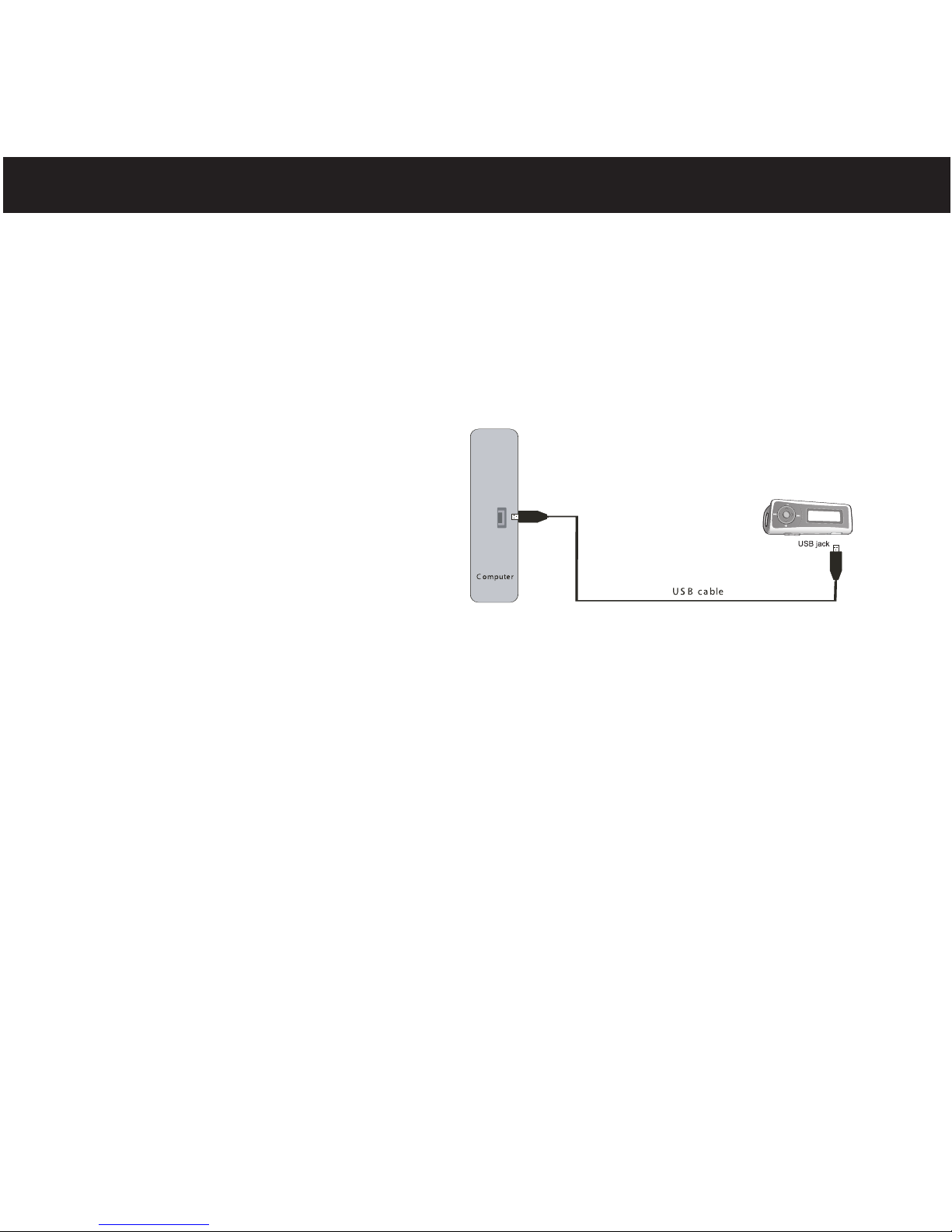

1. Connect your player to the USB port on your computer using the USB cable as
shown above.
2. A "Removable Disk" window will automatically pop-up on your computer screen.
3. To add more files and songs to your player, simply drag and drop MP3 or WMA
files/folders from anywhere on your computer into the "Removable Disk" window.
IMPORTANT: A WMA file with DRM 9 will not play back if you directly drag and drop
it into the "Removable Disk" window.You must use Windows Media Player 9 or 10
to transfer copy-protected files as described on page 12.
