Meistergram PRO 150 Series User manual
Quick Reference Guide
PRO 150x Series
For models PRO1501, PRO1502,
PRO1504, PRO1506 and PRO1508
2
3
Contents
Overview
Machine Overview……………………..4
Initial Power Up………………………..6
Power Resume…………………………7
Controller Overview…………………...8
Keypad Overview……………………...9
Function Keys…………………………11
Screen Overview………………………12
Infomational Side Bar…………………13
Status Icons……………………………14
Controller Functions
Sewing Mode …………………………18
Idle (Float) Mode……………………...19
Thread Trim Function…………………20
Head Rotate Function…………………20
Needle Selection………………………21
Arrow Keys……………………………21
Design Rotate/ Mirror Image………….22
Go to Last Position…………………….22
Return to Start…………………………23
Color Change Mode…………………...24
“How To”
Load Designs from USB………………26
Select Design to Sew…………………..28
Changing Design Parameters………….30
Setting Color Sequence………………..32
Viewing a Design……………………...34
Deleting a Design……………………...35
Perimeter Trace………………………..36
Float through Design without Sewing…37
Move to Any Stitch…………………….38
Machine Functions
Thread Break detection………………...42
Machine Back Up………………………43
4

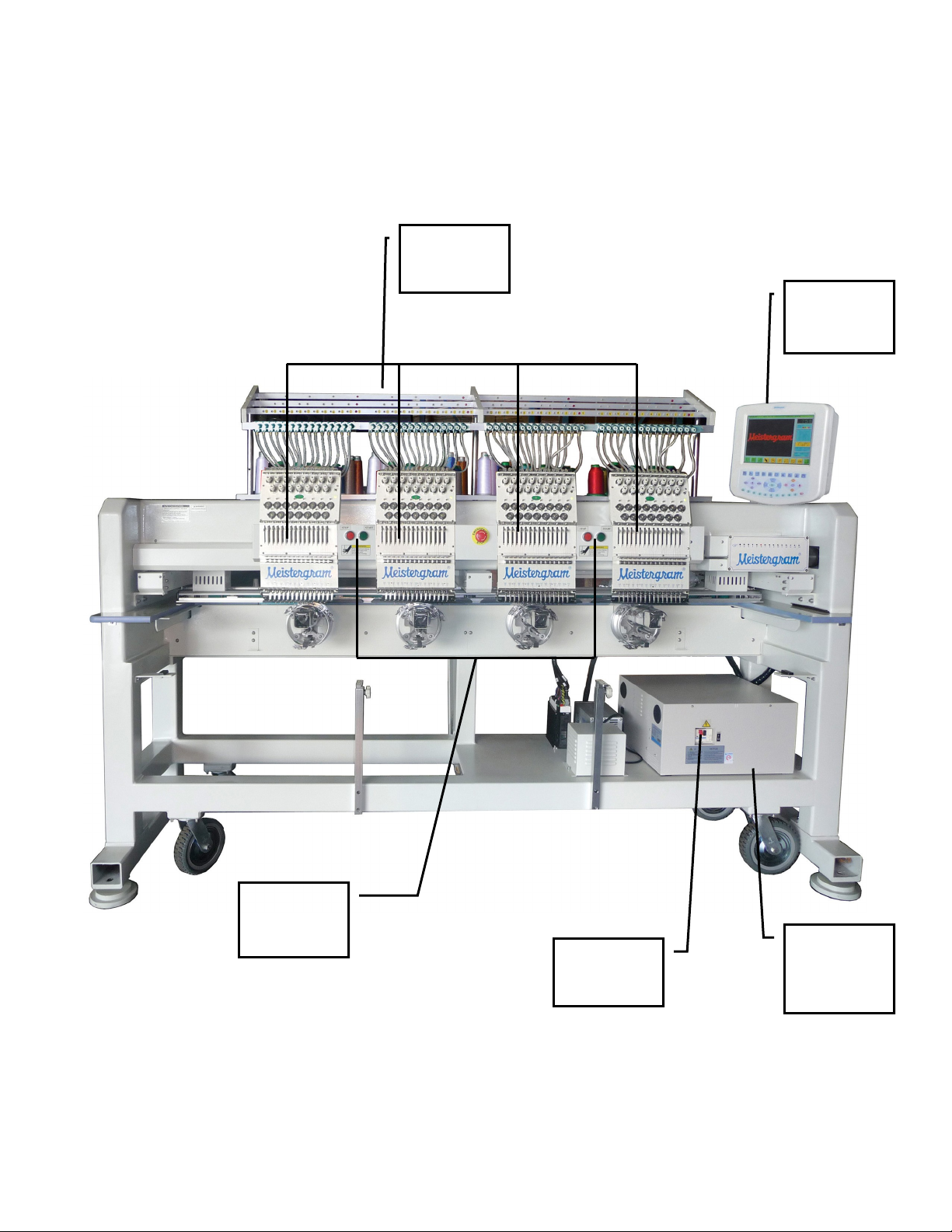

Machine Overview
Machine
Controller
Power
Control
Box
Power
Switches
Sewing
Heads
Start/ Stop
Switches
5

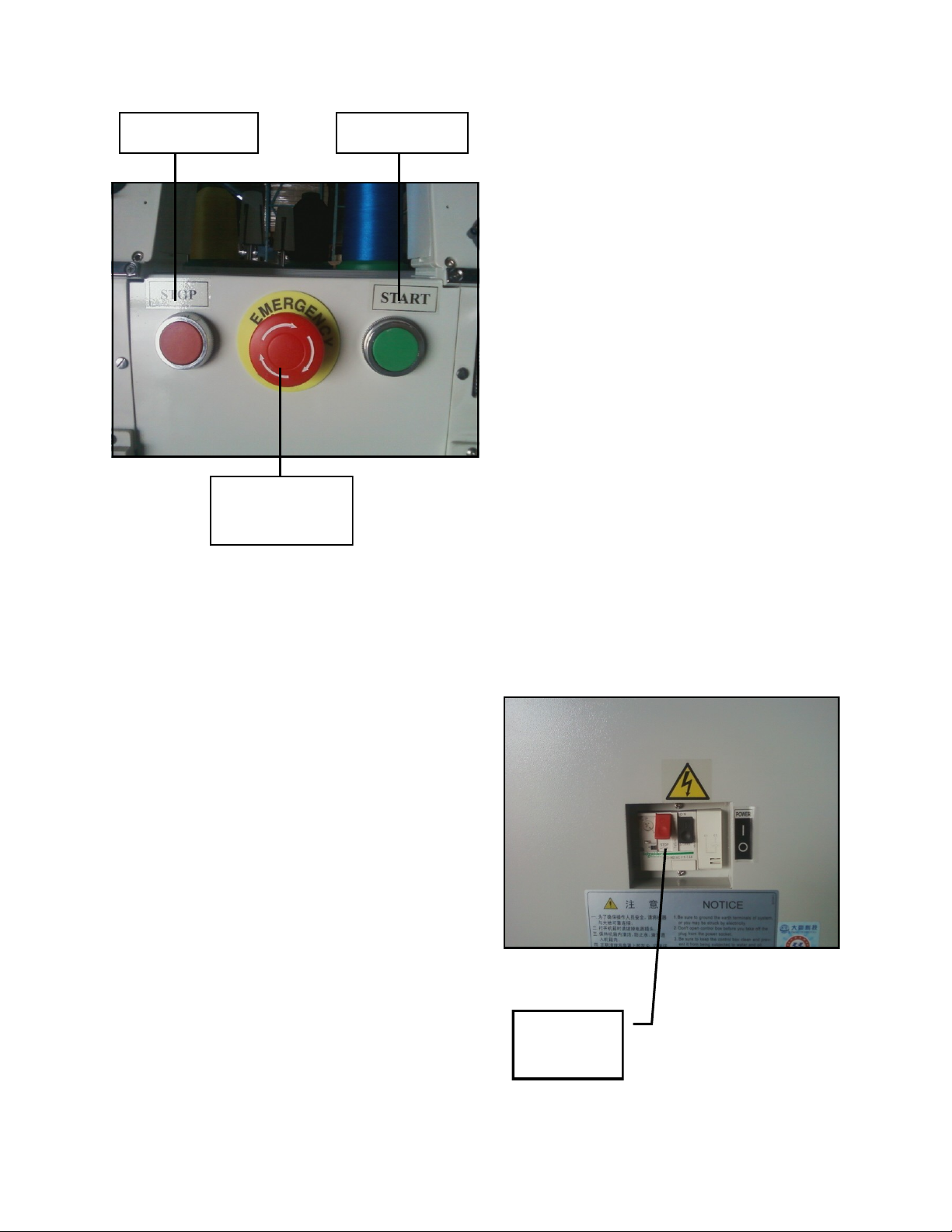

Stop Switch Start Switch
Emergency
Stop Switch
The Start and Stop Switches are used
to begin and end sewing.
Additionally:
The Start switch if it is pressed and
held at any time during sewing, will
make the machine sew in Slow
Speed.
The Stop switch is used to reverse or
back up the machine for mending.
The Emergency Stop switch is used
to cut power to the machine in case
of an emergency. To restore power to
the machine, the Emergency Stop
switch must be unlocked by turning
it clockwise. Then the machine may
be powered up normally.
Power
Switches
To turn on the machine, press in the
black Power Switch.
To turn off the machine, press in the
red Power Switch.
6

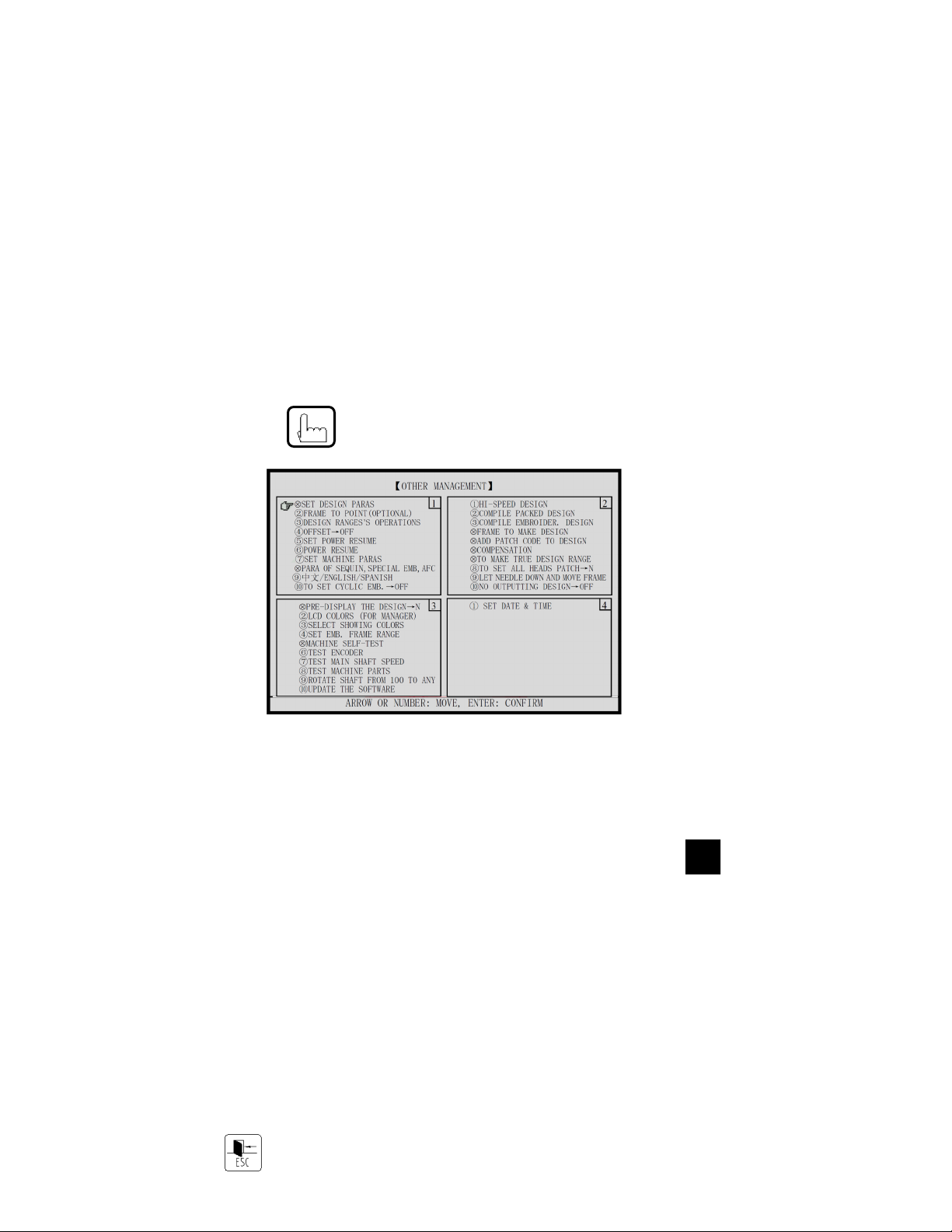

Initial Power Up
Upon initial power up of the machine, it is recommended that the Zero Point of
the machine is reset. The Zero Point is an electronic reference point for the
machine to base the frame movement calculations. It also allows the machine to
recover accurately from a power failure, even if the frame is moved while the
power is off.
To set the Zero Point on the machine, first be sure any hoops are
off of the machine and the table is clear.
Then press the key. The Assistant Menu will appear.
Press 5 to select SET POWER RESUME/ ZERO POINT and
press Enter. A prompt will appear on the bottom of the screen.
MANUALLY, SET “ZERO” POINT Y
Press the down Arrow Key to change the value to “N”.
Another prompt will appear.
ENTER: SET POWER RESUME AND FRAME
Press Enter to continue. The frame will move to the back right
corner of the machine and then return to its original spot.
Press the key to exit the Assistant Menu.
7

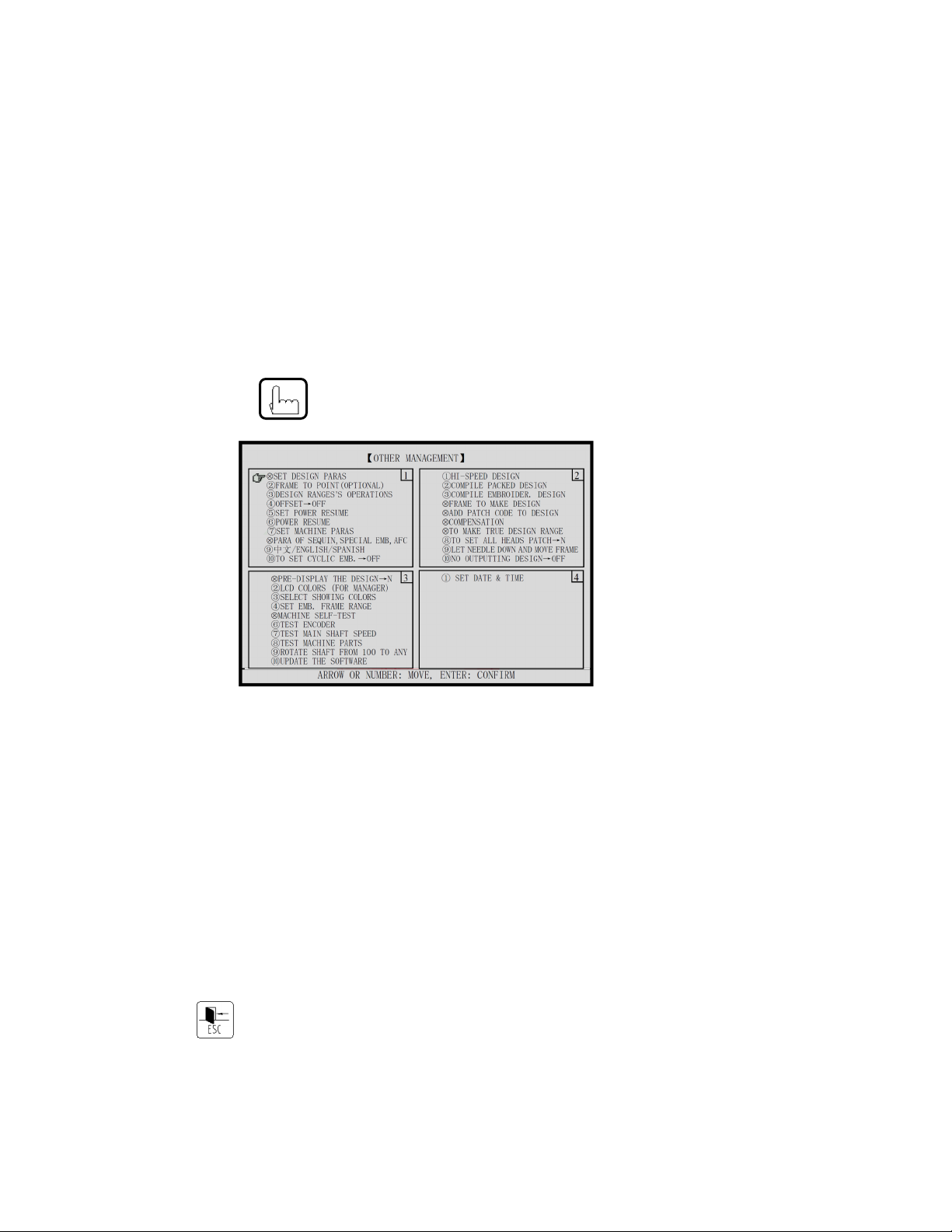

Power Resume
The machine can will return to the same stitch it left off in the event of a power
failure. However, if the frame has been moved while the power was disconnected,
the design placement may be off. To insure proper frame accuracy, use Power
Resume any time power is restored to the machine.
To activate the Power Resume feature, first be sure any hoops are
off of the machine and the table is clear.
Then press the key. The Assistant Menu will appear.
Press 6 to select POWER RESUME and then press Enter. A
prompt will appear on the bottom of the screen.
ENTER: SET POWER RESUME AND FRAME
Press Enter to continue. The frame will move to the back right
corner of the machine and then return to its original position of the
frame before the power was removed.
Press the key to exit the Assistant Menu.
8
Controller Overview
Function
Status
Indicators
LCD
Display
Funtction and
Control Keys
9
Keypad Overview
Function
Status
Indicators
Function Keys
See pages following
page for description
Access
Help
Menu
Enter Key
Toggle
between High
Speed and
Low Speed
3Arrow Keys.
Typically for
moving the frame.
Also used for
navigating menus
Speed Control
Also used to
Page Up and
Page down
menus
Cycle sewing
head to proper
position
Display
Production
information. Also
used to change
value in some
menus
Clear
Key
Set
Sewing
Mode
Escape Key
Used to escape
out of any
menu.
Display
Design
information
+10 Key
Use in conjunction with
the Numeric Keypad to
input values of 10 or
higher
10
