1. Introduction

Features

NetFeeler II (USB) can detect variation in temperature, humidity and presence of water. When an event

occurs, NetFeeler II (USB) alarm will buzz. It can also be configured to simultaneously send an email

thru NetAgent II (3-port model). When connected to NetAgent, it can then provide environment status

feedback (temperature, humidity and water presence) via the internet using a standard browser. It can also

be used with the following add-on devices

Smoke Sensor Gas Sensor

Door/Window Sensor Glass-Break Sensor PIR Sensor

Specifications

Humidity Specification

Detection Range

0 to 100% Relative Humidity non-condensing

Accuracy

±3.0% Relative Humidity

Response Time

10 Seconds

Temperature

Range

-40℃to +75℃(-40℉to +167℉)

Temperature Specification

Detection Range

-40℃to +70℃(-40℉to +158℉)

Accuracy

±3℃

Response Time

10 Sec.

RFSpecification

Detection Range

6~10 meter visible range

Frequency

315MHZ

Sensitivity

-105dB

Power Specification

-5.3 V 500 mA supplied by NetAgent , or

-DC Adaptor

Hardware

NetFeeler II

Temperature /

Humidity Sensor

Water Sensor

Built-In

(1)Alarm Buzzer

(2)RF Receiver

RFID Switch Setting

RS232 Port

DC Input

Reset

Power

Water Sensor

Alarm

NetFeeler USB

USB Cable

Type A or Mini B

DC Input

Temperature /

Humidity Sensor

Water Sensor

Built-In

(1)Alarm Buzzer

(2)RF Receiver

RFID Switch Setting

Reset

Power

Alarm

2. NetAgent Connection and Setting

NetFeeler and NetAgent Connection

Netfeeler II

Netfeeler USB

NetAgent II 3 Ports

NetAgent 9 W/USB

DY807

DY806

Mini B

Type A

NetAgent Settings

the type of NetFeeler II that connects with NetAgent and then click onApply

NetAgent Alarm Notification

NetFeeler andAlarm Status can be monitor under Information > NetFeeler of NetAgent’s webpage

3. RFID Settings

Each sensor has 2 sets of ID that needs to be configured (1) RFID (2) Sensor ID，this can be adjust by

using jumper.

(1)RFID：It combines by 8 sets of jumper with H/Lor +/- to pair with NetFeeler RFID

(2)Sensor ID：It combines by 4 sets of jumper with H/L or +/- to identifying different sensors.

Each is allocated a default binary or DIP equivalent settings. Only the binary references for smoke and

gas sensors are fixed. The binary references from 1 to 7 are interchangeable.

┿

━

┿

━

Jumper on HN

Jumper on LN

Jumper Indication

Binary

Sensor ID Table

Sensor Type

ID (Binary)

NetAgent Webpage Display

Gas

0100 (Default)

Gas Status

Smoke

0101 (Default)

Smoke Status

Door/Window/Glass-Break/PIR

1000

Security Status 1

Door/Window/Glass-Break/PIR

1001

Security Status 2

Door/Window/Glass-Break/PIR

1010

Security Status 3

Door/Window/Glass-Break/PIR

1011

Security Status 4

Door/Window/Glass-Break/PIR

1100

Security Status 5

Door/Window/Glass-Break/PIR

1101

Security Status 6

Door/Window/Glass-Break/PIR

1110

Security Status 7

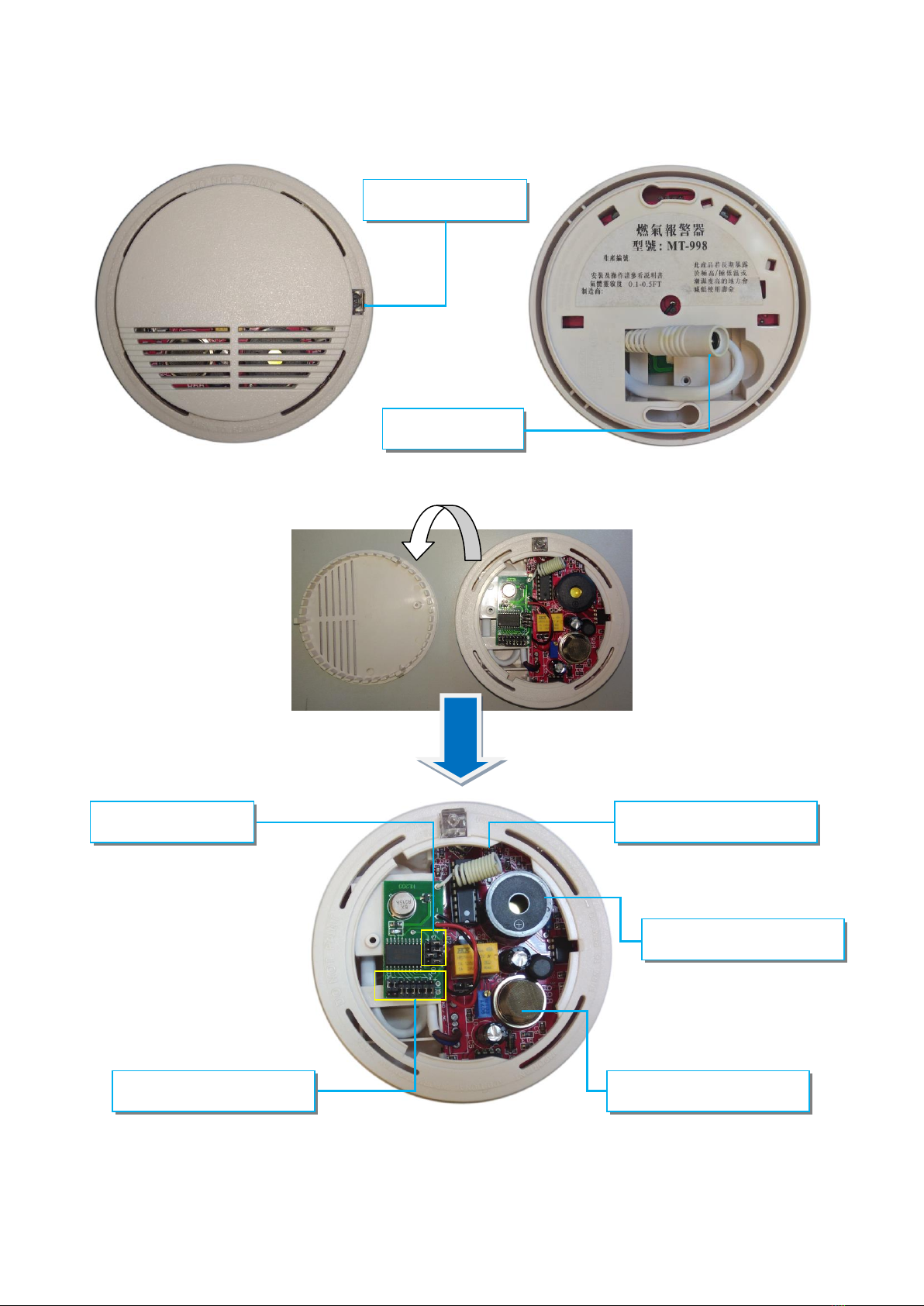

Gas Sensor

Alarm Test Button

DC 9V~12V

Sensor ID Setting

RFID Setting

RF Antenna

Detector

Buzzer
