Medicus Gluco Dr. Plus User manual
A412DA303
08/2015
AGM-3000
BLOOD
GLUCOSE
MONITORING
SYSTEM
User Manual
Blood Glucose Monitoring System
EU Representative
MT Promedt Consulting GmbH
Altenhofstr. 80, D-66386 St. Ingbert, Germany
Tel.: +49 6894 - 58 10 20
#7102~7107, #7402, #7403, #7406, 140,
Beolmal-ro, Dongan-gu, Anyang-si,
Gyeonggi-do 431-804 REPUBLIC OF KOREA
www.allmedicus.com
Manufactured by
All Medicus Co., Ltd.
This summary is intended only as a
quick reference and is not a substitute
for GlucoDr Plus Blood Glucose
Monitoring System User Manual.
Please read the entire this User
Manual before you begin testing.
TEST SUMMARY
Check the code number.
Press the power button to
turn on the meter. Check
the code number. The code
number displayed on the
meter must match the one
on the test strip vial.
Insert a test strip.
The meter will
automatically turn on.
Apply the blood drop
to the side edge of
the yellow window of
the test strip.
Wait for the blood
drop to completely ll
the yellow window of
the test strip, then the
meter will begin the
countdown.
The blood glucose
result will be
displayed on the
meter in just
5 seconds.

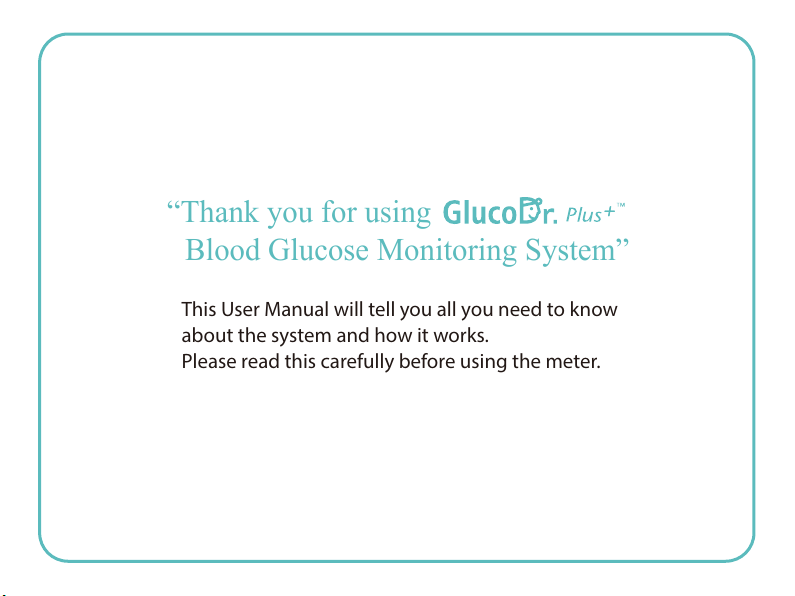

This User Manual will tell you all you need to know
about the system and how it works.
Please read this carefully before using the meter.
“Thank you for using
Blood Glucose Monitoring System”
Test Principle
The blood sample is drawn into the test strip's reaction chamber through capillary action. Glucose in the
sample reacts with glucose dehydrogenase and mediator in the test strip. This reaction creates electrical
currents. The electrical currents produced are proportional to the glucose concentration in the blood
and converted to the equivalent glucose concentration values calculated based on the algorithm
programmed in GlucoDr Plus Meter.
- The GlucoDr Plus Meter is designed for use with GlucoDr Plus Test Strips
(manufactured by All Medicus Co., Ltd.) only.
- The GlucoDr Plus Blood Glucose Monitoring System is calibrated to produce values equivalent to results
on plasma specimens obtained from a laboratory analyzer (YSI 2300 STAT Plus).
- The GlucoDr Plus Blood Glucose Monitoring System should not be used for the diagnosis of diabetes.
Precautions for Use
For Self-testing: GlucoDr Plus Blood Glucose Monitoring System is for quantitative blood glucose testing
in fresh capillary whole blood drawn from the ngertips, palm, arm, thigh, and calf. The GlucoDr Plus Blood
Glucose Monitoring System is for testing outside the body (in vitro diagnostic use). The GlucoDr Plus Blood
Glucose Monitoring System
is
intended for use by diabetic lay users for self testing to improve management
of their blood glucose level. The GlucoDr Plus Blood Glucose Monitoring System should not be used for the
diagnosis of or screening of diabetes mellitus, or for neonatal use.
For professional use: GlucoDr Plus Blood Glucose Monitoring System is for quantitative blood glucose
testing in venous, arterial whole blood and fresh capillary whole blood drawn from the ngertips, palm,
arm, thigh, and calf. The GlucoDr Plus Blood Glucose Monitoring System is for testing outside the body (in
vitro diagnostic use). The GlucoDr Plus Blood Glucose Monitoring System is intended for use by healthcare
professionals to improve management of patient’s blood glucose level. The GlucoDr Plus Blood Glucose
Monitoring System should not be used for the diagnosis of or screening of diabetes mellitus, or for
neonatal use.
Intended Use
PRECAUTIONS
Precautions for Test Strip
- Store test strip vials in dry place with temperature ranging between 1~32℃(34~90℉).
- Avoid direct sunlight, heat and excessive humidity.
-
Always close the vial cap immediately after removing a test strip from the vial. If the test strip vial is left
open for a long time, the test strips will become unusable.
- Use the test strip immediately after removing it from the vial.
- Use all the test strips within 4 months after the rst opening.
- Store your test strips only in their original vial and do not transfer them to a new bottle or any other
container.
- Do not handle the test strip with wet hands.
- Do not use the test strip after the expiration date printed on the vial.
- Do not bend, cut, or alter the test strips.
- Do not insert the same test strip into the test port multiple times. It can lead to an improper operation.
Safekeeping
- Store the GlucoDr Plus Meter at a temperature between 0~40℃(32~104℉).
- Store the GlucoDr Plus Meter at a place where relative humidity is less than 85%.
- Keep the GlucoDr Plus Meter in sanitary environment.
- Keep the meter away from direct sunlight.
- Keep the test port away from dirt, blood or water.
- Do not store your meter and test strips in the car, the bathroom, or the refrigerator.
(sensitive to temperature and humidity)
- Keep the meter, test strip vials and lancing materials away from children.
- Clean the outside of the meter using a moist (not wet) cloth or tissue with isopropyl alcohol or mild
detergent with water. Do not immerse the meter in water or other liquid.
-
Rapid change in temperature may cause inaccurate test results in reading. When taking the meter from
cold to warm area or from warm to cold area, let the meter sit for about 30 minutes to adjust to the
room temperature.
- Do not drop the meter.
-
Do not disassemble, repair or remodel without consultation. The sensitive parts could be damaged and
the warranty will then become invalid.
- A hematocrit that is either very high (above 60%) or very low (below 20%) can cause false test results.
·
Getting Started
l 17
l 26
Installing Battery l 31
Display Message Guide l 33
Troubleshooting Guide l 38
Specications l 39
Performance Characteristics l 40
Explanation of Symbols l 41
·
Before Testing
·
Performing the Blood Glucose Test with GlucoDr Plus
TM
·
Using the Meter Memory Function
·
Setting the Meter
·
Caring for GlucoDr PlusTM Meter
·
Additional Information
Table of Contents
Entering the EVENT RECORD MODE l 21
Understanding Your Test Results l 23
Recalling the Previous Test Results l 24
Checking the Code Number l 06
Checking Your System with GlucoDr PlusTM Control Solution l 09
Preparing the Lancing Device l 14
GlucoDr PlusTM Blood Glucose Monitoring System l 01
GlucoDr PlusTM Meter l 02
GlucoDr PlusTM Meter LCD Display l 04
GlucoDr PlusTM Test Strip l 05
GlucoDr PlusTM Blood Glucose Monitoring System
Carrying case
User Manual
GlucoDr PlusTM Meter
GlucoDr PlusTM Test Strips
Battery
Lancing Device
Lancets
Upon request of distributor, actual package may consist of all
or part of items described above.
GlucoDr PlusTM Meter
- Insert the GlucoDr Plus Test Strip for testing. Then the meter
turns on and displays the code number automatically.
Test Port
LCD Display
UP/DOWN Button
- Change the code number in the CODE MODE.
- Recall the stored test result in the MEMORY MODE.
- Select an event in the EVENT RECORD MODE.
- Change the date and time in the SET MODE.
- Test results, icons, symbols and simple messages appear here.
Power Button
- Turn the meter on/o.
- Enter into dierent MODEs while pressing the power button.
(1 second : CODE MODE, 3 seconds : SET MODE)
- Delete all the stored test results in the MEMORY MODE.
Battery Cover
Data Port
- Transfer your test results from the meter
to a computer.
GlucoDr PlusTM Meter LCD Display
Battery life.
SET MODE.
AVERAGE MODE.
MEMORY MODE.
CODE MODE.
MEMORY and CODE NUMBER.
The meter displays the current memory order number in the MEMORY MODE.
The meter displays the current code number in the CODE MODE.
STRIP ICON.
When the STRIP ICON blinks, insert a test strip to the meter.
BLOOD DROP ICON.
When the BLOOD DROP ICON blinks, apply blood sample.
TEMPERATURE ICON.
When the meter is not used at a recommended temperature range, "Er1" and TEMPERATURE ICON appear.
CURRENT TIME and TEST TIME in the MEMORY MODE.
CURRENT DATE and TEST DATE in the MEMORY MODE.
UNIT OF MESUREMENT.
EVENT ICON.
If you choose an event icon which correlates to test results, it helps to manage glucose level more eectively.
ALARM.
You can set up to four dierent alarms. Each alarm rings for 10 seconds.
