Medialink Wifi Bridge User manual
1. Introduction
Thanks for choosing WiFi Bridge product. With this portable device, IP Camera and other IT

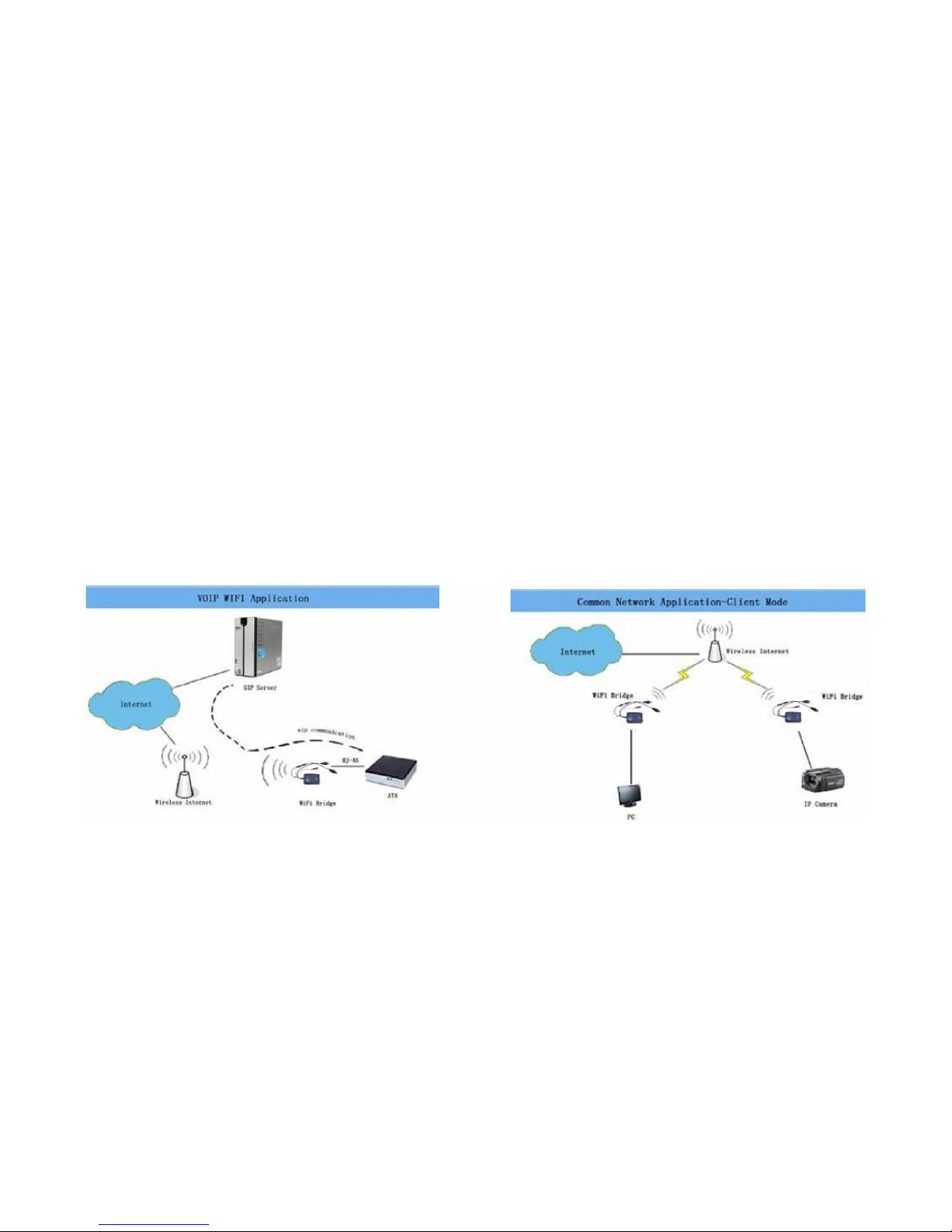

products with Ethernet RJ45 port can access wireless network easily. Two kinds of application
topology of are shown as below.
2. Setup

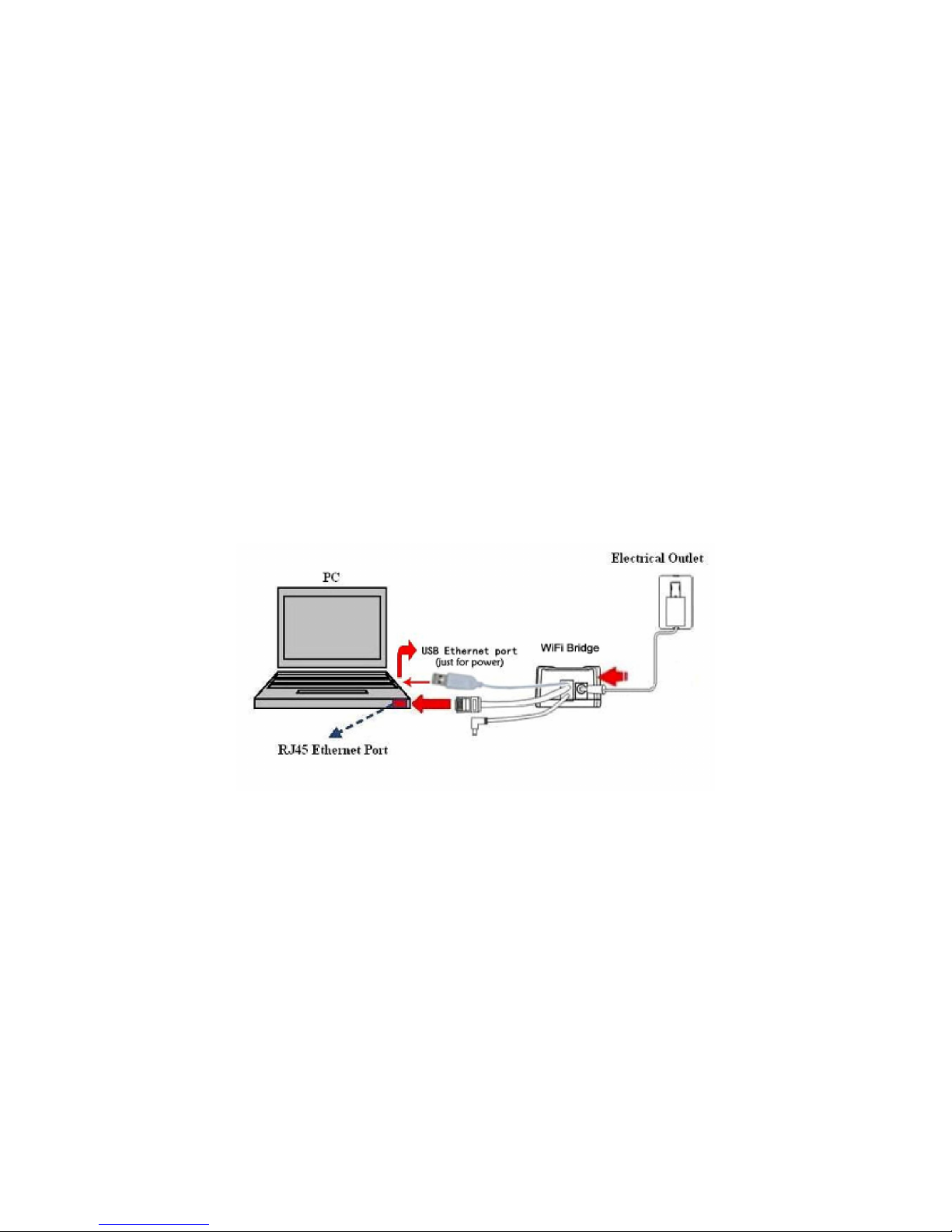

Please set this WiFi Bridge before using it, you can connect it to PC and run the autorun.exe in the
CD. The Physical Connection for Setup as below:
Running the SetupWizard

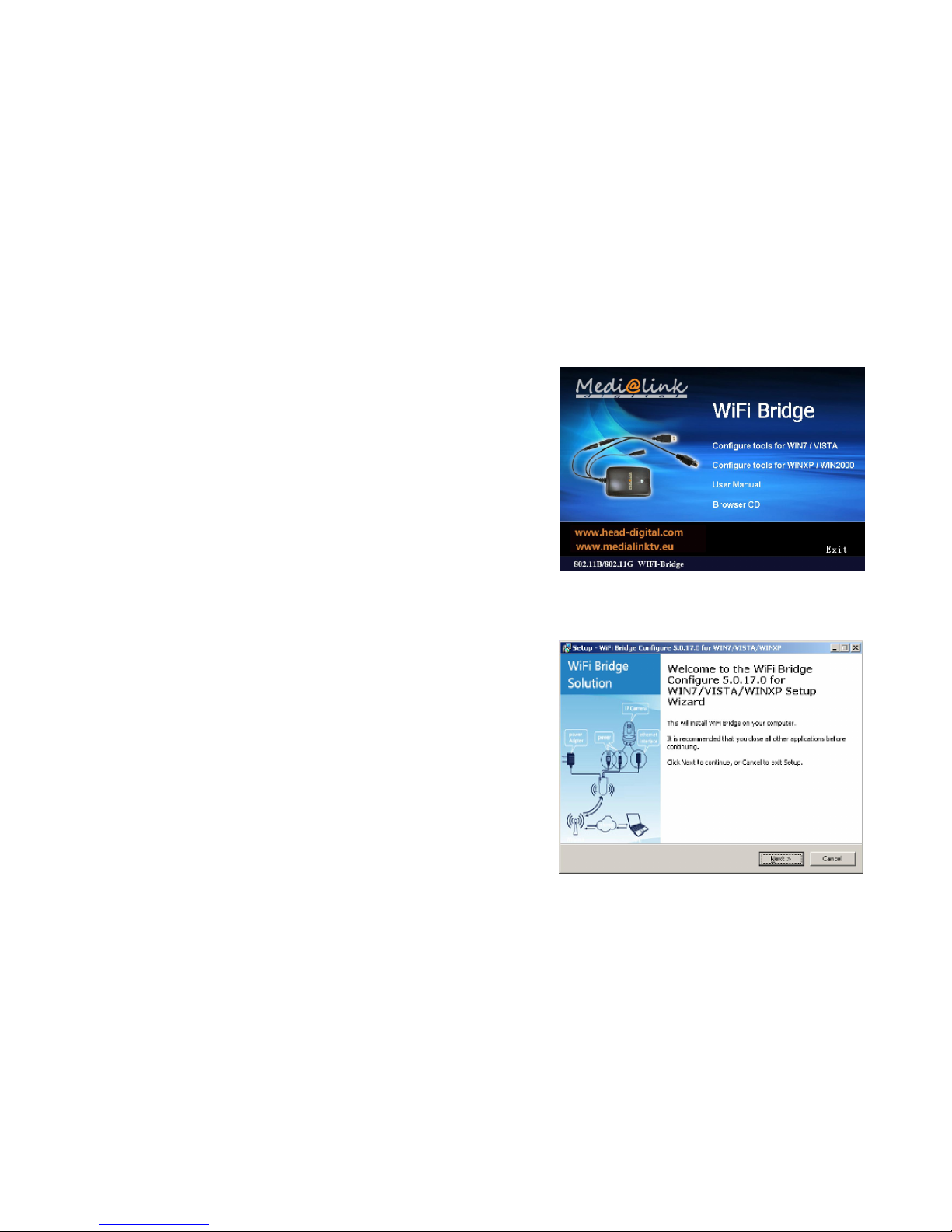

1) Please put into the CD-ROM, the systerm will
automatically eject the disk and guide page, please refer to
the right picture and click the corresponding label.
2) Please click Install Software label to run the set up
program, if it’s shown the right picuture, please click Next,
Click Cancel to exit the installationWizard.

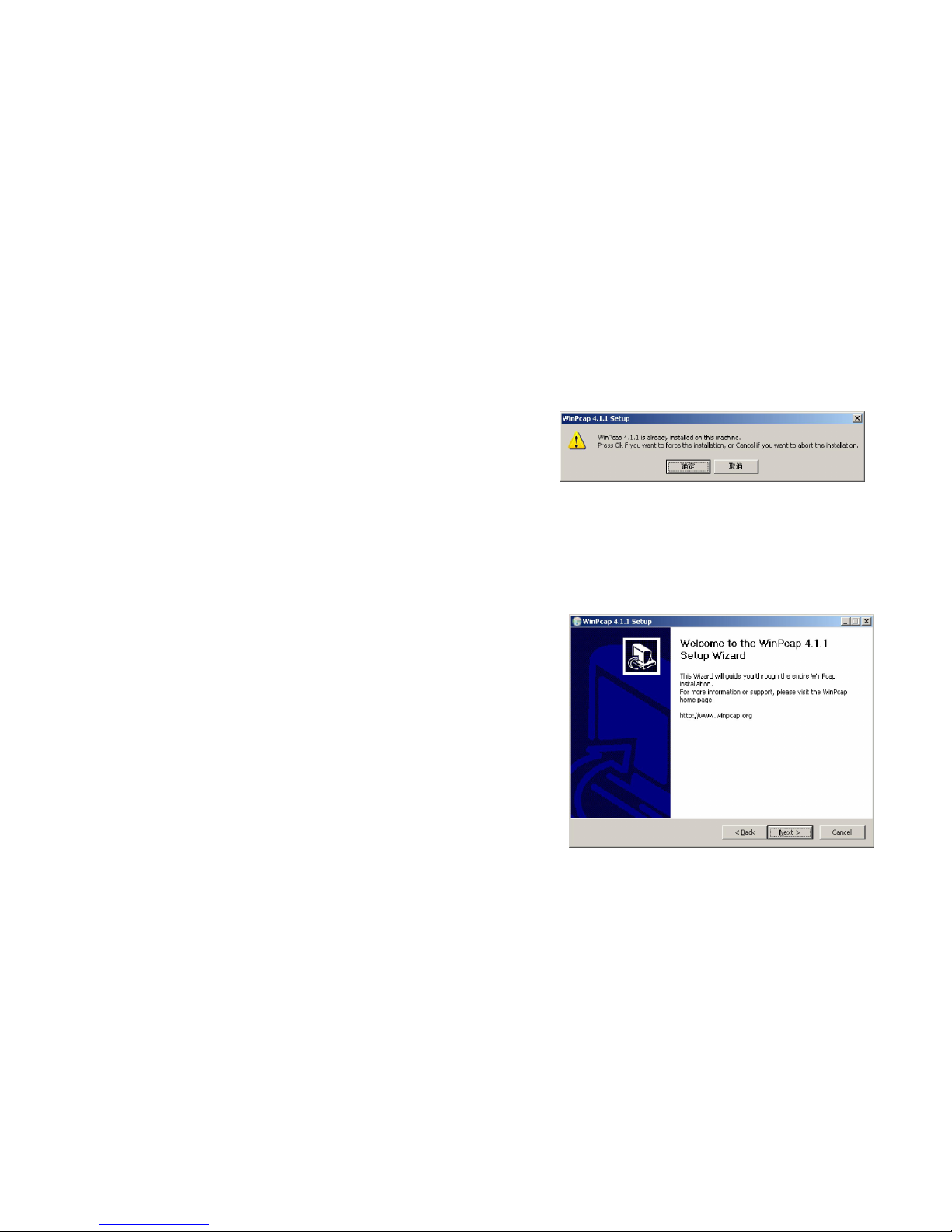

3) If it’s shown the right picture, please click Yes to install
WINPCAP program.
4) Please click Next, don’t need to do other settings until
Finish.

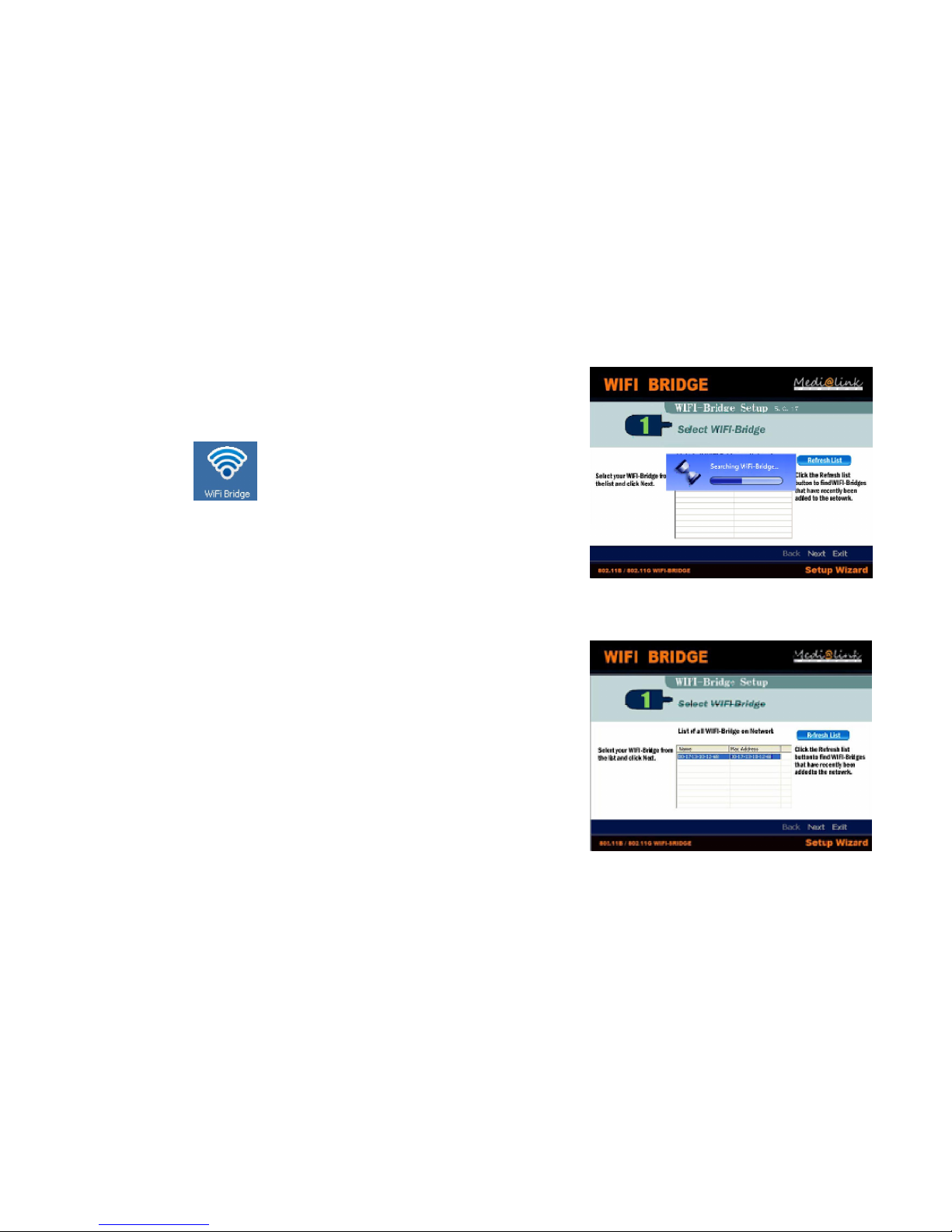

5) After the installation is complete, please double click the
desktop icon , the right picture shows it is searching
the product MAC.
6) The right picture shows it is complete to search MAC,
please Click Next.

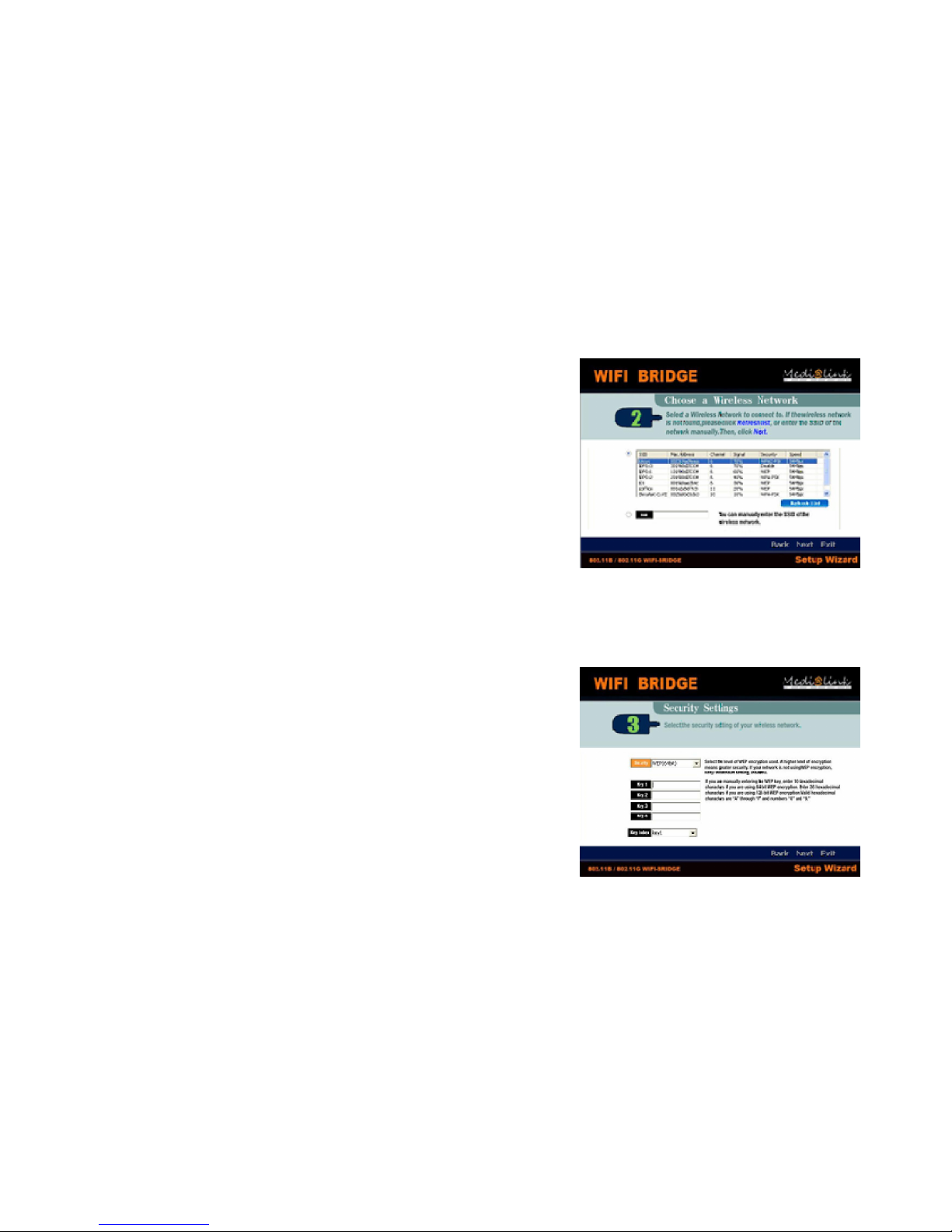

7) The right picture shows the product has searched theWiFi
network,please choose the correct WiFi Network.
WPA
WPA automatically uses TKIP with dynamic encryption keys. Enter a passphrase
on this screen.
Encryption - TKIP is automatically selected as the encryption method.
Click Next to proceed, or click Back to return to the previous screen.
WPA2
WPA2 automatically uses AES with dynamic encryption keys (AES is a stronger
encryption method than TKIP).Enter a passphrase on this screen.
Encryption - AES is automatically selected as the encryption method.
Click Next to proceed, or click Back to return to the previous screen.
WEP (128-Bit) or WEP (64-Bit)
Enter a passphrase in the Passphrase field and click Next. If you want to
manually enter a WEP key,leave the Passphrase field blank and click Next.
Key 1-4 - One to four fields will be displayed, depending on the level of encryption
you have selected. The WEP key you enter must match the WEP key of your
wireless network. For 64-bit WEP encryption, enter exactly 10 hexadecimal
characters. For 128-bit WEP encryption, enter exactly 26 hexadecimal
characters.Valid hexadecimal characters are “0” to “9” and “A” to “F”.
Key Index - The default transmit key number is 1. If your network’s access point
or wireless router uses transmit key number 2, 3, or 4, select the appropriate
number from the Key Index drop-down menu.
Click Next to proceed, or click Back to return to the previous screen.

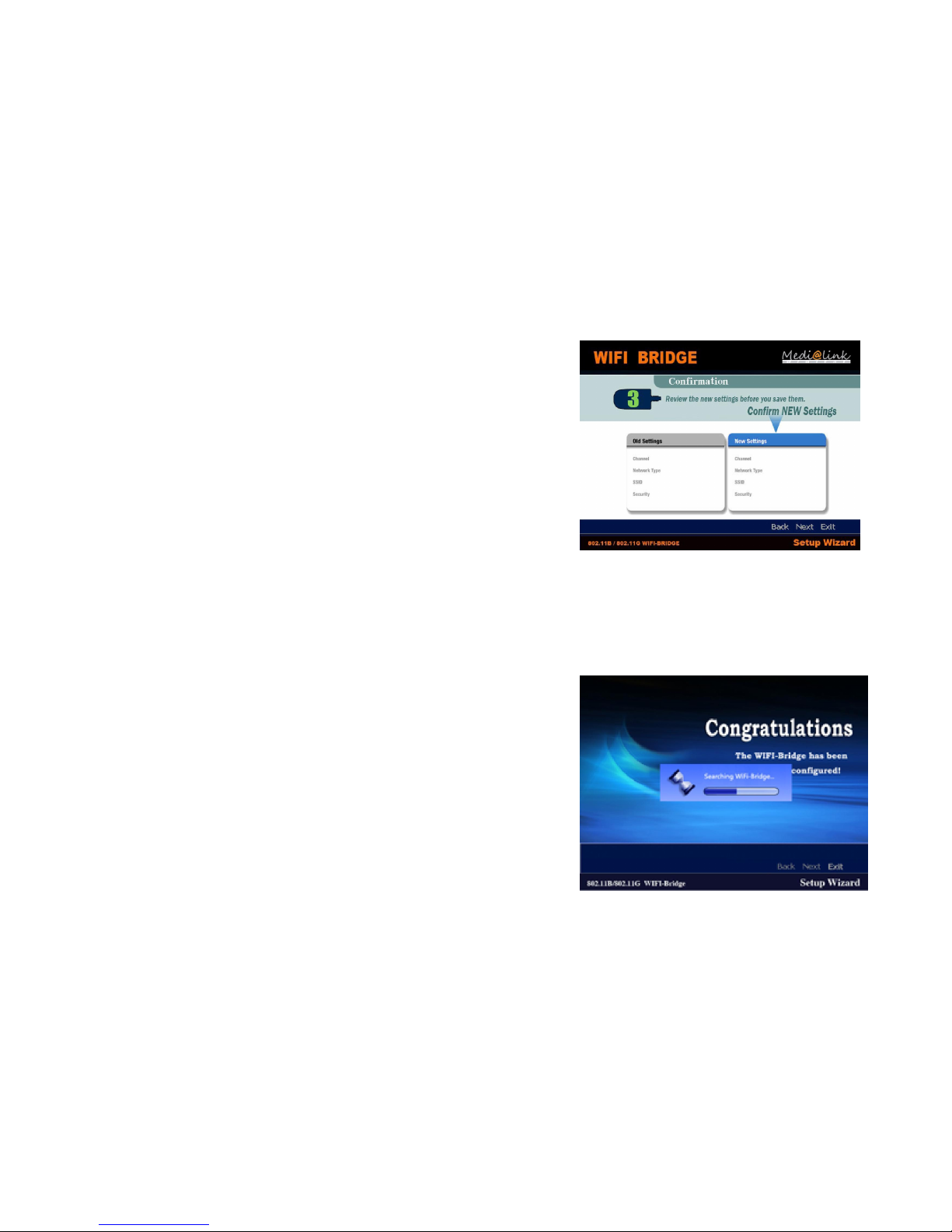

8） The New settings will be shown. Click Next to save your
new settings.
9） WiFi Bridge will attempt to connect the wireless network
with the new settings.
Make sure the Bridge’s Wireless LED is solidly lit or flashing. This indicates that the Bridge has connected to the wireless network.
If the attempt succeeds, proceed to screen 12.
If the attempt fails, you have two options offered by a pop-up screen. Click the Yes button to savethe new settings and proceed, or
click the No button to return to the Choose a Wireless Network screen and reconfigure the settings
10) The product is shown on the picture to obtain a gateway
router.
11) The right picture shows the product to obtain the gateway
router successfully completed all the configurations to this,
please click Successfully associated to wireless icon, then
click Exit to exit the installationWizard.
To make sure WiFi Bridge is working, cut off all other internet connection to the PC (only reserve
the connection between the PC and WiFi Bridge). If you setup WiFi Bridge successfully, the PC can
view internet now.
