INFORMATION FOR YOUR SAFETY!
THE FCC REGULATION WARNING (for USA)
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician
for help.
Unauthorized changes or modification to this system can
void the user's authority to operate this equipment.
CAUTION
The normal function of the product may be disturbed by
Strong Electro Magnetic Interference. If so, simply reset
the product to resume normal operation by following the
owner's manual. In case the function could not resume,
please use the product in other location.
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
Power Supply
Please connect the designated AC adaptor to an AC outlet
of the correct voltage.
Do not connect it to an AC outlet of voltage other than that
for which your instrument is intended.
Unplug the AC power adaptor when not using the
instrument, or during electrical storms.
Connections
Before connecting the instrument to other devices, turn off
the power to all units. This will help prevent malfunction and
/ or damage to other devices.
Location
Do not expose the instrument to the following conditions to
avoid deformation, discoloration, or more serious damage:
Direct sunlight
Extreme temperature or humidity
Excessive dusty or dirty location
Strong vibrations or shocks
Close to magnetic fields
Interference with other electrical devices
Radios and televisions placed nearby may experience
reception interference. Operate this unit at a suitable
distance from radios and televisions.
Cleaning
Clean only with a soft, dry cloth.
Do not use paint thinners, solvents, cleaning fluids, or
chemical-impregnated wiping cloths.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metallic, or other objects into the
instrument. If this happens, unplug the AC adaptor from the
wall outlet. Then have the instrument inspected by qualified
service personnel.
Disconnect all cables before moving the instrument.
2
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:52
Contents
3
Panel Description
Front Panel....................................................................................................................................4
Rear Panel.....................................................................................................................................5
Setup.............................................................................................................................................6
Part List..........................................................................................................................................6
Setup Guide...................................................................................................................................6
Power Supply.................................................................................................................................8
Connections.................................................................................................................................9
Connecting a pair of Headphones.................................................................................................9
Connecting an Audio Equipment...................................................................................................9
Connecting an MP3/CD Player......................................................................................................9
Connecting a Computer.................................................................................................................9
Adjusting the Volume................................................................................................................10
Listening to the Song................................................................................................................10
Playing Demo song......................................................................................................................10
Playing Song................................................................................................................................10
Practice Song...............................................................................................................................10
Playing Voices............................................................................................................................11
Selecting Voice.............................................................................................................................11
Playing two Voice Simultaneously................................................................................................11
Playing a Lower Voice..................................................................................................................11
Playing Voice Demo.....................................................................................................................11
Touch Response..........................................................................................................................11
Digital Effects.............................................................................................................................12
Reverb and Chorus Effect............................................................................................................12
EQ Effect......................................................................................................................................12
Metronome..................................................................................................................................12
Tempo.........................................................................................................................................12
Transpose...................................................................................................................................13
Tune.............................................................................................................................................13
Beep Tone...................................................................................................................................13
Troubleshooting.........................................................................................................................14
Specifications.............................................................................................................................14
Appendices.................................................................................................................................15
Voice List......................................................................................................................................15
Song List......................................................................................................................................15
MIDI Implementation List.............................................................................................................16
.........................................................................................................................4
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:54
Panel Description
Front Panel
1
2
3
4
5
4
1. MASTER VOLUME
Adjust the master volume.
2. FUNCTION Button
Hold down this button and press the special keys to
realize different functions.
3. START/STOP Button
Start/stop the song playing.
4. L/R Button
In song mode, you can press [L/R] button to select
which hand to practice.
5. VOICE SELECT Key
Hold down the [FUNCTION] button and press the
key to select a voice.
6. SONG SELECT Key
Hold down the [FUNCTION] button and press the
key to select a song.
7. TEMPO ADJUST Key
Hold down the [FUNCTION] button and press the
key to adjust the current tempo.
11. SOFT Pedal
Step on the soft pedal, all notes played on the keyboard
would have a softer effect.
12. SOSTENUTO Pedal
Step on the sostenuto pedal, the notes played before
you step on would have a sustain effect.
13. SUSTAIN Pedal
Step on the sustain pedal, all notes played on the
keyboard would have a longer sustain.
131211
6
8. POWER ON / OFF
Turn the power ON or OFF.
9. PHONES 1 AND 2
Connect the headphone
10. USB Jack
Connect to a computer.
8910
0 5 6 78 9
1 2 34
PanFl
Strings
Piano
Piano2
EPiano
Epiano2
Harpsic
Clavi
MBox
Vibraph
Marimba
DrawOr
PercOr
ChurOr
ChurOr2
ReedOr
RockOr
Acordio
Harmnic
StStr
StStr2
SynStr
ChoAah
SweetTp
SopSax
TenoSax Lower
SONG
VOICE
R
FUNCTION
MIN MAX
VOLUME
DEMO
SONG
/
L
01 2
TAP VOCAL
34567 8 9
TEMPO
7
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:54
VOCAL OFF 2341
OFF 2341
ON/
OFF 23456
0
METRONOME REVERB CHORUS BEEP
OFF 1 2 3
TRANSPOSE TUNETOUCH EQ VOICE
DEMO
1 2 3
Panel Description
Rear Panel
5
14 15 16 17
14. METRONOME Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn the metronome ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the time signature.
15. REVERB Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn reverb effect ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the reverb type.
16. CHORUS Key
Hold down the [FUNCTION] button and press the
[ON/OFF] key to turn chorus effect ON or OFF.
Hold down the [FUNCTION] button and press the
other key to select the chorus type.
17. TOUCH Key
Hold down the [FUNCTION] button and press the
key to select different touch response level.
18. EQ Key
Hold down the [FUNCTION] button and press the
key to select the EQ type.
19. TRANSPOSE Key
Hold down the [FUNCTION] button and press the
key to adjust the transpose value from -12 to 12
semitones.
20. TUNE Key
Hold down the [FUNCTION] button and press the
key to adjust the tune value from -50 to 50 (stand
for -100 to 100 cents).
21. VOICE DEMO Key
Hold down the [FUNCTION] button and press the
key to start/stop the voice demo playing.
22. BEEP Key
Hold down the [FUNCTION] button and press the
key to turn the prompt tone ON or OFF.
18 19 20
DC IN
23. AUX IN Jack
Connect an external sound source, such as an
MP3 or CD player.
24. AUX OUT Jack
Connect the audio equipment.
25. DC IN Jack
Connect the DC 15V power adaptor.
26. SPEAKER Jack
Connect the speaker.
27. PEDAL Jack
Connect to the pedals.
23 24 25 26 27
21 22
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:54
Setup
This section contains information about setting up your instrument and preparing to play. Please go through this section carefully
before turning the power on.

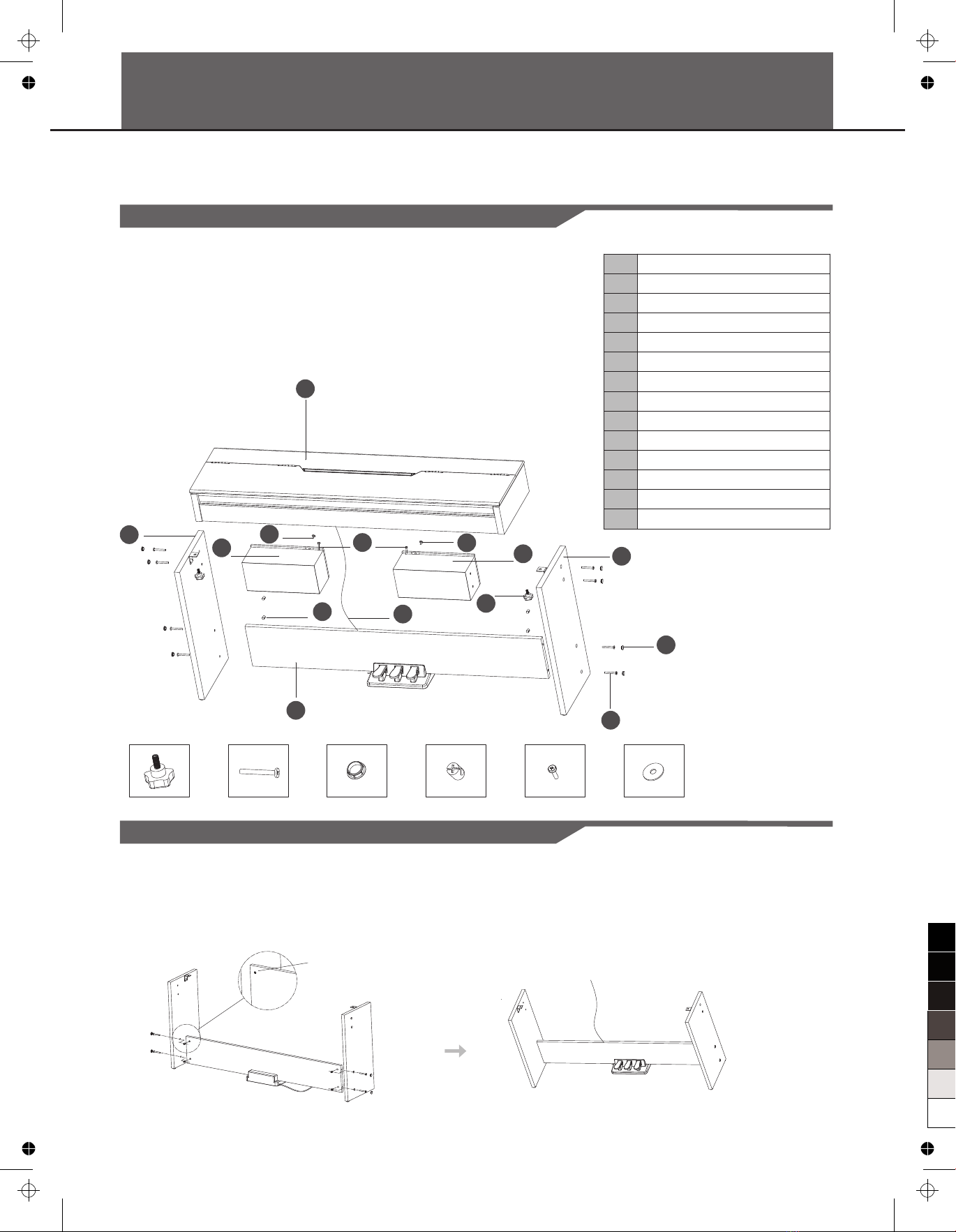

Part List
6
Before you proceeding to assemble the stand, get a Philip's
screwdriver (not supplied).
Make sure you have the following parts, which are supplied into
package.
Setup Guide
1. Piano body
2. ST side board left
3. Left speaker box
4. Speaker line
5. Right speaker box
6. Pedal line
7. Hand screw (2)
8. Pedal box
9. Φ6x50 "+" screw (8)
10. Screw cap (8)
11. ST side board right
12. Horizontal hole nut(4)
13. 4x15BM“+”screw(2)
14. Gasket(2)
STEP 1: First of all make 4 PCS Horizontal hole nut into the holes in
the pedal box as picture shown, ensure that Horizontal hole
nut hole is aligned with the pedal box holes, then use 4 PCS
Ф6x50 screws to fix the left/right ST board to the pedal box,
and cover the screw cap as shown.
1
2345
67
89
10
11
12
13 14
7. Hand screw (2) 9. Φ6x50 "+" screw (8) 10. Screw cap (8) 13. 4x15BM“+”screw(2)12. Horizontal hole nut(4) 14. Gasket(2)
After assembly horizontal hole nut
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:57
Setup
STEP 3: With 2 pcs hand screw fix the piano body and piano foot part
together as shown.
7
STEP 4: Use 2 PCS 4 x15 screws and gasket to fix Left/Right speakers
box, link the pedal line and speaker line according to the label,
then power it up.
STEP 2: With 4 pcs Φ6x50 "+" screws to fix the Speaker box to the ST
side boards and cover the screw caps as shown.
Speaker line connected to
on the bottom board
this socket
Speaker box line
Pedal line
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:58
Setup
Power Supply
1. Please make sure that POWER ON/OFF switch of the instrument is
set to OFF. Then turn the [VOLUME] knob to the minimum volume
level.
2. Connect the AC adaptor to the power supply jack.
3. Plug the AC adaptor into an AC outlet. And when turning the power
OFF, please simply reverse the procedure please.
4. Turn the power ON. The LED on the panel will light up.
Note:
When the keyboard is not in use or during thunderstorm, please
disconnect the power for safety purpose.
In order to save energy, we have designed the “Automatic Shutdown”
function to the piano. With this function, the piano will shutdown
automatically when you have left it idle for more than 30 minutes. If you
don’t need this feature, just press and hold the [A0] key (the 1st key)
and turn it on.
8
MIN MAX
VOLUME
AUX.IN AUX.OUT DC IN
0
PanFl
Strings
Piano
Piano2
EPiano
Epiano2
Harpsic
Clavi
MBox
Vibraph
Marimba
DrawOr
PercOr
ChurOr
ChurOr2
ReedOr
RockOr
Acordio
Harmnic
StStr
StStr2
SynStr
ChoAah
SweetTp
SopSax
TenoSax Lower
VOICE
R
FUNCTION
MIN MAX
VOLUME
DEMO
SONG
/
L
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:58
DC IN
DC IN
Connections
Connecting a pair of Headphones
A standard pair of stereo headphones can be plugged in here for
private practice or late-night playing.
Jack1:
stereo speaker system is automatically shut off . The sound can
be heard from headphones.
Jack2: When a pair of headphones is plugged into the Jack 2, the
sound can be heard from headphones and speakers of the
instrument.
Note：
Do not listen with the headphones at high volume for long periods of
time. Doing so may cause hearing loss.
When a pair of headphones is plugged into Jack 1, the internal
Connecting an Audio Equipment
The rear-panel AUX OUT jack delivers the output of the instrument for
connection to a keyboard amplifier, stereo sound system, a mixing
console, or tape recorder. Use an audio cord to plug into the AUX OUT
jack located on the rear board then plug the other end of the cord into
AUX IN of the amplifier.
Note:
To avoid damaging the speakers, please ensure that the volume has
been set to the minimum level before connecting the power and other
devices.
Connecting a Computer
Connect PC or other USB host devices that support USB audio.
For devices with USB cable, you can simply connect the MIDI/USB
converter to your USB connector on the device and plug the USB cable
into the piano, after the driver is installed and initialization is finished,
you can choose USB Audio Device in the device menu of the software
to transfer midi data.
Note:
Do not select USB audio device in both of input and output setting
together, otherwise the sound overlaps.
9
Connecting an MP3/CD Player
Connect the audio output of an MP3/CD player or other audio source
to the stereo AUX IN jack on the rear panel.
The input signal is mixed with the piano signal, allowing you to play
along.
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:58
R
FUNCTION
DEMO
SONG
/
L
Adjusting the Volume
While holding down the [FUNCTION] button, press [L/R] button to
start the demo song playing. And all the LEDs on the panel will flash
simultaneously.
Do it again or press [Start/Stop] button to stop playing, and the LED
will stop flash.
Note:
The keyboard would be disabled when the demo song is playing.
Listening to the Song
10
Rotate the [VOLUME] knob rightwards, the volume increases and vice
verse.
MIN MAX
VOLUME
Playing Demo song
Playing Song
There are total 60 songs in this digital piano (see Appendix).
Each song can be practiced in the MELODY OFF mode.
Start Song
While holding down the [FUNCTION] button, press [Start/Stop]
button to start the song playing. All songs will be played in a loop.
Loop
While only press [Start/Stop] button, it will play the current song
repeatedly.
Stop Song
Press [Start/Stop] button to stop the song playing.
Select Song
While holding down the [FUNCTION] button, press corresponding
keys in SONG selection area to select your desired song.
Note:
1. Press [song +] and [song –] keys simultaneously to select the first
song.
2. If you want to select song by the number keys, you should input 2
numbers. For example, if you want to select the eighth song, you
should input “08”.
Practice Song
In the song mode, you can press [L/R] button to select which
hand to practice and the status switch as following.
R
FUNCTION
DEMO
SONG
/
L
0567 8 9
1 2 34
SONG
RL
L ON
R ON
R RL L
L ON L OFF
R OFF R ON
0
5
25
75
95
100
aw_CDP5000_Manual_G12_160318
2016317 15:19:58
This manual suits for next models
1
Table of contents
Other Medeli Musical Instrument manuals
Medeli
Medeli CDP5200-BK User manual
Medeli
Medeli DP388 User manual
Medeli
Medeli KURTZMAN K700 User manual
Medeli
Medeli DP88 User manual
Medeli
Medeli DP660 User manual
Medeli
Medeli CDP6200 User manual
Medeli
Medeli Sp5500S User manual
Medeli
Medeli SP4200 User manual
Medeli
Medeli DP370 User manual
Medeli
Medeli SP5500 User manual
Medeli
Medeli DP70EU User manual
Medeli
Medeli sp 5100 User manual
Medeli
Medeli CDP5200 User manual
Medeli
Medeli AW GRAND 300 User manual
Medeli
Medeli CDP5200B User manual
Medeli
Medeli SDP-4 User manual
Medeli
Medeli DP 100 User manual
Medeli
Medeli DP263 Operating instructions
Medeli
Medeli GRAND1000 User manual
Medeli
Medeli Grand 1000 User manual
