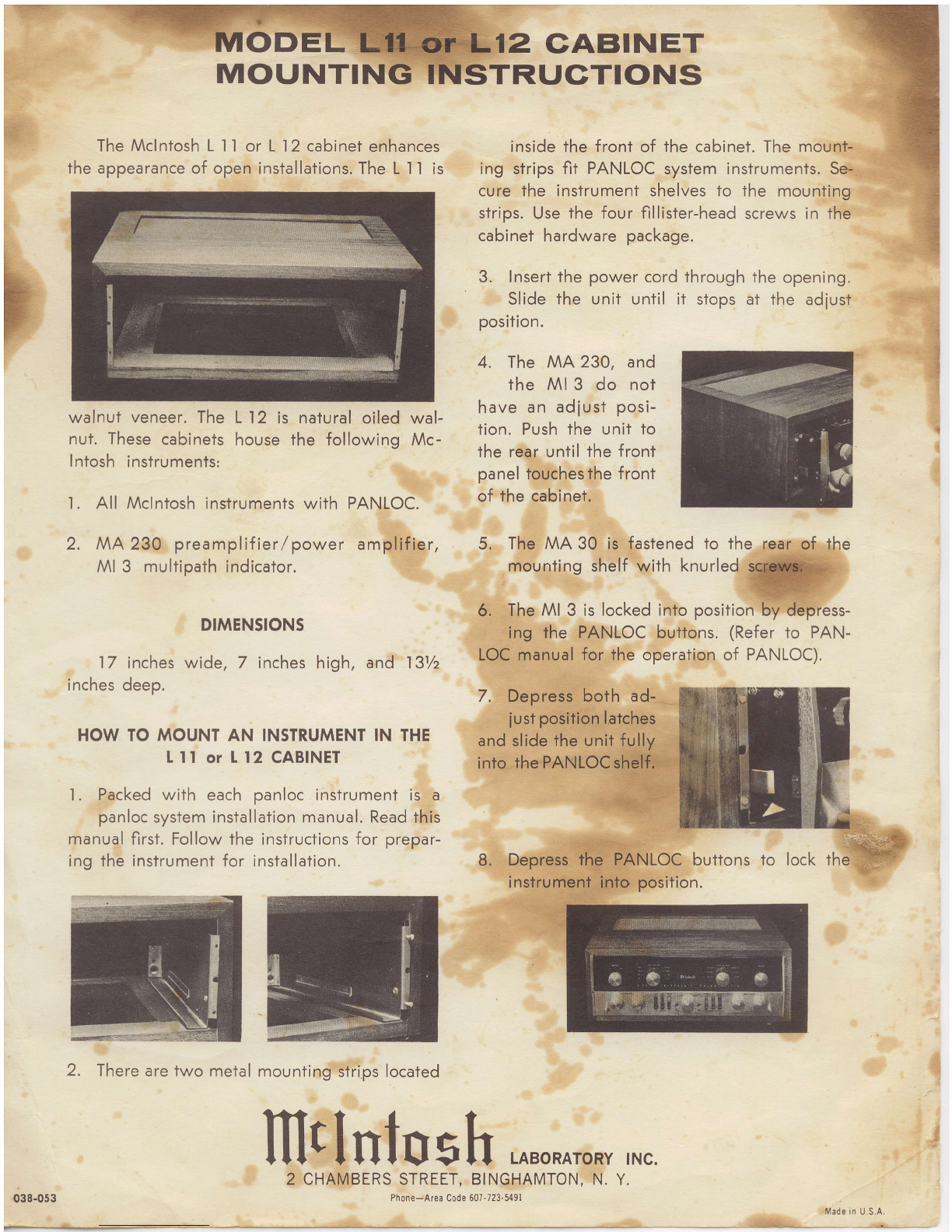

McIntosh L11 CABINET - MOUTING User manual

MOUNTING I

TheMclntoshLII or L

l2 cabinet

enhances

the

appearanceof openinstallations.

TheL

'l

1 is

walnut

veneer.

TheL

l2 is natural

oiledwal-

nut.

These

cabinets

housethe followinoMc-

Intosh

instruments;

l. All Mclntosh

instrumentswith PANLOC.

2. MA 230 preamplifier

/ power amplif

ier,

Ml3 multioath

indicator.

DIMENSIONS

17 incheswide,7 inches

high,

and 13Vz

inches

deeo.

HOWTOMOUNT

AN INSTRUMENTIN THE

L

Il or L

12CABINET

l. Packed

with each

panloc

instrumentis a

panloc

systeminstallationmanual.Readthis

manual

first.Followtheinsiructions

for prepar-

ingtheinstrument

for installation.

2. There

are

iwo metalmounting

strips

located

I2 CABINET

STRUCTIONS

insidethe front of the cabinet.Themount-

ing stripsflt PANLOC

system

instruments.Se-

curethe instrumentshelves

to the mounting

strips.

Use

the four fillister-head

screwsin the

cabinet

hardware

package.

3. Insert

the

power

cordthrough

theopening.

Slide

the unit until it stopsat the adiust

position.

4. The MA 230, and

the Ml 3 do not

have

an adiust

posi-

tion.Push

the unit to

therearuntil

thefront

panel

touchesthe

front

of thecabinet.

5. The

MA

30 is

mountingshelf

fastenedto the rearof the

-

6. The

Ml 3 is

lockedintoposition

by depress-

ing the PANLOCbuttons.

(Refer

to PAN-

LOC

manualfor theoperationof PANLOC).

7. Depressboth ad-

iust

position

latches

andslide

the

unitfully

into thePANLOCshdfG*r

";i:-:,,

.

'*d4,,'-

Depressthe PANLOCbuttons

instrument

into position.

8.

ffft Intu gh LAB'RAT'RY,Nc

2 CHAMBERSSTREET,BINGHAMTON,N.

Y.

Phone-AreaCode607.723'5491 fVad€

in

LJ.S.A.
