McCulloch MT202A13 Guide

N/A

No. STK CODE Parts No. Description QNo. STK CODE Parts No. Description Q

1 A MC-6011-202A02 POWER CORD 1 24 B MC-6059-202A01 JACKET 1

2 B MC-6199-202A01 CORD GUARD 1 25 B MC-6056-202A02 BUTTON 1

3 A MC-6043-815501 PLATE (PRESSING CORD) 1 26 C MC-6239-202A01 FIXED RING 1

4 B MC-6SDABB04-14 SCREW 14 27 B MC-6024-202A03 SPRING 2

5 A MC-6022-202A01 SWITCH 1 28 C MC-6131-202A02 EXPANDING RING 1

6 A MC-6134-202A01 TRIGGER 1 29 B MC-6SVABB04-10 SCREW 1

7 B MC-6024-202A01 SPRING 1 30 B MC-6SDABA03-16 SCREW 2

8 A MC-6134-202A02 TRIGGER 1 31 A MC-6041-840001 TERMINAL BLOCK 4

9 B MC-6010-202A01 WIRE 1 32 C MC-6038-202A02 HOUSING (L) 1

10 C MC-6068-202A01 UPPER HANDGRIP (R) 1 33 C MC-6228-202A11 MOTOR ASS'Y 1

11 C MC-6068-202A02 UPPER HANDGRIP (L) 1 34 B MC-6131-202A04 CUSHION RING 1

12 B MC-6056-202A01 BUTTON 1 35 B MC-6114-202A02 CUSHION RING 2

13 A MC-6021-202A01 LEVER 1 36 B MC-6NBB-06 NUT 1

14 C MC-6024-202A02 SPRING 1 37 B MC-6043-202A01 GASKET 1

15 C MC-6131-202A01 JOINT PIPE 1 38 B MC-6SXDB-06-20 SCREW 1

16 C MC-6129-202A01 CENTRAL TUBE 1 39 A MC-6115-202A01 SHAFT PIN 1

17 B MC-6SDABB04-06 SCREW 2 40 B MC-6137-202A01 WHEEL 1

18 B MC-6NGB-06 NUT 1 41 B MC-6NAB-05 NUT 1

19 B MC-6056-230302 BUTTON 1 42 B MC-6SDABB04-08 SCREW 2

20 C MC-6196-202601 CENTRAL HANDGRIP 1 43 B MC-6250-202503 WIRE CUTTING BLADE 1

21 B MC-6SHDB-06-52 SCREW 1 44 C MC-6262-202A02 SHIELD 1

22 B MC-6SDABB04-18 SCREW 8 45 C MC-6024-202A04 SPRING 1

23 C MC-6038-202A01 HOUSING (R) 146 C MC-6228-202004A SPOOL CARRIER ASS'Y 1

Stocking Codes are:

A - Dealer stocked B - Distributor stocked C - Factory stocked

REVISED

DATE

SPECIFY MODEL NO. WHEN ORDERING PARTS

13" String Trimmer

MODEL NO. MT202A13

DATE

7/4/2003

SERVICE SPARE PARTS LIST

Other McCulloch Trimmer manuals

McCulloch

McCulloch MCT3362VB User manual

McCulloch

McCulloch BC2235 User manual

McCulloch

McCulloch MT3310 User manual

McCulloch

McCulloch MTR1000 User manual

McCulloch

McCulloch 9096336202 User manual

McCulloch

McCulloch MT3075 User manual

McCulloch

McCulloch Cabrio 320/34cc User manual

McCulloch

McCulloch T26CS User manual

McCulloch

McCulloch B26PS User manual

McCulloch

McCulloch SUPERLITE 4528 User manual

McCulloch

McCulloch B26PS User manual

McCulloch

McCulloch MT725 User manual

McCulloch

McCulloch T22 LS User manual

McCulloch

McCulloch TrimMac ST+ User manual

McCulloch

McCulloch MT2308 Guide

McCulloch

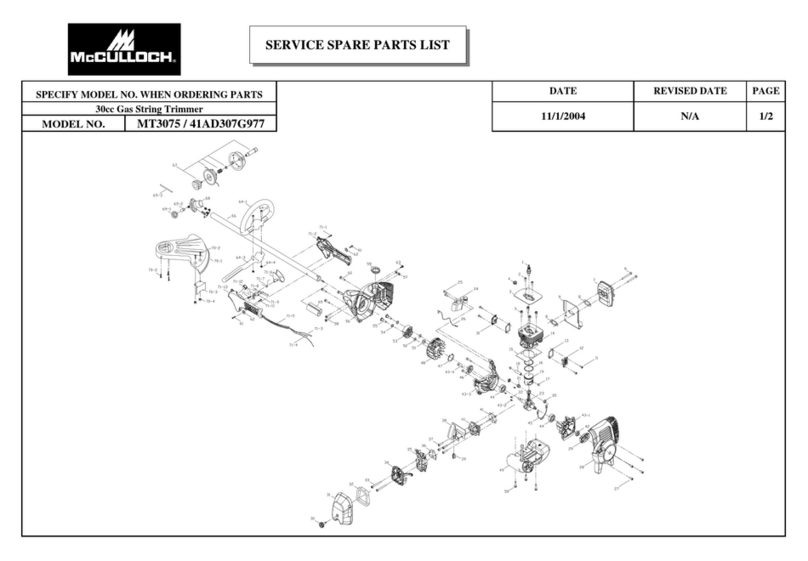

McCulloch MT3075 Guide
