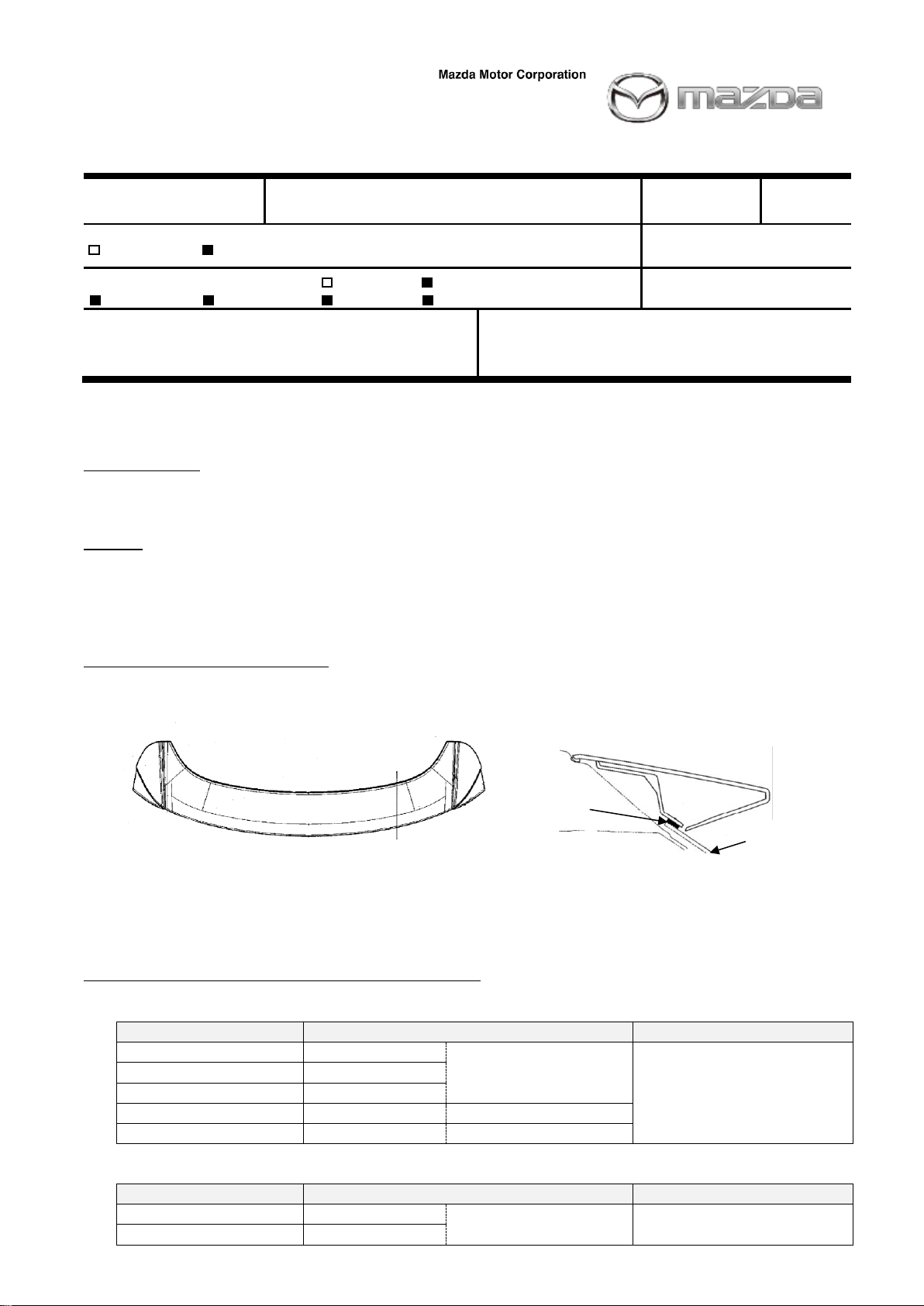

Mazda 2016 CX3 Operating and installation instructions

3-1, Shinchi, Fuchu-cho, Aki-gun

Hiroshima 730-8670, Japan

TEL : 81(82)287-5323

FAX : 81(82)287-5220

Service Information

PROTECTOR

REAR WINDOW

GLASS

A-A Section

Category S

Repair Guidance

Ref. No.

R064/16

Page

1 of 3

Coverage

Distributor only Please inform your dealers

Date Issued

July 22, 2016

Please convey this information to your Director General Manager

Warranty Dept. Parts Dept. Training Dept. Field Rep.

Date Revised

Applicable Model

Applicable Countries or Specifications

CX-3 (DK)

Worldwide

Subject: Rattle Noise from rear spoiler when closing liftgate

DESCRIPTION

Some vehicles may exhibit a rattle noise from the rear spoiler when closing the liftgate.

CAUSE

Depending on assembly variation of the rear spoiler, the clearance between the rear spoiler outer

panel and the inner bracket is smaller. As a result they interfere and exhibit a vibration noise during

the liftgate closing.

MASS PRODUCTION CHANGE

1. The thickness of the four protectors between the rear spoiler and the rear window glass has

been increased to give tension to the rear spoiler and to suppress the vibration.

2. Portions of the inner bracket, where the clearance between this and the outer panel is the

smallest, have been cut off a little to increase the clearance.

SUBJECT VIN RANGE & DATE OF MODIFICATION

CX-3 (DK)

Japan Built

Spec.

SUBJECT VIN RANGE

Date of Modification

Australia

JM0 DK **** **

100001 - 114676

November 1, 2015

General (R.H.D.)

JM6 DK **** **

General (L.H.D.)

JM7 DK **** **

Europe

JMZ DK **** **

100001 - 133643

US (2016 MY)

JM1 DK **** **

100001 - 122700

Thailand Built

Spec.

Beginning VIN

Date of Modification

Australia

MM0 DK **** **

100001 - 100200

October 5, 2015

Thailand

MM8 DK **** **

R064/16

Page 2 of 3

Front

Rear spoiler

Protector

REPAIR PROCEDURE

When you receive a customer complaint on this concern, use the following repair procedure.

1. Remove the rear spoiler according to the procedure in the workshop manual “REAR

SPOILER REMOVAL”.

2. Remove the protectors from the rear spoiler as shown below and clean the relevant area using

the genuine part cleaner.

3. Attach the improved protectors to the rear spoiler as shown above.

4. Install the rear spoiler according to the procedure in the workshop manual “REAR SPOILER

INSTALLATION”.

PARTS INFORMATION

Part Number

Part Name

Q’ty

Remark

D1YB-51-954

PROTECTOR

One set contains four improved

protectors.

D651-68-162A

CLIP, TRIM

EG21-51-SJ3

CLIP

CLIP contains a packing. (Packing is

NOT reusable part.)

Improved

protector

Old

protector

2mm

3.5 mm

R064/16

Page 3 of 3

WARRANTY INFORMATION

Assembly group

S - Body

Subassembly group

19 - SPOILERS

Symptom Code

83 (Unusual vibration)

Damage Code

97 (Improper clearance)

Causal Part No.

D1YB-51-954

Q’ty

Operation No.

XXM4MXRX

Labor hours

0.6 hours

Period Covered

Normal Warranty Period

Prior Approval

necessary

NOTE: Claim the TRIM CLIP (D651-68-162A) and CLIP (EG21-51-SJ3) as a related part

number.

Kimiaki Inooka

Manager, Technical Information Gr.

Technical Service Dept.

Mazda Motor Corporation

2F51814433, 151-022 (MC Internal Use)
