CABINET PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

04−08 Litho In U.S.A. (mat) Part No. W10197413 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10153840

Use & Care Guide

W10158909

Service & Wiring

Sheet

W10153841

Energy Label

W10154390

Instruction Sheet,

Door Removal

628370 Modular Icemaker

Service Sheet

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 2304249 Screw Plate (2)

8 2260507 Housing, Water

Filter

9 2209697 Shim (2)

10 489500 Screw (2)

11 4396841 Water Filter

12 2203770 Hinge Top (FC)

13 2203771 Hinge, Top (RC)

14 488500 Screw

15 Hinge Cover

2203407W White

2203407B Black

16 2217075 Hinge Bottom (2)

17 Cap, Water

Filter

2260518W White

2260518B Black

18 3400113 Screw (4)

19 2260519 Block, Housing

Support

20 3400858 Screw

21 Filler, Wrapper

2201014 White

2201017 Black

22 Grille

2260500W White

2260500B Black

23 489497 Screw

24 Button, Water

Filter

2260503W White

2260503B Black

25 3400103 Screw (2)

26 489290 Screw

27 489464 Screw

28 2304697 Tube, Filter

Inlet

29 2255012 Tube, Filter

Outlet

30 940139 Drain Fitting

31 1108438 Extension Tube

32 1108439 Clip, Drain Tube

33 2252035 Cover, Unit

34 Cabinet (Not A

Serviceable Part)

35 Hinge Cover

2203408W White

2203408B Black

36 8281227 Screw

37 549193 Clamp, Service

Cord

38 489084 Screw

39 2155311 Door Closer,

Lower Cam (2)

40 489483 Screw (2)

REFRIGERATOR LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2257741 Louver

3 2256035 Bracket, Dual

Crisper Light

4 489084 Screw

5 2311637 Wire Harness,

Crisper Light

6 2311612 Clip, Control

Box (2)

7 2209753 Air Diffuser

Assembly

8 2152019 Air Diffuser

Cover

9 2150331 Cover, Conduit

10 486298 Screw

11 2162085 Socket

12 2217199 Reservoir

13 527949 Light Bulb

14 2209769 Light Lens

15 488280 Screw (2)

REFRIGERATOR SHELF PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION

1 2309518 Snack Pan

2 2174150 Glass, Cover

3 2311726 Cover, Pan

4 2255593 Trim, Pan

5 2179259 Glass, Cover

7 2255592 Trim, Meat Pan

9 2179342 Slide, Humidity

Control

10 2188652 Crisper Pan

11 2188724 Meat Pan

12 2196485 Stud Assembly

13 3400894 Screw

14 2179343 Housing, Humidity

Control

15 2196483 Stud Assembly

16 8281158 Screw

17 2309561 Shelf Assembly,

Spillguard

18 2309523 Shelf Assembly,

Slide−Out

19 2311722 Egg Bin

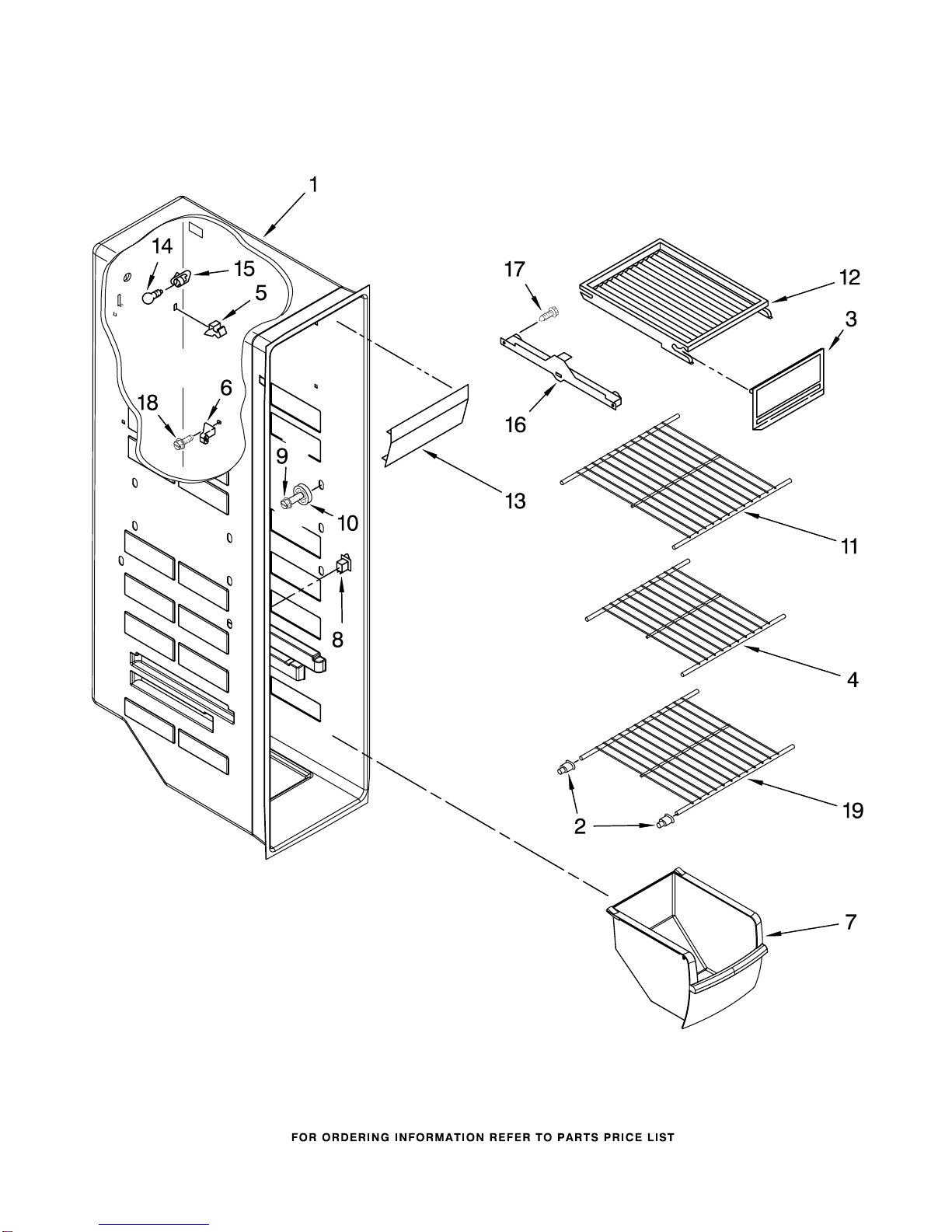

FREEZER LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

FREEZER LINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2163762 Cup, Shelf

Mounting (12)

3 2171713 Door, Ice

Compartment

4 2309597 Shelf, Wire

5 842534 Clip, Air Duct (2)

6 2196206 Support, Stud (4)

7 2309757 Freezer Bin

8 1115373 Switch, Rocker Arm

9 8281158 Screw (4)

10 2196483 Stud Assembly (4)

11 2309596 Shelf, Wire

12 2171714 Shelf, Top

Compartment

13 2171705 Light Lens

14 527949 Light Bulb

15 2162085 Light Socket

16 Slide, Container

1119237 Left Side

1119293 Right Side

17 489100 Screw (4)

18 3400893 Screw

19 2309522 Shelf, Wire

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

MOTOR AND ICE CONTAINER PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION

1 2183726 Bracket, Motor

2 2188385 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

5 489355 Screw (2)

6 2311639 Wiring Assembly,

Ice Dispenser

7 489399 Screw (6)

8 2205716 Coupling, Motor

9 489478 Screw

10 2162085 Socket, Light

11 2196091 Ice Container

12 1119005 Spacer, Step (3)

13 1119007 Spacer, Flat (2)

14 2257022 Blade, Rotary

15 2257023 Blade, Rotary

16 2257024 Blade, Rotary

17 489235 Washer, Plain

18 1119009 Blade, Fixed (2)

19 2157405 Block, Blade

20 489229 Roll Pin

21 2196295 Auger

22 2209781 Drum

23 2171682 Floating Baffle

24 1119018 Nut, Bearing

25 2155231 Control Arm

26 1119020 Spring, Return

27 1119021 Retainer Clip, Rod

28 488886 Screw

29 2180348 Housing, Crusher

30 1119017 Deflector, Ice

31 489234 Washer, Plain

32 489236 Retainer Ring

33 2204321 Front Cover,

Ice Container

34 527949 Light Bulb

35 2171706 Light Lens,

Dispenser

100 2209780 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

REFRIGERATOR DOOR PARTS

For Models: MSD2542VEW00, MSD2542VEB00, MSD2542VEU00, MSD2542VES00

(White) (Black) (Stainless−VCM) (Stainless Steel)

W10197413

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item 6)

W10153847

White

W10159873

Black

W10150583

Stainless−VCM

W10170585

Stainless Steel

2 2256101 Door, Compartment

4 2187172 Door Bin (3)

6 Door Gasket,

Magnetic

2309528 Mist Beige

2309529 Black

7 Handle

12743701W

White

12743701B

Black

8 2308091 Thimble−Top

9 13067101 Clip

10 12990203 Screw

11 2182178 Door Closer,

Upper Cam

12 489420 Screw

13 Bracket, Door Stop

2206629 Chrome

2206629B Black

14 Accent, Handle

12834803W

White

12834803B

Black

15 2324038 Nameplate

16 489491 Screw (4)

17 2177962 Trivet, Shelf

18 3400012 Screw

This manual suits for next models
