Maytag MGS5775BDW - Slide in Gas Range Manual

Repair

Parts

List

MODEL NUMBER

MGS5775BDW

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

RANGE

Section: CONTROL PANEL/TOP ASSEMBLY

C15-622

Model: MGS5775BDW

CONTROL PANEL/TOP ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 74011127 PANEL, CONTROL (WHT) 10 1

2 74010826 SUPPORT, CONTROL PANEL 10 1

3 74004821 CAP, END (WHT-RT) 10 1

3 74004822 CAP, END (WHT-LT) 10 1

4 74010975 KNOB (WHT) 10 4

5 74010684 CLOCK/OVERLAY (WHT) 10 1

- 74010979 BRACKET, CLOCK MTG 10 1

6 3601F221-45 BAFFLE, VENT COVER 10 1

7 74011136 TOP, MAIN (WHT) 10 1

8 74004005 SCREW, 6-32 X 5/16" 10 4

9 74010947 COVER, VENT (ALUM ALLOY) 10 1

10 7201P061-60 GASKET 10 1

11 74009121 GRATE, DOUBLE (GRY) 10 2

12 74004291 END CAP, VENT (LT-GRY) 10 1

12 74004290 END CAP, VENT (RT-GRY) 10 1

13 74010846 SHIELD, CONTROL 10 1

14 74007356 BUMPER, GRATE BOTTOM 10 4

- M0275597 SEALER, RTV CLEAR 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

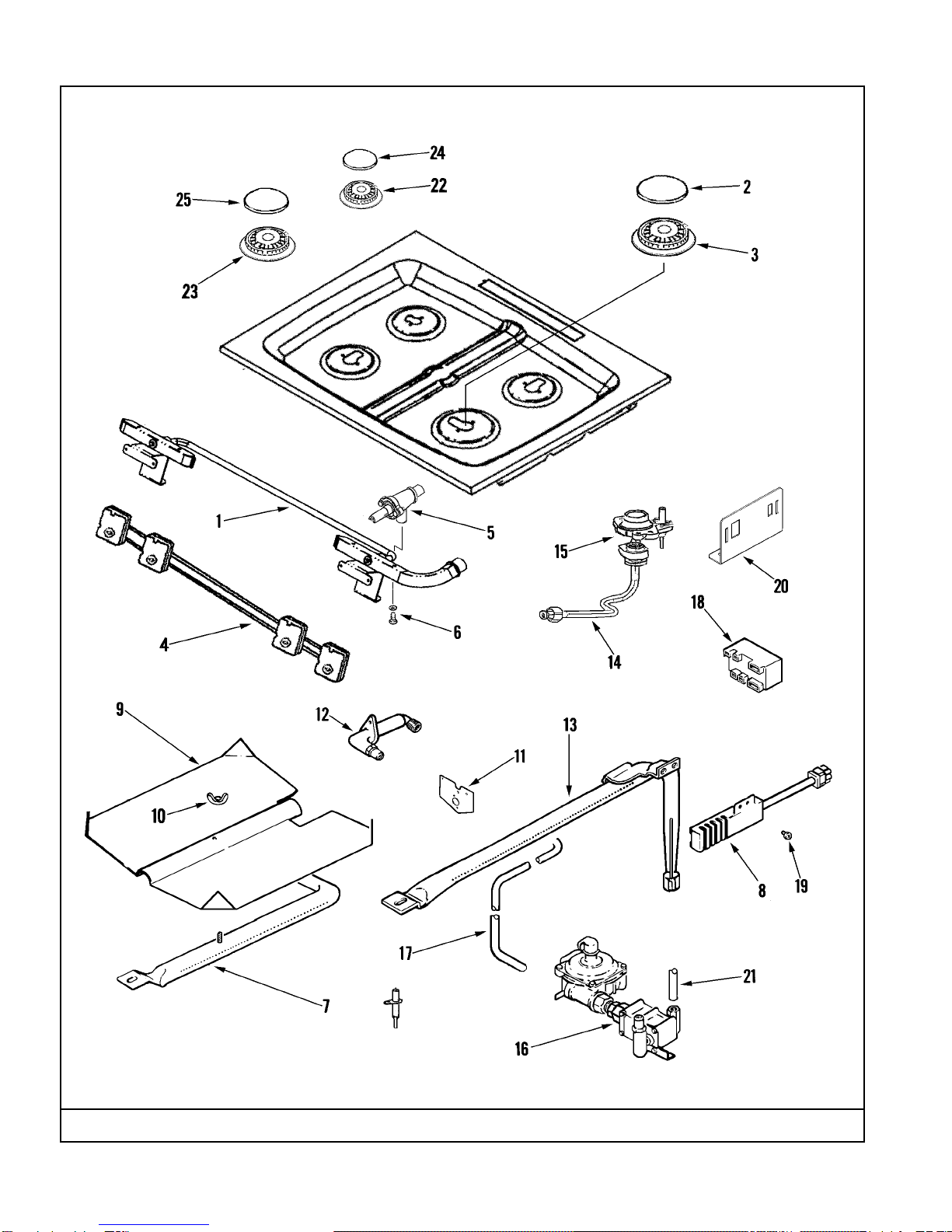

Section: GAS CONTROLS

C13-275

Model: MGS5775BDW

GAS CONTROLS

No. Part No. Description

Section:

Series Qty

1 74010965 MANIFOLD PIPE ASY. 10 1

2 74007420 CAP, BURNER (LRG-GRY) 10 1

- Y700502 SCREW 10 2

3 74007413 BASE, BURNER (16K) Note: BASE, BURNER (RF) 10 1

4 74010915 SWITCH/HARNESS ASSEMBLY 10 1

5 74009452 VALVE, 9K (MUELLER) Note: VALVE, BURNER (RR/LF) 10 2

5 74009451 VALVE, 5K (MUELLER) Note: VALVE, BURNER (LR) 10 1

5 74009453 VALVE, 16K (MUELLER) Note: VALVE, BURNER (RF) 10 1

6 74009416 SCREW 10 4

7 74004076 BURNER, BROIL 10 1

8 74007498 IGNITER, OVEN --W 10 2

9 3601F217-47 BAFFLE, BROIL BURNER 10 1

10 7103P030-60 NUT, WING 10 1

11 74004307 PLATE, BROIL FITTING 10 1

12 74010901 FITTING, BROIL 10 1

13 74003960 BURNER, BAKE 10 1

- 3807F446-45 SUPPORT, BURNER 10 1

14 74011131 TUBING, BURNER (RF) 10 1

14 74011134 TUBING, BURNER (LR) 10 1

14 74011133 TUBING, BURNER (RR) 10 1

14 74011132 TUBING, BURNER (LF) 10 1

15 74010908 HOLDER, ORIFICE (5K) Note: HOLDER, ORIFICE (5K-LR) 10 1

- 74011755 IGNITER/BRACKET ASY 10 4

15 74010909 HOLDER, ORIFICE (9.2K) Note: HOLDER, ORIFICE (9.2K-LF/RR) 10 2

15 74010907 HOLDER, ORIFICE (16K) Note: HOLDER, ORIFICE (16K-RF) 10 1

16 Y74010900 OVEN VALVE/REG ASSEMBLY 10 1

17 74004408 TUBING (3/8") 10 1

18 74004283 MODULE, SPARK (4+0) 10 1

19 7101P282-60 SCREW (10-24X5/16-NI) 10 4

20 74007020 SUPPORT, SPARK MODULE 10 1

21 74010944 TUBING, SUPPLY 10 1

- Y700502 SCREW 10 2

22 74007411 BASE, BURNER (5K) Note: BASE, BURNER (LR) 10 1

23 74007698 BASE, BURNER (LRG/BLK) Note: BASE, BURNER (RR/LF) 10 2

- Y700502 SCREW 10 4

24 74007422 CAP, BURNER (SMR-GRY) 10 1

25 74007752 CAP, BURNER (MED-GRY) 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR/DRAWER

C11-871

Model: MGS5775BDW

DOOR/DRAWER

No. Part No. Description

Section:

Series Qty

1 74003642 LINING, DOOR 10 1

2 74004224 TAPE, SINGLE SIDED (WHT) 10 2

3 74001574 NUT, SNAP (ROUND-BLK) 10 4

4 7201P046-60 GASKET, DOOR 10 1

5 74005546 SPACER, RUBBER 10 2

6 74003644 FRAME, GLASS 10 1

7 74003645 GLASS, INNER 10 2

8 74003647 INSULATION, OVEN DOOR 10 2

9 74009502 BAFFLE, OVEN DOOR 10 1

10 74004857 GLASS W/TAPE ASSY 10 1

11 74003650 RETAINER, GLASS 10 2

12 74009690 TRIM, DOOR TOP (WHT) 10 1

13 74009698 BRACKET, DOOR HANDLE (RT) 10 1

13 74009699 BRACKET, DOOR HANDLE (LT) 10 1

14 74010972 HANDLE, DOOR (WHT) 10 1

15 74006635 SCREW W/WASHER (HANDLE MTG) 10 2

16 12002358 KIT, DOOR TRIM (WHT) 10 1

17 74009687 SUPPORT, GLASS (WHT) 10 1

18 74009540 SCREW (WHT) 10 9

19 12002396 KIT, DOOR GLASS (WHT) 10 1

20 74008333 DRAWER, STORAGE 10 1

21 74010896 BRACKET, DRAWER 10 2

22 74004078 ROLLER, DRAWER 10 2

23 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

24 7103P082-60 NUT 10 2

25 2404F030-51 LINING, DRAWER PANEL 10 1

26 74003407 PANEL, DRAWER (WHT) 10 1

27 74004310 SCREW, PANEL 10 2

28 74005230 NUT, LOCK (8-32) 10 2

29 74009540 SCREW (WHT) 10 2

30 74005546 SPACER, RUBBER 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: BODY

C14-924

Model: MGS5775BDW

BODY

No. Part No. Description

Section:

Series Qty

1 74010949 BACK, MAIN 10 1

2 74010987 INSULATION, WRAPPER 10 1

3 74010815 EXTENSION, MAIN BACK 10 1

4 74011142 HINGE, OVEN DOOR 10 2

5 74010959 VENT 10 1

6 74010904 SWITCH, LIMIT 10 1

7 74008263 SWITCH, DOOR LOCK 10 1

8 74004295 CORD, POWER 10 1

9 74010906 BOTTOM, BURNER BOX 10 1

10 74010832 TRIM, SIDE (WHT) 10 2

11 74006096 COVER, WIRE (REAR) 10 1

12 74005264 COVER, TERMINAL BLOCK 10 1

13 7101P112-60 SCREW 10 4

14 74010819 LATCH ASY 10 1

15 74010905 SHEILD, LOWER SIDE 10 2

16 74010821 PANEL, SHIELD (LT) 10 1

16 74010822 PANEL, SHIELD (RT) 10 1

17 74010823 FAN, COOLING 10 1

18 74010845 COVER, DOOR LATCH 10 1

19 74003976 SCREW, SHOULDER 10 4

20 74008264 INSULATOR 10 1

21 74001632 BRACKET, SWITCH ACTUATOR 10 1

22 22002368 SCREW----NA 10 2

23 74001629 SPRING, DOOR SWITCH 10 1

24 74003562 ROD, DOOR LIGHT SWITCH 10 1

25 74001631 BUMPER, ROD 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: OVEN/BASE

C12-542

Model: MGS5775BDW
