Maytag MMV5207BAW15 User manual

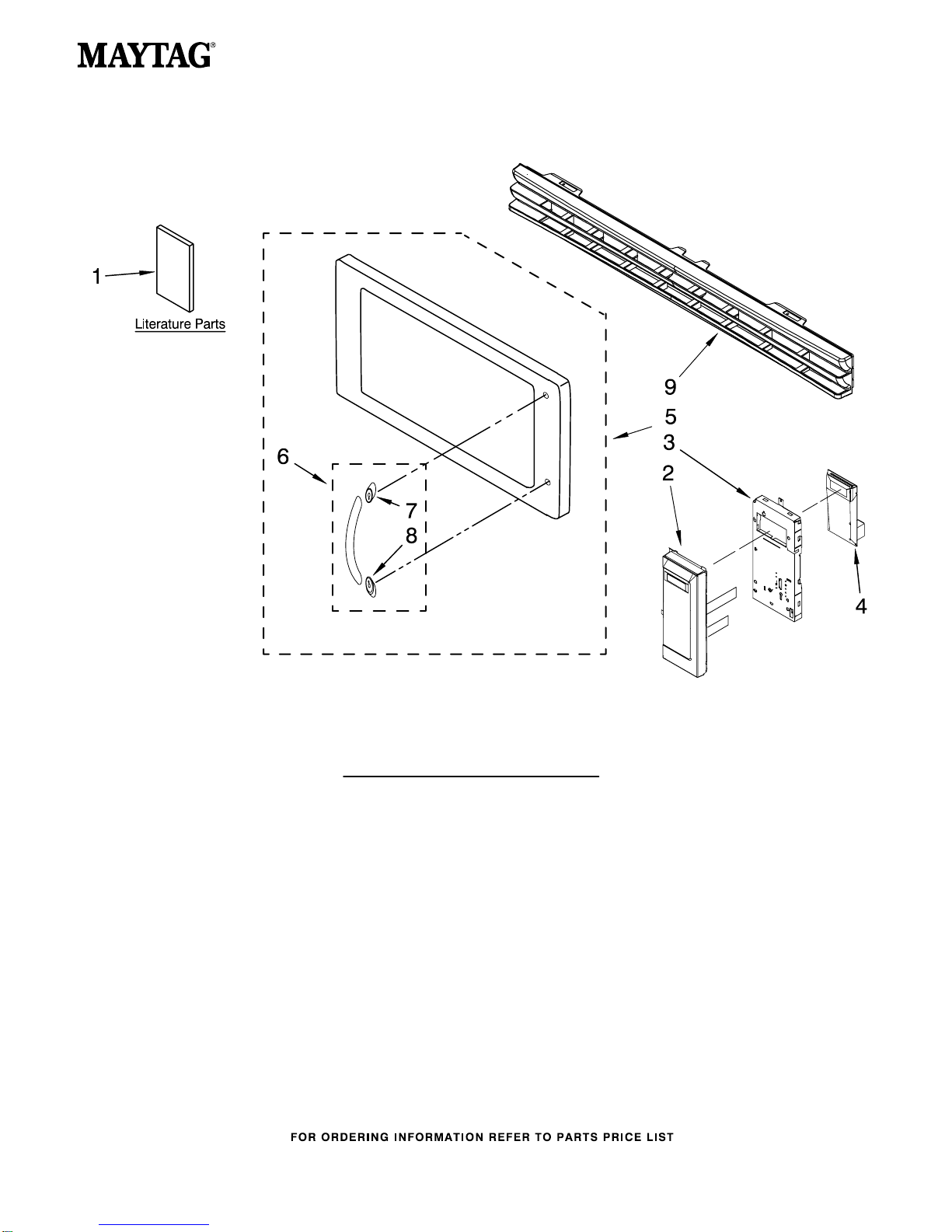

CONTROL PANEL PARTS

For Models: MMV5207BAW15

(White)

4−08 Litho in U.S.A. (rek)(mek) Part No. W10197408 Rev. A

Microwave Oven/Hood

2.0 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10177934

U & C Guide

W10182043

Tech Sheet, Slim

2 Panel Asy, Control

Membrane, Lens and

Bracket

DE94−01386K

White

W10181469

Bracket, Control

W10198000

Microcomputer

5 Complete Door

W10197621

White

W10189509

Handle, Door

W10189545

Handle, Base Upper

W10189546

Handle, Base Lower

9 Grille Assembly

DE64−01454B

White

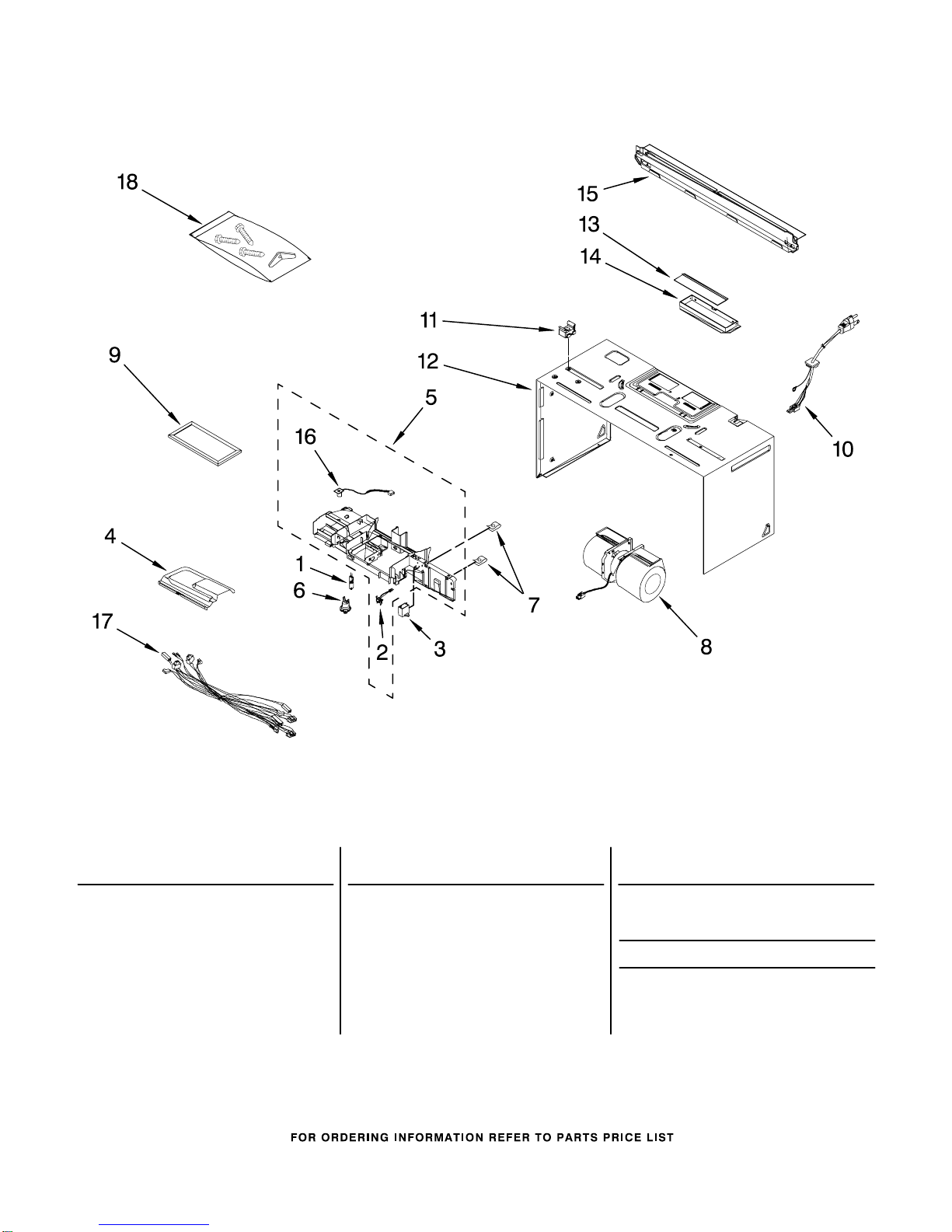

CABINET AND AIR FLOW PARTS

For Models: MMV5207BAW15

(White)

W10197408

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

4713−001165

Lamp

DE47−00032B

Holder, Lamp

DE59−50002A

Capacitor, Motor

W10197628

Bracket, Duct (U)

DE97−00635B

Assy, Duct Upper

DE47−20059A

Thermostat

DE60−30063A

Nut, Mounting

W10181452

Motor, Fan Assy

DE63−00367D

Filter, Charcoal

DE96−00218A

Cord, Power

DE92−90508A

Holder Nut, Assy

W10192096

Case, Outer

W10197773

Damper, Assembly

DE72−40022A

Plate, Damper

DE70−00378A

Plate, Mounting

DE32−60011A

Sensor, Gas

DE96−00533A

Main Harness

DE92−90505E

Install, Hardware

Following Parts Not Illustrated

W10197644

Template, Wall

DE68−03144B

Template, Top

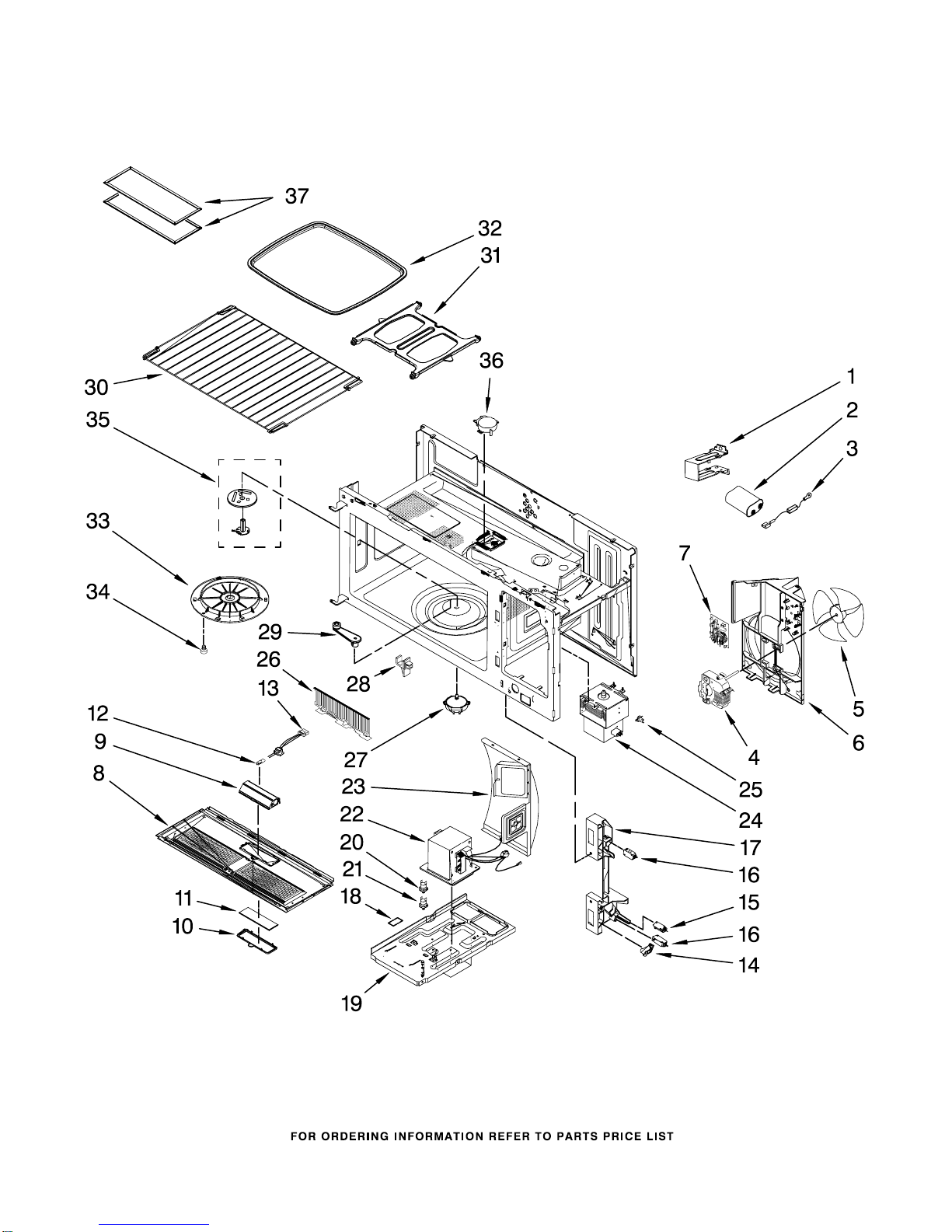

INTERIOR AND VENTILATION PARTS

For Models: MMV5207BAW15

(White)

W10197408

INTERIOR AND VENTILATION PARTS

For Models: MMV5207BAW15

(White)

W10197408

Illus. Part

No. No. DESCRIPTION

DE61−00115A

Bracket, Capacitor

2501−001016

Capacitor

DE91−70063D

Diode, H.V.

DE31−10177E

Motor, Fan

DE31−90051A

Blade, Fan

W10197780

Guide, Suction

W10182040

Filter, Noise

W10192097

Plate, Bottom

DE61−00407C

Reflector, Lamp

DE63−00137C

Holder, Glass

DE64−00911A

Glass, Lamp

4713−001165

Lamp, Halogen

DE47−00032B

Holder, Lamp

DE66−90106B

Lever, Switch

3405−001033

Switch, Micro

3405−001034

Switch, Micro

DE66−00168A

Latch Board

DE63−00008F

Cushion, Sponge

W10187747

Plate, Base

DE47−20059A

SW−Thermo

DE47−20034A

Thermostat

W10197612

Transformer, H.V.

W10197689

Bracket, Duct Rear

W10126786

Magnetron

DE47−20007A

Thermostat

W10197680

Cover, Front

DE31−00040A

Motor, Turntable

DE61−00375A

Hook, Rack

DE97−00648A

Coupler, Glider

W10182049

Rack, Wire

DE99−00357A

Guide, Tray

DE63−00383A

Tray, Cooking

DE71−60121A

Cover, Stirrer

DE66−20095B

Button, Lock

W10197709

Stirrer, Assembly

DE31−10173A

Motor, Drive

W10187748

Filter, Air
