MaxVac DV15 HYDRO User manual
DV15 HYDRO
INSTRUCTIONINSTRUCTION
MANUALMANUAL
MAX-VAC.COMDV15 Hydro 3
INSTRUCTION
MANUAL
ENGLISH
WARNINGS
TECHNICAL SPECIFICATION
USING THE APPLIANCE
MAINTENANCE
ACCESSORIES
TROUBLESHOOTING
EU DECLARATION OF CONFORMITY
4
7
8
10
11
13
14
MAX-VAC.COMDV15 Hydro
4
WARNINGS
Please save this manual for future reference.
• Electrical appliances are not toys. Use and store the vacuum out of reach of
children.
• This appliance is not designed for use by people (including children) with
limited physical, sensorial or mental capacity or anyone who has not read this
instruction manual.
• All packaging , plastic bags, PSE pods, etc.) must be kept out of reach of
children.
• This appliance has been designed to operate only with alternating current.
Before use, always check that the power supply corresponds to the voltage on
the rating plate (Fig.”001”).
• ONLY plug this appliance into power sockets with a minimum rating
• of 10A.
• Do not remove the plug from the socket by pulling on the power cord
(Fig.”002-“003”).
• Make sure that the power supply is equipped with a differential circuit-breaker.
• Unwind the power cord completely before turning on the appliance.
• Only use an electric extension cord in perfect condition; make sure that the
section is suitable for the power of the appliance added to the power of the
electric tool.
• Do not pull the power cord around sharp edges and avoid pinching or
crushing it.
• Never leave the appliance running unattended.
• Never leave the appliance where it could be damaged by the weather (rain,
cold, sun, etc.).
MAX-VAC.COMDV15 Hydro 5
230V~
50/60Hz NO
NO
001 002 00
30
04
• Never use the appliance:
- with damp or wet hands;
- if it has been dropped, is visibly damaged, or does not seem to be
working correctly;
- if the power plug or cord are defective.
• ALWAYS unplug the appliance immediately after use and before cleaning
or servicing it in any way.
• Repairs, if necessary, should be carried out only by quali ed professionals
using original spare parts from the manufacturer. Attempting to repair the
appliance yourself can be extremely dangerous.
• In compliance with current regulations, end-of-life appliances must be
rendered useless by cutting off the power cord before disposal.
• Do not use the appliance to vacuum ammable, explosive, or corrosive
substances (Fig.”004”).
• Do not use the appliance in environments lled with fumes.
• Use only water to clean the appliance. Do not use trichloroethylene, solvents,
or abrasive detergents.
The manufacturer will accept no responsibility for damage that may occur
due to improper use, failure to follow the instructions in this manual,
modications, or poor maintenance.
WARNINGS
MAX-VAC.COMDV15 Hydro
6
Power supply voltage
Frequency
Power Rating
Maximum airflow approx
Drum made of
Rated drum capacity
MAX suction approx
Motor insulation class
Appliance insulation class
Motor type
Packaging size approx
Packed appliance weight
approx
Appliance weight *
Constant and weighted
sound pressure level
230 V~
50/60 Hz
230V = 1100 W
165 m3/h
15 Liters
19 KPa (approx)
Ia
High-efficiency w-cup
400 x 400 x 550 mm
7.35 Kg
5 Kg
< 68 dB(A)
TECHNICAL SPECIFICATION
DV15 HYDRO
* Weight in accordance with the procedure EPTA 01/2003
MAX-VAC.COMDV15 Hydro 7
USING THE APPLIANCE
1. RELEASING THE MOTOR UNIT
• Lift up the two hinges to release the motor unit (g. “A1” - “A2”).
• To ret (see g. “A3”).
2. SWITCHING IT ON (g. “A4”)
a) Switch (s): Position “O” = OFF
Position “I” = ON (appliance operating)
• ALWAYS use the foam lter in the dry and liquid vacuuming function
(MV-DV-ACC-106).
• Place the foam lter on the motor housing (c).
• Ret the motor unit to the drum.

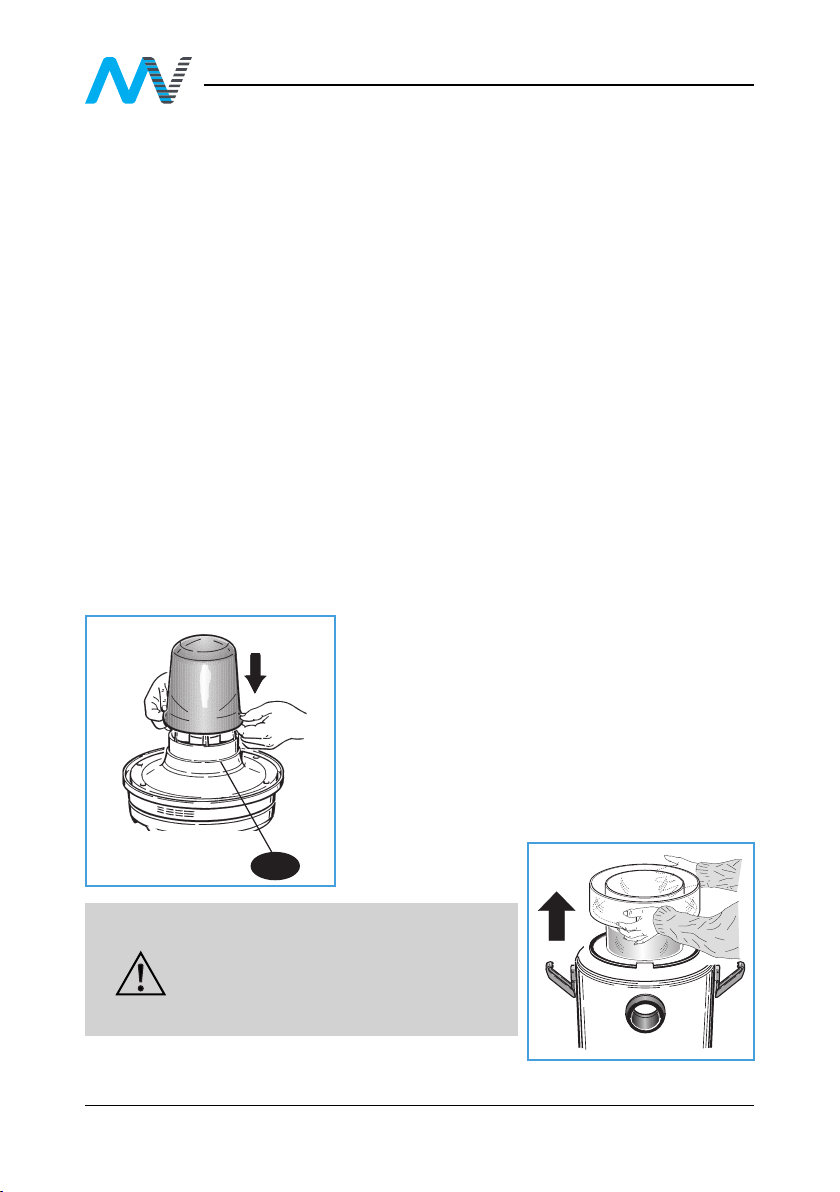

USING THE FOAM FILTER (MV-DV-ACC-106)
“c”
LEVELWATER
CAUTION
The “particle separator” must be
removed when vacuuming liquids
MAX-VAC.COMDV15 Hydro
8
USING THE APPLIANCE
• Remove the motor unit (gures “A1” - “A2”).
• Fit the “long” conveyor attachment onto the air inlet connector (g. “C1”).
• Add clean water to the particle separator up to the level indicated
(MAX 2.5 litres)
• (g. “C2”); then pour water into the drum (g. “C3”).
• Place the particle separator “without water” into the drum (g. “C4”).
• Ret the motor unit (g. “A3”).
•
1. FOR USE AS A DRY VACUUM CLEANER
• Connect the following attachments in order:
1- Flexible hose connector “x” to the air inlet connector “y” (g. “C5”).
2- The ergonomic grip to the plastic extension wand (g. “C6”).
3- The extension wand to the attachment to be used.
2. FOR USE AS A WET VACUUM CLEANER
• Release the motor unit (gures “A1” - “A2”).
• Remove the particle separator
• Replace the “long” conveyor attachment with the
• “short” one (g. “C7”).
• Ret the motor unit (g. “A3”).
• Fit the attachments as described in the preceding
3. TO VACUUM LARGE QUANTITIES OF LIQUID
• When vacuuming liquids from containers, make sure the crevice tool is never
fully submerged to ensure partial air ow.
CAUTION
When the vacuumed liquids reach the maximum level inside
the drum suction is automatically shut off by the safety float
and the noise level of the appliance gets rapidly louder.
Switch off the appliance immediately, release the motor unit
and empty the drum.
LEVELWATER
MAX-VAC.COMDV15 Hydro 9
CLEANING THE FILTER
1 - FOAM FILTER (MV-DV-ACC-106)
• Rinse the foam lter with water
DO NOT use detergent.
• Replace if worn or damaged.
2 - CLEANING THE DRUM
• Always empty the drum after using
the appliance, and wash it and the
particle separator.
3 - REPLACING THE POWER CORD
• Contact an authorised service
centre (see list attached) if the
power cord has been damaged,
since special tools are needed to
replace it.
MAINTENANCE
Always unplug the power
supply before carrying out any
maintenance,
cleaning or foam lter
replacement operations.
MAX-VAC.COMDV15 Hydro
10
ACCESSORIES
Floor bar
housing for
combined brush
Floor bar insert
for liquids
Floor bar insert
for hard floors
Floor bar insert
for carpets
DV-ACC-114
¿45 mm flexible
hose with
ergonomic
grip and
downflow device
DV-ACC-112
DV-ACC-102
Plastic extension
wands
DV-ACC-115
DV-ACC-101 DV-ACC-100
¿36 mm
Integrated
flexible hose for
pneumatic tool
with universal
adapter
DV-ACC-113
