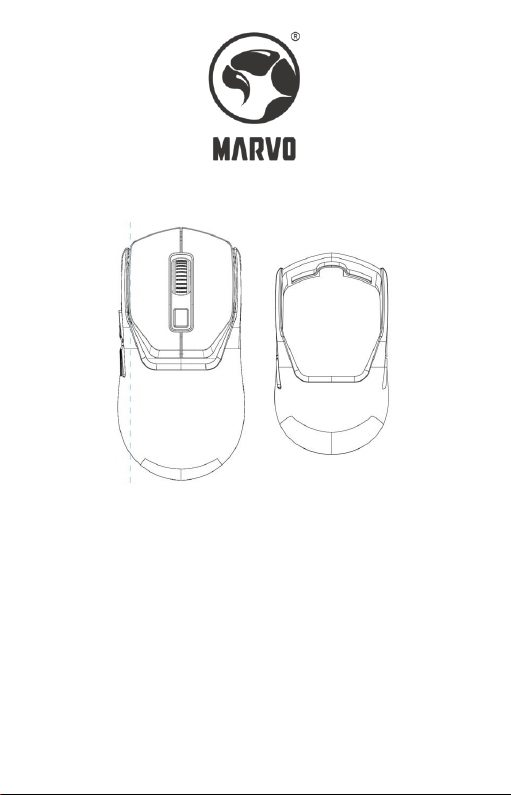

Marvo Fit Pro G1W User manual
Fit Pro G1W
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch • Manuel d'utilisation
2
English
3 –10
Čeština
11 –18
Slovenčina
19 –26
Magyar
27 –34
Deutsch
35 –42
Français
43 –50
3
Dear customer,
Thank you for purchasing our product. Please read the
following instructions carefully before first use and keep this
user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or
comments about the device, please contact the customer
line.
✉www.alza.co.uk/kontakt
✆+44 (0)203 514 4411
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00
Prague 7, www.alza.cz
Product Presentation
Features
•Ergonomic design, two sizes of shell for different hand
types, a variety of colors with a unique fashion
•Nearly 16.8 million color palettes with 7 different
lighting modes
•Wired, 2.4G, Wireless three modes, 600mAh high-
capacity battery, stable performance, low power
consumption, long battery life
4
Technical Specifications
Sensor
PAW3370
Buttons
7
Operating Distance
10 m
Connection modes
wired, 2.4G, Wireless 5.1
(Supportable protocols)
DPI (wired & 2.4G)
1600-2400-3200-6400-
12000-19000
DPI (Wireless)
800-1200-1600-2400
Switch rating:
50 million clicks
Backlight
RGB (no light in Wireless
status)
Polling rate
1000 Hz (wired & 2.4G)
Polling rate
125 Hz (wireless)
Battery specifications
3.7V-600mAh
Charging time
3 h
Size (small shell)
110*60.5*40.5 mm
Size (big shell)
126.5*63.5*40.5 mm
Weight
107g (big shell)
System Requirements
Wired and 2.4G mode support WIN 7/WIN 8/WIN 10/WIN
11/MAC OS 10.12 or above/iOS 13.6 or above/Android 6.0 or
above;
Wireless mode supports WIN 7/WIN 8/WIN 10/WIN 11/MAC
OS 10.12 or above/iOS 13.6 or above/ Android 6.0 or above.
5
•BT&2.4G Wired
•Replaceable Grips
•Pixart 3370 Sensors
•Max DPI 19000
•Omron Switch
•PTFE Mouse Feet
Safety Notes
•Keep the equipment dry. Keep away from precipitation,
humidity, all types of liquids and condensation.
•Do not use the product with wet hands.
•Do not use or store the equipment in dusty or dirty
areas.
•Do not store the equipment under high-temperature or
low-temperature conditions (this may damage it).
•Do not drop, knock, or shake the equipment as it may
damage it.
Installation
Connect the mouse to an available USB port on your
computer. When connecting for the first time, wait 15
seconds until the generic driver is installed.
6
For advanced mouse configuration, please download and
install the specialized driver at www.marvo-tech.com (an
Internet connection is required):
•download the driver and double-click the executable file
•follow the on-screen instructions and install the
application
•after installing the application successfully, an icon will
be displayed in the taskbar
•double-click this icon to launch the application
Note: driver custom macro definition only supports WIN
system installation; Wireless status does not support driver
and light adjustment.
Use
1. Press the buttons below the scroll wheel to change the
sensitivity according to predefined DPI steps.
2. Power switch: toggle backward to turn off all power,
toggle forward to open the running light and mouse
switch, toggle to the middle to close the running light.
3. 2.4G & Wireless mode switch button: the light at the
scroll wheel is green for 2.4G mode, blue for Wireless
mode. In Wireless mode, press and hold the switch
2.4G receiver
7
button for more than 3s, the blue light flashes for
Wireless pair code.
4. 2.4G pairing code: software to code, pressing the left,
middle and right three keys at the same time, insert the
receiver, until the code success.
5. Wireless name: MARVO Z Fit Pro.
6. Indicator light description.
LOGO light and scroll wheel light: when no receiver is
inserted, the light effect is flashing, when the receiver is
inserted, the light effect is corresponding to the DPI color.
The yellow light flashes when charging, the DPI light is
always on when full, and the red-light flashes when the
power low (RGB light automatically turns off in low power
state).

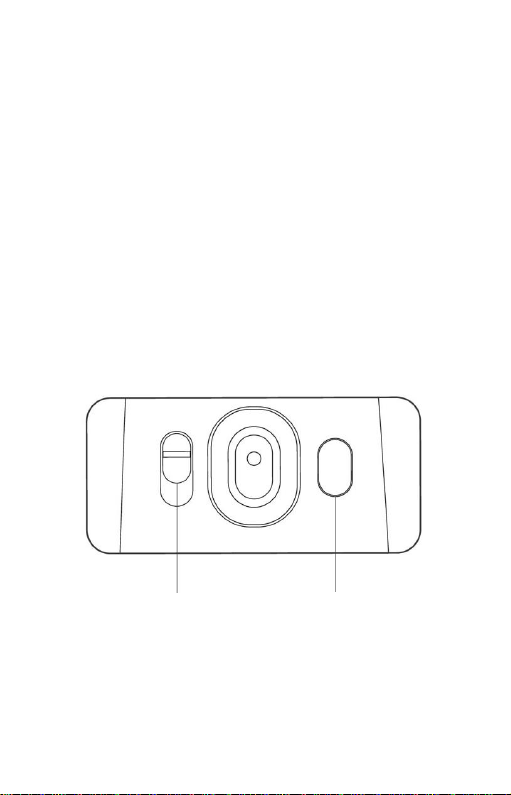

Power switch
Mode switch button
8
Troubleshooting
In case of incorrect operation follow the steps below:
•Check the integrity of the connectors.
•Check the connection to the computer.
•Check your computer settings.
•Disconnect and reconnect the equipment; restart
the computer.
If the problem persists, please contact your local seller.
Warranty Conditions
A new product purchased in the Alza.cz sales network is
guaranteed for 2 years. If you need repair or other services
during the warranty period, contact the product seller
directly, you must provide the original proof of purchase
with the date of purchase.
The following are considered to be a conflict with the
warranty conditions, for which the claimed claim may
not be recognized:
•Using the product for any purpose other than that for
which the product is intended or failing to follow the
instructions for maintenance, operation, and service of
the product.
•Damage to the product by a natural disaster, the
intervention of an unauthorized person or mechanically
through the fault of the buyer (e.g., during transport,
cleaning by inappropriate means, etc.).
•Natural wear and aging of consumables or components
during use (such as batteries, etc.).
9
•Exposure to adverse external influences, such as
sunlight and other radiation or electromagnetic fields,
fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning),
faulty supply or input voltage and inappropriate polarity
of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications,
alterations to the design or adaptation to change or
extend the functions of the product compared to the
purchased design or use of non-original components.
EU Declaration of Conformity
This product complies with the essential
requirements of Directives 2014/30/EU and
2011/65/EU including amendments
2015/863/EU.
10
WEEE
This product must not be disposed of as normal household
waste in accordance with the EU Directive on Waste
Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or
handed over to a public collection point for the recyclable
waste. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be
caused by inappropriate waste handling of this product.
Contact your local authority or the nearest collection point
for further details. Improper disposal of this type of waste
may result in fines in accordance with national regulations.
