Martin Mania PR1 User manual
Mania PR1
user manual

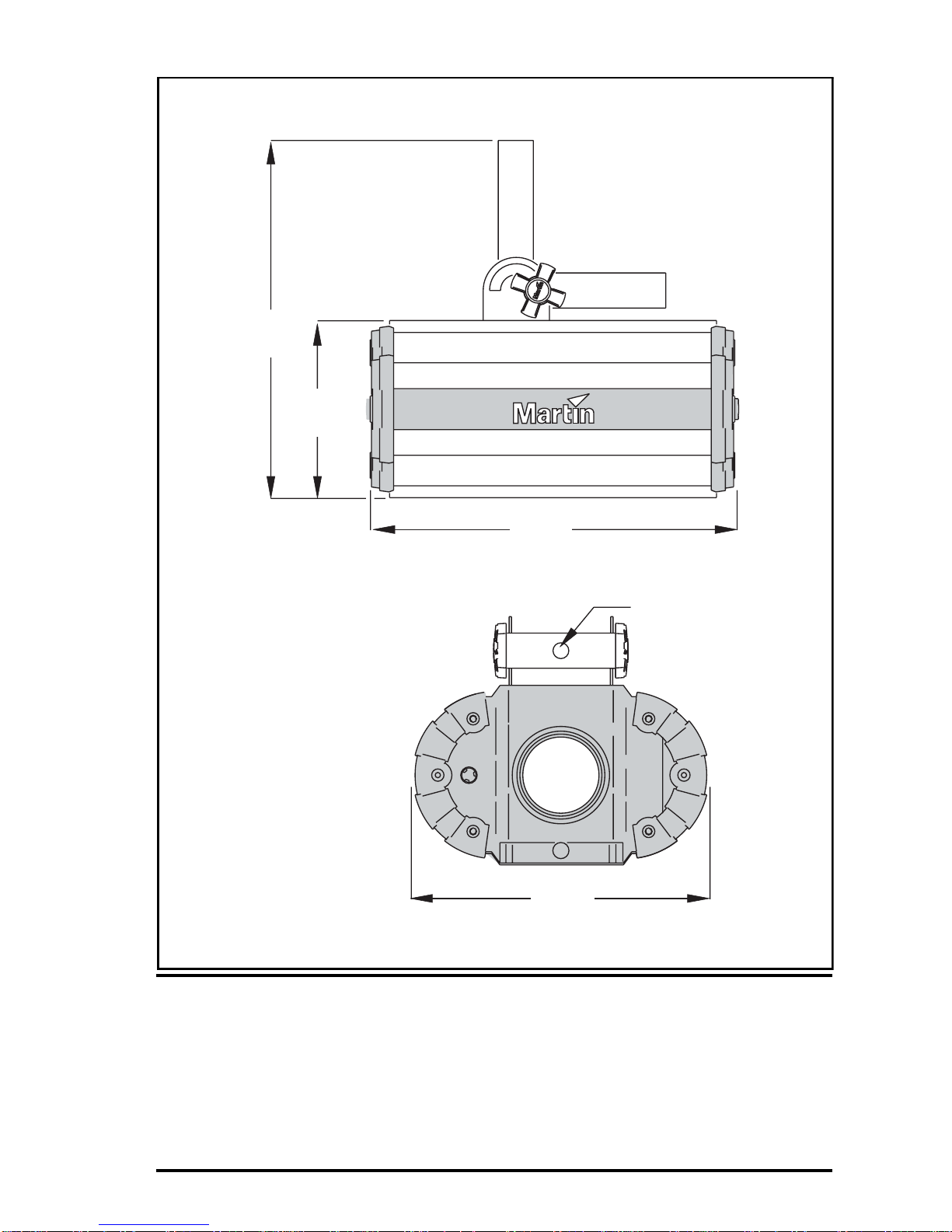

Measurements are expressed in millimeters.
340
158
315
290
Ø13
© 2003-2004 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be reproduced, in any form or by any means,
without permission in writing from Martin Professional A/S, Denmark.
Printed in China.
P/N 35000148, Rev. B.
3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mania PR1 overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
AC power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overhead mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing a gobo/texture glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing a color filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Focusing the Mania PR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Gobo rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Remote control operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Basic service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lamp maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Reconfiguring the beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Lens assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Replacing the mains fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4 Mania PR1 user manual
Introduction 5
I
NTRODUCTION
1
Thank you for selecting a Martin Mania PR1. The Mania PR1 is a gobo
projector with a motorized rotating gobo. Gobo rotation speed and
direction can be adjusted, and a remote control is supplied with the
product. The beam angle can be adjusted from 25° to 32°. A 43° beam
angle can also be obtained using a separately available accessory.
SAFETY INFORMATION
Warning! This product is not for household use. It presents risks of
lethal or severe injury due to fire and heat, electric shock, and
falls.
Read this manual before powering or installing the fixture, follow the
safety precautions listed below and observe all warnings in this manual
and printed on the fixture. If you have questions about how to operate the
fixture safely, please contact a Martin distributor for assistance. Refer any
service operation not described in this manual to a qualified technician.
Do not modify the fixture or install other than genuine Martin accessories
and upgrade kits.
Refer servicing to qualified personnel.
Maximum ambient temperature Ta= 40°C(104°F).
See serial label for replacement fuse size and lamp type.
Suitable for mounting on normally flammable surfaces.
Do not look directly into the light.
Risk of fire, electrical shock and burns.
Use only in dry locations.
For indoors use only.
Do NOT block exhaust vents.
6 Mania PR1 user manual
Shields, lenses or ultraviolet screens must be changed if they become
visibly damaged to the extent that their effectiveness is impaired, for
example, by cracks or deep scratches.
The lamp must be changed if it becomes damaged or thermally deformed.
If the external power cord of this luminaire is damaged, it must be
replaced by a special cord exclusively available from your Martin dealer.
Avoiding electric shocks
Warning Always disconnect from mains power before replacing the
lamp, fuses, or any part, and when not in use.
• Before operation ensure that factory setting of voltage and frequency
match local power supply.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Never operate the fixture with missing or damaged lenses and/or covers.
Protecting yourself and others from burns and fire
Warning Hot lamp. The exterior of the fixture can become hot. Allow to
cool for at least 20 minutes before handling or opening.
• Surface temperature under steady state condition = 95°C (203° F).
• Minimum distance to flammable material = 0.3 m (1 ft).
• Minimum distance to illuminated surface 1.0 m (3.3 ft).
• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.
• Ensure that the air flow through vents is free and unobstructed.
• Provide a minimum clearance of 0.1 meters (4 inches) around air vents.
• Never place filters or other materials over the lens or in the optical path.
• The exterior of the fixture can become hot. Allow the fixture to cool for at
least 20 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C
(104° F).
• Do not stare directly into the light.
• Never operate the fixture without all lenses and covers installed: an
unshielded lamp emits dangerous UV radiation that can cause burns and
eye damage.
Introduction 7
Preventing injuries due to falls
• When suspending the fixture above ground level, verify that the structure
can hold at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened
and use an approved means of secondary attachment such as a safety
cable.
• Block access below the work area whenever installing or removing the
fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during
shipment - always use it to transport the fixture.
The Mania PR1 is packaged with the following:
• 3-wire power cable
• User manual
• Blue-hued texture glass
• Steel gobo with Martin logo
• Remote control unit with 5-metre (16.4 ft) RJ-45 cable
• White glove with Martin logo
8 Mania PR1 user manual
MANIA PR1 OVERVIEW
Cooling vent
Safety cable attachment eye
AC supply setting
Mains switch
Mains socket
Fuse holder
Cooling fan
Thumb screw (cover lock)
Gobo rotation direction switch
Remote control input
Gobo rotation speed
Remote control output
Installation 9
I
NSTALLATION
2
AC POWER
Before operation, ensure that factory setting of voltage and frequency
match local power supply.
Always ground (earth) the fixture electrically.
Use only a source of AC power that complies with local building and
electrical codes and has both overload and ground-fault protection.
Note: If the external power cord of this luminaire is damaged, it
must be replaced by a special cord exclusively available from
your Martin dealer.
Configuring for local mains power
The Mania PR1 has a switch-selectable power supply that can operate in
the following voltage ranges at 50-60 Hz:
• 115 - 120 volts (setting 115)
• 220 - 240 volts (setting 230)
Warning Do not operate the fixture on a power supply that falls outside
of these ranges.
Select the operating range using the red AC supply switch at the rear of
the fixture.
AC supply setting
10 Mania PR1 user manual
Installing a plug on the mains lead
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply must have
overload and ground-fault protection.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
The fixture’s mains lead may require a grounding-type cord cap that fits
your power distribution cable or outlet. Consult a qualified electrician if you
have any doubts about proper installation.
Following the cord cap manufacturer’s instructions, connect the
appropriate wires to ground (earth), live, and neutral. The following table
shows some common wire identification schemes.
To apply power:
1 Connect the mains power cable.
2 Turn the power on using the mains switch.
OVERHEAD MOUNTING
The Mania PR1 is designed to be hung overhead with a clamp (not
included).

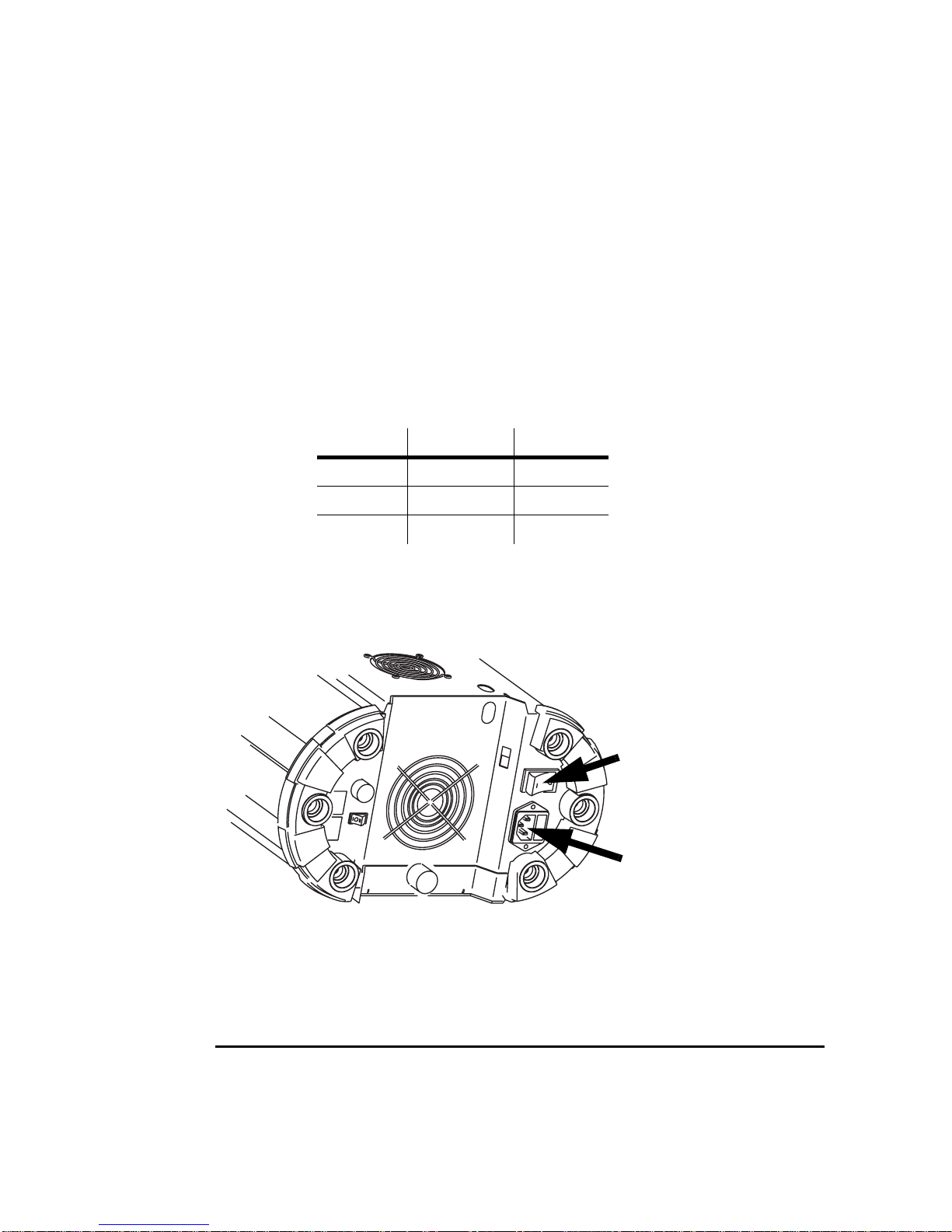

Function Wire (EU) Wire (US)
live brown black
neutral blue white
ground yellow/green green
Mains socket
Mains switch
