Martin Audio Cinema Screen 4 User manual

Screen 4

Three-way bi-amp system

features

!Three-way design

!Very low distortion mid-range

!High SPL

!90º x 40º dispersion

applications

!Behind screen placement

!Medium scale cinemas

Century Point, Halifax Road, Cressex Business Park,

High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: [email protected]

All information is Copyright © 2003 Martin Audio Ltd.

The Screen 4 is a 3-way system, with dedicated mid-range and

high frequency sections. Developed by Martin Audio systems

designers, this innovative solution overcomes the strenuous

demands on the high frequency section of traditional 2-way

cinema systems. By splitting the frequency band from 630Hz-

20kHz into dedicated mid-range and high-frequency sections the

Screen 4 produces superior, low distortion sound for

small/medium scale cinema environments.

cinema

www.martin-audio.com

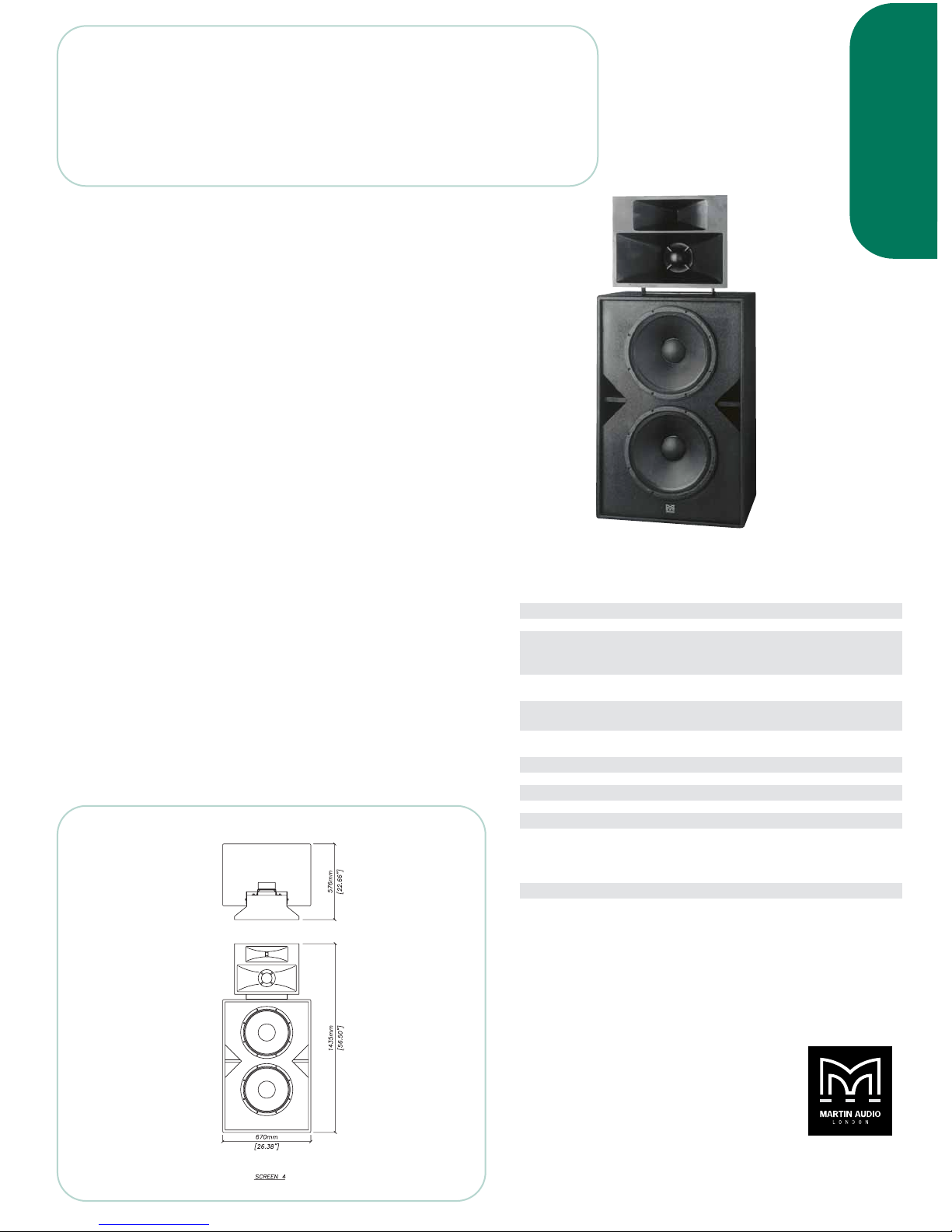

overall dimensions

technical specifications

TYPE Three-way bi-amp screen system

FREQUENCY RESPONSE (1) 45Hz-20kHz ± 3dB

DRIVERS 2 x 15" (380mm) bass driver

6.5" (165mm) mid driver

1" (25mm) exit compression driver

RATED POWER (2) LF: 800W AES, 3200W peak

MF + HF: 150W AES, 600W peak

SENSITIVITY (3) LF: 100dB

MF + HF: 106dB

NOMINAL IMPEDANCE LF: 4 ohms

MF + HF: 16 ohms

DISPERSION (-6dB) 90º horizontal, 40º vertical

CROSSOVER 630Hz active, 3kHz passive

ENCLOSURE Vented

FINISH Matt black

CONNECTORS Binding Posts

DIMENSIONS LF: (W) 670mm x (H) 1010mm x (D) 470mm

(W) 26.4ins x (H) 39.8ins x (D) 18.5ins

MF/HF: (W) 490mm x (H) 385mm x (D) 290mm

(W) 19.3ins x (H) 15.1ins x (D) 11.4ins

WEIGHT LF: 61kg (134.5lbs) MF/HF: 9kg (19.8lbs)
