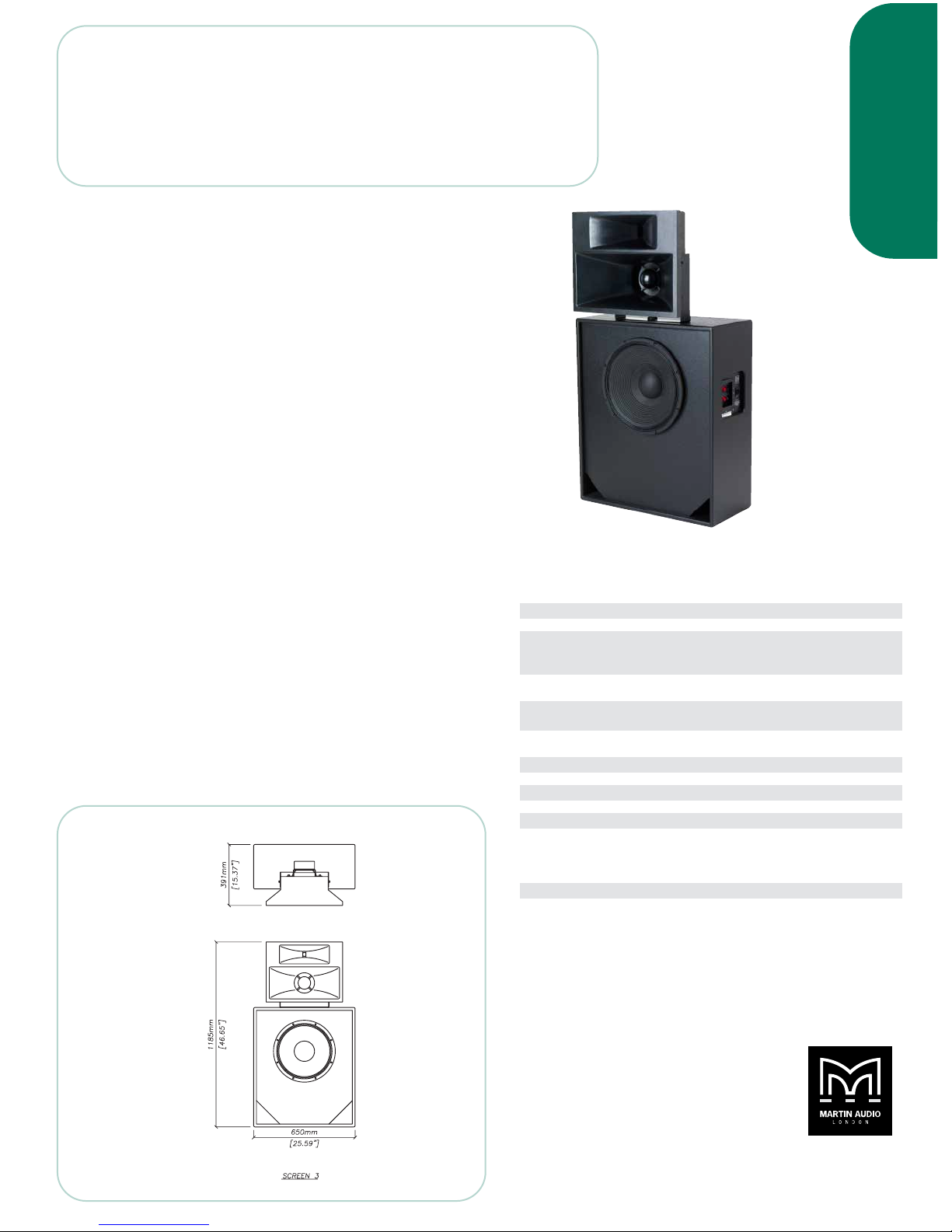

Martin Audio Cinema Screen 3 User manual

Screen 3

Three-way bi-amp system

features

!Three-way design

!Very low distortion mid-range

!Very shallow profile

!90º x 40º dispersion

applications

!Behind screen placement

!Medium scale cinemas

!Post production suites

Century Point, Halifax Road, Cressex Business Park,

High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: [email protected]

All information is Copyright © 2003 Martin Audio Ltd.

The Screen 3 is a 3-way system, with dedicated mid-range and

high frequency sections. Developed to meet the requirements of

small to medium size screening rooms and post production suites

that require the mid-range definition and intelligibility not

achievable with a traditional 2-way system.

cinema

www.martin-audio.com

overall dimensions

technical specifications

TYPE Three-way bi-amp screen system

FREQUENCY RESPONSE (1) 45Hz-20kHz ± 3dB

DRIVERS 15" (380mm) bass driver

6.5" (165mm) mid driver

1" (25mm) exit compression driver

RATED POWER (2) LF: 550W AES, 2200W peak

MF + HF: 150W AES, 600W peak

SENSITIVITY (3) LF: 98dB

MF + HF: 106dB

NOMINAL IMPEDANCE LF: 8 ohms

MF + HF: 16 ohms

DISPERSION (-6dB) 90º horizontal, 40º vertical

CROSSOVER 630Hz active, 3kHz passive

ENCLOSURE Vented

FINISH Matt black

CONNECTORS Binding Posts

DIMENSIONS LF: (W) 650mm x (H) 765mm x (D) 307mm

(W) 26ins x (H) 30ins x (D) 12ins

MF/HF: (W) 490mm x (H) 385mm x (D) 290mm

(W) 19.3ins x (H) 15.1ins x (D) 11.4ins

WEIGHT LF: 39kg (86lbs) MF/HF: 9kg (19.8lbs)
