Martec Elite AC Series User manual
www.martecaustralia.com.au
ELITE AC Series Installation Guide
Thanks for choosing our Elite AC Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):-
MEF133MM 1220mm 3 Blade Ceiling Fan Matt Black
MEF133WW 1220mm 3 Blade Ceiling Fan Matt White
MEF133WO 1220mm 3 Blade Ceiling Fan Matt White/Oak
MEF133MB 1220mm 3 Blade Ceiling Fan Matt Black/Bamboo
MEF133BB 1220mm 3 Blade Ceiling Fan Brushed Nickel/Bamboo
MEF133OM 1220mm 3 Blade Ceiling Fan Old Bronze/Merbau
MEF133BS 1220mm 3 Blade Ceiling Fan Brushed Nickel/Silver
Models Parameters (Fan and LED Light):-
MEF1333MM 1220mm 3 Blade Ceiling Fan Matt Black with 24W Tricolour LED Light
MEF1333WW 1220mm 3 Blade Ceiling Fan Matt White with 24W Tricolour LED Light
MEF1333WO 1220mm 3 Blade Ceiling Fan Matt White/Oak with 24W Tricolour LED Light
MEF1333MB 1220mm 3 Blade Ceiling Fan Matt Black/Bamboo with 24W Tricolour LED Light
MEF1333BB 1220mm 3 Blade Ceiling Fan Brushed Nickel/Bamboo with 24W Tricolour LED Light
MEF1333OM 1220mm 3 Blade Ceiling Fan Old Bronze/Merbau with 24W Tricolour LED Light
MEF1333BS 1220mm 3 Blade Ceiling Fan Brushed Nickel/Silver with 24W Tricolour LED Light
Part List:
Qty 1x motor assembly Qty 1x instruction manual Qty 1x screw kit Qty 1x balancing kit
Qty 1x hanging bracket Qty 1x wall control kit Qty 3x blades
Application
Flat Surface / Ceiling Slope Ceiling up to 15° Corrugated Ceiling Apex Ceiling
How to Assemble
Secure the hanger bracket
to ceiling beam or a suitable
piece of timber inserted
between the ceiling beams
using the two long screws
supplied with the package.
(See Fg.1)
Place circular shockproof
gasket above the hanger
bracket. Align the bracket
and screw the hanger
bracket to the ceiling tightly.
(See Fg.2)
Place fan into hanger
bracket and align Ball Joint
Slot with hanger bracket as
illustrated.(See Fg.3)
After wiring is completed,
attach the canopy to the
hanger bracket by pushing
upwards and twisting anti-
clockwise. Tighten screws
and ensure canopy is not
touching the ball joint.
(See Fg.4)
Fg.1 Fg.2 Fg.3 Fg.4
www.martecaustralia.com.au
WARNING Installation MUST carry out by a qualied and licensed electrician.
How to Install Blades
NB: Ensure the blades do not get damaged or bent during the installation process while the fan maybe on the ground, this will aect the
performance and balance of the fan and this is NOT covered under warranty.
The screw installed on the upper housing must align at the gap as
shown. (See Fg.5)
Remove the screw at the lower housing. Align holes on the blades
with holes at the bottom of the motor. Tighten the blade using screws
provided. Repeat the same step until all blades are installed.
CCT (Colour Changeable Temperature)
Choose colour temperature by icking the switch in the
LED (See Fg.10)
C = 5000K cool white
N = 4000K neutral white
W = 3000K warm white
Fg.8
Fg.5

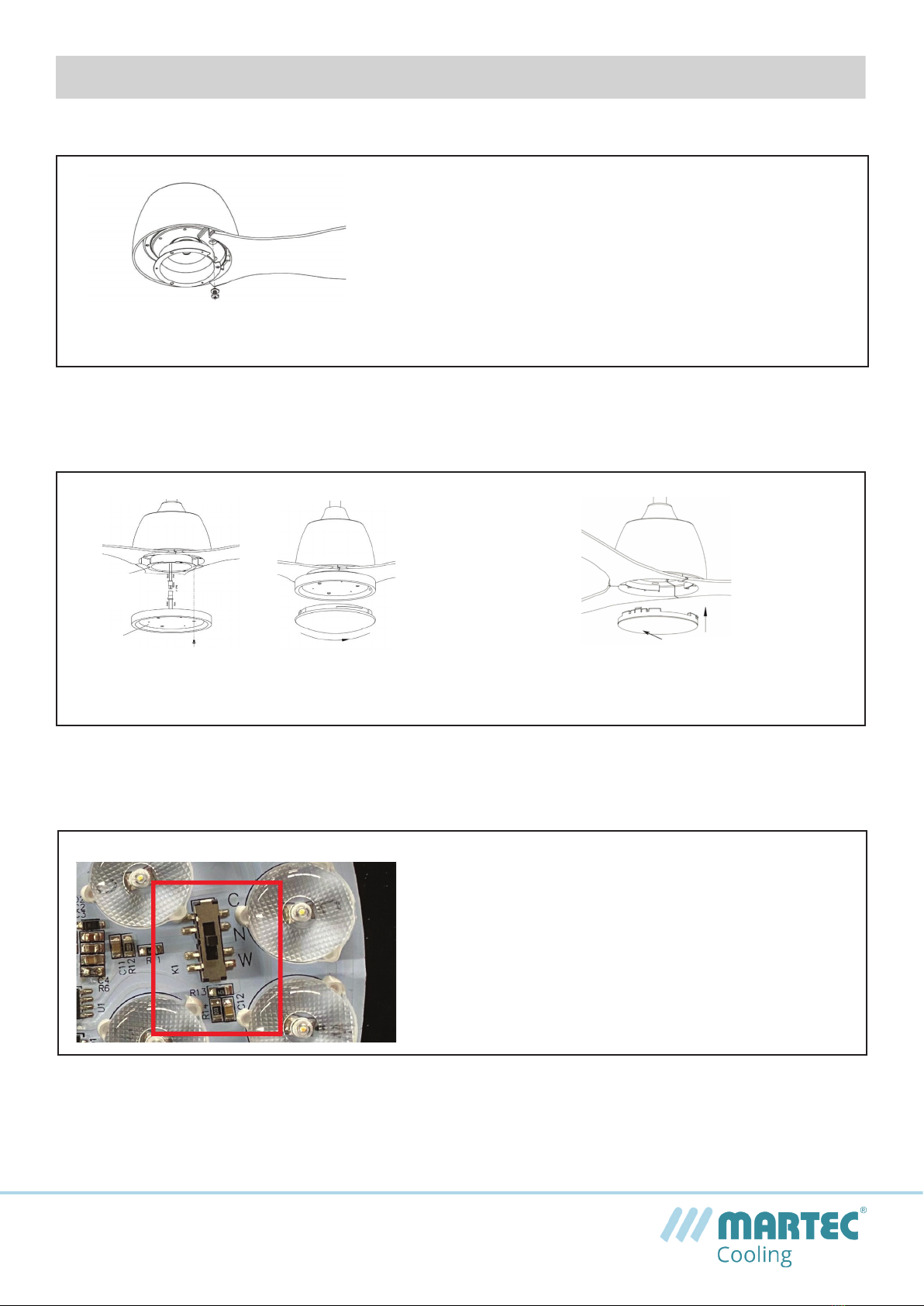

How to Install / Remove the Cover
To install: Remove the screw from the connecting plate. Plug
the wire into the light kit mounting hole. Align the thread with
connecting plate before tighten the screw.
To remove: Turn anti-clockwise.
Fg.6
To install: Align face plate with the blade gap
before pressing.
To remove: Turn anti-clockwise.
Fg.7Model shown with light Model shown fan only
Decoration Cover
Connecting
Plate
LED
www.martecaustralia.com.au
WARNING Installation MUST carry out by a qualied and licensed electrician.
Dimming
The Elite ceiling fan has a smart 3 step dimming LED light module which doesn’t require a dimmable remote control or a wall dimmer.
It only requires a normal on/o remote kit (MPREMS) or a normal light wall switch. (Supplied in remote control kit).
Turn the switch on and the light will turn on. Flick the switch on/o within 1 second and the light output will dim down to approx. 50%.
Flick the switch on/o again and the light output will dim down to approximately 15%. The light kit has no memory function, It will turn
on 100% initially.
Instructions and Functions of Transmitter
Setting the code on transmitter
1. Remove battery cover
2. Slide code switches to your
choice of ON/OFF position
3. Install battery (supplied)
Setting code on receiver:-
1. Slide code switches on the
receiver in the same position
set on the transmitter
NB: Martec Remotes - MPREMS (as
illustrated on the left), MPLCDS and
MAPP are sold separately.
Installing Receiver Remote Control
Receiver
Installation of transmitter wall mount
holder with two screws.
Brown
Blue
AC Power Input
Antenna
To Fan/Light/neutral
To Light/Live
To Fan/Live Green
Blue
Fan Motor
Black
L
N
www.martecaustralia.com.au
WARNING Installation MUST carry out by a qualied and licensed electrician.
Wire Connections
WARNING
• Installation of fans MUST follow SAA standards and meet local authority regulations.
• Installation MUST be carried out by a qualied and licensed electrician.
• Fan and light MUST be earthed.
• Bracket MUST be rmly attached to a at solid structure or timber frame.
• DO NOT mix blades from one model to another, all blades MUST be replaced if damaged.
• The warranty is VOID if product is not installed according to this installation guide.
6* Year Warranty
Visit our website for details https://www.martecaustralia.com.au/warranty-statement/
NB: Remote Control with or without lightNB: Wall control with light NB: Wall control without light
This manual suits for next models
14
