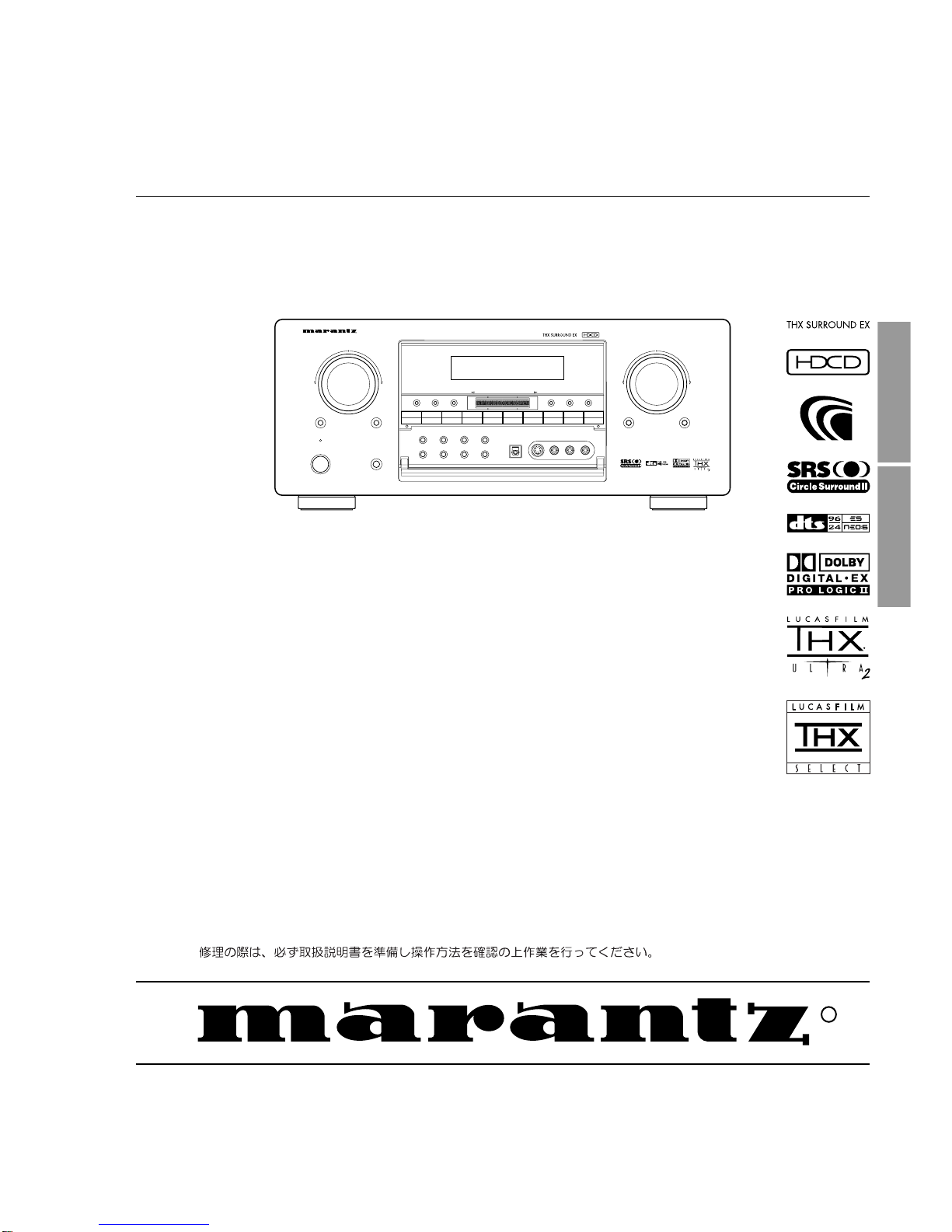

Marantz SR8300 User manual

AV Surround Receiver

SR8300 / SR9300 / PS9200

344J855020 MIT

First Issue 2002.12

SR8300 /N1B/S1B/U1B

/N1G/S1G/U1G

SR9300 /N1B/S1B/U1B

/N1G/S1G/U1G

R

SR8300 / SR9300

Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

Service

Manual

PS9200A /F1N

AV Surround Ampliﬁer

PS9200

REMARK :

This service manual shows only the differences between the model SR9200 / SR8200 /

PS9200 and the model SR9300 / SR8300 / PS9200A.

All other information is described in the service manual of the model SR9200 / SR8200 /

PS9200 (Code number 344J855010).

The dispatch of the parts for after sales service has to be referred to these service

manuals, with the ﬁrst priority.

For this reason, please use this service manual with referring to the model SR9200 /

SR8200 / PS9200 service manual without fail.

AV SURROUND RECEIVER SR9300

POWER ON/STANDBY

STANDBY

VOLUME

UPDOWN

PHONES

SELECT MUTE ATTENTER

SELECTOR

7.1CH-IN

LD DSS TAPE CD-R TUNERCDDVD TV VCR 1 VCR2/DVD-R

MULTI-SPK

MULTI ROOM

AUX1S-DIRECT

AUX2A/D

SLEEP

AUTO-TUNE

GYRO TUNINGDOWN UP T-MODEF/P

AUX1 INPUT

R

AUDIO

L

VIDEO

S-VIDEO

DIGITAL

MEMO

CLEARDISPLAY

POS. NO. VERS.

COLOR PART NO.

(FOR EUR) DESCRIPTION PART NO.

(MJI)

001B /N1B/S1B 343J248210 FRONT AL PANEL (SR8300 BL) 343J248210

001B /N1G/S1G 343J248310 FRONT AL PANEL (SR8300 GL) 343J248310

001B /U1B FRONT AL PANEL (SR8300 BL) U 343J248220

001B /U1G FRONT AL PANEL (SR8300 GL) U 343J248320

009G 03AJ057110 LEGS 03AJ057110

010G 03AJ057110 LEGS 03AJ057110

001S 343J801110 PACKING CASE (SR8300) 343J801110

001T /N 343J851320 USER GUIDE SR8300 N 343J851320

001T /S USER GUIDE SR8300 S 343J851360

001T /U USER GUIDE SR8300 U 343J851260

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

POS. NO. VERS.

COLOR PART NO.

(FOR EUR) DESCRIPTION PART NO.

(MJI)

001B /F FRONT AL PANEL (PS9200 GL)V2 344J248340

001B /N1B/S1B 344J248210 FRONT AL PANEL (SR9300 BL) 344J248210

001B /N1G/S1G 344J248310 FRONT AL PANEL (SR9300 GL) 344J248310

001B /U1B FRONT AL PANEL (SR9300 BL) U 344J248220

001B /U1G FRONT AL PANEL (SR9300 GL) U 344J248320

003B /F BADGE VERSION 2 318J251020

009G 03AJ057110 LEGS 03AJ057110

010G 03AJ057110 LEGS 03AJ057110

001T /N 344J851320 USER GUIDE SR9300 N 344J851320

001T /S USER GUIDE SR9300 S 344J851360

001T /U USER GUIDE SR9300 U 344J851260

Z011 /F MAINS CORD DC-302-J 125V 12A ZC01802080

001S /N/S/U nsp PACKING CASE (SR9300) 344J801110

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.

SR9300 / PS9200A : PARTS LIST

SR8300 : PARTS LIST

The change parts are the following.Other parts are the same.

SERVICETOOL

Updated of the CPU and DSP DISC ...........................*SR9300CDR

REMARK:

The disc is used when QU01 and Q671 are replaced.

No software is in the IC's when replaced.

Refer the service manual for SR9200/SR8200/PS9200 (344J855010) to upload software.

The procedure to upload is the same to the SR9200/SR8200/PS9200.

However the software is NOT the same to the SR9200/SR8200/PS9200.

NEVER write the software to SR9200/SR8200/PS9200. It causes breakdown.

So be careful to use this disc to upload.
