Manhattan 208000 User manual
MAN-208000/208017-UM-0407-02
HDMI SwItcH
USER MANUAL
MODELS 208000 & 208017
2
Thank you for purchasing the MANHATTAN®3-Port (Model 208000) or 5-Port (Model 208017)
HDMI Switch.
If you have more than one high-definition media source but only a single monitor, there is no
longer a need to disconnect and reconnect HD devices, risking damage to ports and expensive
cables. With this MANHATTAN HDMI Switch, everything stays connected, accessible and
ready to use, making it ideal for use with home theater and dual computer systems.
The main features include:
• Lets you easily select between multiple high-definition sources sharing one monitor.
• Eliminates cable-swapping to reduce high-performance cable and port damage.
• Keeps devices connected and ready to use.
• Maintains highest single-link resolutions for clear, sharp images – up to 1080p or WUXGA
(1920 x 1200; 1.6:1)
• Four-function (Model 208000) or six-function (Model 208017) remote control
• Lifetime Warranty
3
INStALLAtIoN
1. Using standard HDMI cables, connect the HDMI output port of your video source to the
HDMI input port of the switch. Make sure all HDMI sources and the display are turned off
before connecting the cables.
2. Plug the 9V power supply into the switch’s power input port.
3. Plug the 9V wall-mount power supply into the wall outlet.
4. Turn on the display.
5. Turn on the video resources.
6. Use the remote control unit to change channels or use the push button to switch channels.

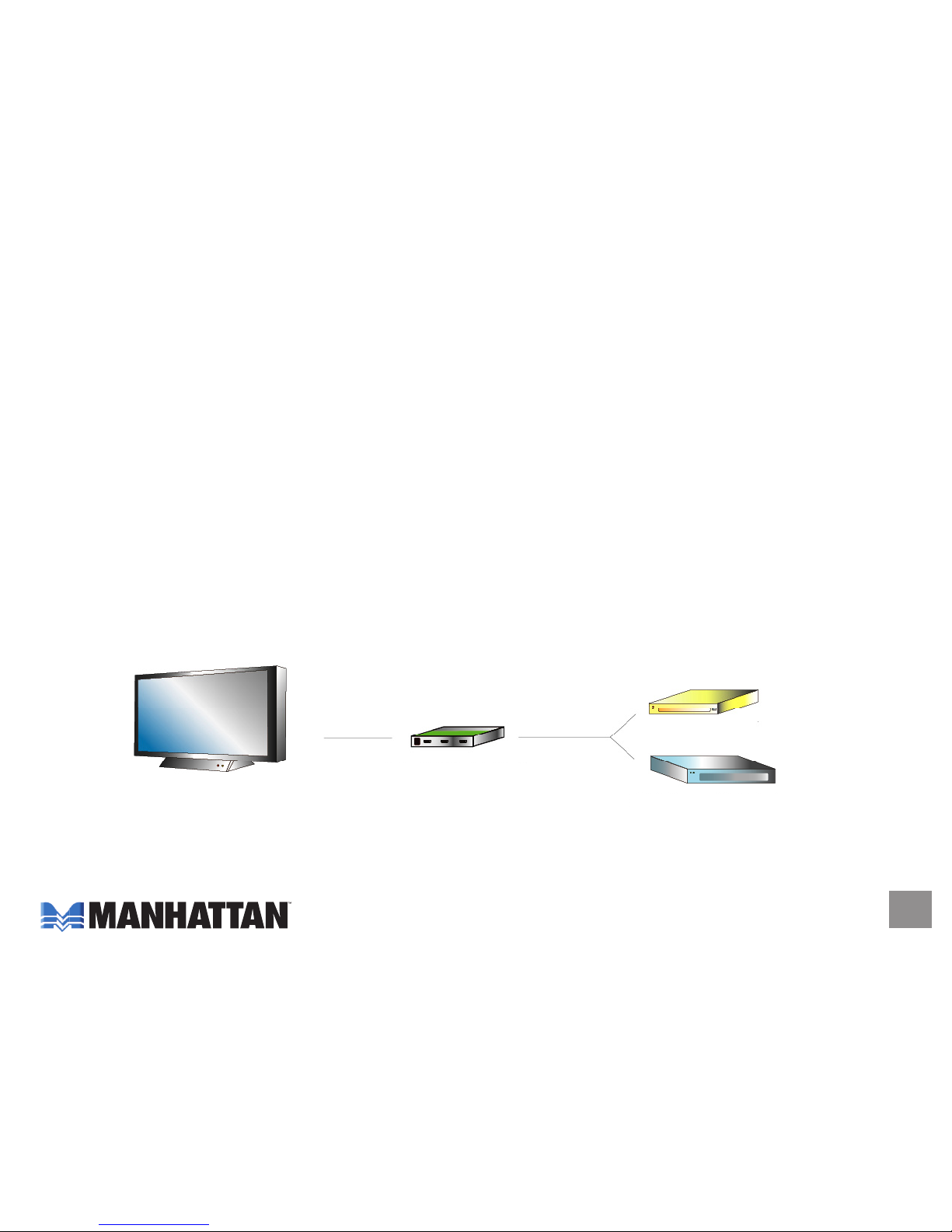

HDTV monitor
HDMI switch
Set-top box/DVD player
4
HDMI coNNEctoR PIN ASSIgNMENtS
Pin No. Description
1 TMDS DATA 2 +
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2 -
4 TMDS DATA 1 +
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1 -
7 TMDS DATA 0 +
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0 -
10 TMDS Clock +
Pin No. Description
11 TMDS Clock SHIELD
12 TMDS Clock -
13 CEC
14 RESERVED
15 SCL
16 SDA
17 DDC/CEC GND
18 + 5V
19 Hot Plug Detect
5
tRoUbLESHootINg
The switch will not operate. 1. Make sure the 9V power adapter is plugged into the switch.
2. Check to see if the LED light is on.
No picture or signal; 1. Make sure your video display is HDCP compliant.
or poor picture. 2. If you are using HDMI copper cable, the overall length of the
cable should not exceed 15 ft. (Exceeding 15 ft. with HDMI
copper cable will result in no or poor resolution.) If the cable
length needs to be more than 15 ft., use equalizer cable.
3. Make sure all HDMI connectors are tightly secured to all
HDMI ports.
4. Turn off all devices, then restart.
The remote control unit 1. Make sure the 9V power adapter is plugged into the switch.
will not operate. 2. Check to see if the LED is on.
NOTE: The remote control unit uses unique codes. To program your own universal remote
control, first familiarize yourself with its features.
6
SPEcIfIcAtIoNS
• Model 208000: 2 HDMI inputs and 1 HDMI output
• Model 208017: 4 HDMI inputs and 1 HDMI output
• DDWG and HDCP compliant
• Plug and Play; no installation software required
• DC 9 V / 500 mA power adapter; remote control (CR2025 lithium battery included)
• User manual
7
NOTES
Copyright © MANHATTAN
All products mentioned are trademarks or registered trademarks of their respective owners.
www.manhattan-products.com
MANHATTAN®offers a complete line of PC Components, Peripherals, Cables
and Accessories. Ask your local computer dealer for more information
or visit us online at
