Manhattan 160476 User manual

MAN-160476-UM-1106-05

Parallel PCI

exPress Card

User MaNUal

MODEL 160476

Thank you for purchasing the MANHATTAN®Parallel PCI Express Card, Model 160476.

Compliant with PCI Express 1.0a speciﬁcations, this card adds two conﬁgurable parallel ports

to a desktop computer to support data transfer rates of up to 1.5 MBps.

hardware INstallatIoN

1. Turn off the power to the computer system.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

4. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the

motherboard. Push the board down ﬁrmly.

5. Connect the system power source to the board’s power connector.

6. Replace the slot bracket’s holding screw to secure the card.

7. Replace the computer cover and reconnect the power cord.

drIver INstallatIoN

NOTE: Make sure the board is installed before proceeding with driver installation.

For Windows 2000

1. On the Found New Hardware Wizard screen,

click "Next."

2. Select "Search for a suitable driver for my

device (recommended)," and click "Next."

3. Check "Specify a location," uncheck the other

boxes, then click "Next."

4. Insert the driver CD, enter "D:\PCIe\2P\2000"

in the "Copy manufacturer’s ﬁles from" ﬁeld,

then click OK. (If needed, change "D:" to

match your CD-ROM drive designation.)

5. Click "Next," then "Finish."

6. Restart Windows to complete the

installation.

For Windows XP

1. On the Found New Hardware Wizard screen, select

"Install from a list or speciﬁc location (Advanced)," then

click "Next."

2. Insert the driver CD, check "Include this location in the

search" and enter "D:\PCIe\2P\XP" in the blank ﬁeld,

uncheck the other box, then click "OK." (If needed,

change "D:" to match your CD-ROM drive

designation.)

3. If the Hardware Installation window pops up, click

"Continue Anyway," then click "Finish." The driver has

been thoroughly tested for stability and compatibility.

4. Repeat steps 1-3 two more times.

5. Restart Windows to complete the installation.

For Windows Server 2003

1. On the Found New Hardware Wizard screen,

select "Install from a list or speciﬁc location

(Advanced)," then click "Next."

2. Insert the driver CD, check "Include this location in

the search" and enter "D:\PCIe\2P\2003" in the

blank ﬁeld, uncheck the other box, then click "OK."

(If needed, change "D:" to match your CD-ROM

drive designation.)

3. If the Hardware Installation window pops up, click

"Continue Anyway," then click "Finish." The driver has

been thoroughly tested for stability and compatibility.

4. Repeat steps 1-3 two more times.

5. Restart Windows to complete the installation.

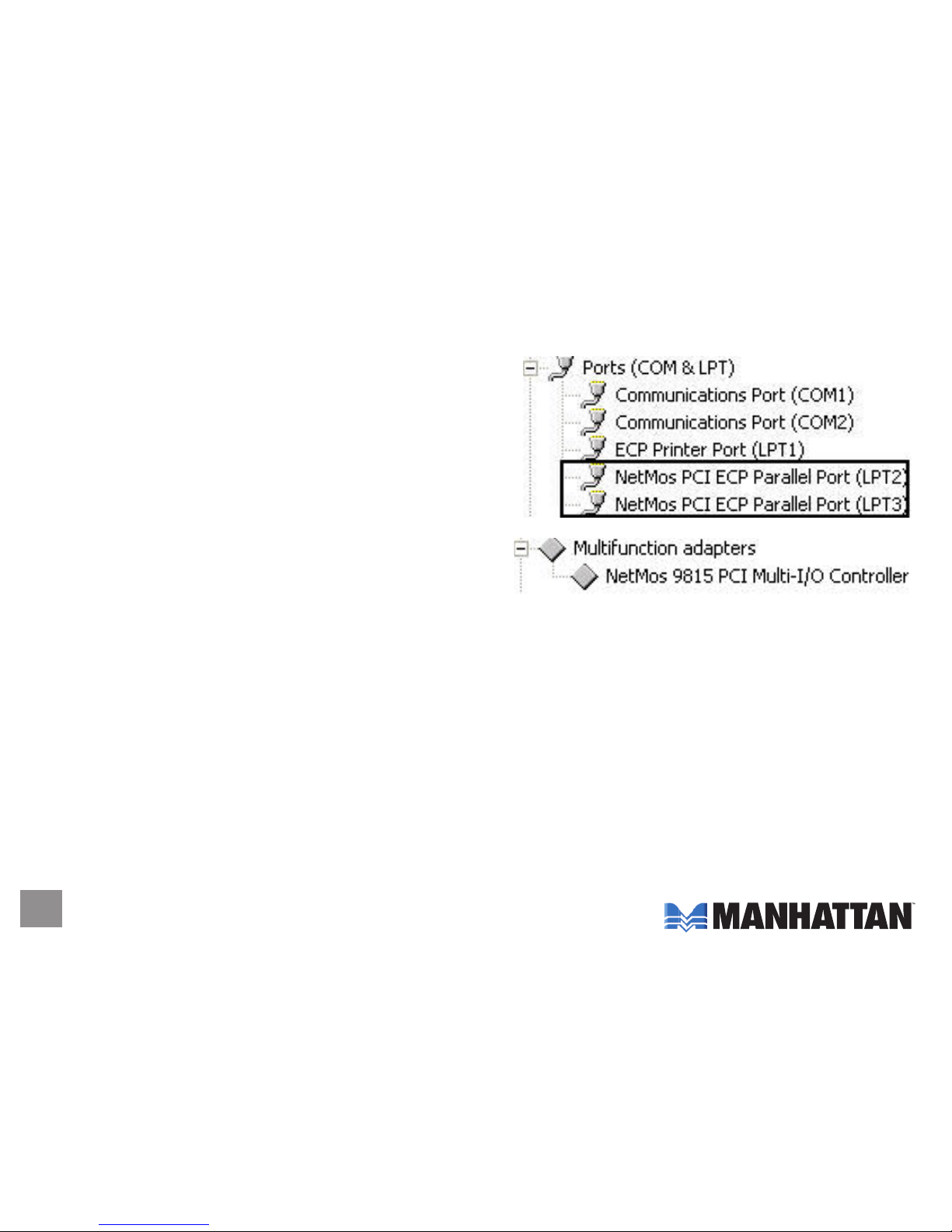

Verifying Windows 2000/XP/Server 2003 Installation

1. Right click on "My Computer," then click "Manage."

Click on "Device Manager."

2. Click on "+" in front of "Ports (COM & LPT)." Two

"NetMos PCI ECP Parallel Port …" options should

be displayed.

3. Double-click on "Multifunction adapters." "NetMos

9815 PCI Multi-I/O Controller " should be

displayed.

Changing the Parallel Port Address

Some parallel devices need a speciﬁc parallel port in order to work. If your device works properly,

don’t change this setting. Otherwise, follow these steps for Windows 2000/XP/Server 2003.

1. From the Device Manager window, double-click "Ports (COM & LPT)," then double-click on

"NetMos PCI ECP Parallel Port..."

2. Click on the Port Settings tab.

3. At the "LPT Port Number" box, click the down arrow and select an LPT port that is not in use.

4. Click "OK," then close Device Manager to save the changes.

sPeCIfICatIoNs

Port Speciﬁcations

• Two DB25 female ports

• Fast transfer rate of up to 1.5 MBps

• Multi-mode support of SPP, PS2, EPP and ECP

• MosChip printer port controller

• Single 3.3 V operation

• PCI-compliant 1284 printer port

• Re-map function for legacy ports

• 16-byte transmit/receive FIFO

Bus Speciﬁcations

• PCI Express x1

• Texas Instruments chipset

• Bus speed: 2.5 Gbps

• Fully compliant to PCI Express speciﬁcations

1.0a

System Requirements

• Windows 2000/XP/Server 2003/Vista

• PCI Express-enabled system with an

available PCI Express slot

• CD-ROM drive

Package Contents

• Parallel PCI Express Card with DB25 female

port, x1 lane

• Bracket with one DB25 female port

• User manual and driver CD

www.manhattan-products.com

Are you completely satisﬁed with this product?

Please contact your MANHATTAN®dealer with comments or questions.

All products mentioned are trademarks or registered trademarks of their respective owners.
