Manhattan 176811 User manual

MMX

WIRELESS

OPTICAL

MOBILE

MINI MOUSE

USER

MANUAL

Model 176811

MAN-176811-UM-0907-03

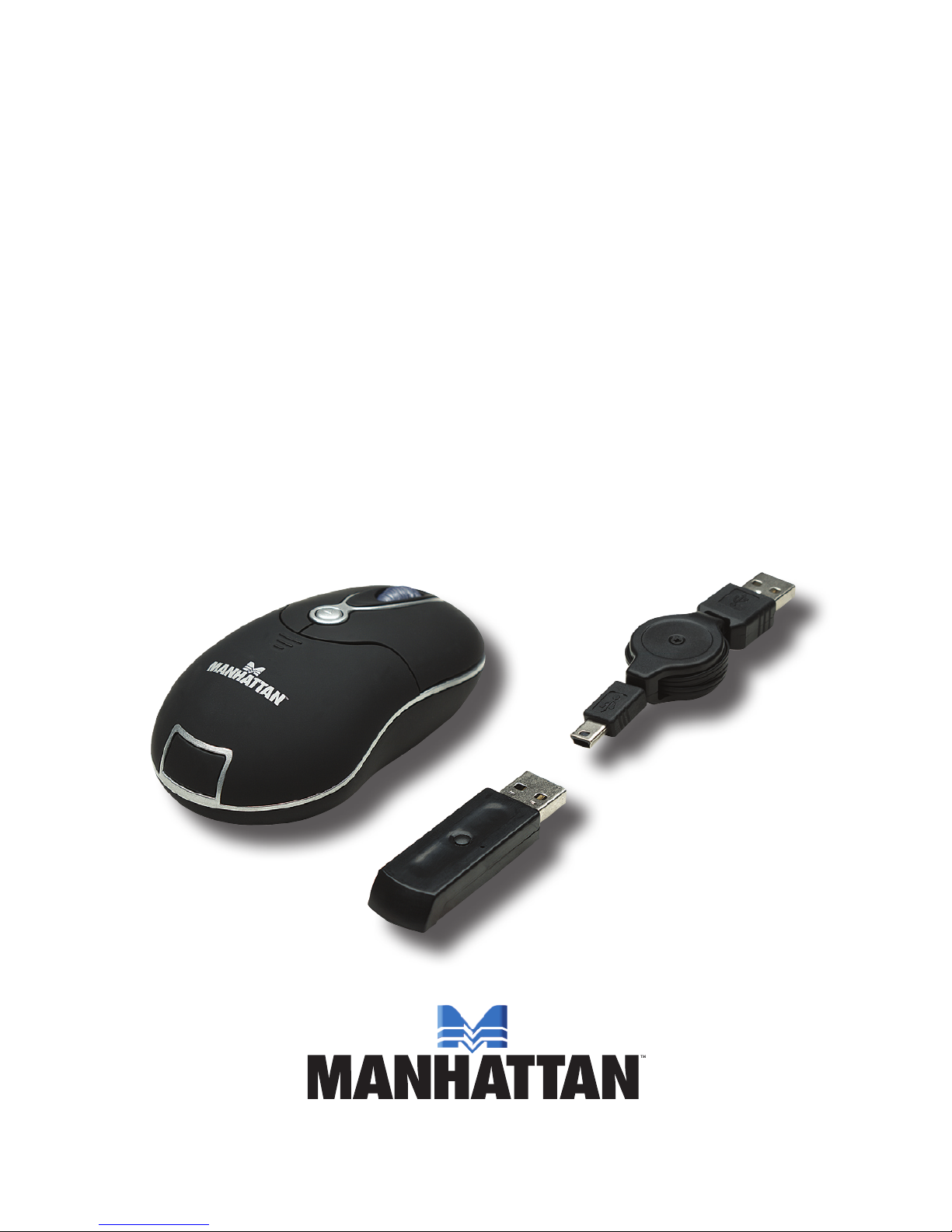

Thank you for purchasing the MANHATTAN

MMX Wireless Optical

Mobile Mini Mouse, Model 176811.

The easy-to-follow instructions in this user manual help make installation

of the mouse quick and simple, so you’ll also soon be enjoying the

benets of these features:

• 27 MHz technology offers wireless freedom with effective range up to

1.5 m (5 ft.)

• 256 ID codes prevent interference from other RF wireless devices

• Auto power management and detachable cable help maintain battery

levels — recharges while in use for uninterrupted operation

• On-board storage compartment protects USB receiver from loss and

damage

• Compact size, ambidextrous shape and no-slip texture provide a secure

and comfortable grip

• Low-friction base smoothly glides over work surfaces

• Plug and Play installation — Windows compatible

• Lifetime Warranty

Package Contents

• USB Wireless Optical Mouse with Receiver

• 2 AAA batteries and retractable cable reel

• User manual and carrying bag

FCC Statement

This equipment has been tested and found to comply with the limits for

a class B digital device, pursuant to part 15 of the FCC rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception — which can be

determined by turning the equipment off and then back on — the user

is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult your MANHATTAN dealer or an experienced radio/TV technician

for help.

INSTALLATION

Built-In Mini Receiver

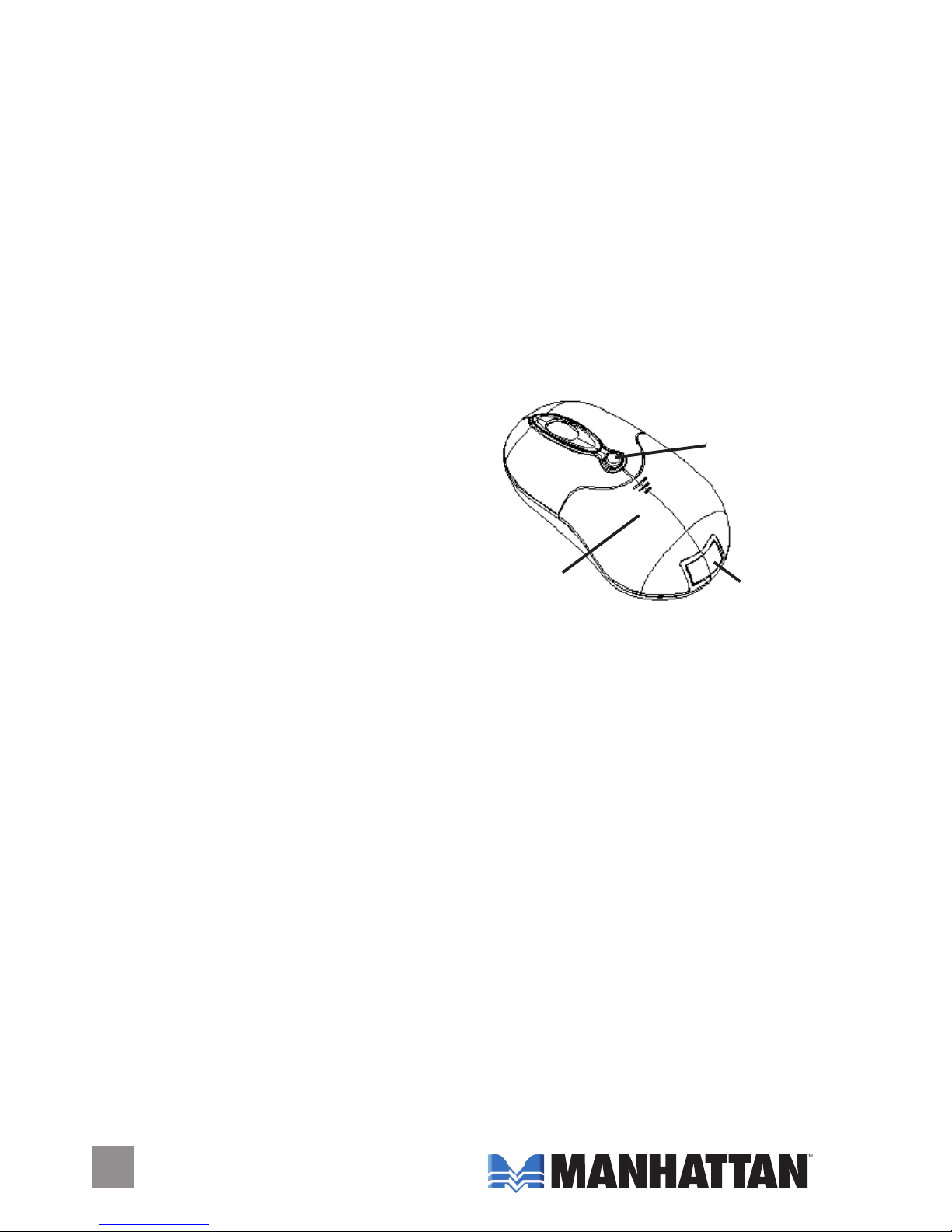

Press the Receiver Out button and the

mini receiver will pop out of the back of

the mouse. Re-insert the receiver and

the mouse/transmitter power will

automatically be turned off.

Batteries

Press down on the battery compartment cover just behind the Receiver

Out button (as shown above) and slide the cover back to access the

compartment. Insert the two included AAA batteries, matching the

polarity indicators on the inside of the compartment. Replace the cover,

sliding it forward till it clicks in place.

Receiver Out

button

Battery

compartment

cover

Receiver

access

OPERATION

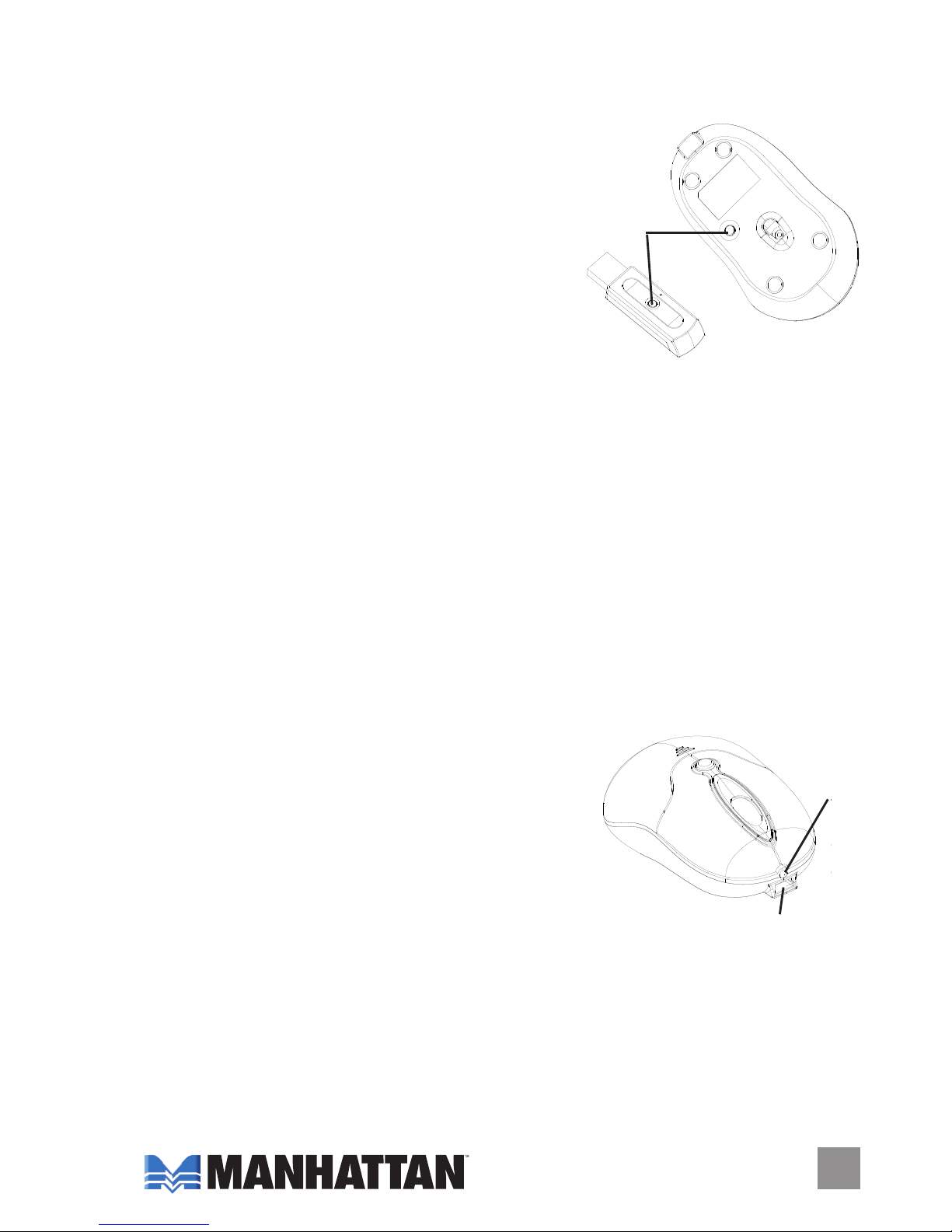

ID Setup for Wireless Operation

With the mouse positioned near the receiver,

use a hard, narrow object (such as a pin or

a straightened paper clip) to press both ID

buttons: rst on the receiver; then, within

10 seconds, on the underside of the

mouse. Hold each button in for a full

second. The receiver light will ash rapidly

for a few seconds, then remain lit, indicating that the connection between

the receiver and the mouse has been made and the mouse is ready for

wireless operation.

Wired Operation

Where the use of wireless devices is restricted; or when the mouse is

low on power — the mouse can be operated as a wired device. With

the retractable cable connected to the front of the mouse, connect the

other end to the computer. If only a PS/2 port is available, an adapter

can be used.

Remember to place the receiver back in the mouse so you don’t lose it.

Battery Charging

While using the mouse, if the red Low Battery

LED ashes, re-charge or change the

batteries. To re-charge, connect the mouse

to the computer with a USB cable. The mouse

can be used while the batteries charge; a full

charge requires 8-10 hours. To stop charging,

unplug the cable. NOTE: The actual charging time depends on the

degree of the discharge.

ID connect

buttons

Charge

connector

Low battery

Low

Battery

LED

Charge connector

Operating Tips

• Operate the mouse within 1.5 m (5 ft.) of the receiver.

• Place the mouse on a white or light-colored surface for optimal

performance. Remove the batteries if the mouse will not be used for

an extended period of time or if you transport the device outdoors.

• The mouse automatically enters a sleep mode after a period of inactivity

to save power. Press any key or scroll to wake it.

• To disconnect power to the mouse, press and hold the ID button on the

underside of the mouse for 3 seconds. To restore power to the mouse,

press the ID button again.

• If the Low Battery LED on the receiver ashes when the mouse is moved,

change or re-charge the batteries immediately.

• The optical mouse will not work freely on a smooth desk, glass or any

reective surface or 3D mouse pad.

• Remember to store the receiver in the mouse when it’s not being used.

SPECIFICATIONS

Standards and Certications

• USB 1.1, FCC, CE, WEEE

General

• USB 1.1 receiver

• RF 27 MHz with 256 IDs

• Recharge time: 8-10 hours to

fully charge

• Mouse: optical, 800 dpi resolution

• Automatic power save/power off

mode

• LED indicator: Activity

• Controls: right and left mouse

with scroll wheel

• Material: ABS plastic

• Compatible with Windows 2000/

XP/Vista

Dimensions

• Mouse: optical, 800 dpi; 9.5 x 5.4

x 3.5 cm (3.75 x 2.125 x 1.4 in.);

76.5 g (2.7 oz.)

• USB receiver: 27 MHz (256 IDs);

5.5 x 1.5 x 1 cm (2.2 x 0.6 x 0.4

in.); 5.7 g (0.2 oz.)

• USB retractable cable: A-type

male to mini-B-type male, 76 cm

(30 in.)

Environmental

• Operational temperature: 0 – 45°C

• Storage temperature: -40 – 45°C

• Working humidity: <85%

• Electrical: 5 V <30 mA

www.manhattan-products.com

MANHATTAN®offers a complete line

of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information

or visit us online at

All products mentioned are trademarks or registered trademarks of their respective owners.
