Makita HR4510C Quick start guide

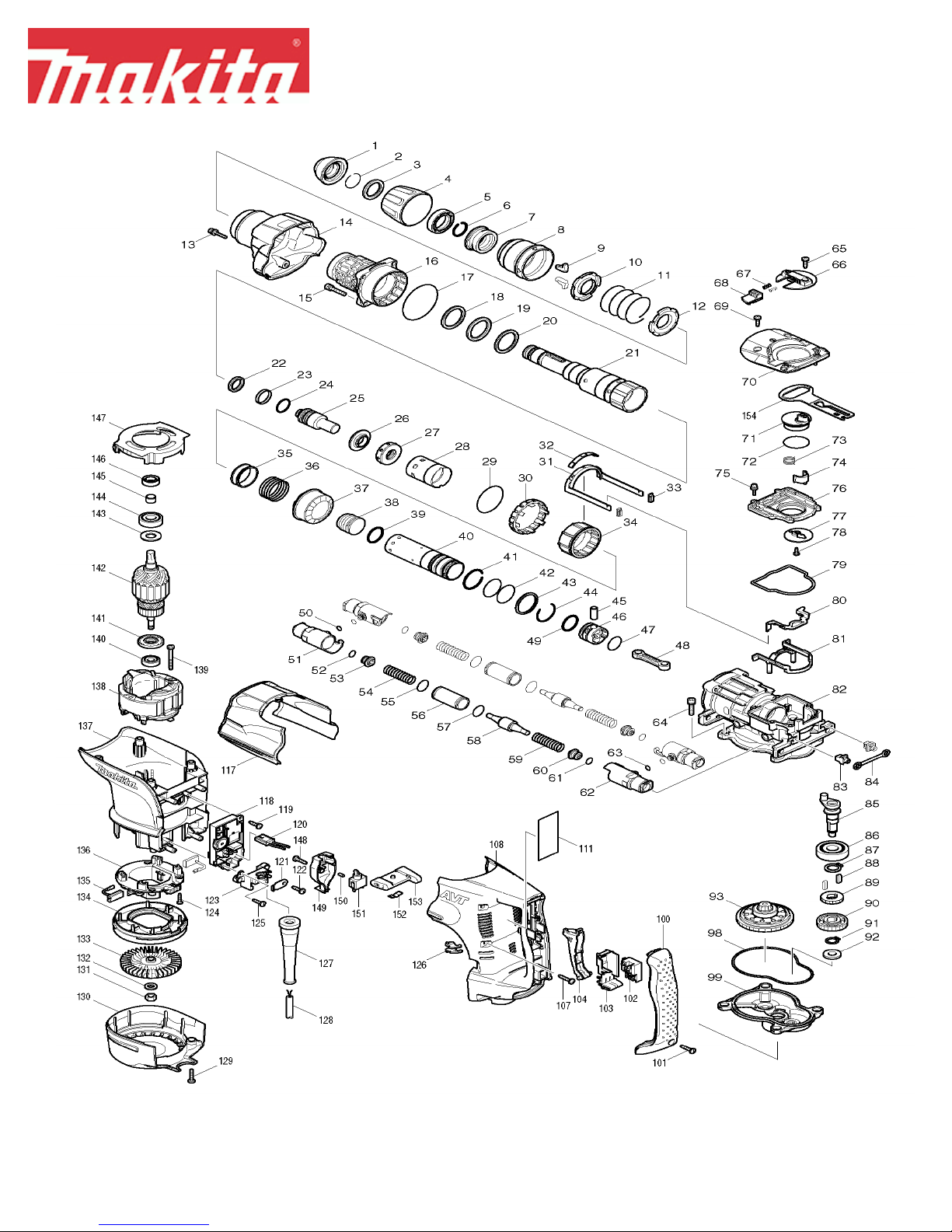

Parts Breakdown HR4510C

Page 1 of 4 2/8/2008

Parts Breakdown HR4510C

Fig # Part ID Part Name Quantity

1 286272-3 TOOL HOLDER CAP, HR4001C 1

1 286285-4 N/A 1

2 233948-3 RING SPRING 25, HR5210C 1

3 257280-1 RING 29, HR5210C 1

4 450064-8 N/A 1

5 419002-9 SPACER, HR4001C 1

6 233948-3 RING SPRING 25, HR5210C 1

7 324752-2 N/A 1

8 450030-5 N/A 1

9 310178-4 TOOL RETAINER, HR5210C 2

10 345804-6 SPRING GUIDE, HR5210C 1

11 233496-2 COMPRESSION SPRING 49, HR5210C 1

12 345804-6 SPRING GUIDE, HR5210C 1

13 922148-7 H.S.H. BOLT M4X25, 6922NB 1

14 158300-3 N/A 1

15 922353-6 H. S. H. BOLT M6X30,HR5001C 4

16 158576-2 N/A 1

17 213754-2 O RING 71, HR5000 1

18 267357-4 N/A 1

19 262135-7 N/A 1

20 267357-4 N/A 1

21 324872-2 N/A 1

22 213980-3 N/A 1

23 213431-6 FLUORIDE RING 28, HR5001C 1

24 213394-6 O RING 23, HR5001C 1

25 324802-3 N/A 1

26 324805-7 N/A 1

27 424032-7 N/A 1

28 450024-0 N/A 1

29 213656-2 O RING 53, AN451 1

30 450031-3 N/A 1

31 165465-4 N/A 1

32 450032-1 N/A 1

33 424024-6 SEAL PLATE, HR5210C 2

34 324800-7 N/A 1

35 331599-7 RING 38, HR4500C 1

36 234024-6 N/A 1

37 227526-9 N/A 1

38 324804-9 N/A 1

39 213981-1 N/A 1

40 324803-1 N/A 1

41 233956-4 N/A 1

42 213460-9 O RING 35, HM1500 2

43 257283-5 N/A 1

44 233955-6 N/A 1

45 331598-9 PIPE 10, HR4500C 1

46 450025-8 N/A 1

47 213407-3 O RING 26, 4200H 1

48 450026-6 N/A 1

49 213981-1 N/A 1

50 213030-4 O RING 8, AN451 2

51 318169-9 N/A 2

52 213118-0 O-RING 12, 5277NB 2

53 450027-4 N/A 2

54 234023-8 N/A 2

55 213373-4 O RING 22, GEO600 2

56 331778-7 N/A 2

57 213373-4 O RING 22, GEO600 2

58 324806-5 N/A 2

59 234023-8 N/A 2

Page 2 of 4 2/8/2008

Parts Breakdown HR4510C

60 450027-4 N/A 2

61 213118-0 O-RING 12, 5277NB 2

62 318169-9 N/A 2

63 213030-4 O RING 8, AN451 2

64 922353-6 H. S. H. BOLT M6X30,HR5001C 4

65 266192-7 TAPPING SCREW 4X14, 2012NB 1

66 419020-7 CHANGE LEVER, HR4001C 1

67 233436-0 COMP. SPRING 3, HR4001C 2

68 419009-5 LOCK BUTTON, HR4001C 1

69 266192-7 TAPPING SCREW 4X14, 2012NB 2

70 318171-2 N/A 1

71 419784-3 CRANK LEVER, HR5210C 1

72 213515-0 O RING 36, 9040L 1

72 213534-6 N/A 1

73 233506-5 TORSION SPRING 16, HR5210C 1

74 310207-3 LINK LEVER, HR5210C 1

75 911133-5 P.H. SCREW M4X18, N9501B 6

76 450034-7 N/A 1

77 345778-1 RETAINER PLATE, HR5210C 1

78 266020-6 TAPPING SCREW,PT4X12,9046 1

79 424034-3 N/A 1

80 345822-4 N/A 1

81 450029-0 N/A 1

82 158297-6 N/A 1

83 419008-7 FIX GUIDE, HR4001C 2

84 423345-3 CUSHION PLATE, HR4001C 1

85 324801-5 N/A 1

86 211279-0 BALL BEARING 6303LLU, HM0810B 1

87 961057-5 RETAINING RING S-17, 2711 1

88 254220-0 KEY 5, LP1812C 2

89 227181-7 N/A 1

90 226655-5 N/A 1

91 961054-1 RETAINING RING S-14, 6302 1

92 253180-3 F. WASHER 10, 6222DWE 1

93 125415-1 N/A 1

98 424033-5 N/A 1

99 158299-2 N/A 1

100 419796-6 HANDLE COVER, HR5210C 1

101 265995-6 TAPPING SCREW 4X18, 4323K 1

102 650567-4 SWITCH, HR4001C 1

103 154626-1 SWITCH HOLDER CPL.,HR4001 1

104 419028-1 SWITCH LEVER, HR4001C 1

107 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B 6

108 450040-2 N/A 1

111 864092-1 N/A 1

117 450036-3 N/A 1

118 631750-2 N/A 1

119 266192-7 TAPPING SCREW 4X14, 2012NB 1

120 638510-3 LEAD UNIT, HR5210C 1

121 687169-3 STRAIN RELIEF, HP1621F 1

122 266192-7 TAPPING SCREW 4X14, 2012NB 1

123 419024-9 CORD LAMP BASE, HR4001C 1

124 265995-6 TAPPING SCREW 4X18, 4323K 4

125 266192-7 TAPPING SCREW 4X14, 2012NB 1

126 419774-6 LENS, HR5210C 1

127 682560-0 CORD GUARD 10, HM1202C 1

128 664471-1 CORD, 2X14X16;SJ, HM1500 1

129 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B 2

130 450035-5 N/A 1

131 252178-7 HEX NUT M8-12, 4112H 1

132 253165-9 F. WASHER 8, 4303C 1

Page 3 of 4 2/8/2008

Parts Breakdown HR4510C

133 240016-5 FAN 90, HR5001C 1

134 419782-7 FAN GUIDE, HR5210C 1

135 194412-8 CARBON BRUSH CB-171, HR5210C 1

136 638447-4 BRUSH HOLDER UNIT, HR5210C 1

137 450041-0 N/A 1

138 636311-3 N/A 1

139 266046-8 T. SCREW FLANGE PT5X50,HR2010 2

140 210059-1 BALL BEARING 6000DDW, HR4040C 1

141 681642-5 INSULATION WASHER, LS1013 1

142 517766-0 N/A 1

143 267025-9 F. WASHER 15, HR4500C 1

144 211238-4 BALL BEARING 6202LLU, HR4500C 1

145 331596-3 SLEEVE 12, HR4500C 1

146 213231-4 OIL SEAL 15, HR4500C 1

147 450033-9 N/A 1

148 266192-7 TAPPING SCREW 4X14, 2012NB 1

149 419786-9 SWITCH BOX, HR5210C 1

150 263027-3 RUBBER PIN 4, HM0860C 1

151 651418-4 SWITCH, JN1601 1

152 232209-8 LEAF SPRING, HM0860C 1

153 154635-0 SLIDE LEVER CPL.,HR4001C 1

154 450042-8 N/A 1

1,001 158131-0 GRIP 36 CPL.,HR4041C 1

1,002 158275-6 PLASTIC CARRYING CASE, HR5210C 1

1,003 181573-3 BIT GREASE, HR2400 1

1,004 134890-0 SIDE HANDLE 68 ASS'Y,HR4000C 1

1,005 443122-7 CLOTH F/WIPING OIL, HR4001C 1

1,006 265701-9 SCREW M6X14, 5177B 1

1,007 266163-4 C.S.N.BOLT M8X80, HR4000C 1

1,008 321248-4 DEPTH GAUGE, HR3851 1

1,009 344491-8 GRIP SPRING 68, HR4000C 1

1,010 344492-6 PLATE, HR4000C 1

1,011 416299-1 SIDE GRIP BASE 68, HR4000C 1

1,012 931302-2 HEX NUT M6, HR2400 1

Page 4 of 4 2/8/2008
